WPX 70 Worm Gearbox

The WPX 70 Worm Gearbox is a specialized device in mechanical drive systems, tasked with reducing output rotational speed and increasing torque, helping machinery operate more stably and accurately. The characteristic perpendicular input-output shaft design of the gearbox (speed reducer series) provides flexible application in systems with limited space. This is an ideal product line for businesses looking for an efficient, durable reduction solution with optimized maintenance costs.

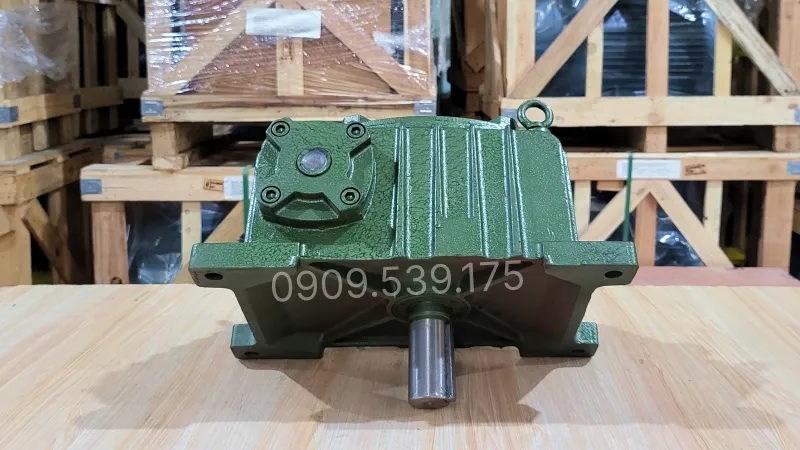

General design of the WPX 70 worm gearbox

The worm gearbox features an outer casing cast in one piece from high-quality grey cast iron, ensuring high rigidity and load-bearing capacity even when working in heavy vibration or humid environments. The worm and worm wheel structure is positioned perpendicularly to optimize space and transmit force efficiently. In addition, the external electrostatic powder coating protects the device from corrosive agents and increases durability in harsh working environments.

Typically, the device is connected to an electric motor via a coupling or pulley, creating a gear motor that helps adjust the output speed.

Structure of the WPX 70 worm gearbox

The worm and worm wheel drive mechanism meshes precisely, minimizing energy loss and significantly reducing noise, consisting of:

• Worm shaft: Machined from anti-rust alloy steel, hardened to increase load capacity, wear resistance, and maintain transmission accuracy.
• Worm wheel: Produced from copper alloy to help reduce friction, increase efficiency, and support natural lubrication during continuous operation.
• Bearings: Precisely arranged to limit vibration, ensure smooth rotational movement, and minimize noise.
• Meshing mechanism: The precise joint design between the worm shaft and worm wheel ensures stable force transmission, suitable for applications requiring low speed and high pulling force.
• Housing: Color-fast powder-coated, anti-rust, resistant to high humidity and mild dust or chemicals.

Technical specifications of the WPX 70 worm gearbox

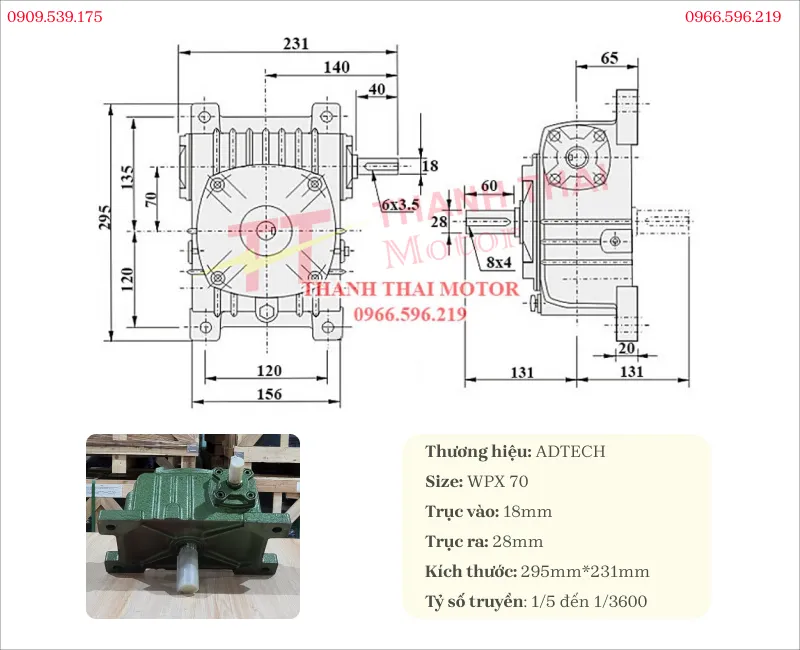

The WPX 70 worm gearbox has an optimal size, suitable for installation locations with narrow spaces or requiring neat layout, and can be mounted with a 3-phase electric motor 0.55kW 0.75Hp, or a 3-phase electric motor 0.75kW 1Hp via pulleys and couplings. Refer to the technical specifications below:

Practical applications of the WPX 70 worm gearbox

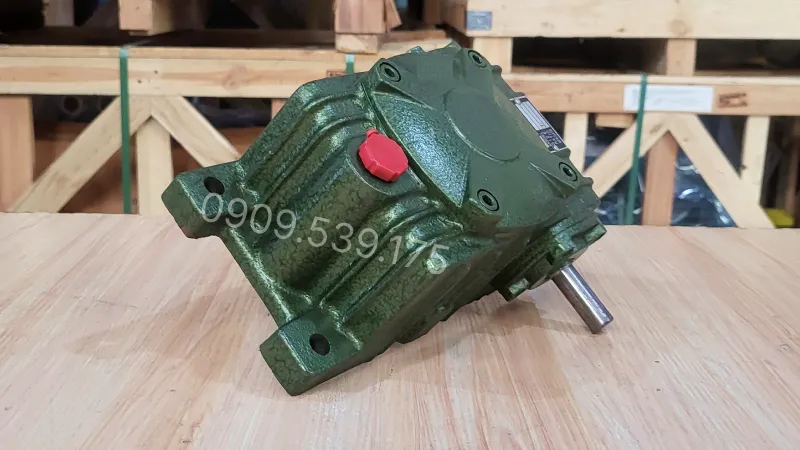

The WPX 70 worm gearbox is widely used in various industries requiring speed adjustment and increased output pulling force, typically:

• Food processing industry: Used in mixers, material conveying belts, automatic packaging equipment.
• Mechanical & processing industry: Applied in mini lathes, milling machines, small-capacity cutting machines.
• Automation and industrial electricity: Installed for light conveyor systems, small industrial robots, sliding mechanisms, and linear lifting.
• Water treatment industry: Present in metering pump systems, aeration, and circulating water filtration equipment.
• Construction & civil equipment: Used in automatic gates, light cargo elevators, or motorized opening/closing systems.

Decoding specifications on the WPX worm gearbox nameplate

Typically, the nameplate of each WPX gearbox displays core technical specifications to help determine operating capabilities and installation requirements. Below are the meanings of the most common symbols:

• Model code: WPX: This is a worm gearbox design with the input shaft located at the top (worm positioned above the worm wheel).
• Size: The center distance between the worm shaft and the worm wheel (unit of measurement in mm). This is the most important figure to determine installation dimensions and load capacity of the gearbox. The larger this index, the larger the gearbox and the stronger the pulling force.
• Ratio (Ratio / Ratio i)
  • Symbol: i = 1/10, 1/20, 1/30… This parameter indicates how many times the output shaft speed is reduced compared to the motor input speed.
• How to understand: If i = 1/20 and the motor speed is 1400 rpm, the output shaft speed will be: 1400 / 20 = 70 rpm.
• Serial Number / Batch No.: Helps trace origin, manufacturing date, and supports genuine warranty when technical issues occur.

Possessing a compact design with a perpendicular input-output shaft structure, the WPX 70 gearbox is an optimal choice for production lines that need to save space while ensuring strong pulling force and high stability.

In addition, gearbox videos and general video collections will be a useful reference source for customers learning about drive equipment.
