3-Phase Electric Motor 0.55kW 0.75Hp

The 3-Phase Electric Motor 0.55kW 0.75Hp is a compact yet high-efficiency industrial motor, commonly used in basic drive systems and automated production equipment. With a design meeting European standards, this electric motor ensures stable operation, energy savings, and a long service life, making it especially suitable for continuous working environments. Let’s explore the details of this product with Thanh Thai Motor!

General design of the 3-Phase Electric Motor 0.55kW 0.75Hp

The 3-phase electric motor features a compact, sturdy design suitable for various installation spaces. The outer casing is made of cast iron or die-cast aluminum to enhance heat dissipation. The motor shaft is made of pure stainless steel to prevent rust and corrosion in any surrounding environment during use. The integrated rear cooling fan helps maintain a stable temperature during long-term operation.

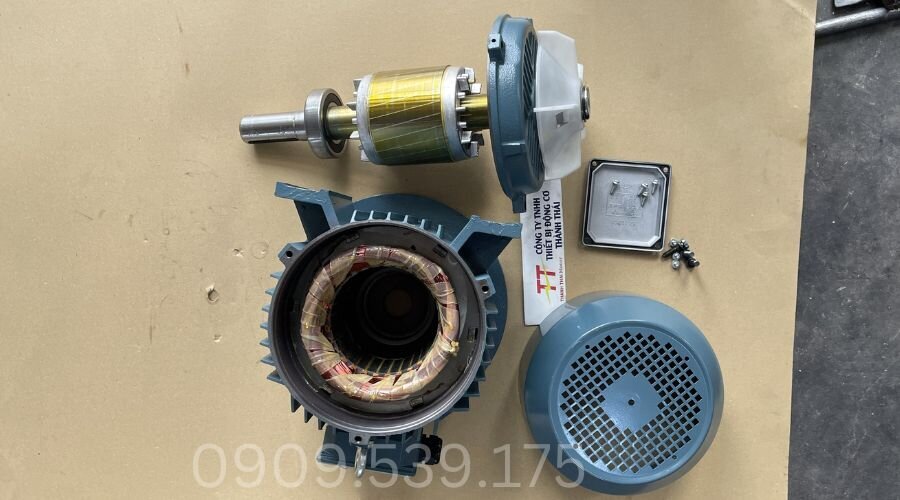

Internal structure of the electric motor

Belonging to the 3-phase electric motor segment under 3.7kW, the internal structure consists of two main parts:

• Stator: The stationary part surrounding the outside, playing the role of generating a rotating magnetic field. This part contains evenly distributed copper windings, which generate alternating current when powered to activate the motor’s operation.
• Rotor: Located inside the stator, it is the main moving part. The rotor is composed of multiple thin technical steel sheets stacked and pressed tightly into a cylindrical shape, capable of continuous rotation within the stator’s magnetic field to produce mechanical work for the equipment.
• Motor shaft: Connected to the center of the rotor, made of stainless steel to transmit motion force directly to the outside to operate equipment.
• Bearing: Helps the rotor shaft rotate smoothly, minimizing friction and vibration when the motor is running.
• Cooling fan & fan cover: Attached to the rear of the motor to blow a continuous cooling airflow, maintaining a stable temperature.

Classification of the 3-Phase Electric Motor 0.55kW 0.75Hp

The classification of 3-phase electric motors can be carried out based on various criteria, from design, power, to specific usage characteristics. Below are some main classifications of this motor type:

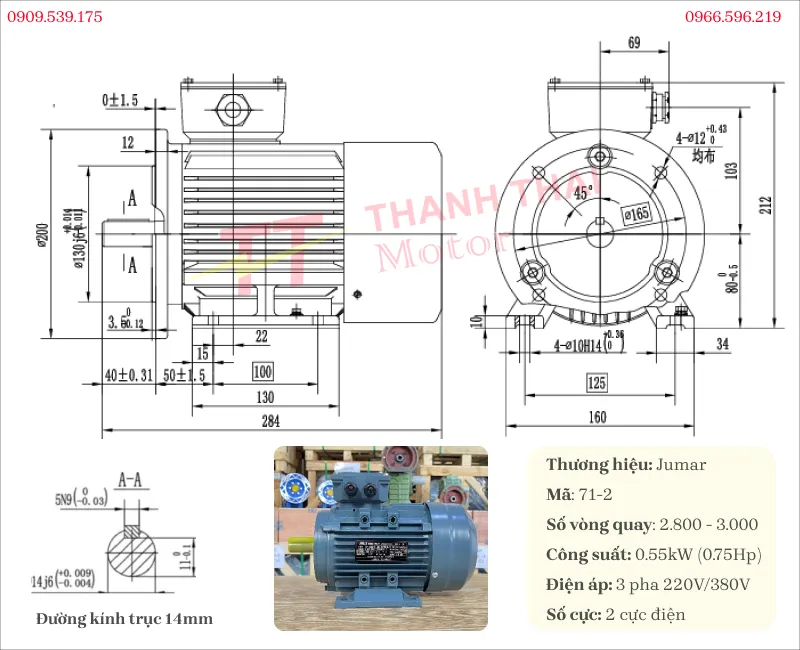

3-phase motor 0.55kw 2800 2-pole (2800-3000 rpm)

Featuring a high rotation speed, suitable for equipment requiring fast transmission capability, increased productivity, and operational efficiency.

Specifications

Code	71M
Shaft diameter	14mm
Keyway	7
Flange diameter	160mm
Dimensions	247mm * 133mm * 198mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Woodworking machinery: Acts as a motor for scroll saws, mini cutters, or wood planers.
• Agricultural processing industry: Applied in flour grinders, vegetable slicers, or small-scale grain mixing systems.
• Small-scale conveyor systems: Used to drive conveyor belts for transporting components and packaging products in automated lines.

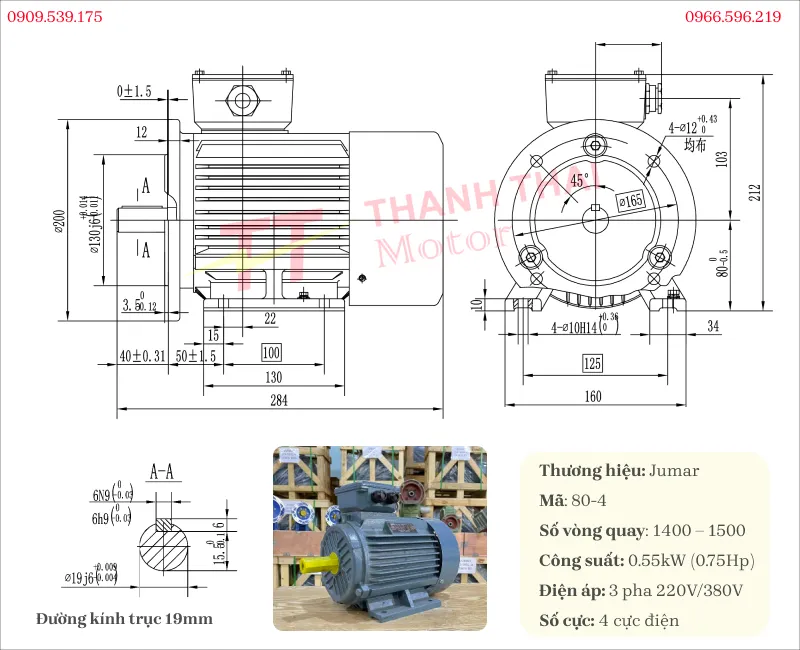

3-phase electric motor 0.55kw 0.75hp 4-pole (1400 – 1500 rpm)

A popular motor series due to its good balance between rotation speed, torque, and durability during continuous operation.

Specifications

Code	80M
Shaft diameter	19mm
Keyway	6
Flange diameter	200mm
Dimensions	290mm * 157mm * 214mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Industrial fan systems: Assembled for centrifugal fans, smoke exhaust fans, furnace blowers, and factory ventilation fans.
• Industrial pump industry: Drives clean water pumps, agricultural irrigation pumps, or small-pressure chemical pumps.
• Conveyor & lifting systems: Used in light goods conveyors, material hoists, or food elevators.

3-phase electric motor 0.55kw 0.75hp 6-pole (900 – 1000 rpm)

Possesses a low rotation speed, creating high torque and stable operation, suitable for equipment requiring continuous work under high loads.

Specifications

Code	80M
Shaft diameter	19mm
Keyway	10
Flange diameter	200mm
Dimensions	340mm * 175mm * 230mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Aquaculture: Used to operate aeration systems and paddle wheels for oxygen generation in shrimp and fish ponds, as the slow speed helps avoid stirring up bottom mud.
• Industrial fan industry: Drives centrifugal fans, smoke exhaust fans, boiler fans, or ventilation fans requiring large air volume while operating quietly without noise.
• Industrial & Agricultural pumps: Combined with pump heads to operate moderate-volume water pump systems or cooling system circulation pumps.

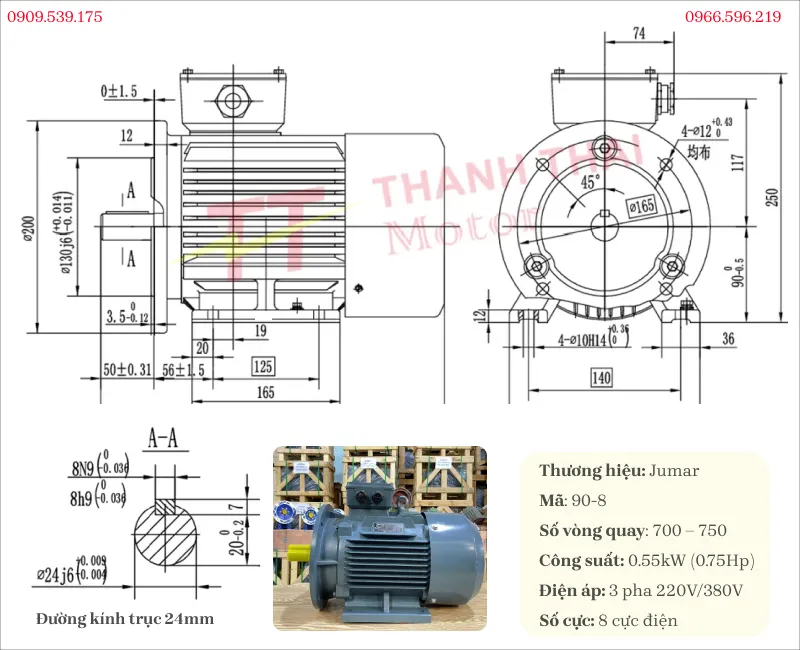

3-Phase Electric Motor 0.55kW 0.75Hp 8-Pole (700 – 750 rpm)

Featuring a slow rotation speed and strong pulling force, suitable for applications requiring smooth, stable operation and precise motion control.

Specifications

Code	90L
Shaft diameter	24mm
Keyway	8
Flange diameter	2000mm
Dimensions	340mm * 175mm * 230mm
Mounting type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Food & agricultural processing industry: Used in animal feed grinders, agricultural dryers, flour mixers, or slow-speed juicers.
• Mechanical & industrial production: Acts as a drive source for conveyor systems, conveyor belts, paint mixers, and chemical mixers.
• Aquaculture industry: Most commonly applied to manufacture oxygen generators and water paddle wheels for shrimp and fish ponds, helping save electricity and ensuring appropriate rotation speed for the blades.

If you are interested in the 3-Phase Electric Motor 0.55kW 0.75Hp and need advice on specifications, applications, or the latest quotation, please contact Thanh Thai Motor via hotline 0909.539.175 for prompt and dedicated support.

What gearbox can the 3-Phase Electric Motor 0.55kW 0.75Hp be combined with?

In addition, a gearbox can be combined with the 3-phase electric motor 0.55kW 0.75Hp to form a gear motor, allowing expanded applications in systems requiring high torque and low speed.

• Worm gearbox: WPS 70; NMRV gearbox 63, 50

In addition, it can also be combined with:

• Shaft pulley: 19mm
• Magnetic brake: Magnetic brake 0.55kW 0.75Hp

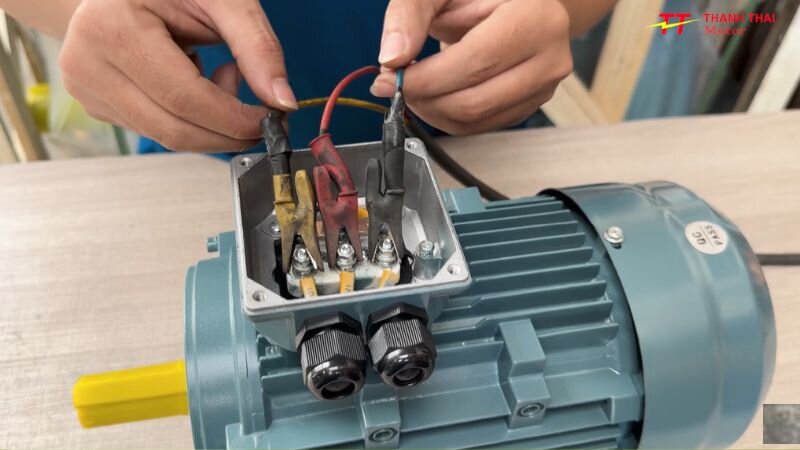

Instructions for wiring a 3-phase electric motor

Step 1: Open the terminal box

• Action: Use a cross-head screwdriver to turn counterclockwise and remove the 4 screws at the 4 corners of the terminal box cover located on the motor body.
• Note: Keep the 4 screws and the rubber gasket (if any) neat so that when reinstalling the cover, the motor still ensures water and dust tightness.

Step 2: Identify terminal post locations

• Observation: When opening the cover, you will see a plastic terminal block with 6 ceramic posts (usually labeled U1, V1, W1 in the top row and W2, U2, V2 in the bottom row).
• Identify connection points: The technician in the instructional video connects 3 power lines to 3 aligned posts: U1, V1, and W1.
• Additional note: The thin copper bars between the posts (used to set Star or Delta running modes) are usually pre-arranged to match the voltage. In this simple wiring case, you only need to keep the current status of those copper bars.

Step 3: Proceed to connect the 3 power phase wires

• Preparation: You need 3 phase wires of a 380V power supply. (For safety and best contact, the ends of these wires should be crimped with U-shaped or ring terminals).
• Connection:
  • Connect the first wire to terminal U1.
  • Connect the second wire to terminal V1.
  • Connect the third wire to terminal W1.
• Tightening screws: Use needle-nose pliers or a small wrench to tighten the nuts on the posts securely. This is a very important step; if tightened loosely, the passing current will cause arcing, melting the terminal or causing short circuits and burnout.

Step 4: Power on and test run

• Ensure safety: Close the terminal box cover (in practice, you should properly screw it back on to prevent short circuits before powering on).
• Test run: Turn on the circuit breaker to supply 380V power to the motor. The motor shaft will start to rotate.
• Troubleshooting tip: If you find the motor rotating in the opposite direction of your machinery’s requirements, you simply need to disconnect the power, open the terminal box, and swap any 2 power wires (e.g., switch the wire at terminal U1 to V1 and vice versa) so the motor will rotate in the forward direction.

If you need to learn more about the 3-Phase Electric Motor 0.55kW 0.75Hp or other industrial motor lines, please contact Thanh Thai Motor for detailed consultation. In addition, you can access the comprehensive video category to refer to many practical motor models or watch electric motor videos with full parameters, dimensions, and applications, helping you choose the right product for your usage needs and receive a quick quotation.
