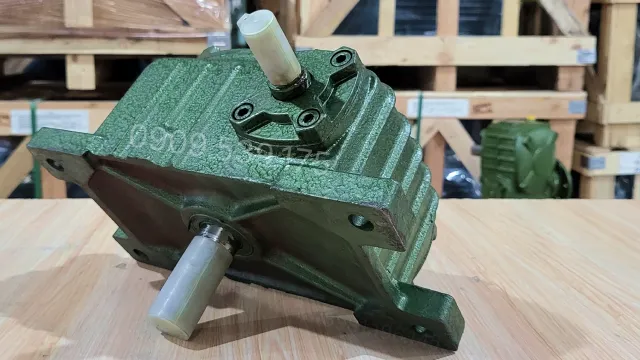

WPO 70 Worm Gearbox

The WPO 70 Worm Gearbox is a type of gearbox used to reduce rotational speed and transmit torque from the motor to the working mechanism. The device utilizes a worm and worm gear transmission with the input and output shafts arranged perpendicularly to each other. The WPO 70 Worm Gearbox is used in drive systems requiring low output speeds.

General Design of the WPO 70 Worm Gearbox

The WPO 70 Worm Gearbox features a cast iron housing. The worm and worm gear transmission are enclosed within a sealed casing. The input shaft is positioned horizontally, and the output shaft is arranged perpendicularly to connect with the driven equipment. The housing is equipped with oil filler, oil drain, and oil sight glass positions to facilitate maintenance.

Internal Structure of the WPO 70 Worm Gearbox

The worm gearbox is constructed from transmission components and assembled parts housed within the casing. Each component plays a specific role in the speed reduction and torque transmission process.

• Worm: Machined from high-hardness alloy steel, with precision-ground surfaces to increase concentricity and reduce wear during operation.
• Worm gear: Cast from copper alloy, meshed with the worm to create the gear ratio while reducing friction during power transmission.
• Worm and worm gear assembly: Positioned inside the housing with a fixed center distance, performing the reduction process and transmitting force to the output shaft.
• Lubrication system: Lubricating oil is contained within the housing, responsible for lubricating the contact surfaces of the transmission, reducing heat, and minimizing component wear during operation.

Specifications of the WPO 70 Worm Gearbox

The parameters below help select the installation dimensions and gear ratio of the device.

Applications of the WPO 70 Worm Gearbox

The WPO 70 Worm Gearbox is installed in various drive systems requiring rotational speed reduction and torque increase.

• Conveyor systems: Used to drive material conveyors, packaging conveyors, and component conveyors in production lines.
• Agitators: Installed in chemical mixing tanks, paint mixers, food agitators, and various viscous liquid solutions.
• Mixers: Used in flour mixers, raw material blenders, and blending equipment in manufacturing.
• Packaging machines: Drives film-pulling mechanisms, feeding conveyors, and moving parts of the machine.
• Feeding equipment: Controls the speed of screw conveyors, belt conveyors, or feeding mechanisms in automated lines.

Guide to Distinguishing the Input and Output Shafts of a Gearbox

To distinguish between the input and output shafts of a gearbox, you can check according to the following steps:

Step 1: Check the motor mounting position

Observe the flange or the connection end with the motor. The shaft at this position is the input shaft, which receives direct motion from the motor.

Step 2: Identify the transmission shaft

Observe the remaining shaft end of the gearbox. This is the output shaft, used to transmit torque to the machine or working mechanism.

Step 3: Check external components

Observe the flange, base, oil filling hole, oil drain hole, and connecting bolts to determine the structure and mounting style of the gearbox.

Step 4: Check connection dimensions

Compare the shaft diameter, flange dimensions, and bolt hole sizes with the installation requirements of the system.

Step 5: Inspect before operation

Ensure that the input shaft, output shaft, and assembly positions comply with the technical documentation before connecting to the motor and putting the equipment into service.

In addition to this article, you can refer to the gearbox video to view the detailed structure, how to identify each component, and the installation process. Furthermore, the compilation video on the Thanh Thaimotor channel provides additional content regarding motors, gearboxes, and industrial drive systems.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com

The WPO 70 Worm Gearbox provides a flexible, durable, and economical transmission solution for numerous industries. With its smart design, excellent load-bearing capacity, and ease of pairing with an electric motor, this product is an effective assistant helping machinery systems operate stably and long-term. Contact Thanh Thaimotor today for the best consultation and support!
