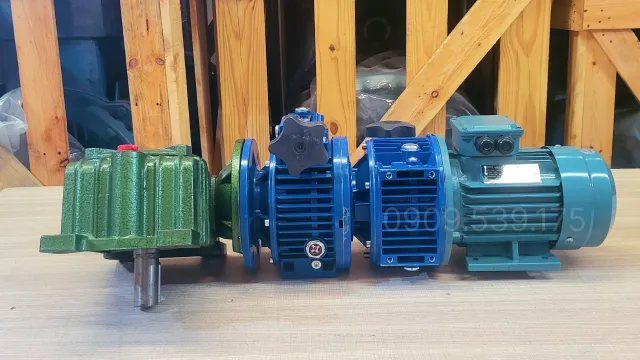

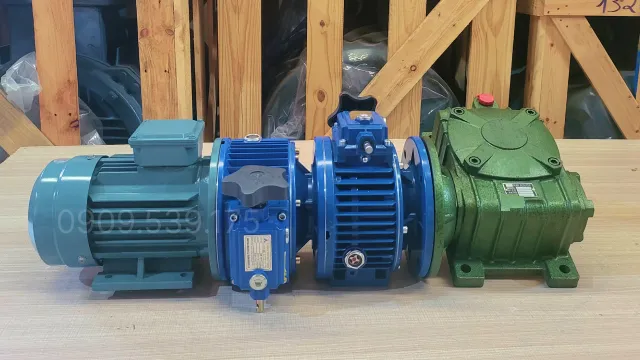

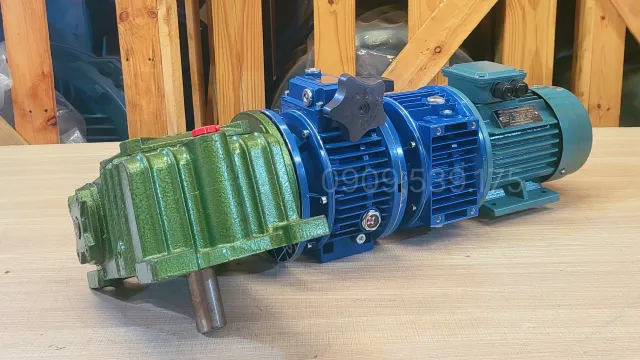

3-Stage Gear Motor (2 UDL 1.5kW And 1 WPDX 100)

The 3-Stage Gear Motor (2 UDL 1.5kW And 1 WPDX 100) is a gear motor assembled from an electric motor-specifically a 3-phase electric motor-combined with a 3-stage gearbox. With 3 continuous reduction stages, the product delivers an extremely low output speed, stable traction, and minimizes load jolts, which heavy-duty industrial machinery constantly requires.

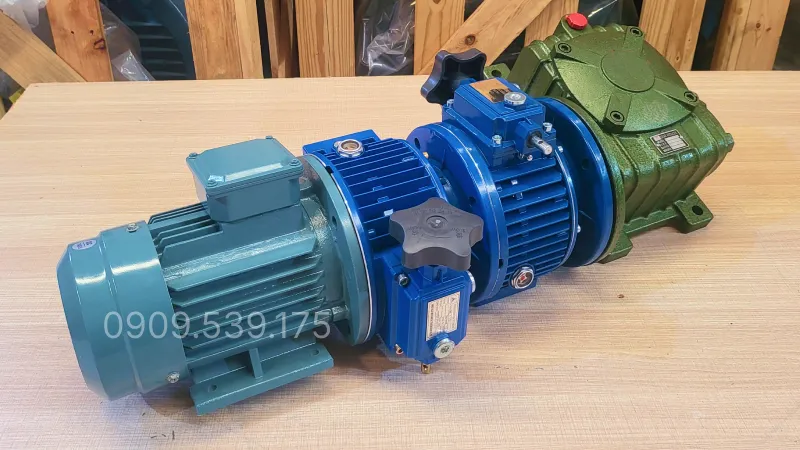

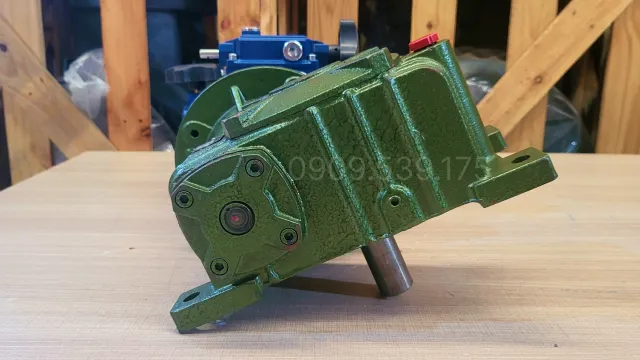

General design of the 3-Stage Gear Motor (2 UDL 1.5kW And 1 WPDX 100)

The 3-Stage Gear Motor (2 UDL 1.5kW And 1 WPDX 100) is designed according to high-end mechanical standards, ensuring durability, impact resistance, and strong vibration damping. This arrangement helps the gear motor reduce speed stage by stage, maintain stable torque, minimize vibration, and deliver superior smoothness. The entire outer casing of the motor and gearbox is made of solid cast iron or cast aluminum.

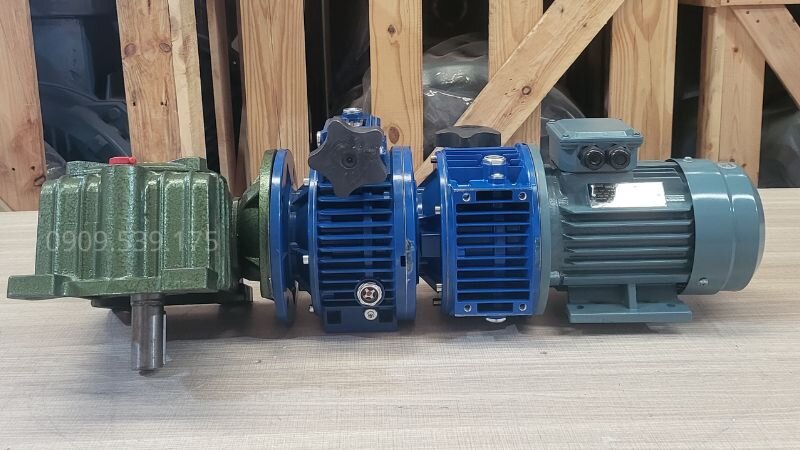

Detailed structure of the 3-stage gear motor

The 3-stage gear motor (2 UDL 1.5kW and 1 WPDO 100) is a gear motor ranging from 1.1kW to 3.7kW, assembled from a 3-phase electric motor 1.5kW 2Hp and a 3-stage gearbox (2 UDL 1.5kW and 1 WPDX 100) with the following detailed structure:

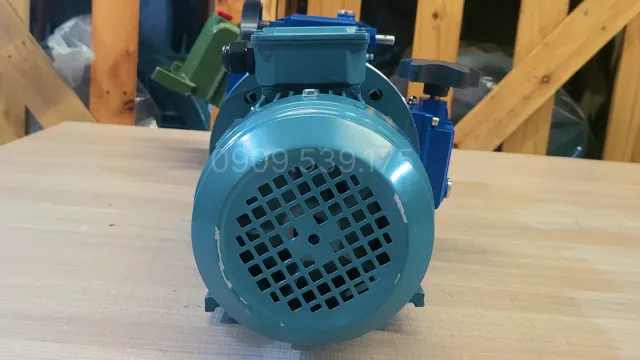

Electric motor structure:

• Motor housing made of durable cast iron or cast aluminum.
• Electrostatic powder coating to prevent oxidation, dust, and moisture.
• 100% copper winding, offering good heat resistance during continuous motor operation.
• Dynamically balanced squirrel-cage rotor for smooth, low-vibration operation.
• Alloy steel motor shaft with surface hardening for wear resistance.
• Heavy-duty bearings to enhance lifespan and stability.

Gearbox structure:

• Stage 1 is the mechanical speed variator (UDL): Specifically, the 1.5kW 2Hp mechanical speed variator consists of a friction disk – cone disk assembly, input-output shafts, and an adjustment knob, allowing stepless speed changes before entering the gearbox.
• Stage 2 is the 2-stage gearbox: Specifically, the 2-stage UDL 1.5kW – WPDX 100 gearbox creates a large gear ratio and high torque for smooth operation.

Technical specifications of the 3-stage gear motor (2 UDL 1.5kW and 1 WPDX 100)

To choose a gear motor that matches transmission requirements and practical installation conditions, users should fully review the technical specifications of each component.

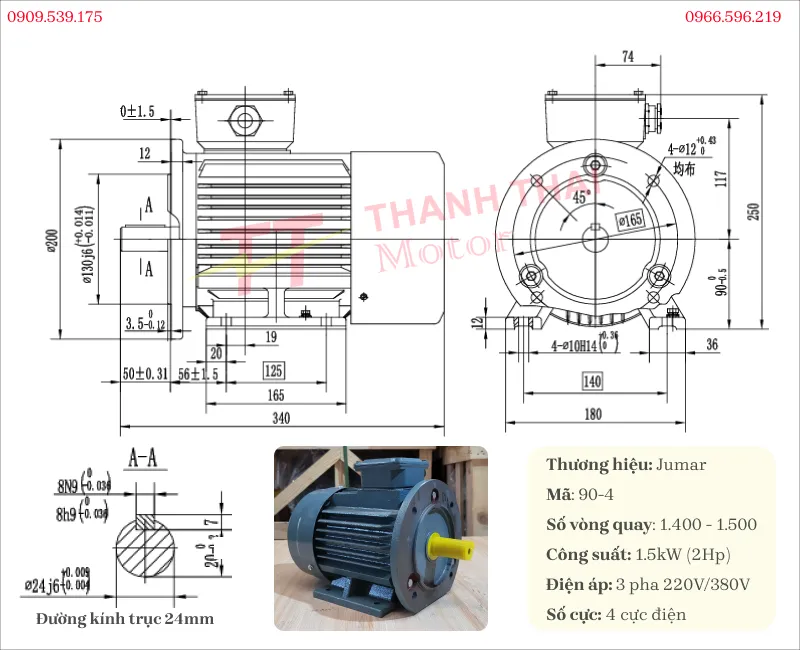

Technical specifications of the 1.5kW 3-phase electric motor

The electric motor is the power-supplying component for the entire drive system, so reviewing its technical specifications will help users easily evaluate compatibility and select the configuration that suits their application needs.

Technical specifications of UDL 1.5kW mechanical speed variator

The UDL mechanical speed variator ensures flexible adjustment of the output speed, contributing to enhanced control over the system’s operating process. Below are the technical specifications for selection and installation.

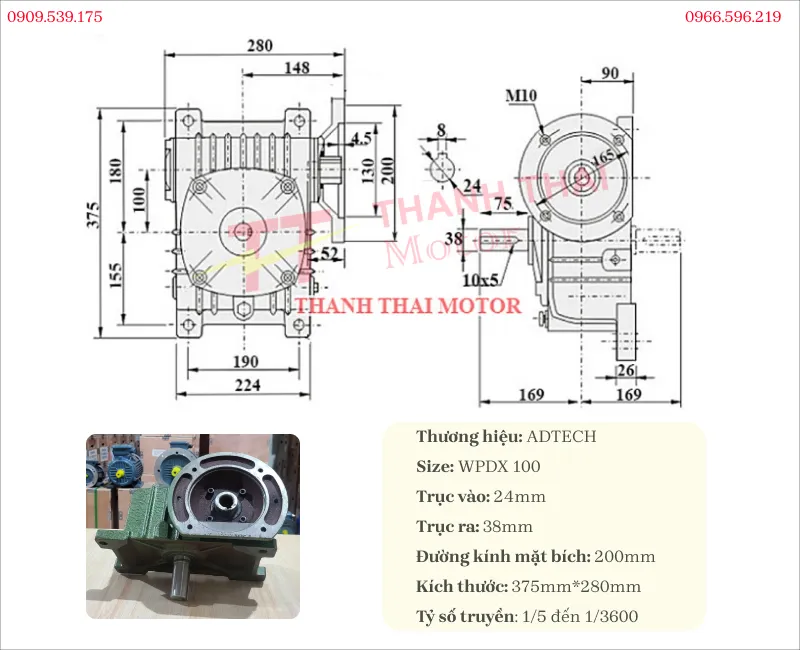

Technical specifications of WPDX 100 gearbox

The WPDX gearbox is an important power transmission component in the gear motor assembly, determining the reduction efficiency and stable working capacity of the system. Below is the technical information for users to conveniently reference and cross-check before making a selection.

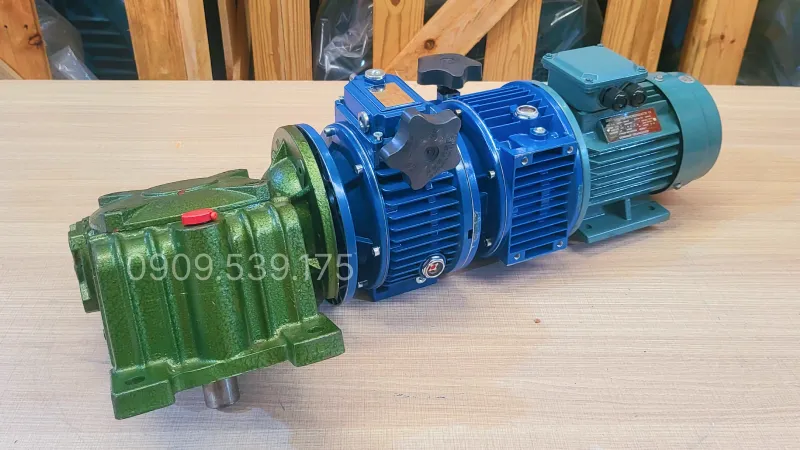

Common applications of the 3-Stage Gear Motor (2 UDL 1.5kW And 1 WPDX 100)

• The 3-Stage Gear Motor (2 UDL 1.5kW And 1 WPDX 100) is suitable for use in various industries:
• Agitators, thick material mixers
• Heavy-duty or low-speed conveyor belts
• Industrial dosing and feeding machines
• Food processing, wood, plastics, and packaging industries
• Continuously operating mechanical machinery
• Production lines requiring stable torque

How to assemble an electric motor with 2 UDL units and 1 WPDX to form a 3-stage gear motor

To successfully assemble the 3-stage gear motor combination (Motor + 2 UDL + 1 WPDX), Thanh Thai Motor guides you through the steps below:

• Mount the electric motor to the first UDL speed variator. Important note: The motor shaft and the UDL bore must be absolutely concentric. Cross-tighten the flange bolts evenly to avoid warping the motor assembly.
• Continue attaching the second UDL unit to the output of the first UDL unit. Using 2 stacked UDL units requires the intermediate flange to be thoroughly cleaned and fully meshed to ensure the ability to customize rotation speeds to an ultra-slow level without power slippage.
• Attach the entire assembly (Motor + 2 UDL) to the input of the WPDX worm gearbox.

Operation tip: Gently rotate the shaft so that the keyway slides smoothly into the hollow shaft bore of the WPDX.

The 3-Stage Gear Motor (2 UDL 1.5kW And 1 WPDX 100) with a heavy-duty bearing system combined with 100% copper winding not only improves working efficiency but also helps businesses significantly save electricity in the long run.

If you need more practical information about the product, check out the electric motor videos and compilation videos from Thanh Thai Motor to get a comprehensive perspective before making a choice.
