2-Stage UDL Gear Motor 2.2kW – WPDX 120

The 2-Stage UDL Gear Motor 2.2kW – WPDX 120 is a gear motor combined from two devices: a gearbox, specifically a 2-stage gearbox, combined with an electric motor, specifically a 3-phase electric motor. Thanks to the two-stage reduction structure, the device easily generates high torque, stable operation, and extremely smooth performance. This is an optimal solution for conveyors, mixers, material winding and pulling systems, automated production equipment, and industries requiring flexible speed changes.

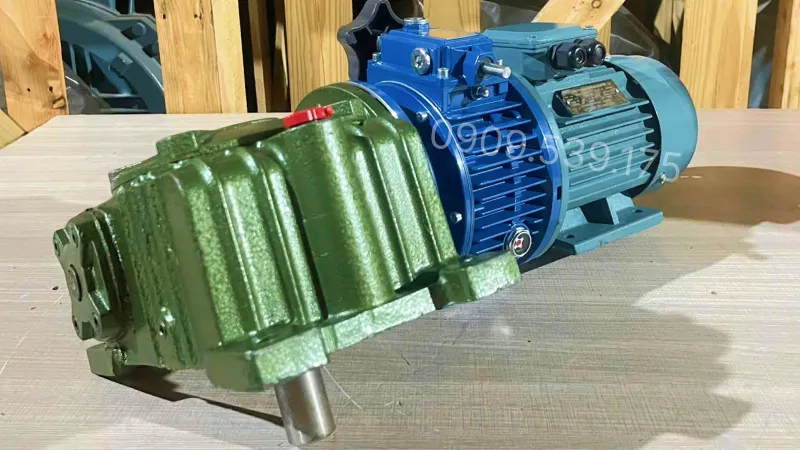

Overview of the Design of 2-Stage UDL Gear Motor 2.2kW – WPDX 120

The 2-Stage UDL Gear Motor 2.2kW – WPDX is a compact product line designed to fit various installation models, even space-restricted areas. The international standard flange allows the motor to easily couple with common electric motors. Constructed from 100% pure aluminum or cast iron, the exterior of the motor is coated with electrostatic paint to prevent scratches during operation.

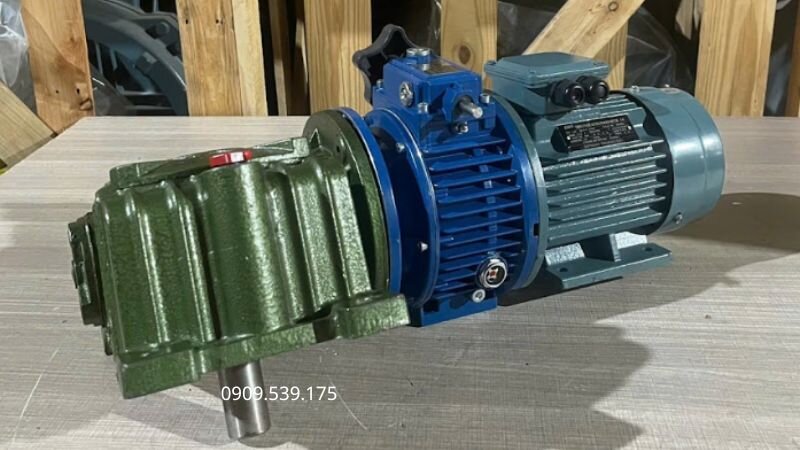

Structure of 2-Stage UDL Gear Motor 2.2kW – WPDX 120

The 2-Stage UDL Gear Motor 2.2kW – WPDX is assembled from a 3-phase 2.2kW 3Hp electric motor and a 2-stage UDL 2.2kW – WPDX 120 gearbox (UDL 2.2kW – WPDX 120 reduction gearbox). Its detailed structure is as follows:

Electric motor structure:

• Stator: Constructed from laminated electrical steel cores, wound with pure copper wire to ensure strong magnetic generation, cool running, and superior durability.
• Rotor: Made from silicon steel sheets pressed into a block, increasing mechanical durability and optimizing torque during operation.
• Bearings: Help smooth rotational movement, reduce friction, and provide good load capacity in both radial and axial directions.

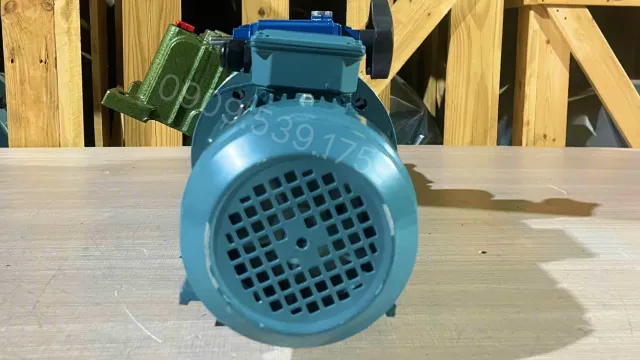

• Cooling fan: Supports fast heat dissipation for the entire motor, ensuring stable equipment operation over long periods without excessive overheating.

Gearbox structure:

• Stage 1 is a mechanical speed variator (UDL), specifically a 2.2kW 3Hp mechanical speed variator that changes input speed using a friction mechanism or gears before transmitting to the next stage.

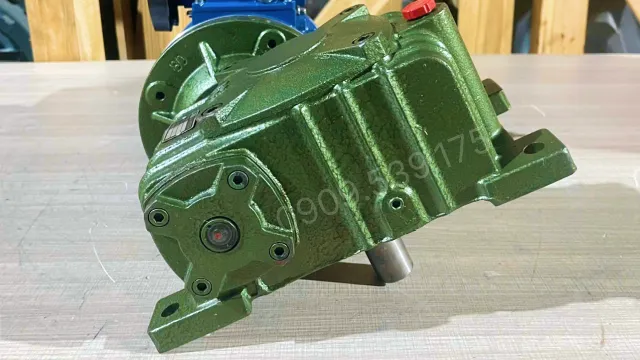

• Stage 2 is a worm gearbox, specifically the WPDX 120 worm gearbox made of solid, sturdy, and durable cast iron, combined with an electrostatic paint layer to prevent rust
• Input and output shafts: The input shaft receives power from the motor; the output shaft transmits the reduced power to the driven machine.

Technical Specifications of 2-Stage UDL Gear Motor 2.2kW – WPDX 120

Below is a summary of the technical specifications for the electric motor, mechanical speed variator, and gearbox

Technical Specifications of 3-Phase 2.2kW Electric Motor

Technical Specifications of UDL 2.2kW Mechanical Speed Variator

The table below shows the main technical specifications of the UDL 2.2kW mechanical speed variator

Technical Specifications of WPDX 120 Gearbox

Detailed technical specifications of the WPDX 120 gearbox are presented below

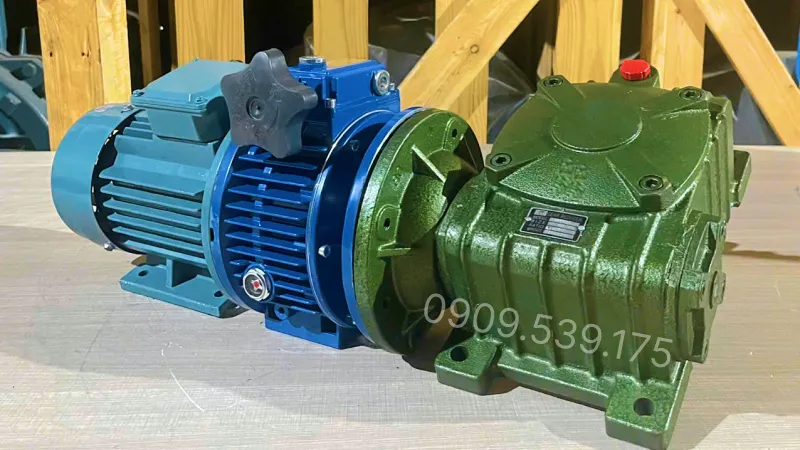

Applications of 2-Stage UDL Gear Motor 2.2kW – WPDX 120

The prominent applications of the 2-Stage UDL Gear Motor 2.2kW – WPDX 120 include:

• Conveyor systems in factories, production workshops, and transportation lines.
• Mixers and agitators requiring speed adjustment according to each working stage.
• Packaging and food processing lines requiring stable and flexible speeds.
• Presses, extruders, and equipment requiring strong torque.
• Light-capacity lifting equipment operating continuously in industrial warehouses.
• Food processing machines such as ingredient mixing, turning, and automatic dosing.
• Wood, plastic, and metal production lines requiring strong transmission, low or medium speeds.
• Dryers and feeders operating at variable speeds depending on the material type.

Assembly Guide for 2-Stage UDL Gear Motor 2.2kW – WPDX 120

Below is the guide on how to install the 2-stage gear motor:

• Step 1: Inspect the electric motor, UDL mechanical speed variator, and WPDX gearbox before assembly.
• Step 2: Connect the electric motor to the UDL mechanical speed variator, align concentrically, and tighten bolts.
• Step 3: Install the mechanical speed variator onto the WPDX 120 gearbox, check connection points, and test run.

The video of the 2-Stage UDL Gear Motor 2.2kW – WPDX 120 by Thanh Thai Motor guides the quick assembly process, helping viewers easily grasp how to connect components and install them correctly before putting them into operation. Watch more through the comprehensive video at Thanh Thai Motor.
