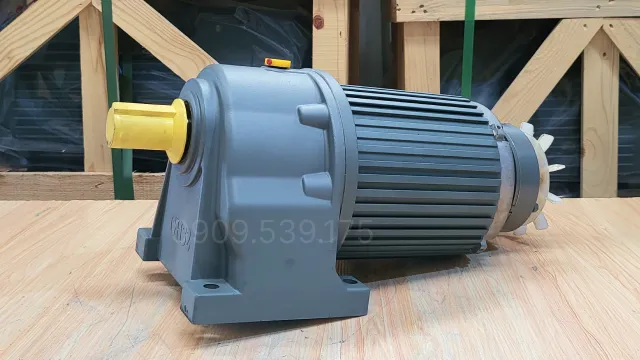

Brake Gear Motor 2.2kW 3Hp
From 9.000.000₫
Product Introduction
Brake Gear Motor 2.2kW 3Hp is a specialized industrial device designed with a power of 2.2kW 3Hp to suddenly reduce the motor’s rotational speed and increase torque.
- Power: 2.2kW (3Hp)
- Brake type: Electromagnetic brake – Voltage 1-Phase 220V/ 3-Phase 380V.
- Reduction ratio: 1/10 to 1/50.
- Output shaft diameter: 32mm
- Output torque: Stable, highly sensitive anti-rollback braking.
- Housing: Cast iron housing
- Standard: 100% copper core, IP55 protection standard.
Coming to Thanh Thai Motor, your benefits are always prioritized. We support machine testing at the warehouse, provide full documentation, and offer nationwide express delivery!
Product Description
Brake Gear Motor 2.2kW 3Hp is a gear motor widely favored in many industrial and agricultural fields. With moderate power, users can easily change the rotational speed to suit each application.

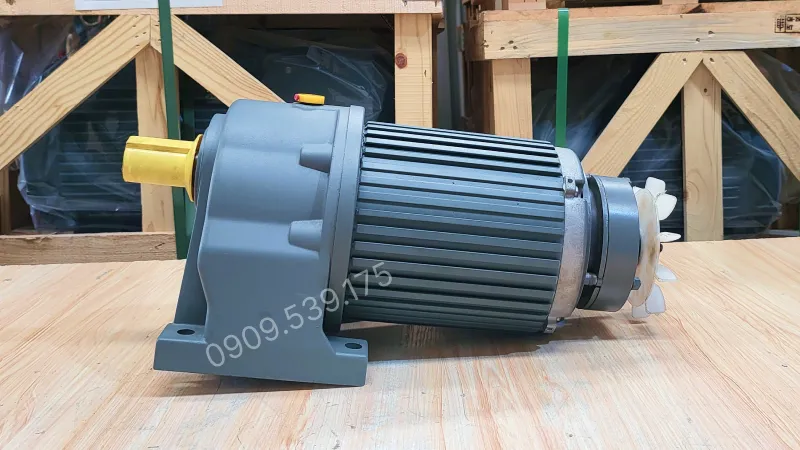

General design of Brake Gear Motor 2.2kW 3Hp
- Material: The motor housing is entirely cast from heavy-duty cast iron to protect the machine in impact environments. The stator core is wound with 100% pure copper wire meeting Class F heat resistance standards.
- Role: Provides rotational force for the system and immediately locks the shaft in place when the power supply is cut off.
- Design: Seamlessly connected to the electric motor‘s output shaft. Immersed in industrial lubricating oil inside to protect the gear drive system.
- Role: Reduces the motor’s output revolutions and increases torque force to pull heavy loads.

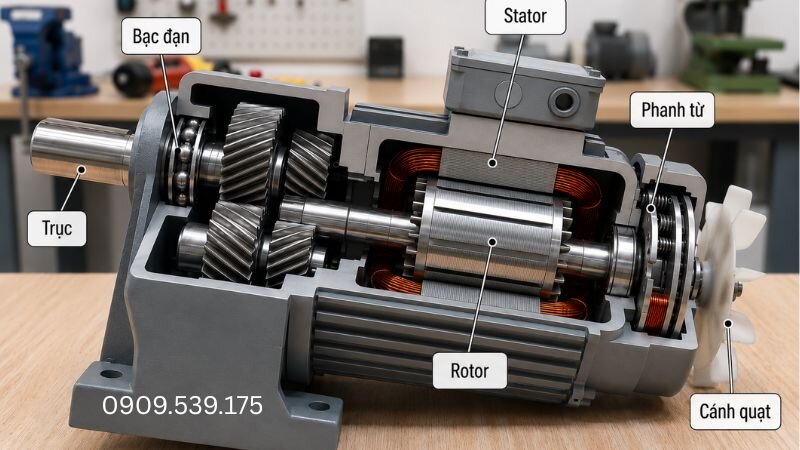

Internal structure of Brake Gear Motor 2.2kW 3Hp
The Gear Motor 2.2kW has a basic structure consisting of a 1-Phase Electric Motor or 3-Phase Electric Motor and a gearbox:
- Electric motor:
- Stator: It is the stationary part, responsible for creating a rotating magnetic field to control the motor’s deceleration operation. The stator is constructed with 3-phase electrical wires wound on iron cores. The inner part is wound with 100% high-quality copper, free of impurities.
- Rotor: It is the moving part of the motor, consisting of multiple steel laminations wound together into a cylinder. The rotor supports the reduction of the motor’s rotational speed.
- Gearbox: Inside the box contains a transmission system using gears, worms, and worm gears. The gearbox plays a role in assisting the gear motor in rotational reduction.
Classification of Brake Gear Motor 2.2kW 3Hp
The product is divided into two common mounting types depending on the space and system structure:

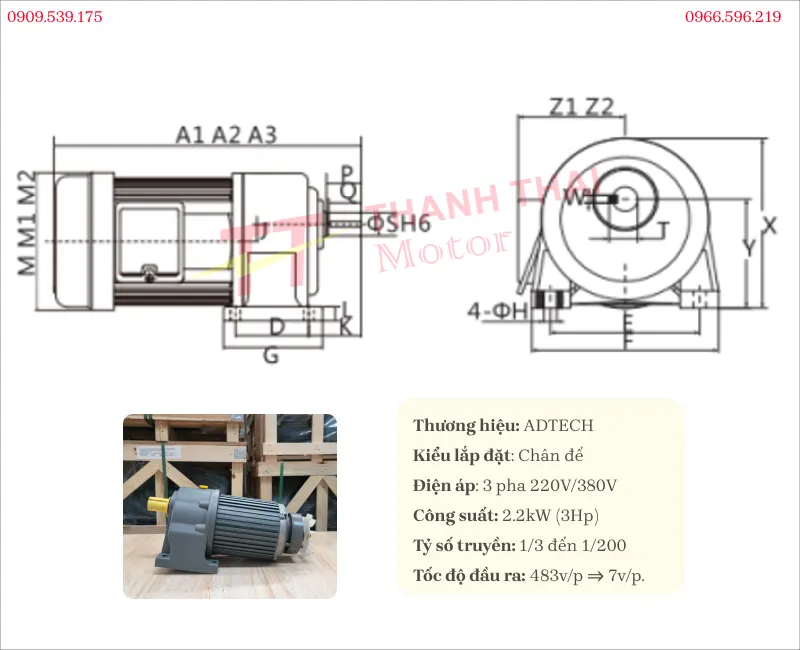

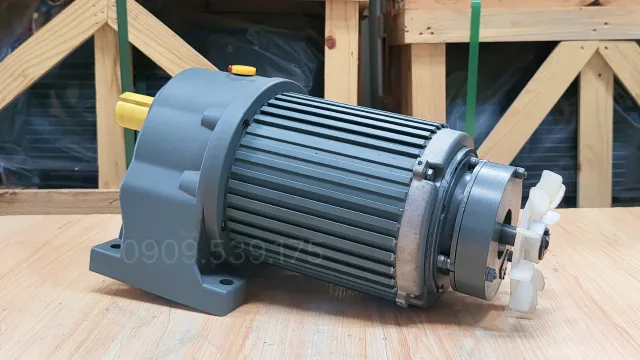

Foot-mounted Brake Gear Motor 2.2kW 3Hp
The base is cast integrally with the gearbox housing for fixed mounting by bolts onto a support or floor.
Technical specifications:
Shaft 1| Shaft 2 | Shaft diameter | 40mm | 50mm | Keyway | 10mm | 14mm | Voltage | 3-Phase 220/380V | 3-Phase 220/380V | Length | 493mm | 525mm | Reduction ratio | 1/3, 1/80, 1/100, 1/150 … 1/200 | 1/3, 1/80, 1/100, 1/150 … 1/200 | Output speed | 483 rpm ⇒ 7 rpm | 483 rpm ⇒ 7 rpmPractical applications: |
|
