Brake Gear Motor 0.75kW 1Hp

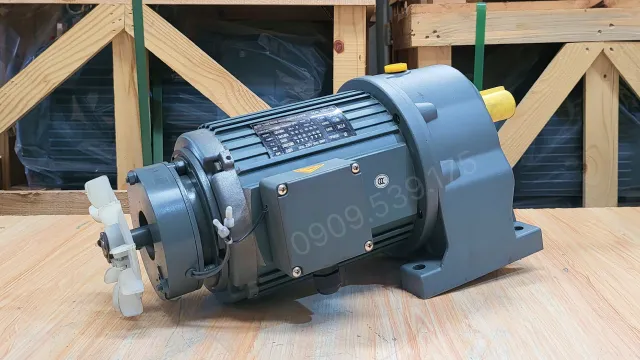

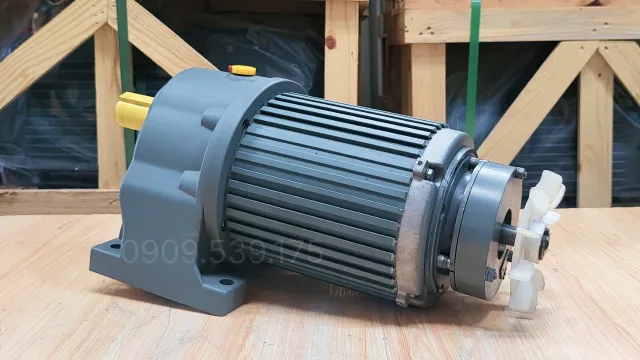

Brake Gear Motor 0.75kW 1Hp is a small-sized gear motor drive equipment widely applied in automation systems, light production lines, food industries, and agriculture. The device is a synchronous combination of a small-capacity electric motor and a gearbox integrated with an electromagnetic brake assembly for quick stopping.

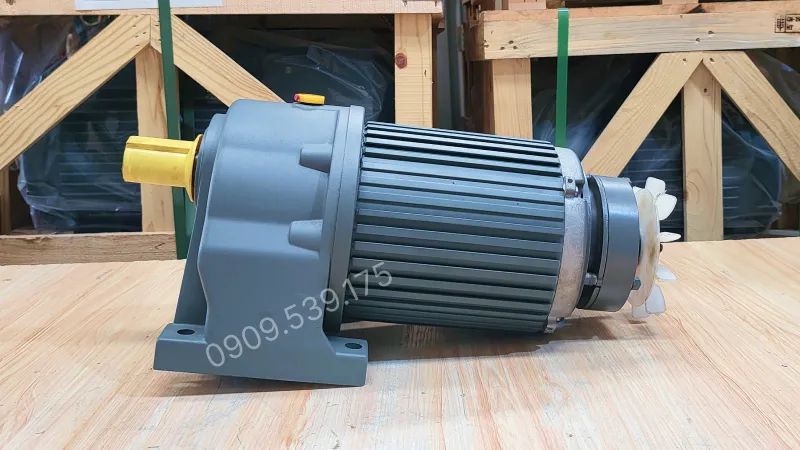

General design of the 0.75kW 1Hp brake gear motor

The equipment system consists of two main mechanically seamless linked parts:

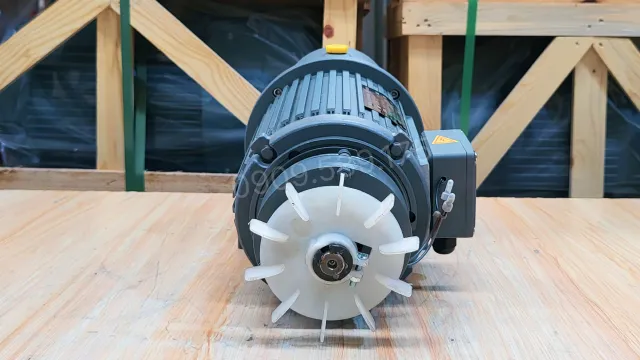

Brake Motor 0.75kW 1Hp:

• Material: The outer casing is usually cast from aluminum alloy to reduce weight and optimize natural heat dissipation, or cast from iron for impact-load resistant lines. The stator core is wound with pure copper wire meeting Class F heat resistance standards.
• Role: Creates rotational movement for the system and locks the output shaft rigidly as soon as the power supply is cut off.

Gearbox:

• Design: Concentrically connected to the electric motor output shaft via a flange or coupling shaft. Inside contains specialized lubricating oil to protect the drive gears.
• Role: Reduces rotational speed from the motor and increases output torque to transmit pulling force to the driven machine.

Internal structure of the 0.75kW 1Hp brake gear motor

The 0.75kW 1Hp brake gear motor basically consists of an electric motor, which can be a 1-phase electric motor or a 3-phase electric motor, and a gearbox:

• Electric Motor:
  • Stator: Responsible for controlling the motor deceleration operation by generating a rotating magnetic field. The stator is structured with 3-phase electric wires wound on iron cores. The inner part of the motor is wound with 100% high-quality, impurity-free copper. Therefore, during operation, the machine limits heat generation and saves electricity.
  • Rotor: Composed of multiple steel sheets wound together into a cylinder. It plays a role in supporting the motor’s rotational speed reduction capability.
• Gearbox: The internal structure of the gearbox is a transmission unit. By using gears, worms, and worm gears, it assists the motor in reducing rotational speed.

Classification of the 0.75kW 1Hp brake gear motor

The product is divided into two popular installation styles depending on the space and machine structure:

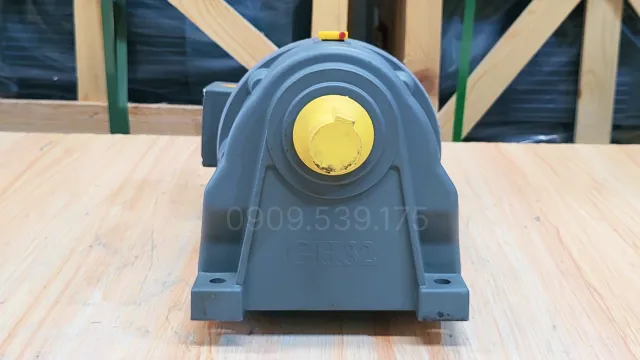

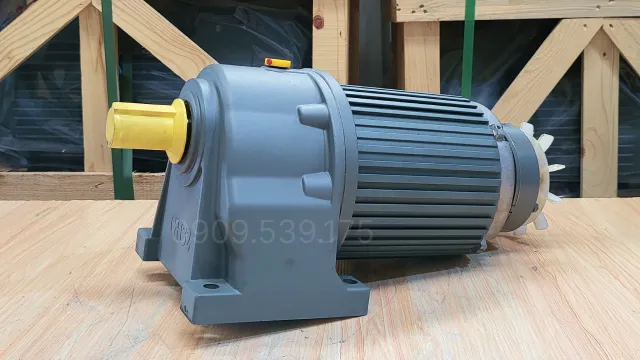

Foot-mounted 0.75kW 1Hp brake gear motor

The base is cast integrally with the gearbox housing, helping to securely bolt it onto the machine frame.

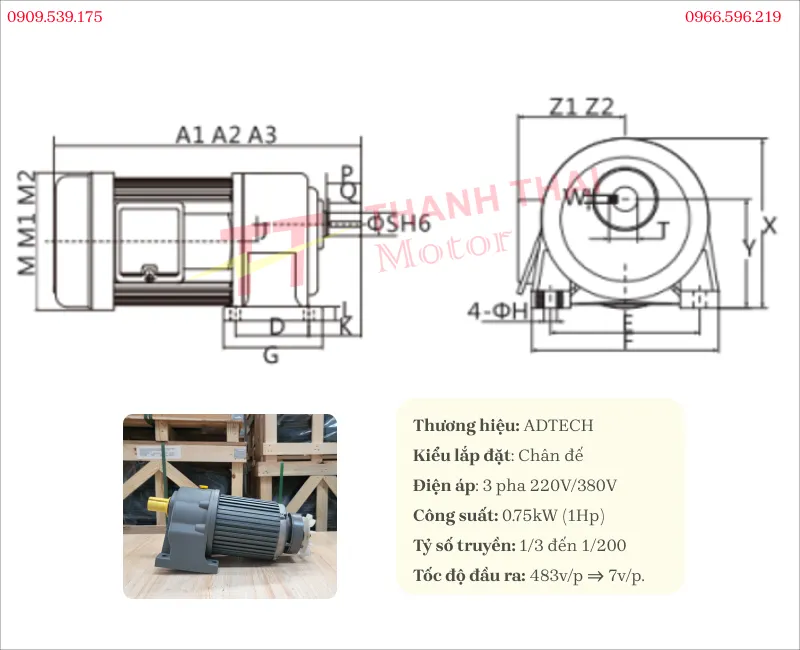

Technical specifications:

Practical applications:

• Conveyors and product packaging assembly lines: The brake helps stop the conveyor in the correct position for sorting, labeling, or bottle filling.
• Automatic feeding systems: Precisely controls material dosing by instantly cutting off power to stop the shaft.
• Small-scale powder and paint mixing machines: Ensures the mixing shaft stops immediately upon opening the tank lid for operator safety.
• Rolling doors and small warehouse overhead crane systems: Locks the door position tightly when stopped, preventing self-sliding due to weight.

Flange-mounted 0.75kW 1Hp brake gear motor

Circular flange design at the output shaft end of the gearbox for direct installation into the machine wall or concentric coupling.

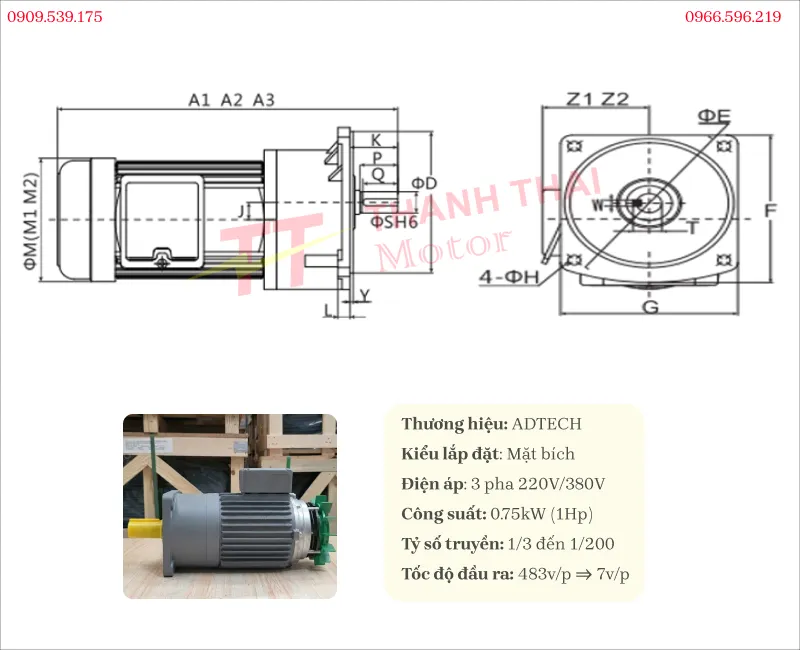

Technical specifications:

Practical applications:

• Vertical chemical and liquid mixing tanks: The flange shaft rotates vertically downwards, and the brake holds the shaft fixed when stopping the mixing cycle.
• Traveling mechanism of small overhead cranes and gantry cranes: Attached to the end beams for reciprocating movement and braking to prevent free-floating inertia.
• Vertical packaging machines and bag-making machines: Requires stopping the packaging film cutting shaft precisely according to the positioning color mark.
• Automatic welding fixture rotation equipment: Keeps the workpiece stationary at necessary rotation angles for robots or workers to perform welding operations.

Wiring instructions for brake gear motor

To ensure electrical safety and proper brake operation, it is necessary to understand the wiring method before implementation.

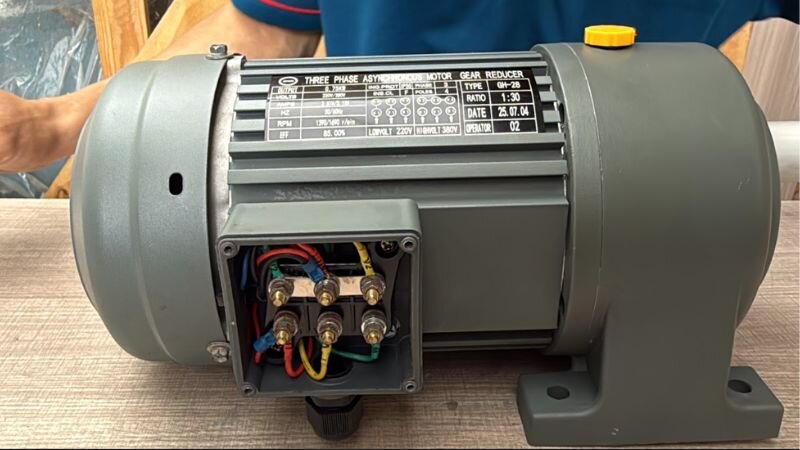

Step 1: Open the terminal box

Remove the screws and open the terminal box cover on the motor body. In the gear motor video, this step helps check the tightness of the terminal box and detect signs of moisture or dust accumulation.

Step 2: Identify the terminals

Observe the diagram and symbols on the box cover to correctly identify the wire ends. The electromagnetic brake system is usually pre-wired internally.

Step 3: Connect 3-phase power

Connect the 3 phase 380V wires to the U1, V1, W1 terminals. Check the distance between the wire ends to avoid touching and ensure insulation.

Step 4: Check operation

Apply intermittent power to check the direction of rotation and brake operation. You can refer to the summary video to observe how to check and evaluate actual operation.

Warning: Do not connect power to U2, V2, W2 to avoid short circuits and equipment damage.
