Brake Geared Motor 0.4kW 0.5Hp

Brake Geared Motor 0.4kW 0.5Hp is an ideal solution for the industrial sector thanks to its ability to reduce rotational speed and increase torque. In particular, this gear motor is also equipped with an electromagnetic brake system, helping to stop the motor safely and effectively.

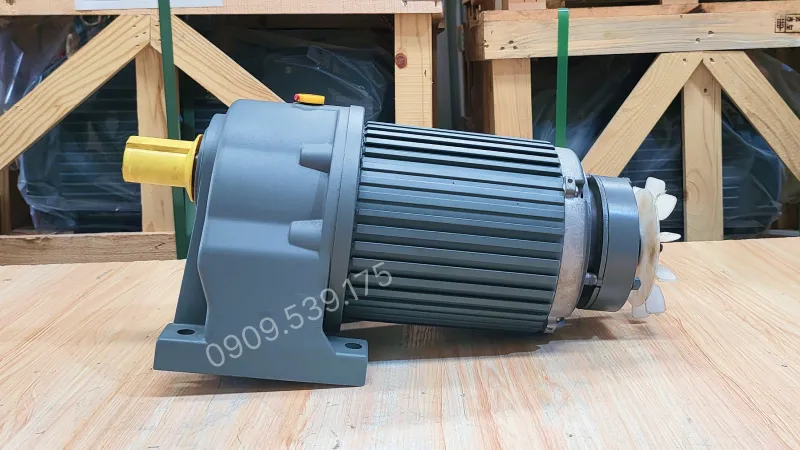

Overall design of the Brake Geared Motor 0.4kW 0.5Hp

The Brake Geared Motor 0.4kW 0.5Hp system is composed of two main seamlessly connected parts: the electric motor and the gearbox.

Electric motor with brake 0.4kW 0.5Hp:

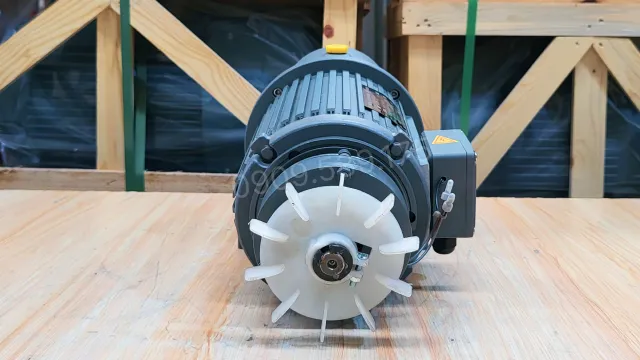

• Material: The outer casing is usually made of aluminum alloy for fast heat dissipation, weight reduction, or cast iron depending on the installation environment requirements. Stator windings use 100% pure copper. A cooling fan and electromagnetic brake assembly are arranged at the rear of the motor.
• Function: Provides rotational movement for the system and immediately locks the shaft (acceleration braking) when the power supply is cut off.

Gearbox:

• Function: Reduces the rotational speed transmitted from the motor while increasing torque to meet the load requirements of terminal equipment.
• Design: Coaxially assembled with the motor via a flange. Inside contains gears and lubricating grease/oil to minimize friction and increase operating lifespan.

Structure of the Brake Geared Motor 0.4kW 0.5Hp

The device includes two main subsystems: the motive power subsystem (with braking) and the transmission subsystem:

Electric motor body with brake:

• Stator & Rotor: High-quality magnetic steel core helps reduce electrical power loss. The squirrel-cage rotor is mechanically processed and precisely dynamically balanced, minimizing vibration during operation.
• Electromagnetic brake assembly: Composed of an electromagnet, friction disc (brake pad), and brake spring. The system comes with a rectifier diode to convert alternating current (AC) to direct current (DC) to supply power to the magnetic attraction coil.

Gearbox:

Contains a combination of transmission gears (spur gears or helical gears) made of wear-resistant alloy steel. The gears are CNC machined and heat-treated to achieve standard hardness, ensuring smooth meshing and creating an accurate gear ratio.

Classification of the Brake Geared Motor 0.4kW 0.5Hp

Based on the installation method, this equipment line is divided into 2 standard types:

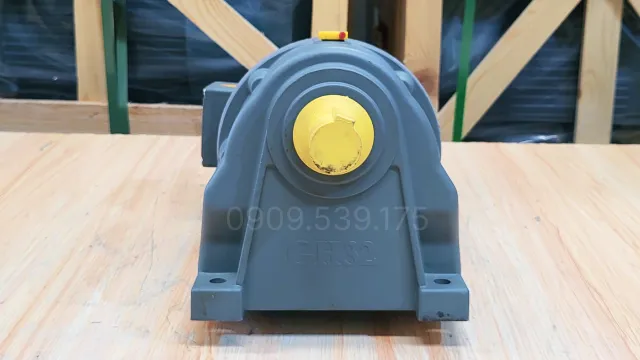

Foot-mounted Brake Geared Motor 0.4kW 0.5Hp

The foot-mounted design is integrated with the gearbox housing, used to bolt and fix the motor down to the floor or machine base.

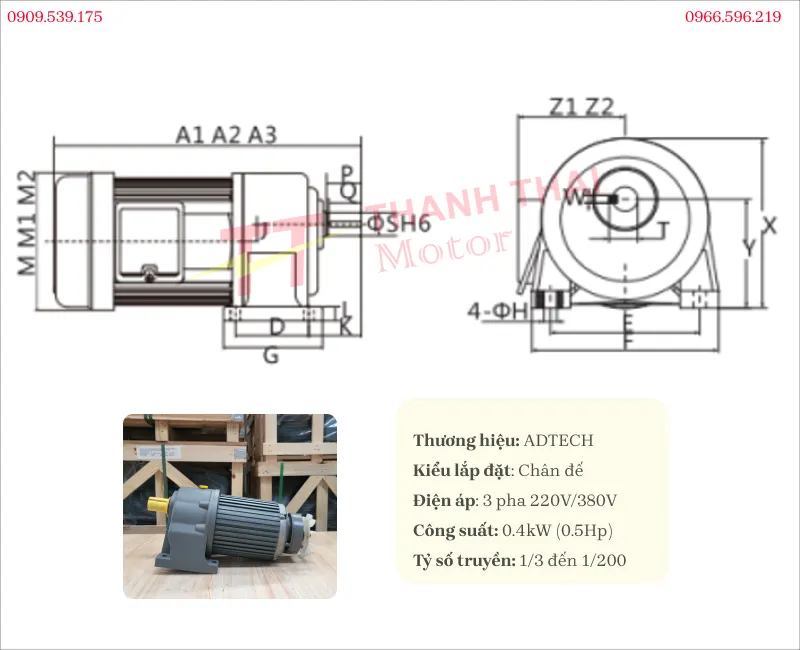

Technical specifications:

Practical applications:

• Light conveyors: Pulling conveyor belts for sorting parcels, electronic components, or boxed goods, requiring accurate positioning stops for barcode scanning.
• Processing machinery: Installed in small-scale animal feed mixers, grain roasters, and food roasting/grilling systems.
• Small lifting systems: Used as a winch motor for low-load goods in small warehouses.

Flange-mounted Brake Geared Motor 0.4kW 0.5Hp

The gearbox head is designed as a round or square flange, used for direct (coaxial) insertion into the driven equipment.

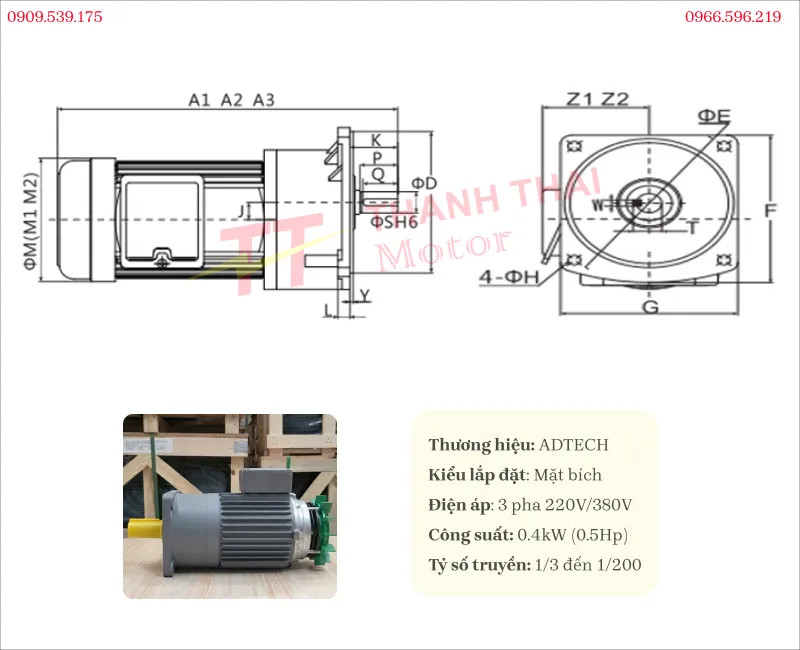

Technical specifications:

Practical applications:

• Mixing tanks: Vertically flanged onto the covers of small chemical mixing tanks, food additive blending tanks, and water-based paint tanks.
• Packaging machines: Applied in automated filling and packaging lines, requiring continuous and decisive stop-disconnect rhythms.
• Automation mechanisms: Installed for industrial rolling doors, automatic sliding gates, or small positioning turntables.

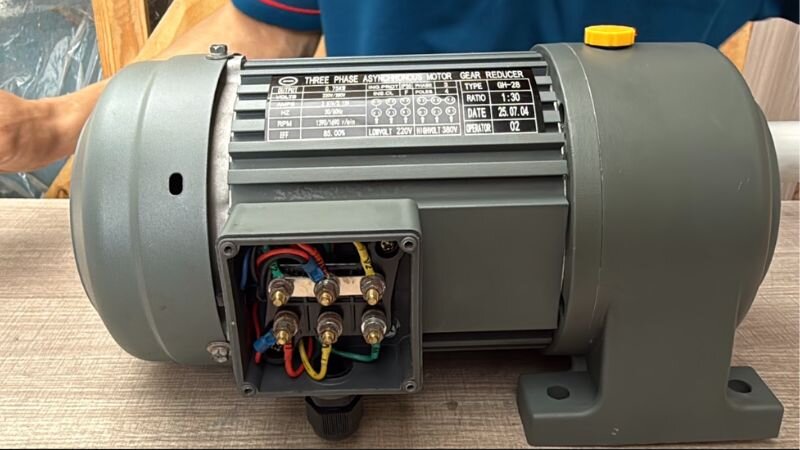

Instructions for wiring the brake geared motor

To avoid operational errors, proper wiring methods and pre-power checks must be carried out.

Step 1: Open the terminal box

Remove the terminal box cover to inspect the interior. Check the grounding wire, connection points, and ensure there are no signs of moisture or looseness.

Step 2: Identify the terminal connections

Based on the diagram on the cover to distinguish the terminal posts. Electromagnetic brakes are usually pre-wired via internal components; do not arbitrarily change them.

Step 3: Connect the power supply

Connect the 3-phase power supply to terminals U1, V1, W1. Use appropriate cable lugs, tighten securely, and recheck contact points.

Step 4: Post-connection check

Apply brief power to check the direction of rotation. Disconnect power to check if the brake acts correctly. Further observe the stability of the shaft during operation.

You can watch the gear motor video to observe the actual wiring method. Additionally, the compilation video helps reference common errors and troubleshooting methods.

Note: Do not supply power to terminals U2, V2, W2. Disconnect power completely before operating and tightly close the terminal box upon completion.
