Brake Gear Motor 0.2kW 0.25Hp

Brake Gear Motor 0.2kW 0.25Hp is a gear motor combined from an electric motor and a gearbox, making it an ideal choice for the industrial sector due to its ability to reduce rotational speed, increase torque, and being equipped with an additional electromagnetic braking system to safely reduce and stop speed.

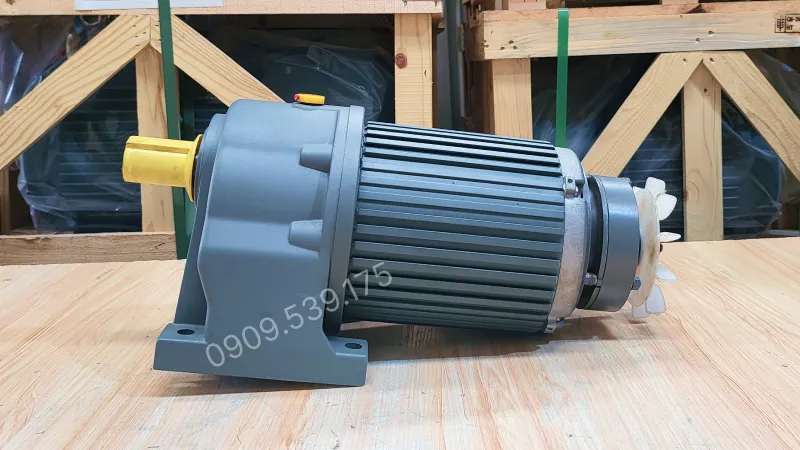

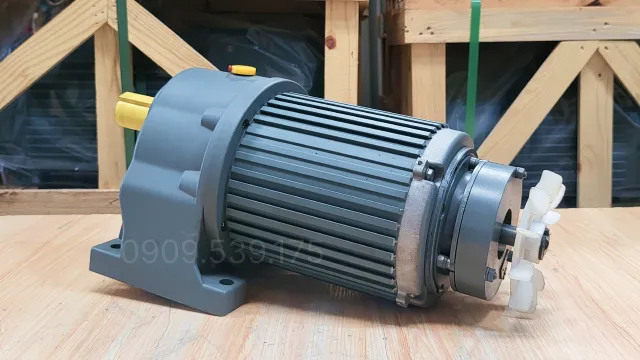

General design of the brake gear motor 0.2kW 0.25Hp

The device is a synchronized integrated assembly of a 200W electric motor (with a rear-mounted brake) and a helical gearbox.

Brake electric motor 0.2kW 0.25Hp:

• Material: The motor housing is mainly made of aluminum alloy to optimize weight and enhance natural heat dissipation. The stator winding is made of 100% standard insulated copper wire. The rear part of the motor contains the electromagnetic brake assembly and a cooling fan protected by a steel mesh.
• Function: Generates primary rotational motion and executes emergency stop mechanisms or fixes the shaft position when power is cut off from the motor.

Gearbox:

• Function: Receives high speed from the motor, reduces output revolutions through a gear system, and simultaneously increases torque to drive the load.
• Design: Directly connected to the motor in-line. The internal mechanical mechanism is pre-lubricated with specialized industrial grease, operating enclosed without requiring periodic maintenance under standard conditions.

Structure of the brake gear motor 0.2kW 0.25Hp

The device consists of two mechanical and electromagnetic subsystems:

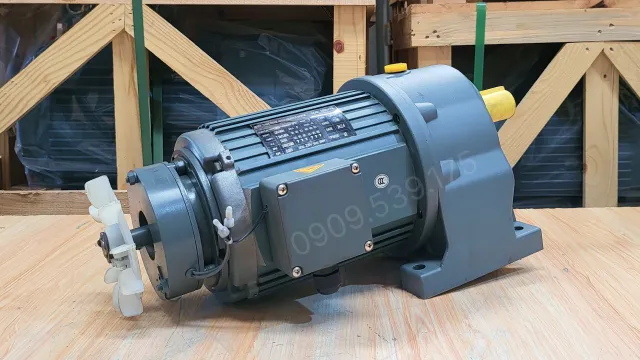

Brake electric motor body:

• Stator & Rotor: The stator core uses low-loss electrical steel sheets. The squirrel-cage rotor is precisely machined and dynamically balanced to minimize noise and vibration at high speed ranges.

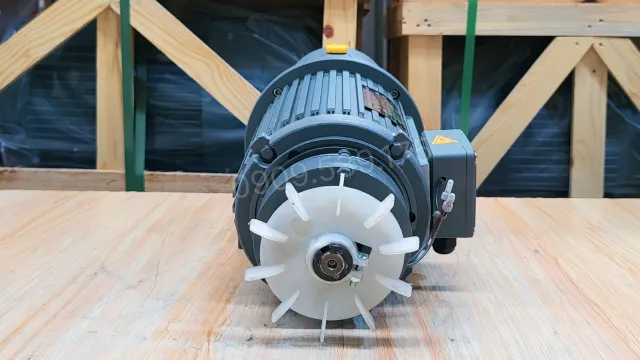

• Electromagnetic brake assembly: Consists of an electromagnetic coil, a high-force compression spring, and a friction disc. When power is lost, the spring tightly presses the friction disc against the shaft to lock it firmly. The included rectifier diode converts AC current (220V or 380V) to DC to control the braking suction force.

Gearbox:

• The helical or spur gear system is made of hardened alloy steel for wear resistance. The gear pairs mesh precisely according to each transmission stage to achieve the desired gear ratio.

Classification of the brake gear motor 0.2kW 0.25Hp

This small capacity motor series is divided into two popular mounting styles:

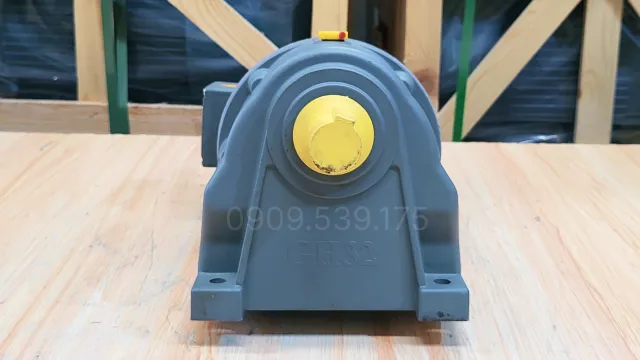

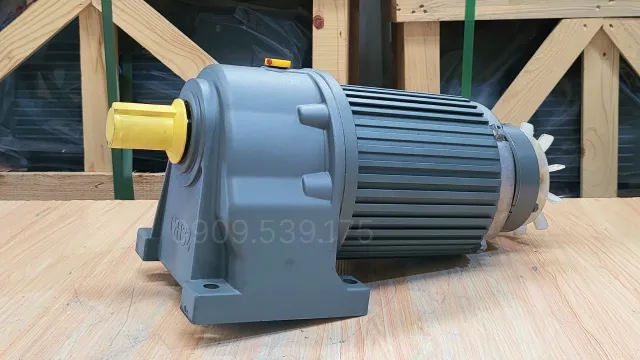

Foot-mounted brake gear motor 0.2kW 0.25Hp

The mounting style uses an integrated cast base to secure the device to a mounting frame or flat surface.

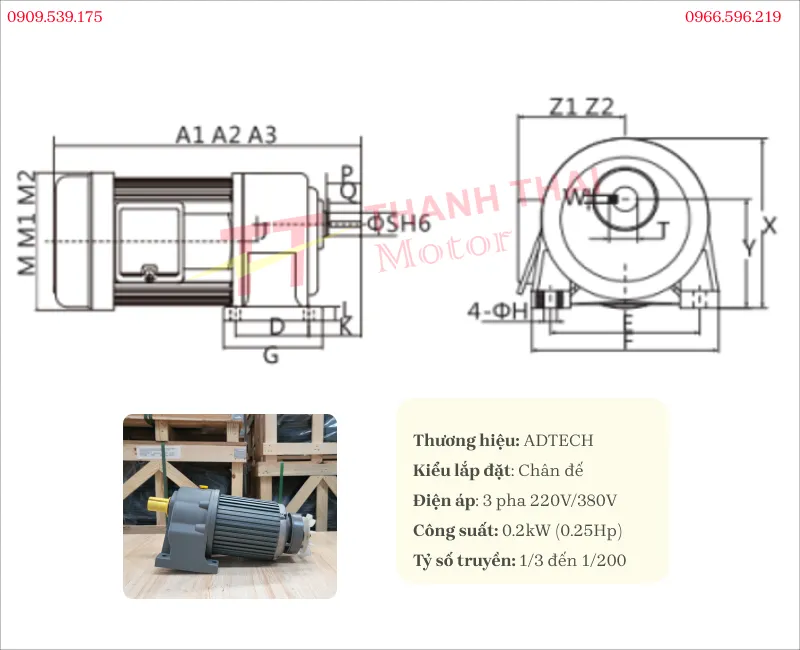

Technical specifications:

Practical applications:

• Mini conveyors: Pulling small conveyors in electronic component factories, confectionery and pharmaceutical packaging lines.
• Automatic labeling machines: Running the label roll feeding mechanism, requiring precise stopping at the label position on bottles/jars.
• Small feeding systems: Operating feed screws or chain conveyors to quantitatively supply raw materials for medium and small-scale production machines.

Flange-mounted brake gear motor 0.2kW 0.25Hp

The mounting style eliminates the base, using a flange at the gearbox end to bolt directly onto the machine wall or concentric coupling.

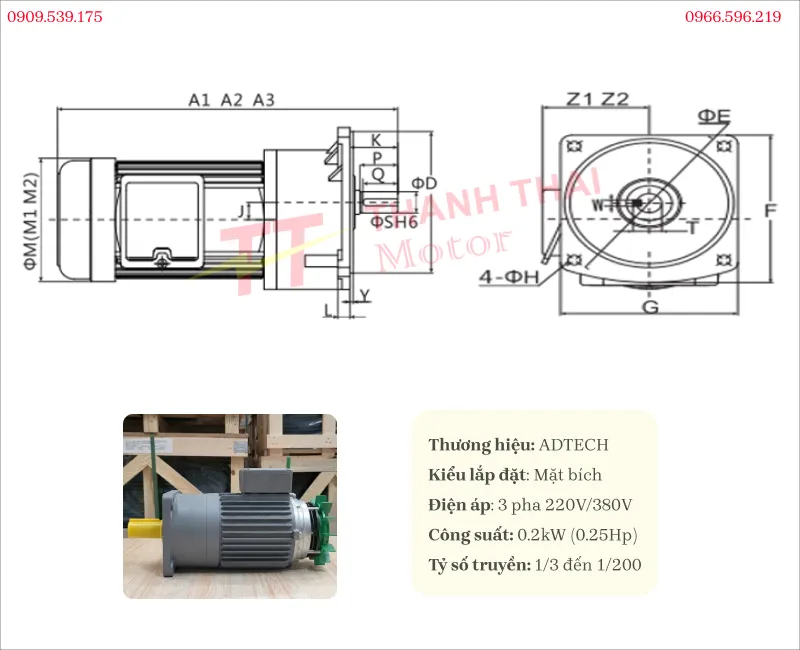

Technical specifications:

Practical applications:

• Small volumetric mixing tanks: Installing an upside-down flange to drive agitators for liquid mixing, laboratory chemicals, and paint solutions.
• Automatic scraping mechanism: Used in sludge scraping and foam skimming systems of small-scale wastewater treatment tanks.
• Positioning rotary equipment: Installed for product sorting turntables and indexing mechanisms on automation lines.

Wiring guide for the brake gear motor

To ensure safe operation, it is necessary to perform correct wiring and check before supplying power.

Step 1: Open the terminal box

Remove the terminal box cover to check the inside. Observe the contacts, ensuring they are not loose or oxidized.

Step 2: Identify the terminals

Determine the wire ends according to the markings and accompanying diagram. The electromagnetic brake assembly is usually pre-wired internally; check the correct position before powering on.

Step 3: Connect 3-phase power

Connect the power supply to terminals U1, V1, W1. Arrange the wires neatly, avoid stacking them on top of each other, and ensure insulation distance between the connection ends.

Step 4: Test run and inspection

Power on briefly to check the direction of rotation. Cut off power to check brake operation. Repeat a few times to evaluate stability.

You can watch the gear motor video to directly observe the actual wiring process. In addition, the video compilation section provides additional content related to inspection, operation, and troubleshooting during use.

Note: Do not supply power to U2, V2, W2. Disconnect power before operating, carefully check the wires, and close the terminal box tightly after completion.
