3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120)

The 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120) is a gear motor assembled from a 3-phase electric motor combined with a 3-stage gearbox. This drive assembly stands out for its deep deceleration and high torque, helping equipment operate powerfully even under heavy-duty conditions. Its sturdy structure, anti-rust painted surface, and precisely machined components ensure smooth, durable operation and excellent adaptability to industrial environments. This is the optimal choice for agitators, conveyors, mixers, and many production lines requiring high stability and flexibility.

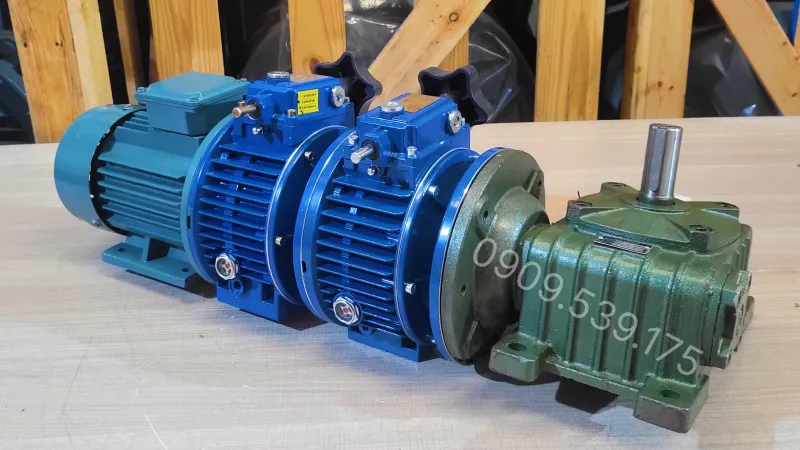

General Design of the 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120)

The 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120) features a compact and balanced appearance, coupled from two UDL speed variators and a WPDO 120 gearbox in an integrated assembly. The input section is a 2.2kW electric motor with an aluminum or cast iron housing machined as a single piece with cooling ribs, creating a robust feel and increasing durability during continuous operation.

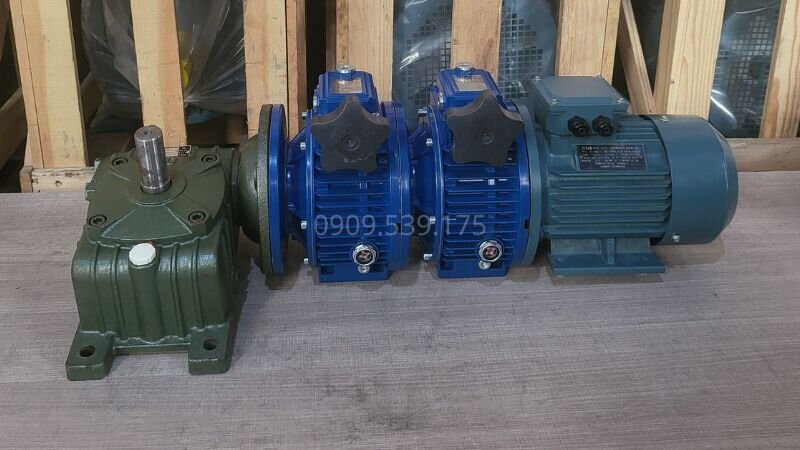

Detailed Structure of the 3-Stage Gear Motor

The 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120) is a gear motor ranging from 1.1kW to 3.7kW assembled from a 3-phase 2.2kW 3Hp electric motor and a 3-stage gearbox (2 UDL 2.2kW and 1 WPDO 120) with the following detailed structure:

Electric Motor Structure:

• Motor housing: made of cast iron or aluminum, protecting internal parts and assisting with heat dissipation.
• Stator: core steel and coils creating a magnetic field when energized.
• Rotor & rotating shaft: moving part receiving force from the stator to transmit outward.
• Cooling fan & bearings: keep the shaft rotating smoothly, reduce heat, and increase durability during continuous operation.

Gearbox Structure:

• Stage 1: Mechanical speed variator (UDL), specifically a 2.2kW 3Hp motor speed controller with a cast iron housing protecting the transmission and containing lubricating oil.
• Stage 2: 2-stage gearbox, specifically a UDL 2.2kW – WPDO 120 2-stage gearbox with a cast aluminum housing: lightweight, good heat dissipation, and standard connecting flange.
• Friction disc system: changes the gear ratio for stepless speed adjustment.
• Speed adjustment knob: allows smooth adjustment and direct speed changes while the machine is running.

Technical Specifications of the 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120)

The 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120) is made up of multiple synchronized transmission components, so understanding the technical specifications will help users accurately evaluate working capabilities and select the appropriate configuration for each system.

Technical Specifications of the 3-Phase 2.2kW Electric Motor

The electric motor is the power source for the entire drive system, so its technical specifications are an important basis for selection, installation, and connection with other equipment.

Technical Specifications of UDL 2.2kW Mechanical Speed Variator

The technical specifications of the UDL mechanical speed variator will help users easily evaluate compatibility with the drive system and select the appropriate configuration according to usage needs. Details are presented below.

Technical Specifications of WPDO 120 Gearbox

The reduction gearbox is the component responsible for power transmission and output speed reduction, directly affecting the operational efficiency of the entire system. Below is the technical information for the WPDO 120 reduction gearbox.

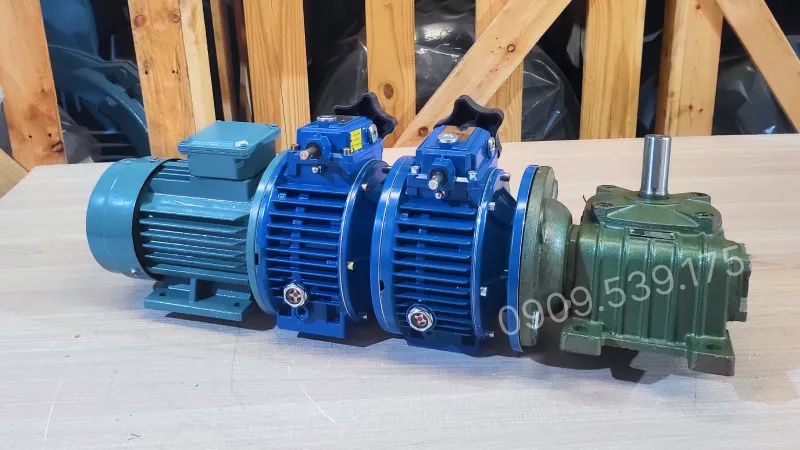

Applications of the 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120)

Thanks to its flexible speed adjustment and strong traction, the 3-stage gear motor is used in various industrial equipment.

• Applied in agitators and mixers requiring frequent speed changes.
• Installed on heavy-duty conveyors, ensuring stable and continuous transportation.
• Suitable for food processing, chemical, and agricultural product production lines.
• Used for machinery requiring high torque and low working speed.

How to Assemble an Electric Motor with 2 UDL and 1 WPDO to Form a 3-Stage Gear Motor

Below is the guide on assembling an electric motor with 2 UDL and 1 WPDO to form a 3-stage gear motor from Thanh Thai Motor:

• Step 1: Couple the Electric Motor with UDL 1
  • Insert the electric motor shaft to fit into the female shaft hole (input) of the first UDL speed variator.
  • Align concentrically, press the flange tightly, and use a wrench to tighten the fixing bolts.
• Step 2: Install UDL 2 (Create Dual Speed Variator Assembly)
  • Connect the output shaft of UDL 1 directly into the input hole of UDL 2.
  • Securely lock the flange connecting bolts between the two devices to form a monolithic variable speed motor assembly.
• Step 3: Integrate the Assembly (Motor + 2 UDL) into the WPDO Gearbox
  • Accurately align the keyway, and fit the output shaft of UDL 2 into the hollow shaft of the WPDO gearbox (a characteristic gearbox series with the load shaft pointing upward).
  • Ensure the flange fits tightly without shaft distortion, then completely tighten all screws.

The 3-Stage Gear Motor (2 UDL 2.2kW and 1 WPDO 120) allows businesses to easily install it into various complex machinery systems without taking up too much space. The speed adjustment knob is scientifically arranged, helping operators smoothly fine-tune the working tempo of the agitator and eliminate any unnecessary jerking impact forces.
