Product Introduction

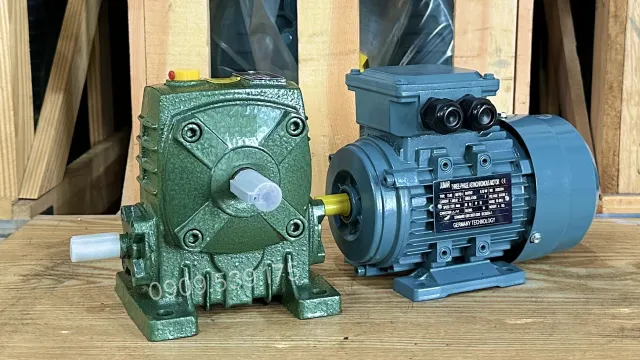

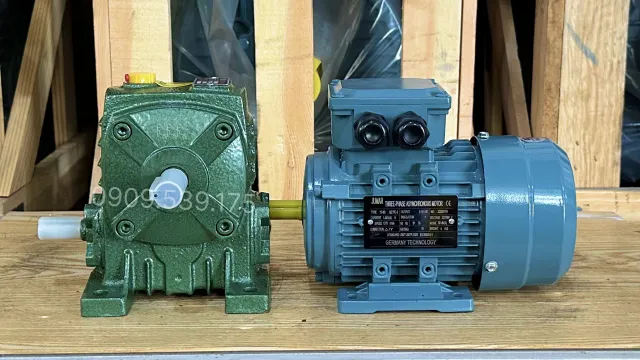

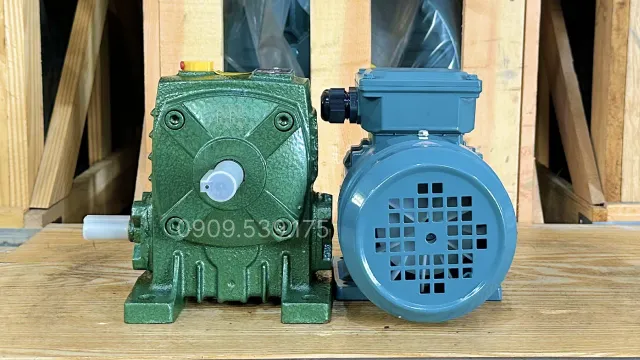

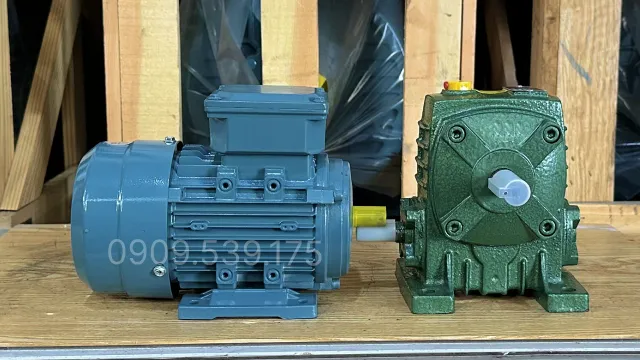

The WPA 40 Gear Motor 0.18kW 0.25Hp is a device widely used in small and medium industrial factories and enterprises. With powerful performance, Thanh Thai Motor introduces a product combination consisting of an electric motor and a gearbox, creating the WPA 40 worm gear motor 0.18kW 0.25Hp.
The WPA 40 Gear Motor 0.18kW 0.25Hp is a gear motor combined with an electric motor and a gearbox, helping to adjust the output speed and rotational speed of the equipment with a convenient, compact design.

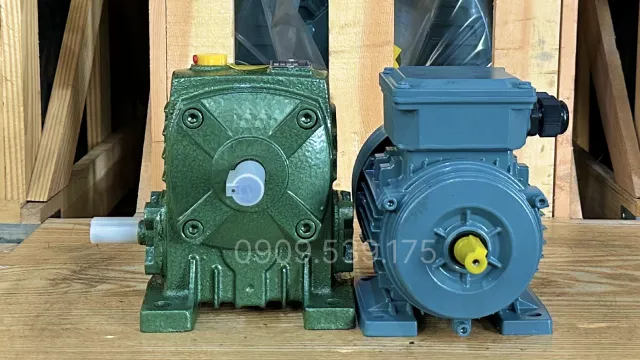

The exterior of the worm gear motor is made of pure cast iron, ensuring sturdy durability, coated with electrostatic powder coating to minimize scratches and withstand high temperatures in harsh external environments.
It is a combination of a worm gearbox and a 1-phase electric motor or a 3-phase electric motor.

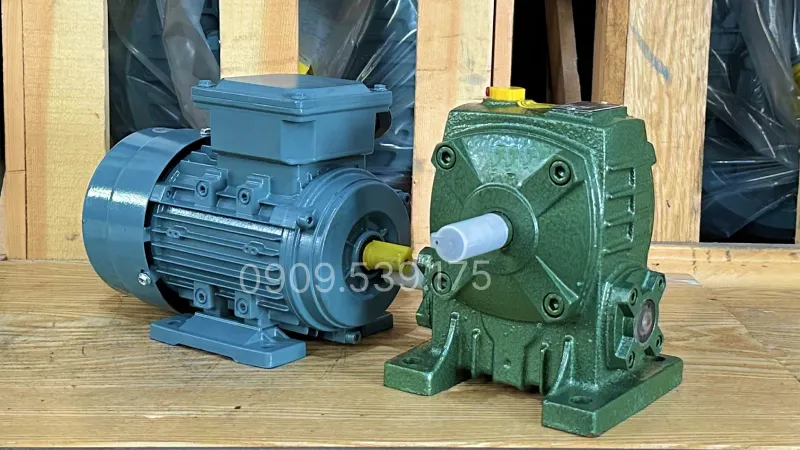

The WPA 40 Gear Motor 0.18kW 0.25Hp features a detailed structure combining an electric motor and a WPA gearbox.
It consists of a WPA 40 worm gearbox assembled with a 0.18kW 0.25Hp 1-phase electric motor or a 0.18kW 0.25Hp 3-phase electric motor via a pulley and coupling.
The WPA 40 Gear Motor 0.18kW (0.25Hp) is a low-power transmission device constructed from a 3-phase electric motor combined with a WPA 40 gearbox. The product is suitable for light-duty applications requiring a compact device that is easy to install and operates stably over long periods.
The 0.18kW 3-phase electric motor is designed for low-power systems, helping to optimize installation space while ensuring smooth operation and energy saving.
| Code | 63M |
| Shaft diameter | 11mm |
| Key | 4mm |
| Flange diameter | 140mm |
| Weight | 4.5kg |
| Dimensions | 220 * 130mm * 170mm |
| Mounting type | Foot mounted (B3) |
| Protection class | IP55 |
| Insulation class | Class F |

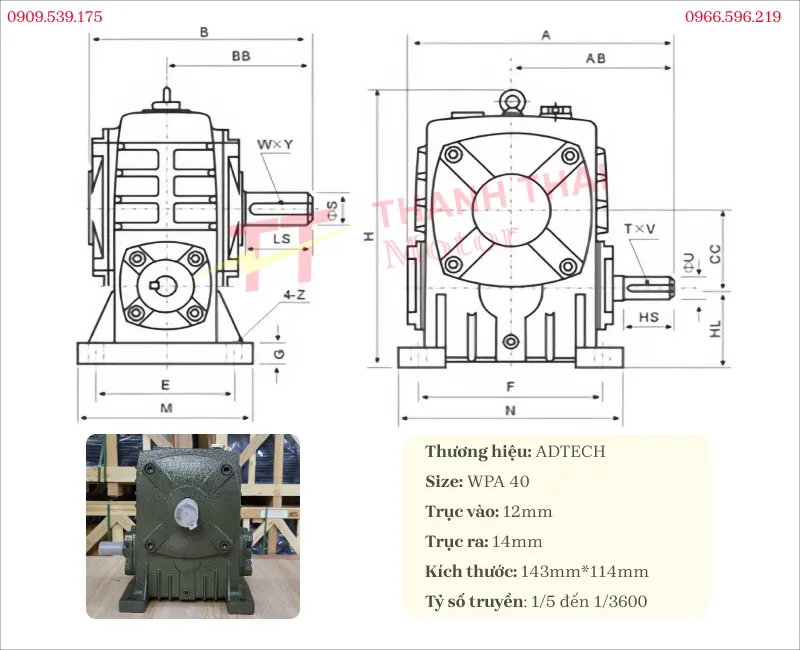

The WPA 40 gearbox is suitable for light-duty transmission systems and limited installation spaces. Below is the technical specification table for this gearbox.
| Size | 40 |
| Input shaft diameter | 12mm |
| Output shaft diameter | 14mm |
| Dimensions | 143mm*114mm |

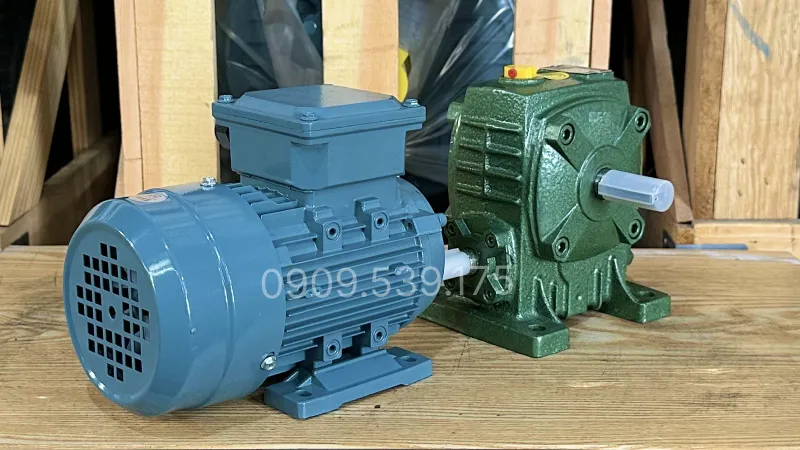

As a gear motor under 1.1kW, the WPA 40 Gear Motor 0.18kW 0.25Hp is prioritized and widely used by customers in small and medium industrial factories:
Customers can view additional gear motor videos provided by Thanh Thai Motor to visually observe how the equipment operates in practice, from transmission capacity and stability to working efficiency under specific application conditions. In addition, the comprehensive video system is built with various technical contents and practical illustrations, helping users easily access information, clearly understand product characteristics, and better support the selection and operation of the gear motor.
When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as: Warranty up to 24 Months All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use. Nationwide Delivery No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide. Products Meet European Quality Standards with German Technology Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability. Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers. Quality Commitment All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings. Full Certification Documents: CO, CQ,... All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry. Need advice on choosing the right gearmotor for your needs? Contact Thanh Thai Motor immediately using the methods below:Warranty, Shipping, and Commitment Policies at Thanh Thai Motor
Contact Us
| Product Type | Gear Motor |
| Rated Power | 0.18kW 0.12Hp |
| Power Range | 0.18 KW – 315 KW |
| Frequency | 50Hz |
| Voltage | 220V, 220/380V |
| Material | Aluminum and Cast Iron Housings |
| Place of Manufacture | German technology, assembled in China |
| Brand | JUMAR, ADTECH |
| Warranty Period | Up to 24 months |
| Shaft Diameter | 11mm |
| Keyway | 4mm |
| Speed | 1,400 – 1,500 RPM |
| Input Shaft Diameter | 12mm |
| Output Shaft Diameter | 14mm |
| Gear Ratios | 1/10 – 1/6 |
