WPDO 40 Gear Motor 0.18kW 0.25Hp

The WPDO 40 Gear Motor 0.18kW 0.25Hp is a gear motor product line assembled from an electric motor-more specifically, a 3-phase electric motor-and a gearbox. Thanks to this unique combination, the device reduces rotational speed and operates powerfully.

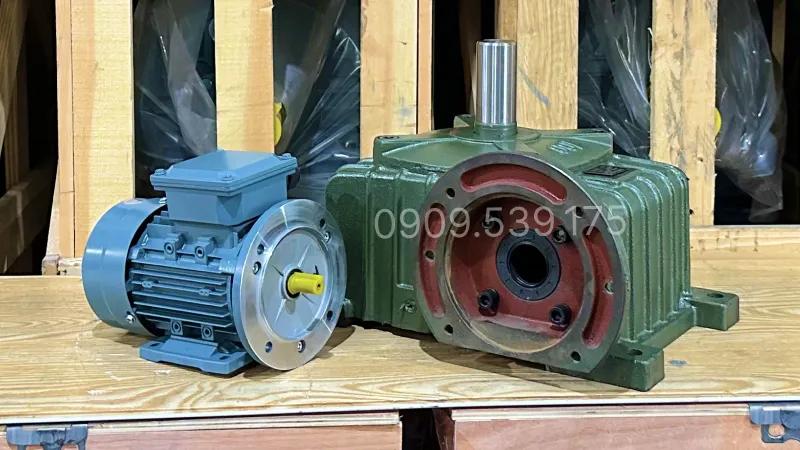

Design Overview of the WPDO 40 Gear Motor 0.18kW 0.25Hp

The worm gear motor features an electric motor housing made of cast iron or aluminum, while the gearbox housing is made of sturdy cast iron, combined with an electrostatic paint coating to protect the equipment against fading and rust.

Detailed Structure of the WPDO 40 Gear Motor 0.18kW 0.25Hp

This transmission system is composed of two core assemblies, including the electric motor part that generates rotational force and the gearbox unit responsible for speed conversion.

3-Phase Electric Motor with 0.18kW 0.25Hp Power:

• Stator: Consists of a magnetic steel core and pure copper wire windings, responsible for supplying power and generating a rotating magnetic field to drive the rotor.
• Rotor: Made of tightly stacked electrical steel laminations, rotating around the shaft with high smoothness, minimizing noise for low-power equipment.

WPDO 40 Worm Gearbox:

• Worm Wheel: Manufactured from high-quality brass alloy, with good friction resistance, ensuring smoothness during transmission.
• Worm Shaft: Machined from hardened carbon steel, meshing precisely with the worm wheel to reduce speed and increase torque.

Specifications of the WPDO 40 Gear Motor 0.18kW 0.25Hp

The installation dimension and operating characteristic data below serve as the mandatory technical basis for users to accurately calculate and machine the base frame.

Specifications of the 3-Phase Electric Motor 0.18kW 0.25Hp

Specifications of the WPDO 40 Worm Gearbox

To support accurate connection and selection of transmission accessories compatible with the equipment shaft, customers can refer to the detailed specification table of the WPDO 40 gearbox right below:

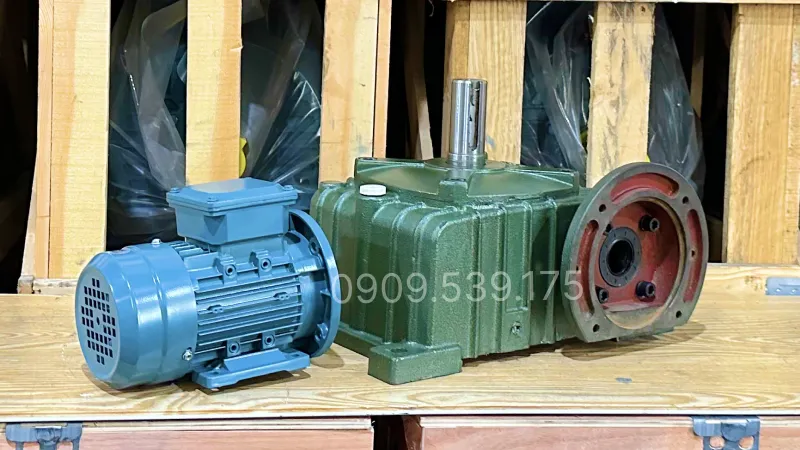

Popular Applications of the WPDO 40 Gear Motor 0.18kW 0.25Hp

Thanks to its design assembled from two different device series with powerful performance, the WPDO 40 Gear Motor 0.18kW 0.25Hp is widely used by customers in the current market:

• Used in mini conveyor belts in packaging and sorting production lines.
• In food production conveyor belts and seafood processing.
• Used in small and medium-sized rolling and pressing plants.

Guide on Assembling the WPDO Worm Gearbox to the 3-Phase Electric Motor

To minimize eccentricity and ensure stable transmission, the following installation sequence must be strictly followed:

Step 1: Check installation details

Clean the motor shaft and the mounting hole of the WPDO gearbox. Compare the shaft dimensions, keyway, and flange to avoid misalignment during connection.

Step 2: Lubricate the shaft

Apply a thin layer of oil to the shaft surface to reduce friction during assembly and facilitate disassembly during maintenance. You can refer to the comprehensive video to see how to prepare before installation.

Step 3: Insert the shaft into the gearbox

Insert the motor shaft straight into the bore of the gearbox. Align the keyway correctly before pushing it all the way in; do not force it if the components are not yet properly engaged.

Step 4: Tighten the flange

Install the bolts and tighten them in a diagonal sequence to distribute the force evenly. Then rotate the shaft manually to check before putting it into operation.

You can also refer to the gear motor video to see the complete assembly process and post-installation inspection.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
