Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp

The Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp is a specialized device in industrial drives, standing out for its high load capacity and stable operation. This heavy duty gear motor product is a combination of a powerful electric motor and an advanced gearbox, delivering optimal performance and long service life. This is an ideal choice for machinery systems operating continuously in heavy industrial environments.

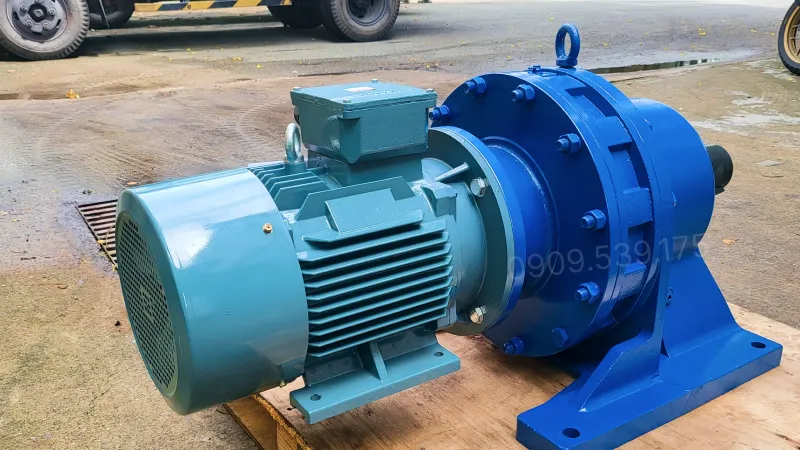

General Design of the Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp

The Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp stands out with its compact design, making it easy to install in various machinery spaces. The entire motor body is coated with anti-rust electrostatic paint, protecting the device from external environmental corrosion agents. The casing is cast from sturdy solid cast iron, ensuring high durability and excellent load-bearing capacity during continuous, heavy-duty operation.

Structure of the Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp

The Cycloid gear motor 1.1kW 1.5Hp is a complete combination of two main components: a 3 phase electric motor and a Cycloidal gearbox:

• 3 Phase Electric Motor 1.1kW 1.5Hp: The electric motor uses a standard 3 phase power supply, operating stably and efficiently. The 1.1kW power is equivalent to 1.5Hp, suitable for medium and heavy-duty applications. The motor part is wound with 100% copper wire, helping to increase lifespan and heat dissipation capacity during continuous operation.
• Cycloid Gearbox 1.1kW 1.5Hp: The cycloidal gearbox uses a unique cycloidal gear system, delivering smooth transmission, reduced vibration, and high load capacity. The transmission mechanism of the Cycloid gearbox provides an output torque many times larger than that of a conventional motor, making it especially suitable for production environments with varying loads.

Specifications of the Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp

Below are the basic parameters for calculating design, installation, and equipment replacement in the factory.

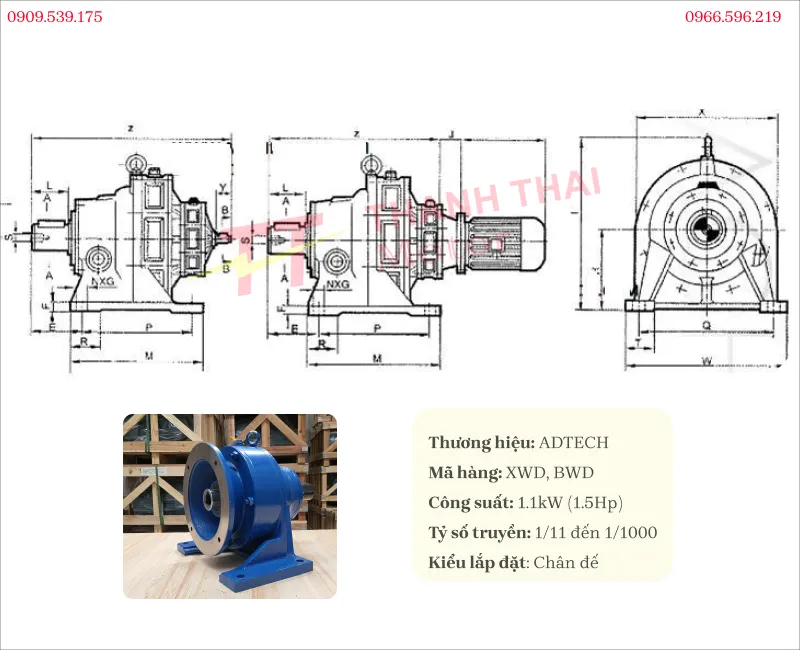

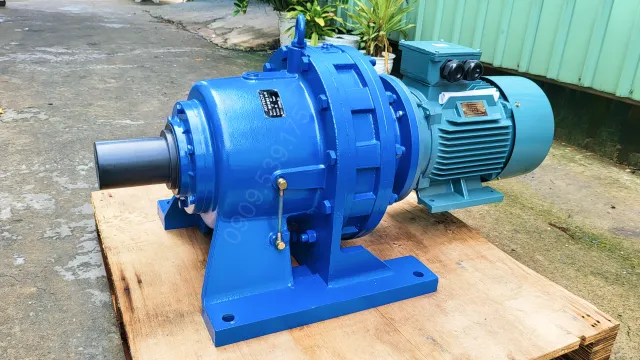

Foot-Mounted Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp

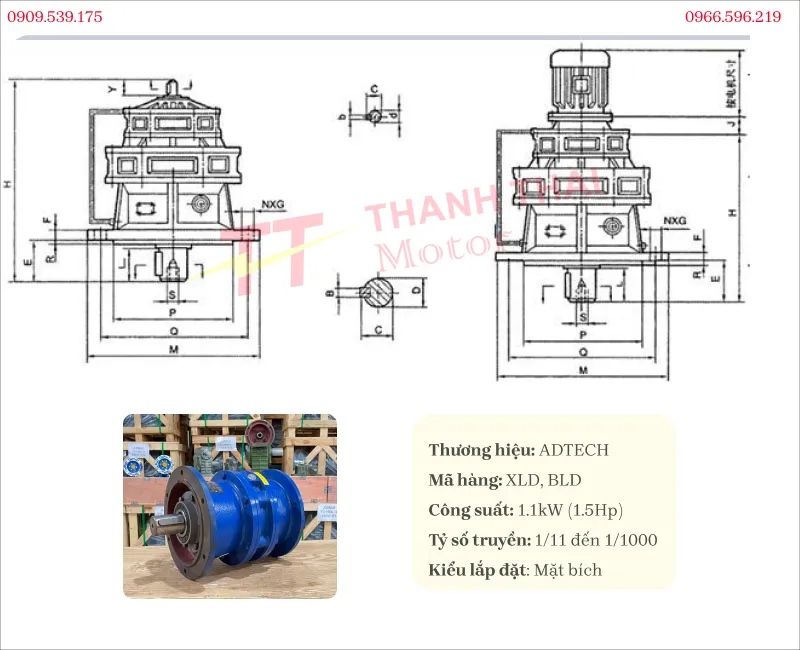

Flange-Mounted Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp

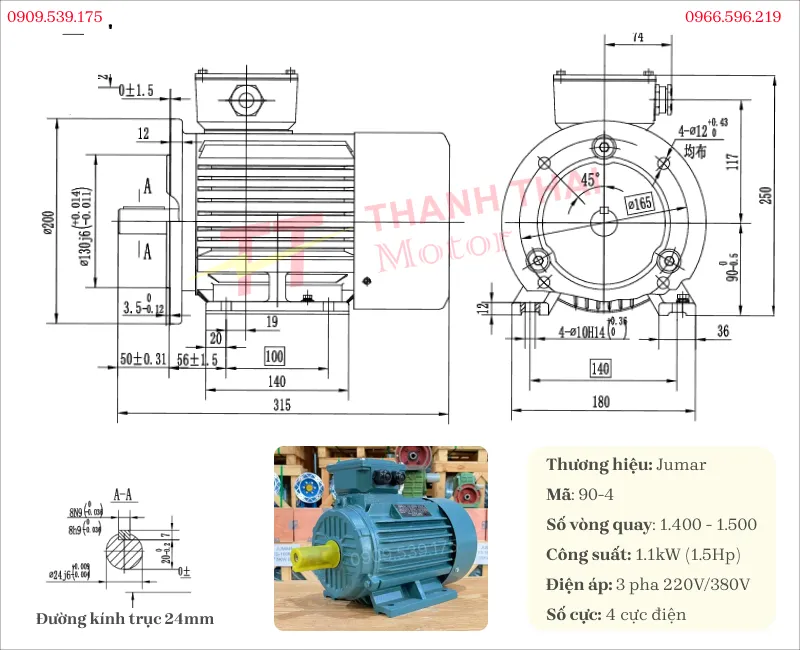

3 Phase Electric Motor 1.1kW 1.5Hp 4 Pole

The parameter table below details the dimensional and electrical characteristics of the driving motor part, helping to define the operating capability of the product.

Specifications:

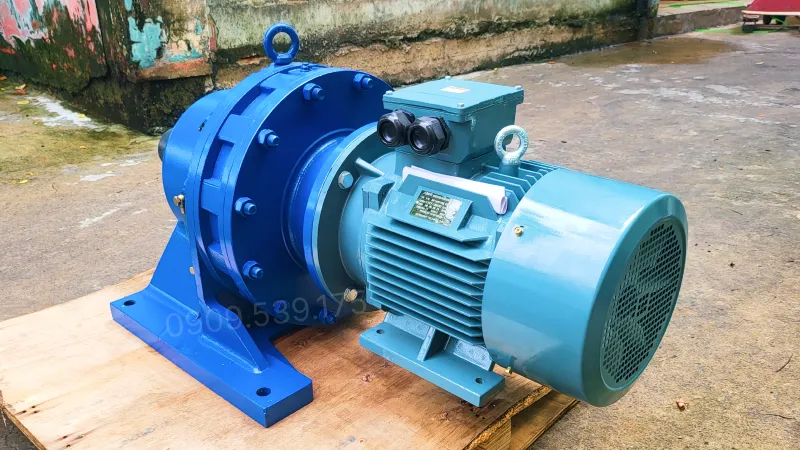

Functions and Applications of the Heavy Duty Cycloid Gear Motor 1.1kW 1.5Hp

The product is widely applied in many industries such as:

• Food processing industry: drives for kneaders, dough mixers, and food conveyor belts.
• Building materials manufacturing industry: used in cement conveyor systems, brick pressing machines, and concrete mixing plants.
• Textile, paper, and plastics industries: supports smooth operation of winding, pulling, and compression systems.
• Automation machinery: ensures stable and precise movement for automated equipment.

Instructions for Installing the Heavy Duty Cycloid Gearbox onto a 3 Phase Electric Motor

For a smooth installation process, users should refer to the gear motor video beforehand to grasp the execution steps and technical notes.

Step 1: Position Alignment

Place the electric motor and gearbox on the same flat surface. Align the motor shaft straight with the input hole of the gearbox to ensure accurate assembly. In the gear motor video, this is also the step to quickly check the concentricity between parts.

Step 2: Making the Connection

Bring the motor into the assembly position and push it slowly until the two flanges fully contact each other. If you encounter difficulties inserting the shaft into the core, you can refer to the compilation video to follow supporting operations and practical installation experience.

Step 3: Securing with Bolts

Install the connecting bolts through the flange and tighten them evenly to securely fasten the motor to the gearbox. It is recommended to tighten in a diagonal sequence to minimize misalignment, then recheck all connection positions before putting the equipment into operation.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
