Heavy Duty Cycloid Gear Motor 1.5kW 2Hp

Heavy Duty Cycloidal Geared Motor 1.5kW 2Hp is a powerful gear motor line, commonly used in heavy-duty industrial machinery systems. With a power of 1.5kW (equivalent to 2Hp), the product helps transmit stable motion, generates high torque, and saves energy effectively. This is the optimal choice for production lines operating continuously with high durability requirements.

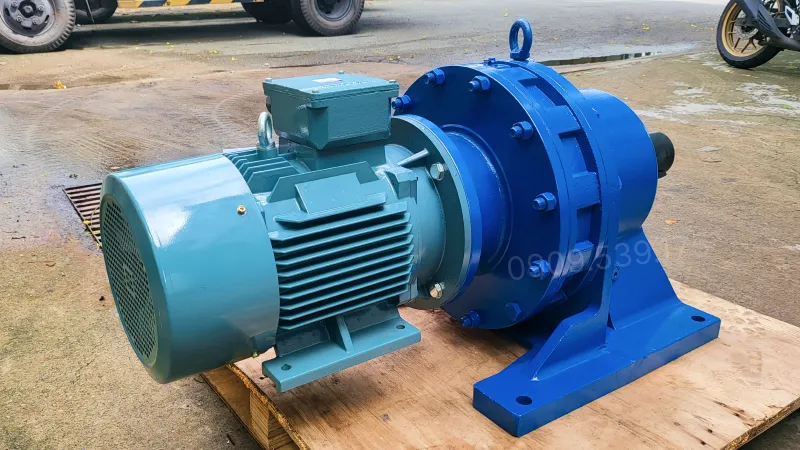

Overview design of Heavy Duty Cycloidal Geared Motor 1.5kW 2Hp

The Cycloid gear motor 1.5kW 2Hp series features a modern design, with an anti-rust powder coating that effectively protects the outer shell in industrial environments. The body is made of high-quality monolithic cast iron compound, helping the equipment resist wear and withstand good impacts. The heavy duty gear motor has a compact structure, making it easy to integrate into various machinery equipment.

Structure of Heavy Duty Cycloidal Geared Motor 1.5kW 2Hp

The heavy duty gear motor Cycloid 1.5kW is composed of two main parts: the electric motor and the cycloidal gearbox. More specifically, it uses a 3-phase electric motor and a cycloidal gearbox:

• 3-Phase Electric Motor 1.5kW 2Hp: Wound with high-quality copper wire, operating smoothly and durable over time. Suitable for industrial 3-phase electricity use.
• Cycloidal Gearbox 1.5kW 2Hp: Operates based on the cycloidal gear principle, transmitting stable torque with high efficiency. The enclosed mechanism helps increase lifespan and reduce mechanical wear.

Technical specifications of Heavy Duty Cycloidal Geared Motor 1.5kW 2Hp

Mastering the technical specifications is an important basis to help users calculate installation, operate equipment safely, and easily replace components when maintenance is needed.

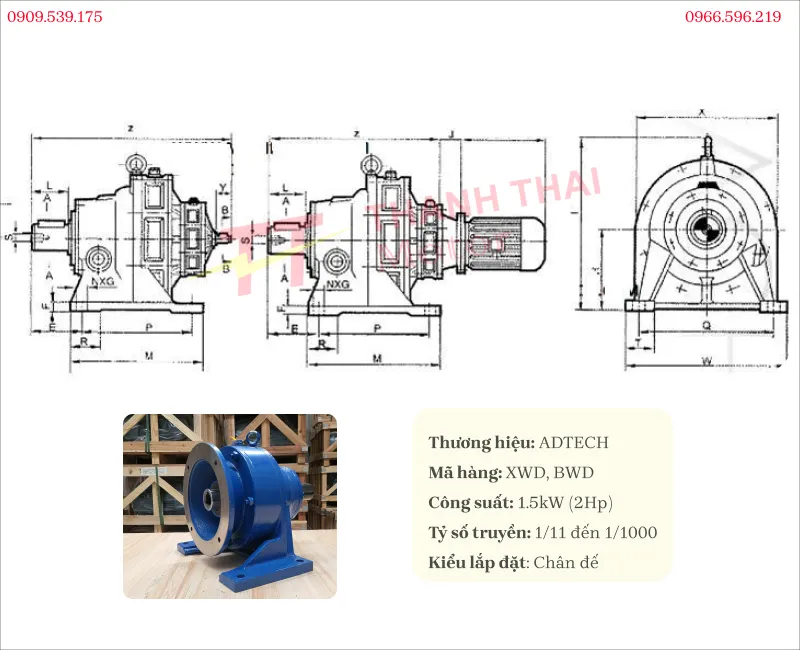

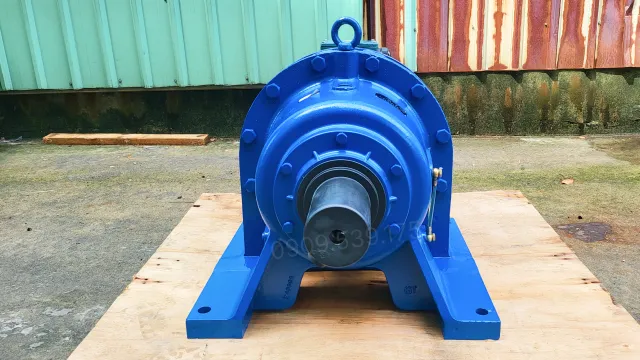

Foot-Mounted Heavy Duty Cycloidal Geared Motor 1.5kW 2Hp

The foot-mounted type features a solid monolithic cast design, usually installed on a machine base or workshop floor to help the transmission system stand firmly and minimize vibration when pulling heavy loads.

Technical specifications:

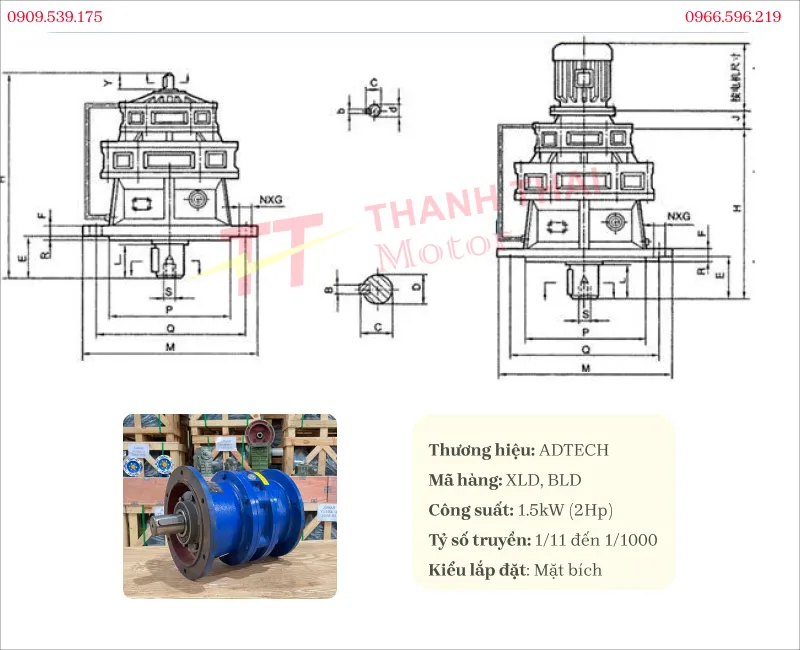

Flange-Mounted Heavy Duty Cycloidal Geared Motor 1.5kW 2Hp

The flange-mounted type is designed to connect directly or mount straight into working machinery. The biggest advantage of this type is saving assembly space, allowing vertical installation (such as chemical agitators) and ensuring absolute shaft concentricity.

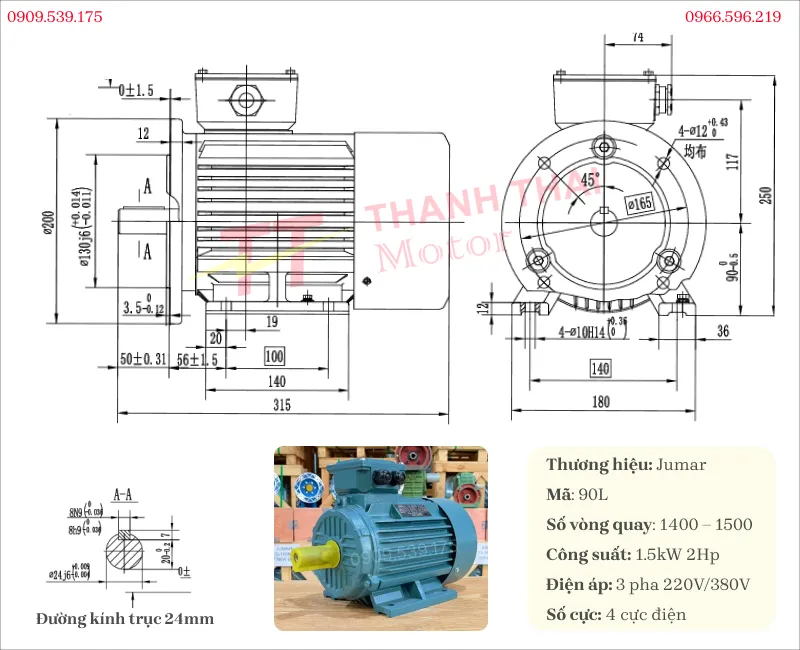

Technical specifications of 3-phase electric motor 1.5kW 2Hp 4-pole

The specification table below details the dimensional and electrical characteristics of the driving motor part, helping to define the operating capability of the product.

Technical specifications:

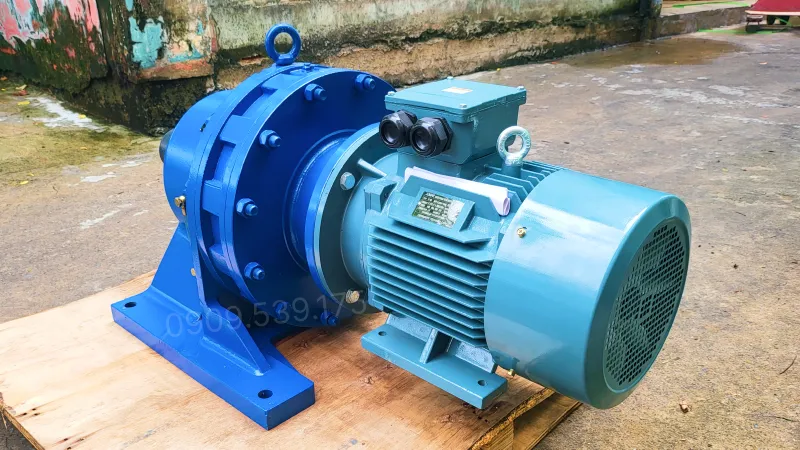

Applications of Heavy Duty Cycloidal Geared Motor 1.5kW 2Hp

With the ability to generate high torque, high load capacity, and stable operation over a long period, the Cycloid gear motor 1.5kW (2HP) is widely used in many modern industries and production systems such as:

• Conveyor systems: Continuously transporting goods and raw materials in production plants, warehouses, and logistics centers.
• Industrial mixers and grinders: Meeting heavy loads, operating stably in food, chemical, and building materials industries.
• Lifting and hoisting equipment: Providing strong pulling force, ensuring safety and efficiency in cargo handling processes.
• Presses and packaging machines: Maintaining stable speed, supporting automated production lines to operate continuously.
• Cement and mining industries: Suitable for harsh working environments with high dust and heavy loads.

Instructions for installing cycloid gearbox onto 3-phase electric motor

To easily visualize the installation operation, it is recommended to watch the video in advance to understand the execution sequence.

Step 1: Position alignment.

Place the motor and gearbox on the same plane, aligning the shaft with the input hole. In the gear motor video, this step also helps limit vibration and wear during operation.

Step 2: Connection.

Slowly insert the motor shaft into the gearbox until the two flanges touch tightly. According to the video, it is necessary to maintain a straight direction to avoid jamming or core misalignment.

Step 3: Bolt fixation.

Install bolts and tighten them evenly around the flange to firmly secure the connection; you should recheck the tightness after installation to ensure stability.

Conclusion: Proper technical installation helps the system operate stably, reduces vibration, and limits damage during use. You should refer to the comprehensive video to view the entire practical process, thereby operating more accurately and avoiding common installation errors.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
