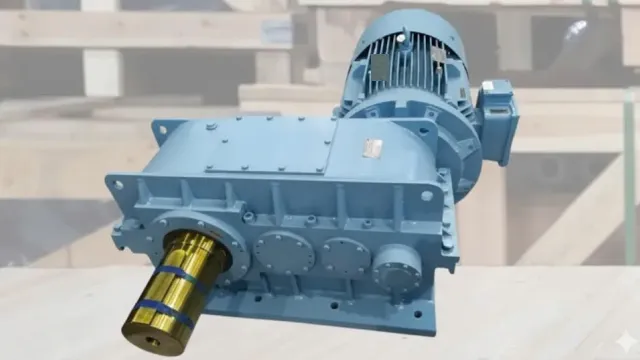

HB-Series Helical Gear Motor

The HB-Series Helical Gear Motor is a gear motor designed for drive systems requiring high performance and stable operation in harsh industrial environments. With powerful and stable reduction capabilities, this product is ideal for high-torque and heavy-load applications. This heavy duty gear motor is particularly suited for industries such as mining, mineral processing, building materials manufacturing, and applications requiring continuous operation.

General Design of the HB-Series Helical Gear Motor

Electric Motor

• Material: Thick, high-stress-resistant cast iron frame, solidly molded terminal box complying with IP55 standards. This structure allows the motor to withstand severe mechanical shocks and operate stably in harsh environments such as open-pit mines and cement plants.
• Characteristics: Large maximum starting torque design, perfectly compatible with bearing and winding temperature monitoring sensors to connect with the central control system for proactive protection.

Gearbox

• Function: Power transmission and torque multiplication to extremely high levels (up to hundreds of thousands of Nm). The modular structural design allows flexible interchangeability between parallel output shaft (H-Series) or right-angle output shaft (B-Series) depending on the installation layout.
• Characteristics: Features exceptionally high power density. To cope with the massive heat generated by long-term heavy load pressure, the HB gearbox is often integrated with an auxiliary mechanical cooling fan at the input shaft or internal water-cooling copper coils circulating within the oil sump.

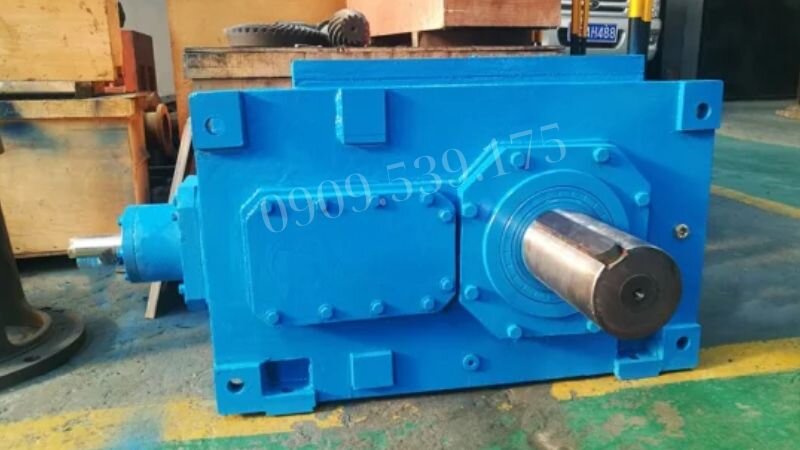

Structure of the HB-Series Helical Gear Motor

The gear motor structure is specially designed to ensure high durability and stable operating performance in heavy industrial applications.

Electric Motor

• Stator: Uses large cross-section copper windings, formed by a rigid mold and cured with high-grade vacuum pressure impregnation resin. The magnetic core assembled from low-loss steel laminations optimizes the magnetic flux circuit, minimizing localized heating during continuous operation.
• Rotor: Specially designed large-diameter rotor shaft forged from solid alloy steel, combined with a high-frequency welded reinforced squirrel cage. The dynamic balancing process achieves absolute precision, completely eliminating eccentric centrifugal force when the shaft accelerates under forced loads.

HB-Series Helical Gearbox

• Industrial Gears: Optimized profile helical and spiral bevel gear systems, deeply carburized and surface-ground to optimize load contact patterns and eliminate stress concentrations that cause tooth breakage.
• Shafts and Bearing System: The output shaft is positioned by a double-row spherical roller bearing system, specialized in handling severe axial impact shocks from peripheral equipment such as bucket elevators and crushers.
• Lubrication & Sealing System: Large-capacity oil sump combined with labyrinth-type oil seals to prevent fine dust intrusion. The system features an optional forced lubrication pump to ensure high-pressure lubricating oil films thoroughly cover the top gear stages.

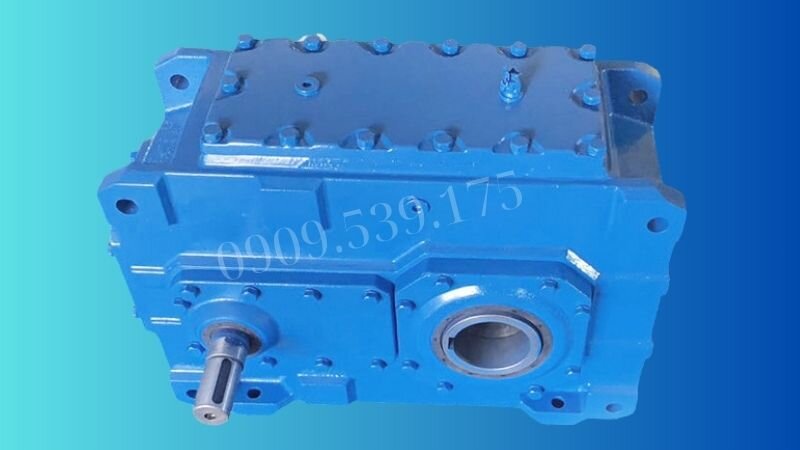

Applications of the HB-Series Helical Gear Motor

• Long and heavy industrial conveyors
• Concrete mixers, hydraulic presses, stone crushers
• Equipment in cement, steel, mining, and sugar industries
• Automated production lines, heavy load lifting systems
• Drive systems requiring continuous and stable operation
