Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp

Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp is a high-power gear motor, specially designed to meet the demands of powerful and durable operation in industrial systems. With a right-angle output shaft, this heavy duty gear motor generates large torque, helping to transmit force efficiently and optimize installation space. The product is suitable for applications in industries requiring heavy loads and continuous operation, such as mining, building materials manufacturing, and other heavy industries.

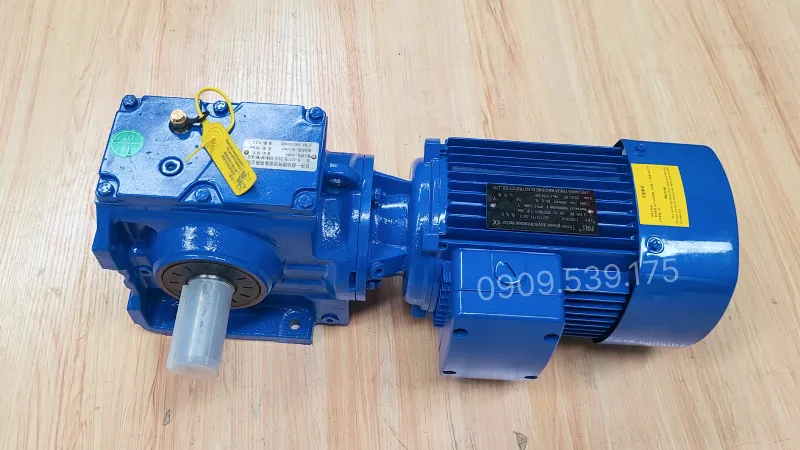

Overview of the Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp

Electric motor

• Material: The protective housing is cast from high-strength grey cast iron, equipped with a terminal box meeting IP55 water and dust resistance standards. A dense cooling fin structure is cast densely along the body to quickly dissipate the large amount of heat generated at this power level.
• Characteristics: The motor is fine-tuned to provide extremely strong starting torque while keeping the starting current within safe limits. The 20Hp power level is especially suitable for driving high-inertia systems such as pellet mills, bucket elevators, or mineral conveyors.

Gearbox

• Function: Redirects the angular transmission, significantly reducing the overall length of the machine assembly. This is the perfect solution for tight installation spaces, positions close to walls, or limited by other equipment.
• Characteristics: The core technology of the S-series is the combination of cylindrical gears and spiral bevel gears. This mechanism thoroughly overcomes the disadvantages of heat generation and power loss found in worm gearboxes, maintaining high transmission efficiency even under heavy loads.

Structure of the Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp

The Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp consists of two main parts:

3-phase electric motor 15kW 20Hp:

• Stator: Treated with VPI vacuum impregnation technology to completely eliminate air bubbles in the copper winding system. This process locks the coils into a uniform block, enhancing electromechanical durability and preventing breakage caused by thermal overload or electromagnetic centrifugal force.
• Rotor: The squirrel-cage core is precisely digitally dynamically balanced and manufactured with skewed slots. This structure helps eliminate magnetic slip and mechanical acoustic resonance, ensuring the motor shaft accelerates powerfully and maintains maximum stability under load.

Heavy Duty S-Series Helical Worm Gearbox:

• Spiral bevel gears: Hardened alloy steel with sharp CNC grinding, allowing gear tooth faces to mesh smoothly and eliminating destructive sliding friction in the mechanism.
• Shaft and Bearings: The output shaft is supported by large tapered roller bearings, specialized for handling massive axial forces and radial forces from external heavy loads.
• Lubricant chamber: Protected by high-grade dual-lip oil seals, preventing synthetic lubricating oil film leakage and keeping the gearbox operating durably for thousands of continuous hours.

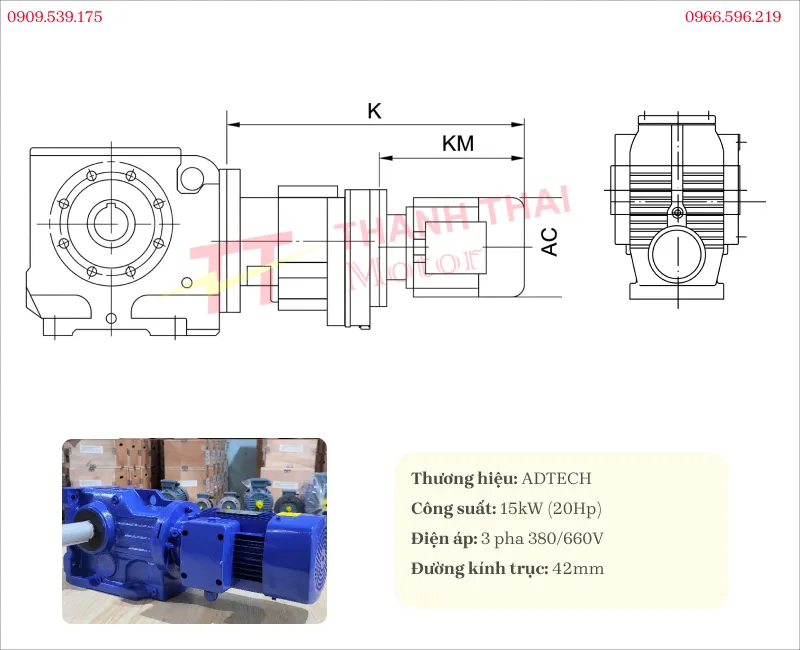

Specifications of the Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp

The specifications of the Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp are presented below, including basic information for selecting and installing the equipment.

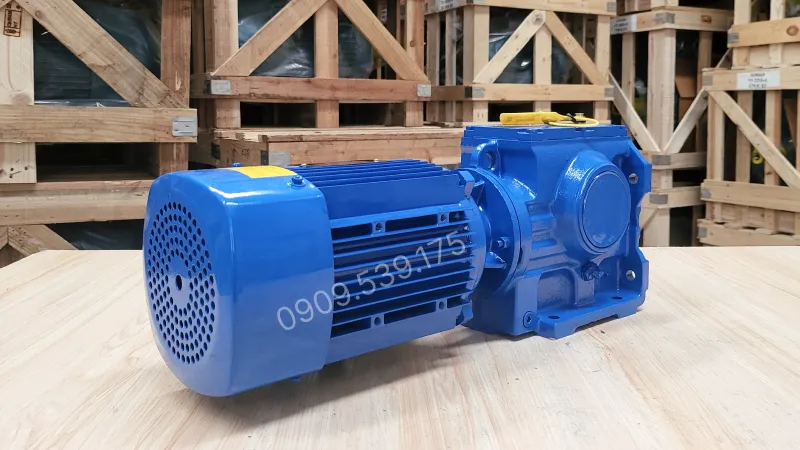

Applications of the Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp

The Heavy Duty S-Series Helical Worm Gear Motor 15kW 20Hp is widely used in industries requiring high traction force and continuous operation:

• Industrial conveyor lines: Transporting goods and heavy materials in manufacturing plants.
• Crushers and presses: Used in mining and building materials manufacturing.
• Lifting equipment: Overhead cranes, hoists, and freight elevators operating in warehouses or construction sites.
• Food processing and chemical industries: Applied in large-capacity mixing and stirring systems.
• Metalworking and metallurgy: Used in steel rolling lines, bending machines, or cutting machines.

To better understand the structure, operating principle, and transmission capability of the product, customers can refer to the gear motor video system produced directly by Thanh Thai Motor. Practical simulation videos help customers easily observe the equipment’s operation in various production environments.

In addition, the comprehensive video library is continuously updated with useful content such as installation guides, maintenance procedures, and methods for inspecting and handling common issues during use. This will be a helpful reference resource to help customers use the equipment efficiently, enhance durability, and optimize operating costs over the long term.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
