Heavy Duty R-Series Inline Helical Gear Motor 22kW 30Hp

The Heavy Duty R-Series Inline Helical Gear Motor 22kW 30Hp is an ideal drive solution for large-scale production lines and industrial equipment operating continuously under high loads. With a powerful 22kW capacity (equivalent to 30Hp), this heavy duty gear motor well meets the demand for large power transmission, maintains stable speed, and saves energy during operation. The equipment is specially designed for high-intensity working environments such as factories, processing workshops, heavy-duty conveyor systems, and applications requiring high torque.

Overview of Heavy Duty R-Series Inline Helical Gear Motor 22kW 30Hp

Electric motor:

• Material: The motor housing is cast from high-strength heavy-duty iron, with a thick design and wide cooling fins to help dissipate heat quickly, maintaining a stable temperature when the machine runs at full capacity.
• Efficiency: The stator core uses high-grade magnetic technical steel, wound with 100% pure copper wire meeting F/H insulation standards, ensuring good overload capacity and durable lifespan.

R-Series Inline Helical Gearbox:

• Function: Strongly amplifies torque from the motor, converting it into stable output speed with superior transmission efficiency (usually reaching over 95%).
• Design: Concentric shaft shape optimizes installation space, solid cast iron housing structure resists impact and absolutely prevents oil leakage in harsh environments.

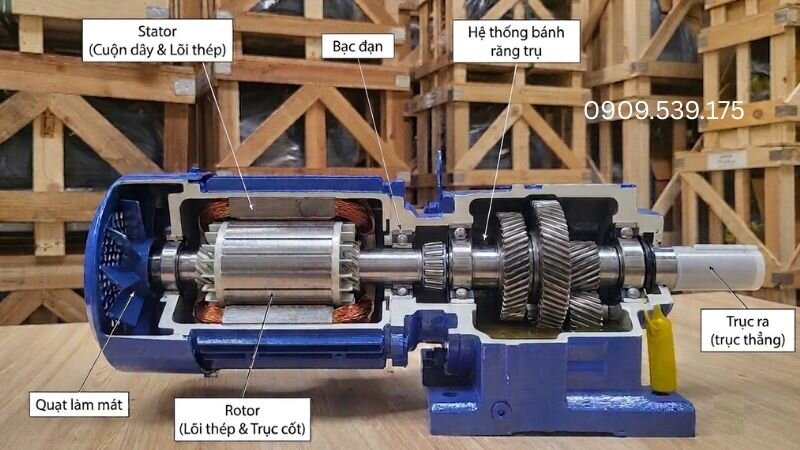

Internal structure of the gear motor

The Heavy Duty R-Series Inline Helical Gear Motor 22kW 30Hp is a combination of an electric motor and a gearbox. Specifically, it is the combination of a 3-phase electric motor and an R-Series Inline Helical Gearbox:

Motor body block

• Stator: Consists of high-density wound copper coils, creating a strong and stable magnetic field, minimizing power loss.
• Rotor: Silicon steel core with absolute precision dynamic balancing. The motor shaft is made of super-hard alloy steel, with high torsional strength, ensuring no deformation when the gearbox operates under 30Hp load pressure.

Gearbox block

• Helical gear system: Made from carbonized alloy steel, achieving maximum surface hardness to resist wear, while keeping the core tough to prevent breakage. The helical gear design increases contact area, evenly distributes load, and operates extremely smoothly.
• Output shaft: Large size, integrated with specialized heavy-duty bearings, capable of withstanding radial and axial forces arising from heavy-duty applications.
• Lubrication system: Optimized oil chamber combined with high-grade oil seals, helping to cool and lubricate continuously, ensuring durable equipment operation and superior lifespan.

Technical specifications of Heavy Duty R-Series Inline Helical Gear Motor 22kW 30Hp

• Mining and building materials industry: Operating conveyor systems for coal, sand, and stone mining; stone crushers, excavators, and vibrating screen systems.
• Metallurgy and mechanical engineering: Used in large overhead cranes, steel rolling mills, and hydraulic presses.
• Chemical and environmental industry: Applied for large-capacity chemical mixers, industrial pumps, and agitators in wastewater treatment systems.

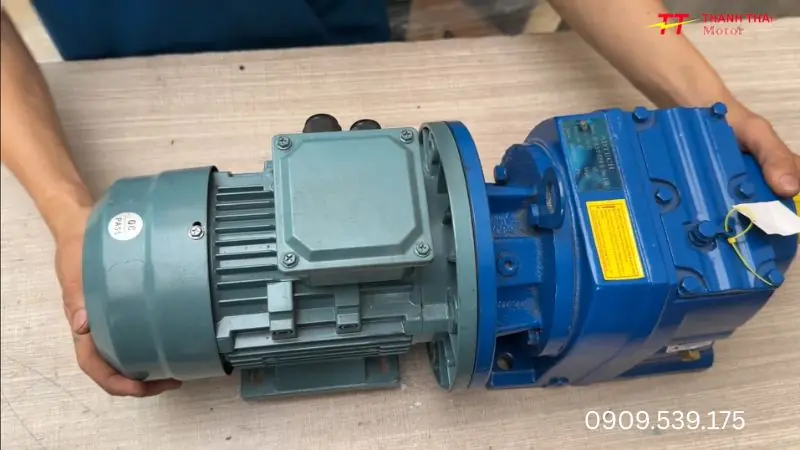

Instructions for installing R-series heavy duty inline helical gearbox with 3-phase electric motor

• Step 1: Place the 0.75kW 3-phase electric motor fixed in place, while bringing the JZ47 series R gearbox block right in front of the shaft end. Adjust the machine angle so that the center of the motor shaft and the center of the gearbox flange hole are exactly on a straight line.
• Step 2: Proceed with the assembly by firmly pressing this heavy duty gearbox assembly into the head of the electric motor. Push hard so that the two metal surfaces are tightly pressed together, and gently rotate so that the bolt holes of the gearbox and the motor match each other in position.
• Step 3: Insert bolts and screws into each positioning hole around the connecting flange ring between the two devices. Use a wrenching tool to tighten firmly until the screws catch all threads to tightly hold and fix the entire machine structure.

This Heavy Duty R-Series Inline Helical Gear Motor is a suitable choice for conveyors, crushers, mixers, and large load industrial systems. The device stands out with its stable transmission, high torque, and superior durability during continuous operation. Refer to more gear motor videos to view actual products or follow the summary video category to update a lot of useful knowledge about heavy duty gear motors, please contact hotline immediately: 0909.539.175.
