Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp

The Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp is a specialized drive unit for industrial lines requiring high power, continuous operation, and high stability. Closely linked between the electric motor and the gearbox, with a power of 18.5kW (25Hp), this gear motor series not only delivers exceptional torque but also optimizes space thanks to its convenient right-angle output shaft design, making it easy to install in systems with limited space.

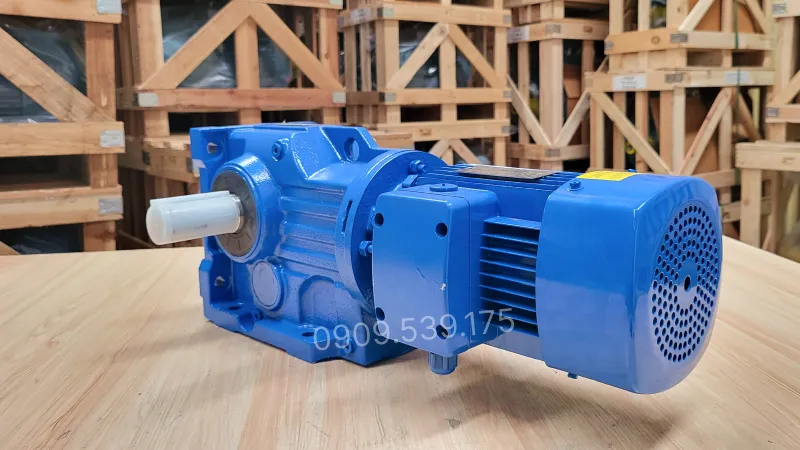

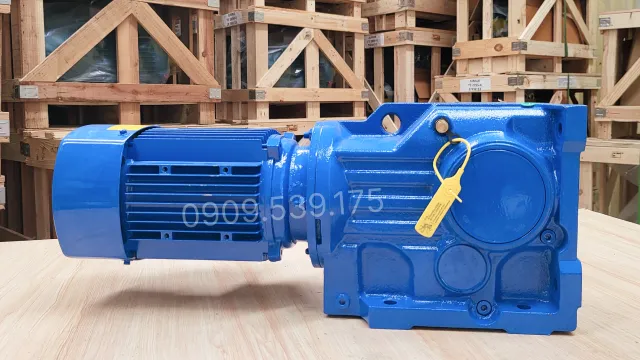

Overview design of the Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp

The equipment is finished with a high-grade electrostatic powder coating, helping to prevent rust and corrosion in harsh environments such as humid, dusty places, or chemical contact. The solid cast-iron body is sturdy, capable of high loads and effectively reducing vibration. The right-angle output shaft structure relative to the input shaft allows the heavy-duty gear motor to maximally support equipment arrangement in production lines.

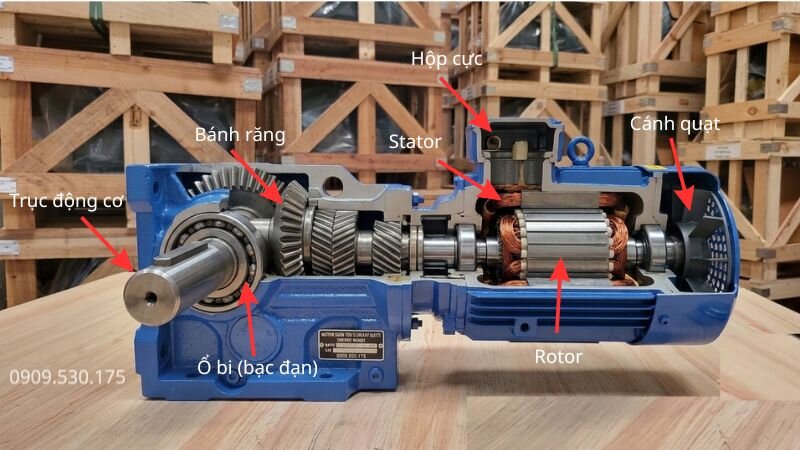

Structure of the Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp

Detailed structure of the 3-phase electric motor 18.5kW 25Hp

• Motor housing frame: Manufactured from high-durability monolithic cast iron, protecting internal components from environmental impacts during operation. The housing surface is designed with cooling fins to enhance cooling capacity during operation.
• Stator steel core and windings: The stator is made of electrical-grade silicon steel sheets tightly stacked together to reduce eddy current losses. The pure copper winding system is scientifically arranged, creating a strong magnetic field to help the motor run efficiently and stably.
• Squirrel-cage rotor: Dynamically balanced with high precision, capable of stable rotation at high speeds. The sturdy structure helps transmit magnetic energy into mechanical movement with high efficiency.
• Drive shaft: Machined from heavy-duty alloy steel with high hardness and good wear resistance, ensuring continuous power transmission from the motor to the gearbox.
• Cooling system and bearings: The motor is equipped with a rear cooling fan combined with high-quality bearings to reduce operating temperature, minimize friction, and extend service life.

Detailed structure of the K-Series Helical Bevel Gearbox 18.5kW 25Hp

• Gearbox housing: Made of heavy-duty cast iron, featuring a sturdy structure to protect the internal transmission assembly from impacts and vibrations during work.
• Spiral bevel gear transmission set: This is the first component to receive motion from the motor, performing the function of redirecting the transmission to a 90-degree right angle. The spiral bevel tooth design increases contact area and enhances transmission efficiency.
• Heavy-duty helical gear assembly: The gears are machined from high-quality alloy steel and surface heat-treated to increase hardness. The helical tooth structure reduces vibration, ensures smooth operation, and handles heavy loads.
• Input and output shafts: Both shafts are made of high-strength steel, ensuring the ability to withstand high torque and maintain stability during continuous operation in industrial environments.
• Shaft support bearing system: Uses specialized heavy-duty bearings to fix shaft positions, reduce friction, and ensure precision during transmission.
• Oil sealing component: Includes high-quality oil seals and gaskets designed to retain lubricating oil inside the gearbox while preventing dust and moisture infiltration from the outside.

Technical specifications of the Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp

Below are the important technical parameters and dimensions of each electric motor and gearbox product

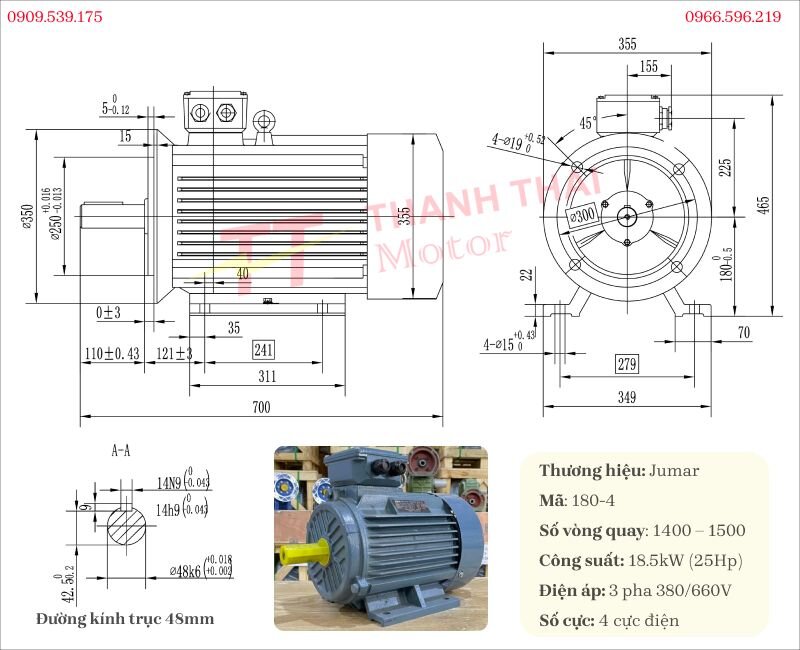

Technical specifications of the 3-phase electric motor 18.5kW 25Hp

The 18.5kW 25Hp electric motor is a drive device widely used in conveyor systems

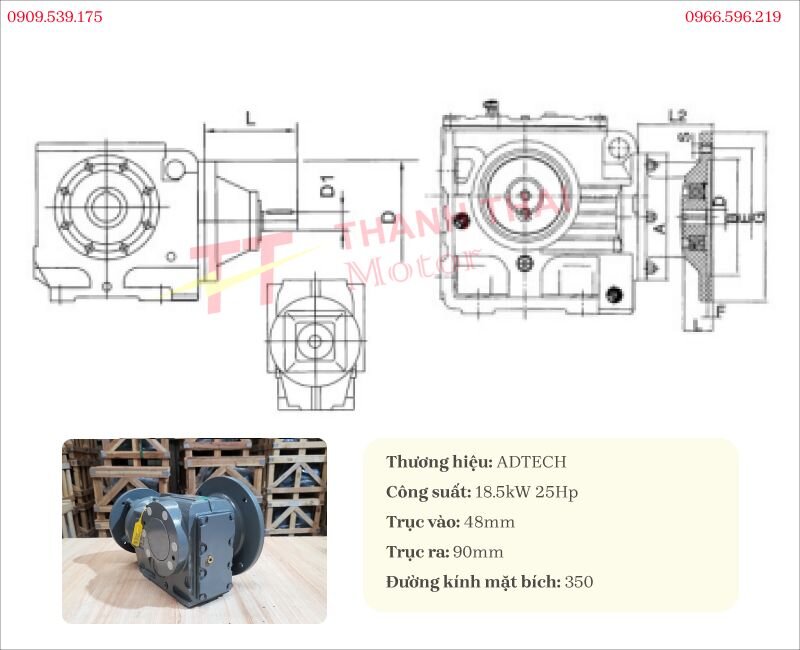

Technical specifications of the K-Series Helical Bevel Gearbox 18.5kW 25Hp

The technical drawing of the K-Series Helical Bevel Gearbox 18.5kW 25Hp fully shows the shaft dimensions and mounting positions, supporting precise construction

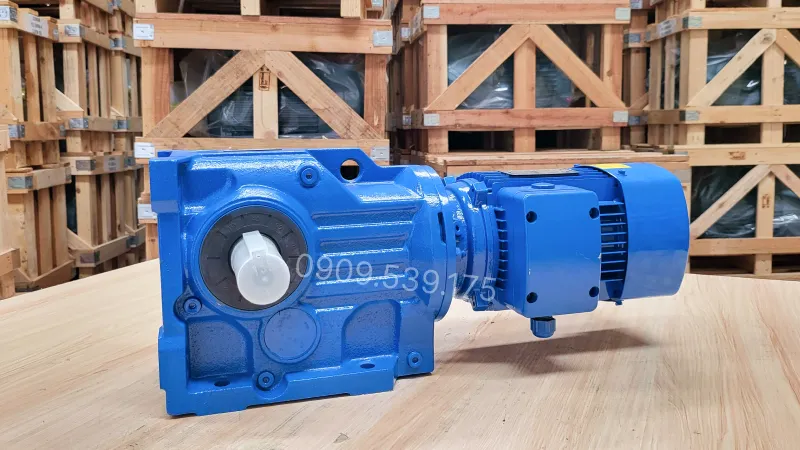

Applications of the Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp

This gear motor series is commonly used in systems requiring high driving force and durable operation, such as:

• Heavy-duty conveyors, industrial goods sorting lines

• Hydraulic presses, hard material crushing machines

• Automated material handling equipment, cranes, or heavy-duty lifting systems

• Mechanical, metallurgical, and steel production systems

• Large-scale waste treatment and wastewater treatment lines

Installation guide for the Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp

• Step 1: Check the gear motor, base, shaft, and assembly details, ensuring they are clean and undamaged.
• Step 2: Place the motor in position, align it concentrically with the drive system, tighten bolts, and run a no-load test before operation.

Through the gear motor video, viewers can visually follow the installation process of the Heavy Duty K-Series Helical Bevel Gear Motor 18.5kW 25Hp, helping with proper technical assembly, stable operation, and enhanced equipment lifespan. See more details through the summary video.
