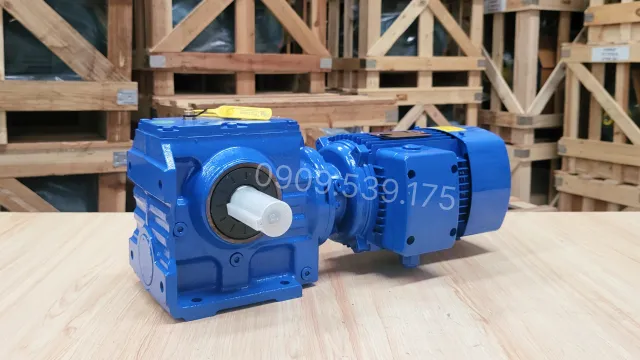

Heavy Duty S-Series Helical Worm Gear Motor 22kW 30Hp

The Heavy Duty S-Series Helical Worm Gear Motor 22kW 30Hp is an ideal choice for high-power drive systems in heavy industries. The equipment boasts a powerful output of 22kW (equivalent to 30Hp), suitable for demanding operating environments requiring high torque, stable speed, and high transmission efficiency. With a right-angle output shaft design, this gear motor not only saves installation space but also enhances the flexibility of machinery systems.

Overview of the Heavy Duty S-Series Helical Worm Gear Motor 22kW 30Hp

Electric motor

• Material: The housing is cast from high-grade load-bearing iron, with optimized wall thickness design to resist vibration under heavy loads. The heat dissipation fins distributed along the body ensure efficient air convection, maintaining a stable temperature in high-intensity operating environments.
• Characteristics: Integrated with Class F heat-resistant copper winding technology using vacuum impregnation processes, ensuring excellent overload capacity and durable operating life for the Stator windings.

Gearbox

• Function: Redirects drive force from a vertical shaft to a horizontal shaft (or vice versa), allowing flexible installation space in complex machinery lines.
• Characteristics: Specially designed for heavy loads with extremely high output torque. The combination of helical worm gear drives achieves transmission efficiency, saving significant energy compared to conventional worm gear systems.

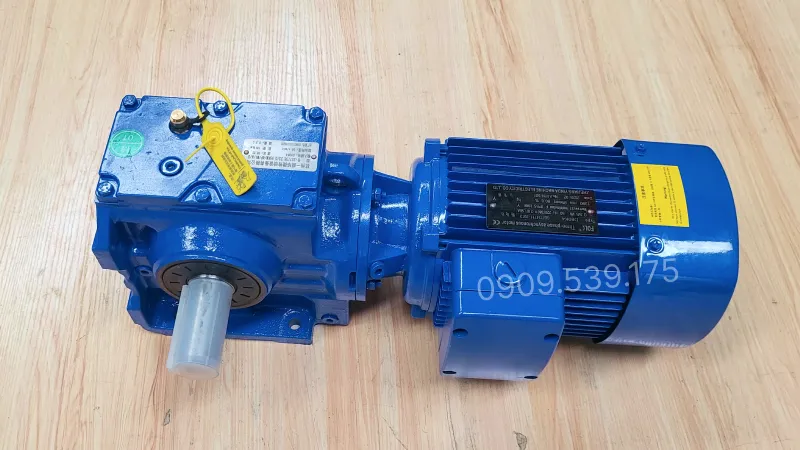

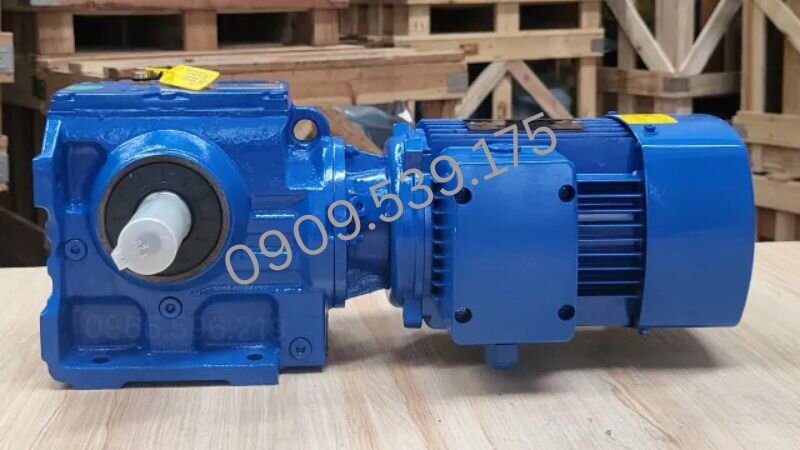

Structure of the Heavy Duty S-Series Helical Worm Gear Motor 22kW 30Hp

The device is a synchronous combination of an electric motor and a gearbox. Specifically, a 3-phase electric motor and a heavy-duty S-series right-angle gearbox. These two parts are closely linked, creating a powerful drive unit optimized for heavy-duty applications:

3-Phase Electric Motor 22kW 30Hp (Power Source Section)

• Stator (Stationary part): The stator consists of stacked electrical steel laminations, helping to minimize iron core losses. The copper coil system inside the core slots creates a synchronous rotating magnetic field when energized, providing the necessary magnetic flux to drive the entire machine.
• Rotor (Rotating part): The rotor is a squirrel-cage moving component, integrated with a skewed slot system to eliminate electromagnetic noise and prevent resonant vibration. This design ensures that the rotating shaft operates stably and extremely smoothly during continuous operation at 30Hp output.

Heavy Duty S-Series Helical Worm Gearbox 22kW 30Hp

• Helical worm gears: Made from carbonized alloy steel, precision ground. This gear structure allows smooth power transmission, withstanding large torques at right angles without overheating.
• Planetary gears: Enhances multi-stage speed reduction capabilities, ensuring the output achieves low speed with strong pulling force.
• Output shaft: Made from hardened steel, capable of withstanding extremely large radial and axial loads, suitable for direct installation with conveyor drum shafts or heavy agitator shafts.
• Lubrication system: Integrated oil bath design, using high-temperature resistant Viton oil seals, ensuring gear components are always immersed in a protective oil film, minimizing mechanical wear to the maximum.

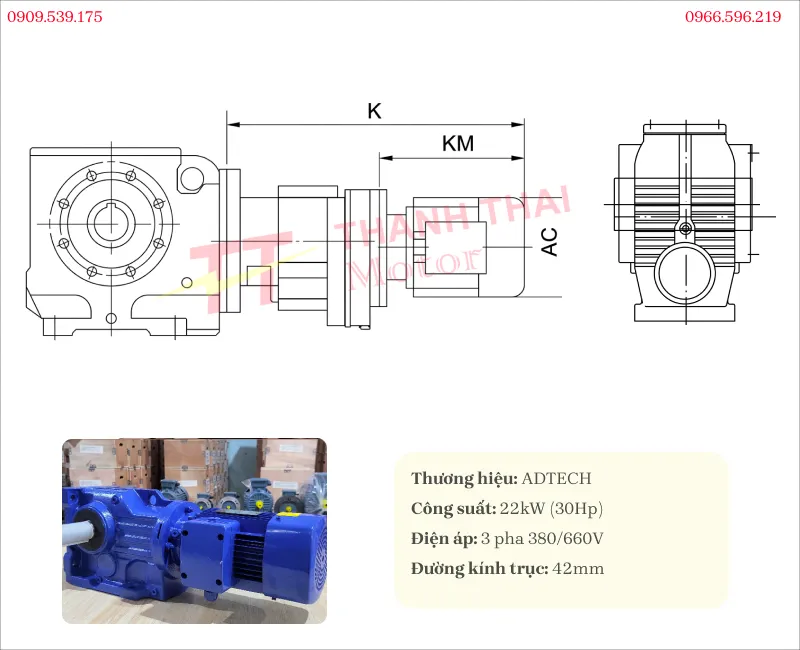

Technical specifications of the Heavy Duty S-Series Helical Worm Gear Motor 22kW 30Hp

This heavy-duty gear motor is designed with a sturdy structure, high load capacity, and stable operation under various working conditions. Below are the basic technical specifications of the product.

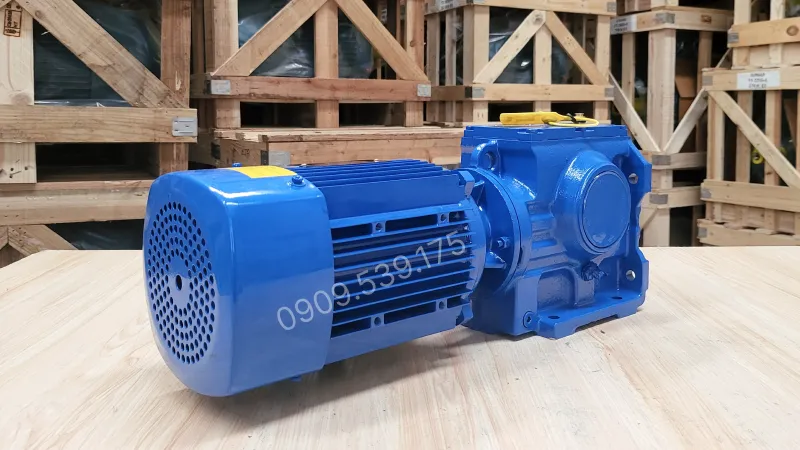

Applications of the Heavy Duty S-Series Helical Worm Gear Motor 22kW 30Hp

The product is widely used in various industrial fields such as:

• High-capacity conveyor systems at seaports or industrial zones

• Hydraulic presses, large-scale concrete mixers

• Stone crushing and industrial wood grinding lines

• Large-volume material mixing equipment

• Automated production systems in steel and cement plants
