S-Series Helical Worm Gearbox 22kW 30Hp

The S-Series Helical Worm Gearbox 22kW 30Hp plays an important role in the industrial sector. With a sturdy structure, it is designed for durability to operate under harsh conditions such as hot weather. Let’s dive deeper into the specific details of this gearbox with Thanh Thai Motor!

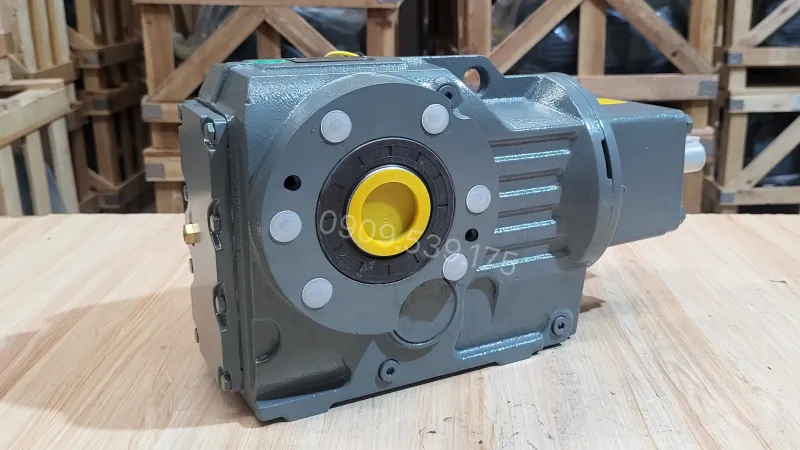

General design of the S-Series Helical Worm Gearbox 22kW 30Hp

The S-series heavy-duty right-angle reduction products are coated with an anti-rust layer ensuring high durability. Made of cast iron with a solid frame, they can withstand heavy loads. The equipment is trusted by customers for its high operating efficiency, large load capacity, and practicality. In addition, the device is also immune to external environmental factors such as toxic acids, clay, etc.

When combined with an electric motor, the gearbox forms a gear motor widely applied in the metallurgy industry, helping transmit large pressing forces and operate stably in mold pressing systems, corrugated iron, steel, and aluminum rolling machines, etc.

Structure of the S-Series Helical Worm Gearbox 22kW 30Hp

This S-series heavy-duty right-angle gearbox consists of two main parts: the motor shaft and the bevel gear:

• Motor shaft: Typically larger in size compared to light-duty and medium-duty motor shafts.
• Bevel gear: Often referred to as the helical-bevel gear, ensuring good load-bearing capacity and motor operating efficiency.

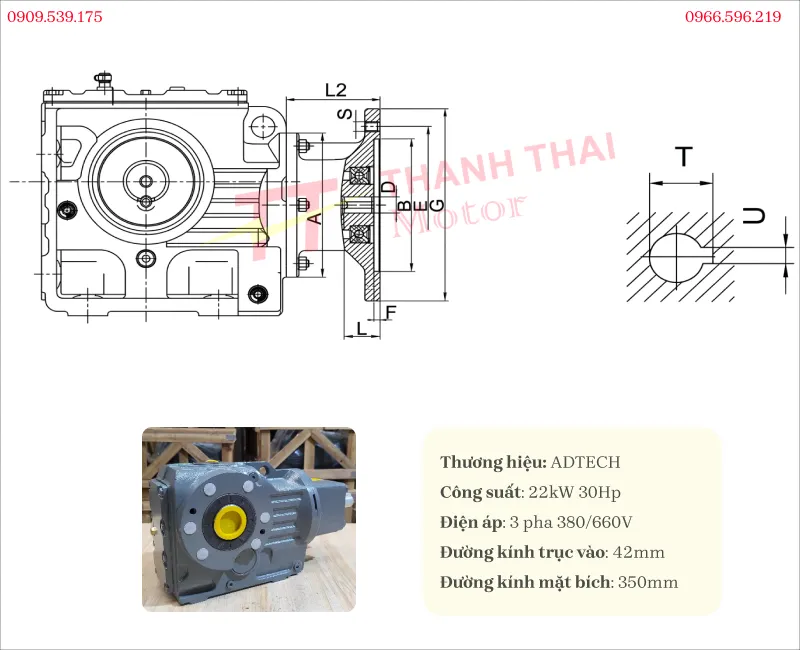

Specifications of the S-Series Helical Worm Gearbox 22kW 30Hp

The table below provides the technical specifications of the S-Series Helical Worm Gearbox 22kW 30Hp, including power, shaft dimensions, mounting style, and gear ratio range.

Technical specifications

• Available with multiple gear ratios from 1/15, 35, 55, 75, 85, 115, 145, …, 250 to 420.
• Corresponding S sizes: S57, S67, S77, S87, S97.
• Can be installed in foot-mounted or flange-mounted styles.

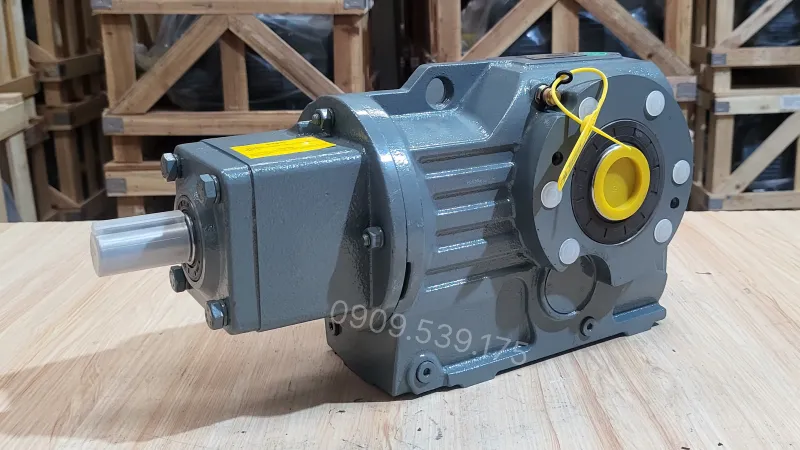

Applications of the S-Series Helical Worm Gearbox 22kW 30Hp

• Applied in construction and engineering works such as cranes, hoists, etc.
• Optimizing operations in warehousing, cargo handling, and storage.
• Used in cargo handling, warehousing, parking basements in apartment buildings, supermarkets, and airports.
• Used in conveyor systems, packaging, pressing, and mixing machines, etc.

Distinguishing between input and output shafts of the S-series heavy-duty right-angle gearbox

• Distinguishing by size: The input shaft has a compact size to achieve low moment of inertia during startup. The output shaft has a large size, made of high-strength steel material, capable of withstanding large dynamic loads generated by heavy-duty machinery.
• Distinguishing by connection position in the system: The input shaft is where mechanical power from the motor is received. The output shaft is perpendicular to the input shaft, performing the main driving function for drums or machine shafts requiring low speed.
• Distinguishing by operating parameters: The input shaft rotates quickly with small torque, not requiring high load. The output shaft rotates slowly but generates very large torque, sufficient to overcome the resistance of heavy loads during machine startup.

If you need to see how this equipment operates in practice, you can refer to the gearbox video provided by Thanh Thai Motor. In addition, the summary video also gives you a more comprehensive view of the S-series right-angle gearbox lines, how to choose the appropriate 22kW 30Hp power, and some notes when installing and operating in heavy-duty environments.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
