S-Series Helical Worm Gearbox 45kW 60Hp

The S-Series Helical Worm Gearbox 45kW 60Hp with a rigid structure and durable design is capable of operating efficiently even in harsh conditions, such as hot environments. Let’s join Thành Thái Motor to learn in detail about this gearbox and its applications in the transportation industry.

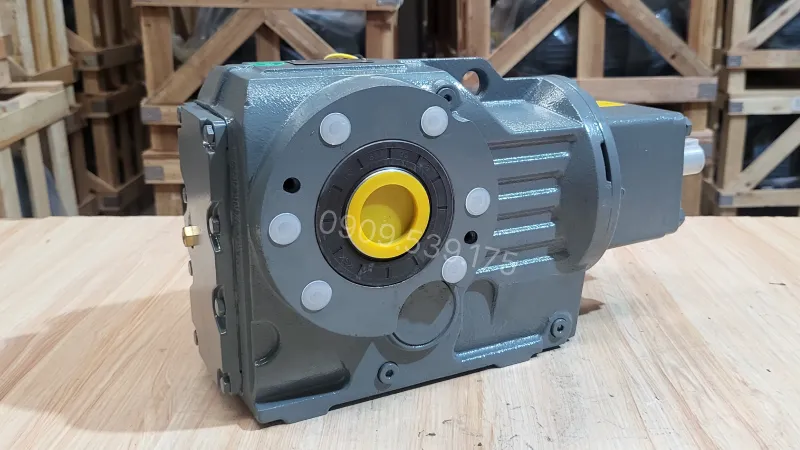

Overview design of the S-Series Helical Worm Gearbox 45kW 60Hp

The S-series heavy-duty right-angle gearbox product lines are coated with electrostatic paint to prevent rust and enhance durability. With a sturdy cast iron frame, this device is capable of withstanding heavy loads, ensuring stable operation in various applications. The device is trusted by customers thanks to its high operating performance, good load capacity, and practicality. Moreover, this gearbox is also immune to harmful environmental agents such as acid and clay, …

Combining the gearbox with an electric motor will create a gear motor with functions such as driving large-capacity concrete mixers, ensuring appropriate rotational speed, increasing mixing efficiency and equipment lifespan.

Structure of the S-Series Helical Worm Gearbox 45kW 60Hp

This heavy-duty right-angle S-Series gearbox has two main components:

• Motor shaft: The motor shaft is usually larger in size compared to the motor shafts of light-duty and medium-duty types, helping to enhance transmission capacity and operating efficiency.
• Bevel gear: Also known as helical gear, this part ensures good load-bearing capacity and optimizes the operating efficiency of the motor, contributing to the stability and durability of the device.

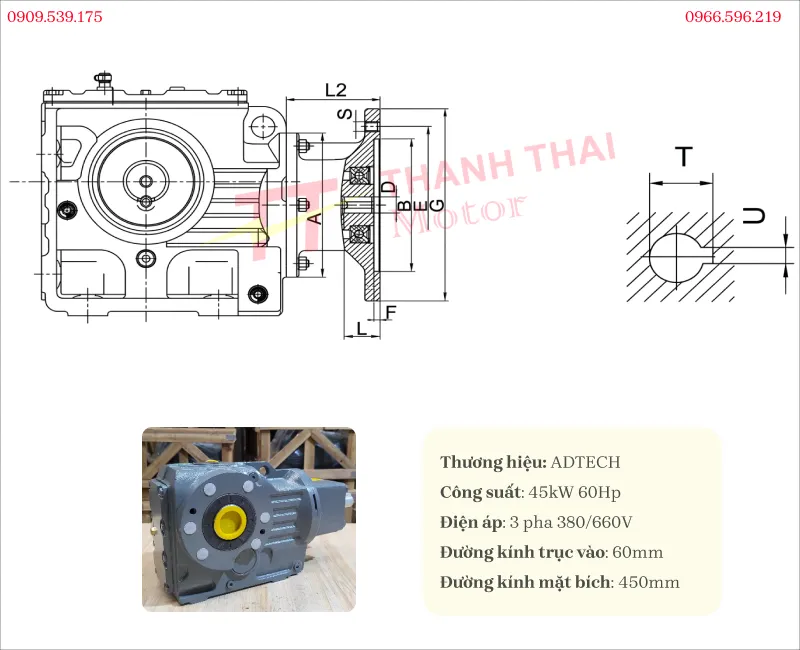

Specifications of the S-Series Helical Worm Gearbox 45kW 60Hp

The specifications of the S-Series Helical Worm Gearbox 45kW 60Hp include information on power, shaft dimensions, mounting style, and gear ratio range, presented in the table below.

Specifications

• Features multiple gear ratios from 1/15, 35, 55, 75, 85, 115, 145, …, 250 to 420.
• S-series models correspond to gear ratios such as: S57, S67, S77, S87, S97.
• Can be installed in foot-mounted and flange-mounted styles.

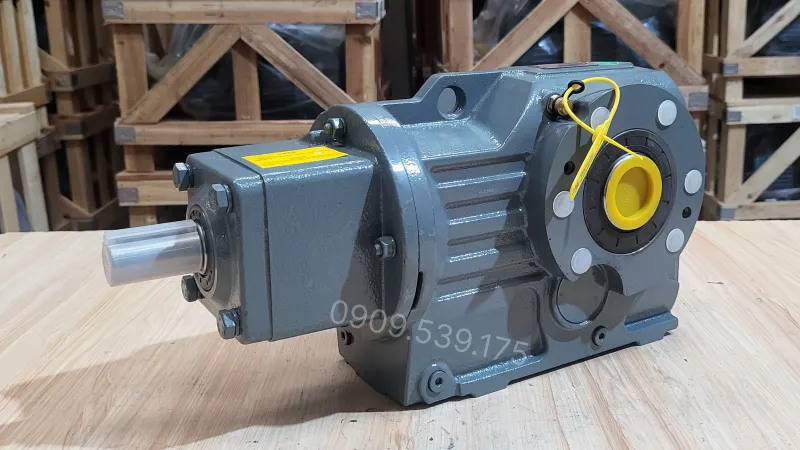

Applications of the S-Series Helical Worm Gearbox 45kW 60Hp

• Used in equipment such as cranes and overhead cranes, supporting the lifting and transporting of materials.
• Optimizing cargo transportation processes in production lines, helping to improve work efficiency.
• Suitable for applications in warehouses, supermarkets, and airports, ensuring smooth operation.
• Used in packaging machines, presses, mixers, and various other machinery, helping to improve performance and reliability.
• Applied in material handling equipment, helping to manage and transport materials safely and efficiently.

Distinguishing between input shaft and output shaft of the S-series heavy-duty right-angle gearbox

• Distinguishing by Size: The input shaft (primary shaft) has a smaller diameter due to lower torque tolerance. The output shaft (secondary shaft) has a significantly larger diameter to withstand radial loads and maximum torque.
• Distinguishing by Connection Position in the System: The input shaft connects directly to the motor shaft via a coupling or belt drive. The output shaft is designed at a right angle, connecting directly to the actuator or winding drum of the load system.
• Distinguishing by Operating Parameters: The input shaft operates at a high rotational speed range, while the output shaft, after passing through the bevel and helical gear stages, will have a low speed, ensuring a very large output torque.

To see the actual operation of the S-Series Helical Worm Gearbox 45kW 60Hp, you can refer to the gearbox video provided by Thành Thái Motor. In addition, the summary video also gives you another perspective on other heavy-duty gearbox lines, how to select them according to power and gear ratio, as well as notes on installation and operation in transportation industrial systems.
