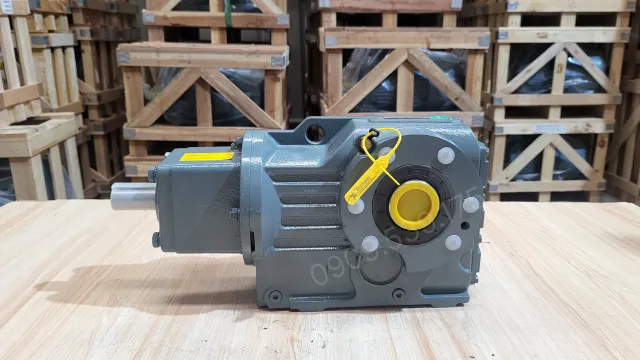

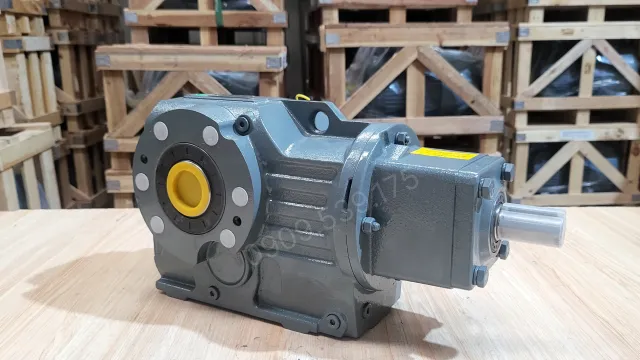

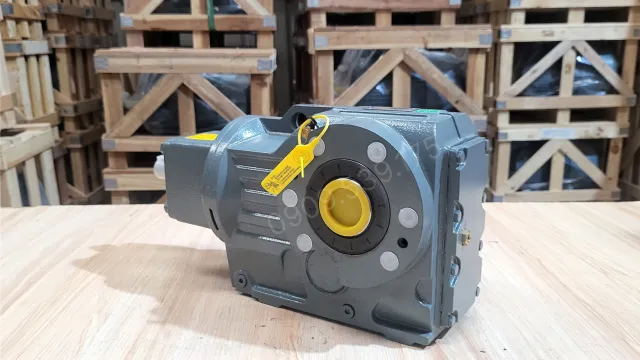

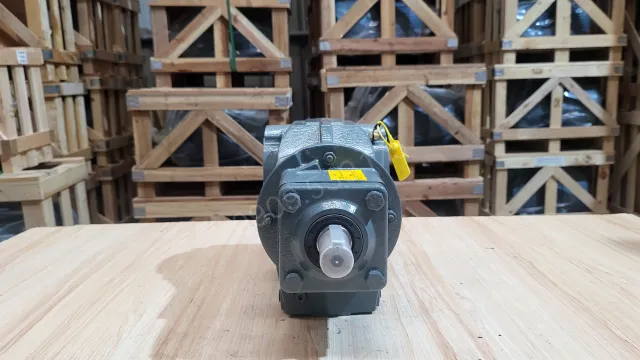

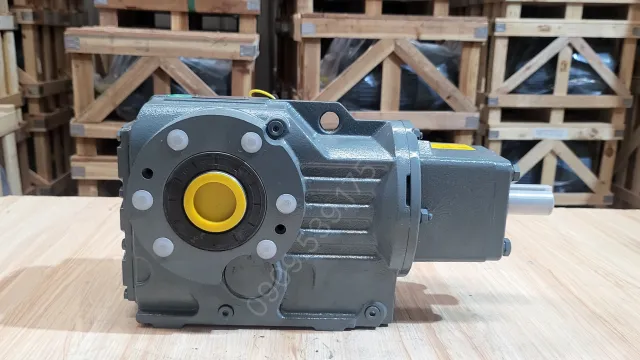

S-Series Helical Worm Gearbox 18.5kW 25Hp

The S-Series Helical Worm Gearbox 18.5kW 25Hp is an indispensable device in the industrial sector. With a durable structure and design, this product operates efficiently even in harsh conditions, including high-temperature environments. Let’s explore this gearbox in detail with Thanh Thai Motor, along with its outstanding features and applications to better understand the value it brings to your production and operation processes.

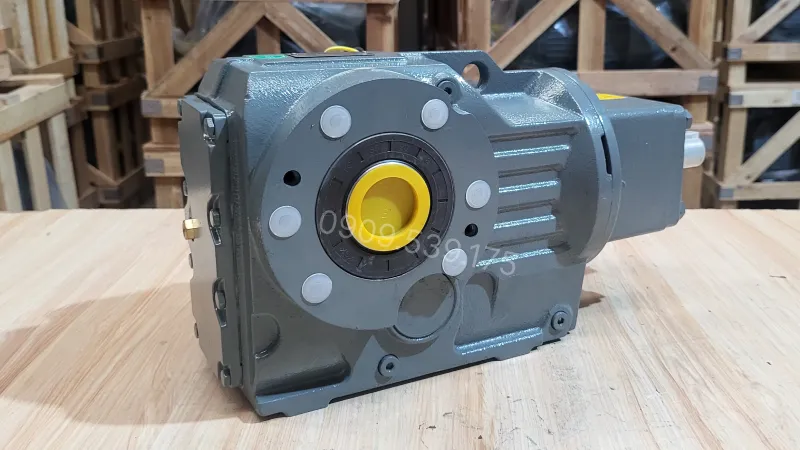

Overall design of the S-Series Helical Worm Gearbox 18.5kW 25Hp

All S-series heavy-duty right-angle gearbox products are coated with a layer of paint to prevent rust and enhance device durability. Made of sturdy cast iron material, this product has the capability to withstand heavy loads, ensuring stable operation in heavy industrial environments. Widely favored and trusted, this gearbox stands out for its high operating efficiency and excellent load-bearing capacity. Additionally, it is resilient against harmful external environmental agents, contributing to equipment protection and extended service life.

When combined with an electric motor, the gearbox forms a complete gear motor widely used in wood processing plants, where the gearbox helps control the rotation speed of cutting machines, saws, etc., increasing machining accuracy and efficiency.

Structure of the S-Series Helical Worm Gearbox 18.5kW 25Hp

This S-series heavy-duty right-angle gearbox consists of two main components:

• Motor shaft: This shaft has a larger size compared to motor shafts of light-duty and standard types, enhancing transmission capacity and ensuring operational efficiency.
• Bevel gear: Also known as the spiral bevel gear, this component ensures good load-bearing capacity and optimizes the operating performance of the motor, contributing to the stability and durability of the equipment.

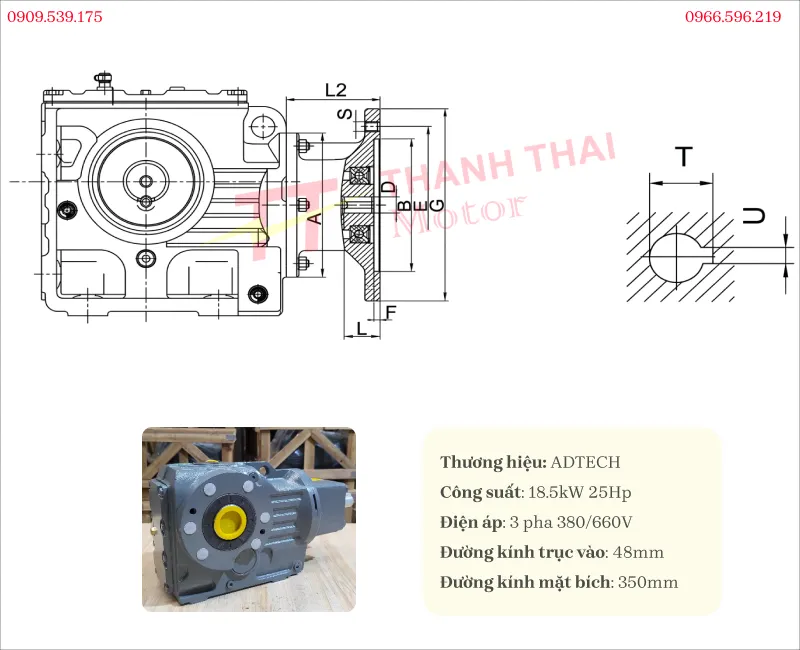

Specifications of the S-Series Helical Worm Gearbox 18.5kW 25Hp

The technical specifications of the S-Series Helical Worm Gearbox 18.5kW 25Hp are summarized below, including power, shaft type, mounting dimensions, and common gear ratios.

Specifications

• Various gear ratios from 1/15, 35, 55, 75, 85, 115, 145, …, 250 to 420.
• S-series sizes: S57, S67, S77, S87, S97.
• Can be installed in foot-mounted and flange-mounted styles.

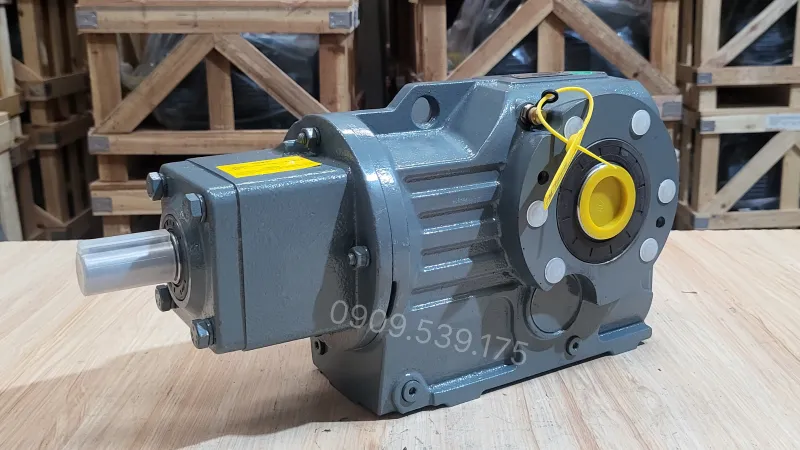

Applications of the S-Series Helical Worm Gearbox 18.5kW 25Hp

• This equipment is commonly used in conveyor systems, helping to move goods efficiently.
• This gearbox supports lifting equipment such as cranes and elevators, helping to lift loads safely and stably.
• Used in concrete pumps, crushers, and other construction equipment, ensuring high performance during construction.
• Suitable for production lines and automation systems, helping to increase productivity and working efficiency.
• Supports cargo management and transportation in warehouses, supermarkets, and airports.

Distinguishing between input and output shafts of the S-Series heavy-duty right-angle gearbox

• Distinction by Size: The input shaft typically has a smaller diameter, hardened to withstand high wear. The output shaft has a larger diameter, meeting the capacity to withstand bending and torsional forces in continuous heavy-duty applications over long periods.
• Distinction by Connection Position in the System: The input shaft connects coaxially with the motor. The output shaft is positioned at a right angle; this design helps the S-series gearbox transmit power efficiently in machine structures requiring a change in the main transmission direction.
• Distinction by Operating Parameters: The input shaft receives high input speed. The output shaft provides low output speed, ensuring the system maintains stability and the necessary torque for heavy-duty machinery.

For more information on how to use and select the S-Series Helical Worm Gearbox 18.5kW 25Hp, you can watch the gearbox video produced by Thanh Thai Motor. Additionally, the compilation video will help you explore various other gearbox series, learn how to identify each type, select the appropriate gear ratio, and note important considerations when installing and operating them in practice.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
