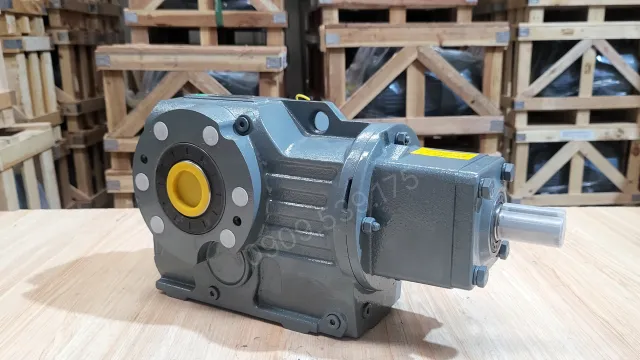

S-Series Helical Worm Gearbox 37kW 50Hp

The Heavy-Duty S-Series Helical Worm Gearbox 37kW 50Hp is specifically designed for drive systems requiring high torque and continuous operation. Thanks to its sturdy structure, high durability, and stable operation in harsh environments, the product is widely applied in many industrial sectors. Let’s explore the details of this gearbox line with Thanh Thai Motor.

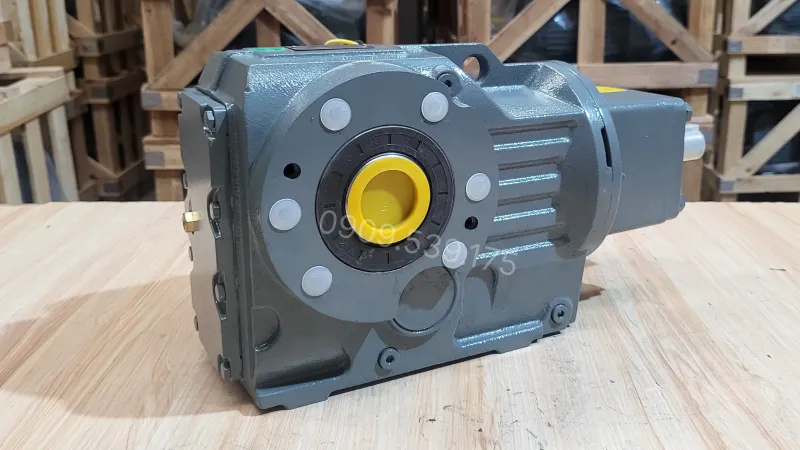

General design of the Heavy-Duty S-Series Helical Worm Gearbox 37kW 50Hp

The S-series heavy-duty right-angle reduction products are coated with an anti-rust and durability-enhancing layer. Featuring a sturdy cast iron frame, this equipment is capable of withstanding heavy loads, ensuring stable operation across multiple applications. The product is trusted by customers for its high operating efficiency, good load capacity, and practicality. In addition, this gearbox is resistant to harmful environmental agents such as acids and clay, helping to protect the equipment and extend its service life.

When combining the gearbox with an electric motor, it creates a complete gear motor commonly used for heavy material conveyor systems in seaports, logistics warehouses, or industrial zones.

Structure of the Heavy-Duty S-Series Helical Worm Gearbox 37kW 50Hp

This Heavy-Duty S-Series Helical Worm Gearbox consists of two main components:

• Motor shaft: The motor shaft has a larger size compared to those of light-duty and medium-duty types, enhancing transmission capacity and operational efficiency.
• Bevel gear: Also known as the helical gear, this component ensures good load-bearing capacity and optimizes motor operational efficiency, contributing to the stability and durability of the equipment.

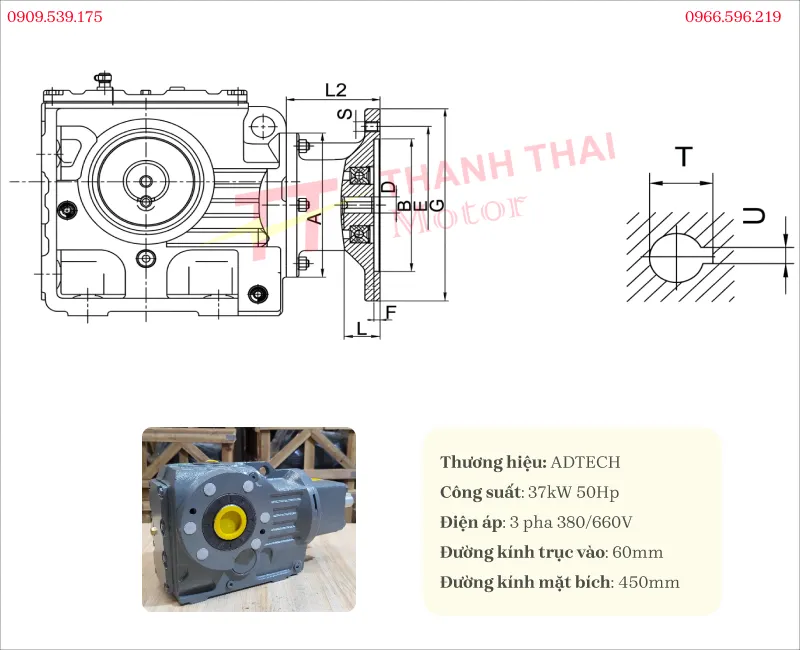

Technical specifications of the Heavy-Duty S-Series Helical Worm Gearbox 37kW 50Hp

Below is the technical information for the Heavy-Duty S-Series Helical Worm Gearbox 37kW 50Hp, including power ratings, shaft dimensions, mounting types, and gear ratios.

Technical specifications

• Multiple gear ratios ranging from 1/15, 35, 55, 75, 85, 115, 145, …, 250 to 420.
• Corresponding S-series sizes: S57, S67, S77, S87, S97.
• Can be installed in foot-mounted or flange-mounted styles.

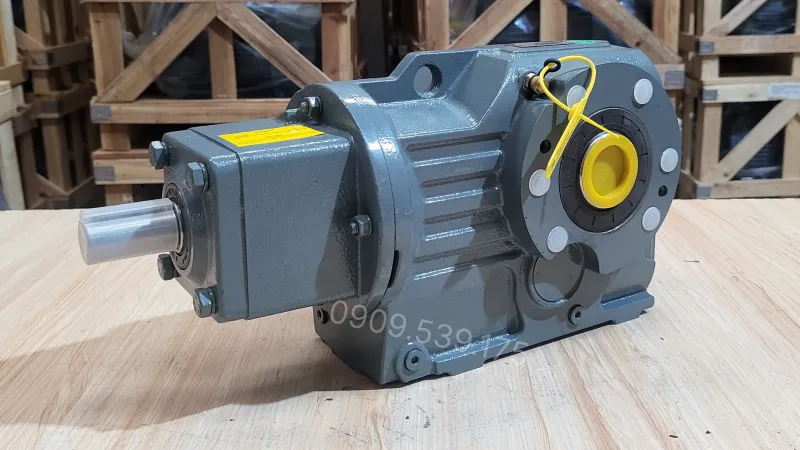

Applications of the Heavy-Duty S-Series Helical Worm Gearbox 37kW 50Hp

• Used in construction equipment such as overhead cranes and derricks, helping to lift and transport materials efficiently.
• Optimize goods transportation processes in production lines and warehouses, helping to improve work efficiency.
• Suitable for cargo handling in apartment complexes, supermarkets, and airports, ensuring smooth operation.
• Used in packaging machines, presses, mixers, and various other machinery, helping to improve performance and reliability.
• Applied in material lifting equipment, helping to safely manage and transport materials.

Differentiating the input and output shafts of the S-series heavy-duty right-angle gearbox

• Distinction by Size: The input shaft has a compact size to optimize speed. The output shaft has a large size to ensure structural integrity, withstanding high torque and heavy loads over long periods of operation.
• Distinction by Connection Position in the System: The input shaft receives power from the motor shaft. The output shaft is perpendicular to the input shaft, which is a specialized design for installation in industrial machinery requiring high torque and changing transmission direction.
• Distinction by Operating Parameters: The input shaft operates at high rotational speed with low torque. The output shaft rotates at low speed, providing the high torque needed to efficiently operate heavy-duty equipment.

To learn more about the Heavy-Duty S-Series Helical Worm Gearbox 37kW 50Hp, customers can watch the gearbox video produced by Thanh Thai Motor. The content helps viewers observe the actual structure, right-angle shaft characteristics, and installation methods of the product. In addition, the comprehensive video also shares further information about various other gearbox lines, inspection guides, and some notes during usage.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
