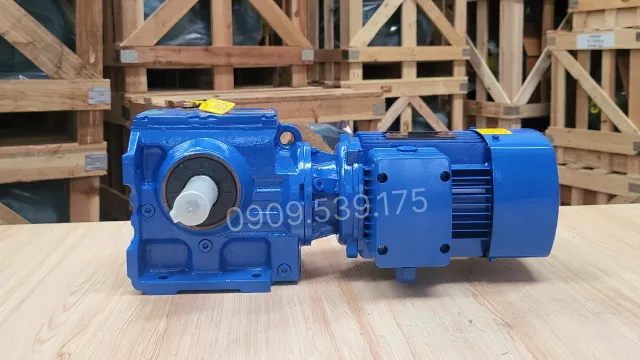

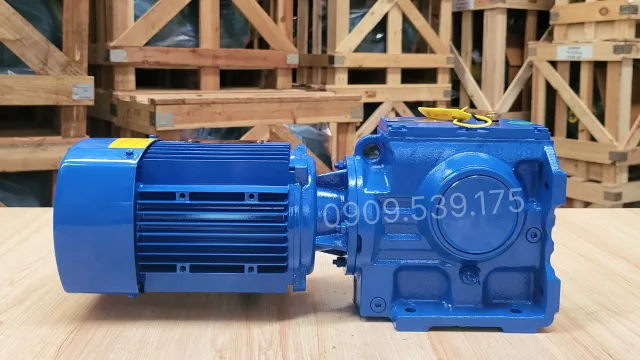

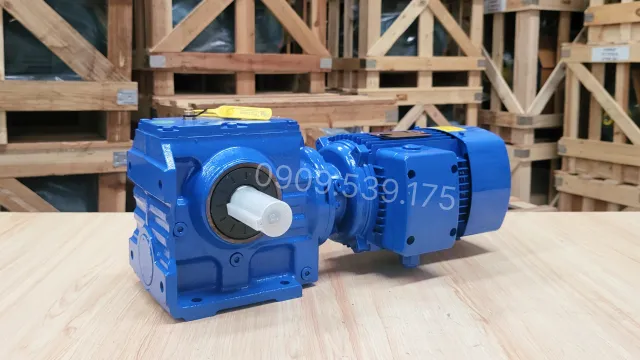

Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp

The Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp is a medium-capacity gear motor, designed to meet the demands for powerful and stable power transmission in industrial systems. With a power of 7.5kW (10Hp) and an output shaft perpendicular to the input shaft, this heavy duty gear motor provides high torque generation capabilities while helping to save installation space. This product is the ideal choice for applications in industries such as food processing, machinery manufacturing, mechanical engineering, and conveyor systems that require high durability and continuous working performance.

Overview of Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp

Electric motor

• Material: High-pressure cast gray iron housing, smooth surface machining to optimize cooling airflow vulcanization. The terminal box is sealed with heat-resistant rubber gaskets, achieving IP55 protection rating to prevent water jets and dust penetration from the workshop environment.
• Characteristics: Coil design meets impulse load standards, withstanding continuous starting and reversing frequency without current drop. The 10Hp power is a popular power range, operating perfectly for bucket elevators, raw material screw conveyors, or large paint mixers.

Gearbox

• Function: Converts power flow at a fixed 90-degree angle, solving space challenges for horizontally arranged machine frames closely aligned with partition systems.
• Characteristics: Bevel gear mechanism combined with auxiliary spur gears provides a wide gear ratio range. The system eliminates shaft bending forces better than conventional planetary gear lines when facing heavy impact loads.

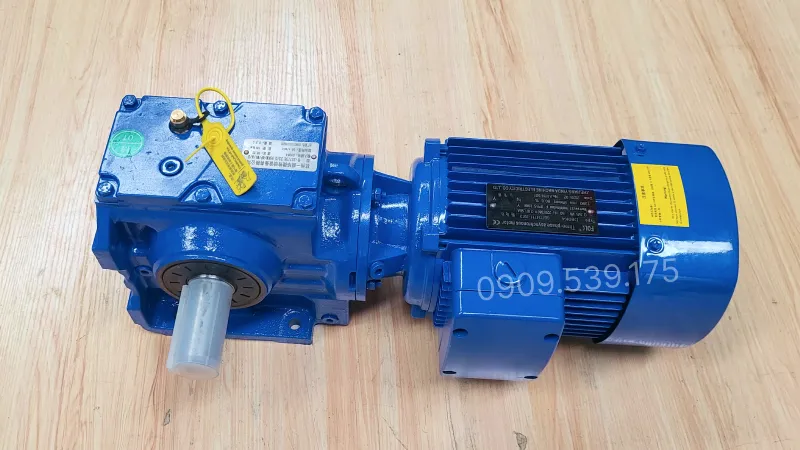

Structure of Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp

The Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp consists of two main parts: the electric motor and the gearbox. This combination ensures stable power transmission, minimizes energy waste, and optimizes working performance in heavy-duty industrial applications.

3-phase electric motor 7.5kW 10Hp

• Stator: Magnetic steel laminations are coated with a high-quality insulation film, pressed under hydraulic clamping force to optimize magnetic flux. Uniform machine-stamped coil windings with molded insulation help withstand high voltage surges and prevent inter-phase electrical discharge.
• Rotor: The squirrel-cage conductors are integrally cast from special metal blanks, undergoing precise turning and grinding processes to ensure uniform air gaps with the stator. The skewed slot structure smooths the magnetic field, eliminates high-frequency whining noises, and provides excellent mechanical vibration resistance.

Heavy Duty S-Series Helical Worm Gearbox 7.5kW 10Hp

• Spiral bevel gears: Made of alloy steel, gas carburized to create a super-hard surface layer preventing tooth chipping and flaking, with precision-ground tooth profiles.
• Shafts and Bearings: Heavy-duty output shafts are securely positioned by a pair of roller bearings, simultaneously neutralizing axial forces fed back from the equipment and radial forces from the chain drive.
• Oil chamber: The baffle system is designed to prevent oil foaming during high-speed rotation, combined with wear-resistant synthetic rubber oil seals to keep the lubricating oil film continuously circulating without leakage.

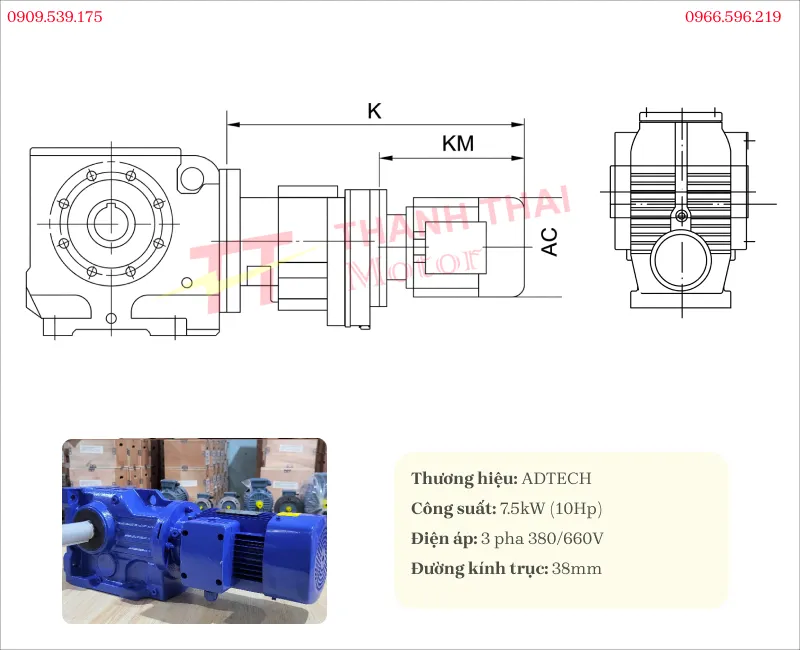

Specifications of Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp

To ensure proper connection and installation suitability with the transmission system, please refer to the specifications of the Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp below before putting it into operation.

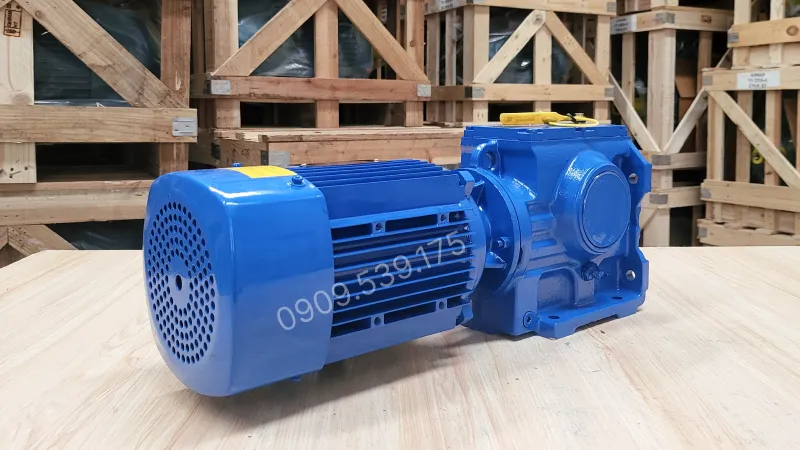

Applications of Heavy Duty S-Series Helical Worm Gear Motor 7.5kW 10Hp

• Conveyor systems: Moving materials and products across production lines, requiring stable and powerful transmission.
• Crushing and material pressing machines: Applied in mining, construction material manufacturing, and food industries to handle heavy materials.
• Industrial mixers: Used in chemical, food, and cosmetic production to mix ingredients.
• Lifting equipment: Used in cranes, forklifts, and material handling equipment in warehouses or factories.
• Heavy industrial production lines: The ideal choice for mechanical machinery, steel, and metal processing production lines requiring high torque.

To learn more details about the product, customers can refer to the gear motor videos produced directly by Thanh Thai Motor. The video content provides a comprehensive introduction to the structure, operating principle, transmission capability, and actual operational efficiency of the equipment in various industrial machinery systems. In addition, the comprehensive video library regularly updates installation guides, maintenance, periodic checks, and practical usage experiences, helping customers select suitable products, improve work performance, and increase equipment lifespan.
