Heavy Duty R-Series Inline Helical Gear Motor 7.5kW 10Hp

The Heavy Duty R-Series Inline Helical Gear Motor 7.5kW 10Hp is a powerful driving device widely used in industrial systems requiring high traction force and continuous stable operation. With a power capacity of up to 7.5kW (10Hp), this heavy duty gear motor delivers superior operating efficiency, strong and stable transmission force, and maximum energy savings. This is an ideal choice for heavy load production lines requiring high torque and optimal working performance.

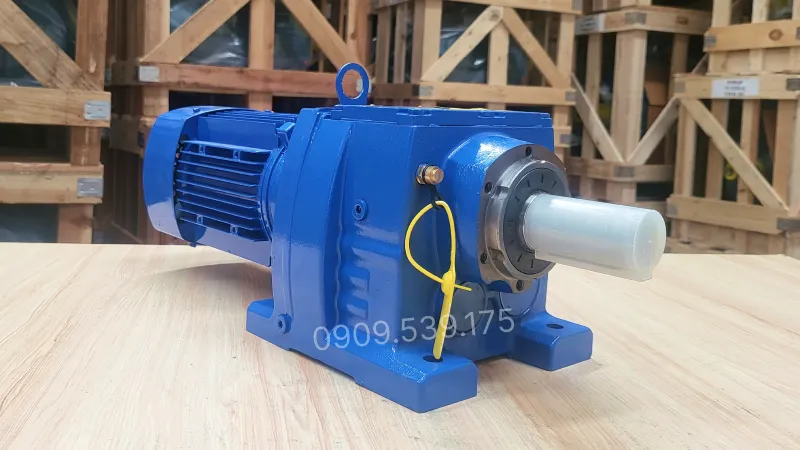

Overview of the Heavy Duty R-Series Inline Helical Gear Motor 7.5kW 10Hp

Electric motor

• Material: The motor housing uses high-hardness grey cast iron, with a multi-directional cooling fin surface design to accelerate heat dissipation even when operating in enclosed spaces. Copper windings meeting Class F heat-resistance standards enhance the ability to withstand sudden overloads in production systems.
• Function: Generates a powerful source of mechanical energy, maintaining stable speed for systems requiring high synchronization. The motor is designed to operate smoothly, minimize noise, and save energy when operating at 7.5kW power.

Gearbox

• Material: The gearbox housing is made of heavy-duty monolithic cast iron, safely protecting the transmission system from mechanical impacts. Internal gears are made of wear-resistant alloy steel, undergoing surface carburizing and quenching technology to maintain long-term rigidity.
• Function: Performs the task of reducing the rotational speed to the required threshold while multiplying torque, helping transmit strong traction force for industrial equipment. The coaxial design makes the installation and maintenance of the transmission system simpler and more efficient.

Internal structure of the Heavy Duty R-Series Inline Helical Gear Motor

The structure of the Heavy Duty R-Series Inline Helical Gear Motor is a perfect integration of an electric motor and a gearbox, specifically a 3-phase electric motor and an inline helical gear reducer:

Motor body

• Stator (Stationary part): Technical steel cores are tightly stacked to minimize magnetic flux losses. The windings are reinforced with specialized insulating resin, ensuring safe operation at the 10Hp power range.
• Rotor (Rotating part): Uses high-durability alloy steel, designed with a dynamically balanced squirrel cage to eliminate vibration, keeping the shaft stable under continuous working intensity.

R-Series Gearbox (Transmission part)

• Helical gear system: The helical gear transmission system is CNC precision-ground to high accuracy levels, helping increase the contact area between teeth, thereby reducing friction, limiting noise, and increasing transmission lifespan.
• Bearings & Oil seals: Uses high-end heavy-duty bearings to minimize rotational friction. The dual oil seal system made of specialized oil-resistant materials perfectly protects the gearbox chamber, preventing the ingress of impurities and lubricant leakage.

Technical specifications of the Heavy Duty R-Series Inline Helical Gear Motor 7.5kW 10Hp

Below is a summary table of detailed technical specifications for the 7.5kW (10Hp) Heavy Duty R-Series Inline Helical Gear Motor. This product line stands out with helical gearboxes capable of handling heavy loads, high torque, and durable operation.

Applications of the Heavy Duty R-Series Inline Helical Gear Motor 7.5kW 10Hp

• Conveyor & crane systems: Provides powerful and stable traction for ore and coal conveyor belts, or large package packaging lines.
• Mining industry: Operates vibrating screening systems, stone crushers, or specialized industrial pumps in harsh environments.
• Steel production and mechanical manufacturing: Drives sheet rolling shafts, wire drawing machines, or heavy metal processing turntables.
• Wastewater treatment & environmental industry: Acts as the main motor for large-capacity sludge agitators, centrifugal extractors, and water pump screw systems.
• Agricultural, forestry and fishery processing industry: Operates wood pressing lines, large-capacity milling machines, and pond aeration systems.

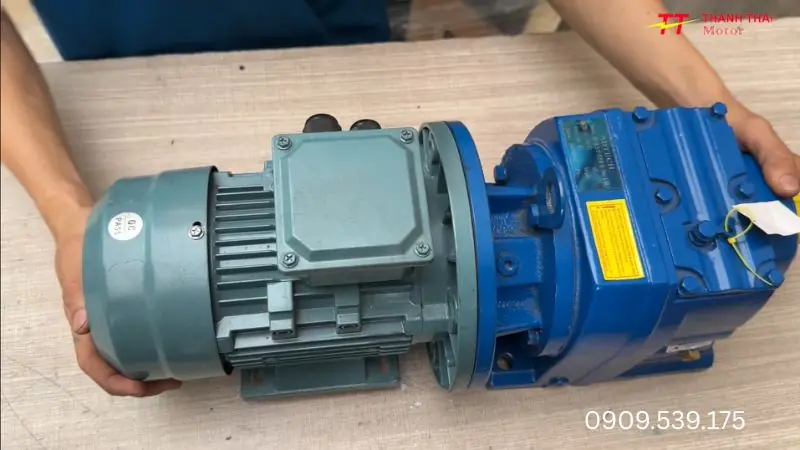

Guide on installing the Heavy Duty R-Series Inline Helical Gear Motor with a 3-phase electric motor

• Step 1: Place the inline gearbox on the support base, adjust the height so that the shaft hole of the gearbox corresponds to the shaft position of the motor.
• Step 2: Insert the motor shaft into the gearbox shaft hole, keeping the motor body stable during assembly.
• Step 3: Push the entire gearbox body close to the motor flange to ensure the two metal surfaces are in close contact.
• Step 4: Insert bolts through the flange holes, tighten the nuts with hand tools to secure the joint between the gearbox and the motor.

To correctly choose the Heavy Duty R-Series Inline Helical Gear Motor 7.5kW 10Hp suitable for your usage needs, you can refer to the summary videos and gear motor videos produced by Thanh Thai Motor. The videos provide practical information on product structure, operation, and application. Contact 0909.539.175 for quick consultation and quotations.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
