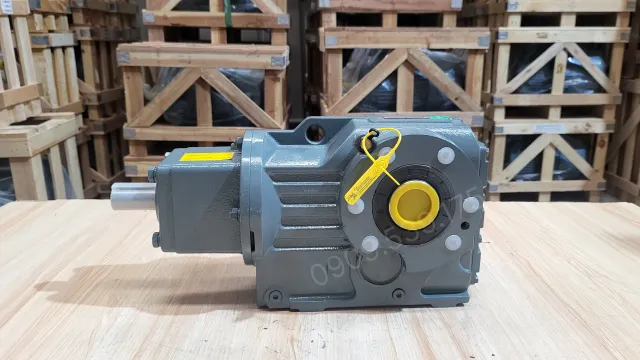

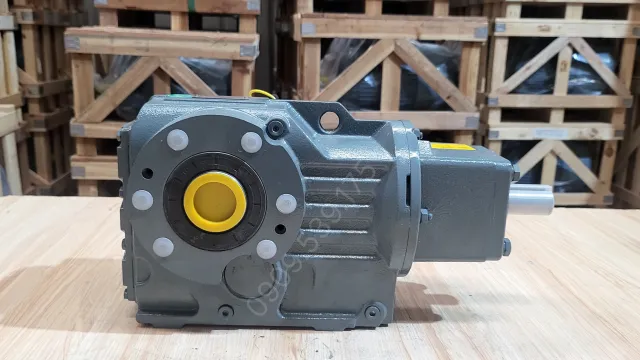

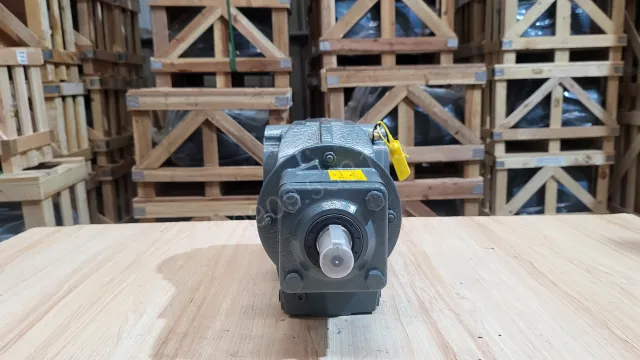

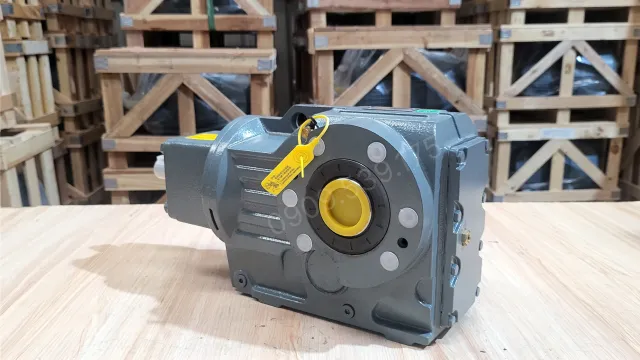

S-Series Helical Worm Gearbox 7.5kW 10Hp

The S-Series Helical Worm Gearbox 7.5kW 10Hp is an essential device in the industrial sector. Its durable structure and design allow it to operate in harsh conditions such as high temperatures. Let’s explore the specific details of this gearbox with Thanh Thai Motor!

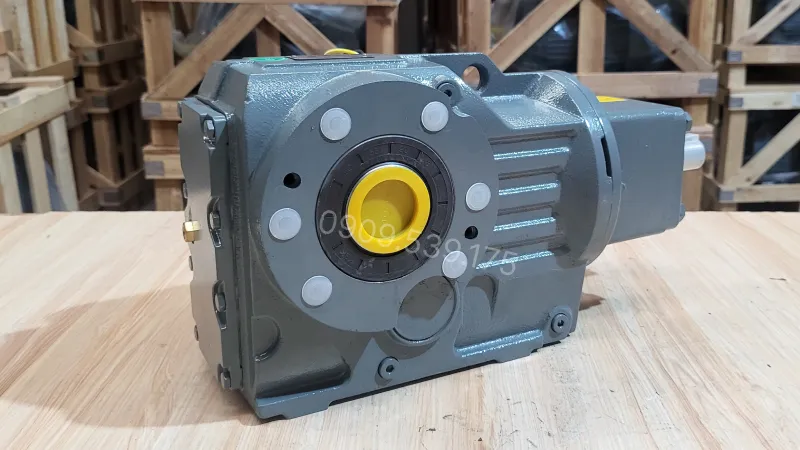

General Design of the S-Series Helical Worm Gearbox 7.5kW 10Hp

The S-Series Helical Worm Gearbox models are coated with an anti-rust layer and offer high durability. Made of cast iron with a sturdy frame, they can handle heavy loads. This product is favored and trusted by customers for its high operating efficiency and large load-bearing capacity. Additionally, the equipment is immune to harsh external environmental factors.

Combining the gearbox with an electric motor creates a complete gear motor, applied in heavy-duty cargo conveyor systems at seaports, logistics warehouses, or industrial zones.

Structure of the S-Series Helical Worm Gearbox 7.5kW 10Hp

This S-Series Helical Worm Gearbox consists of two main parts: the motor shaft and the bevel gear:

• Motor shaft: Typically larger in size compared to the motor shafts of light-duty and standard-duty types.
• Bevel gear: Also known as helical bevel gear, ensuring excellent load-bearing capacity and operating efficiency of the motor.

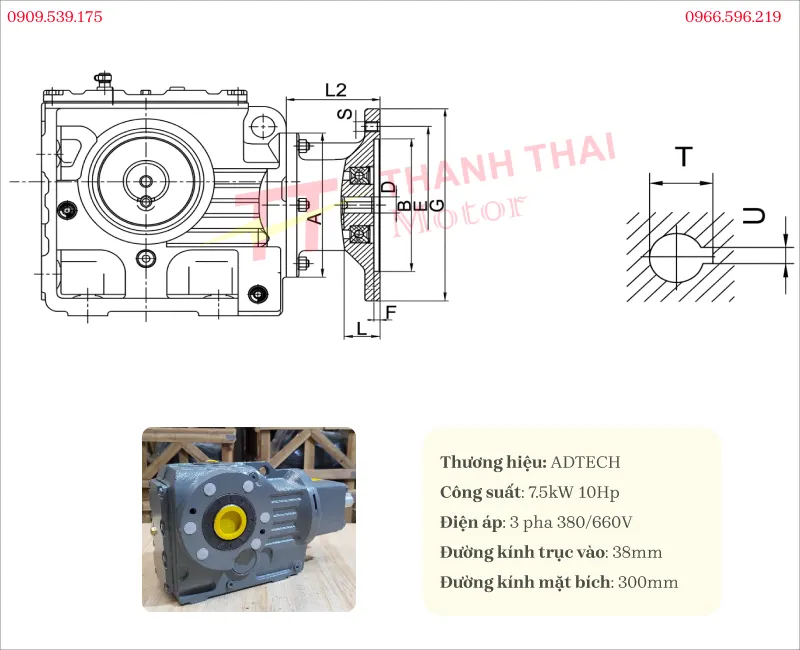

Specifications of the S-Series Helical Worm Gearbox 7.5kW 10Hp

The specifications of the S-Series Helical Worm Gearbox 7.5kW 10Hp are presented below, including power, shaft dimensions, mounting styles, and common gear ratios.

Technical Specifications

• Available with various gear ratios from 1/15, 35, 55, 75, 85, 115, 145, …, 250 to 420.
• S-Series sizes: S57, S67, S77, S87, S97.
• Can be installed in foot-mounted and flange-mounted styles.

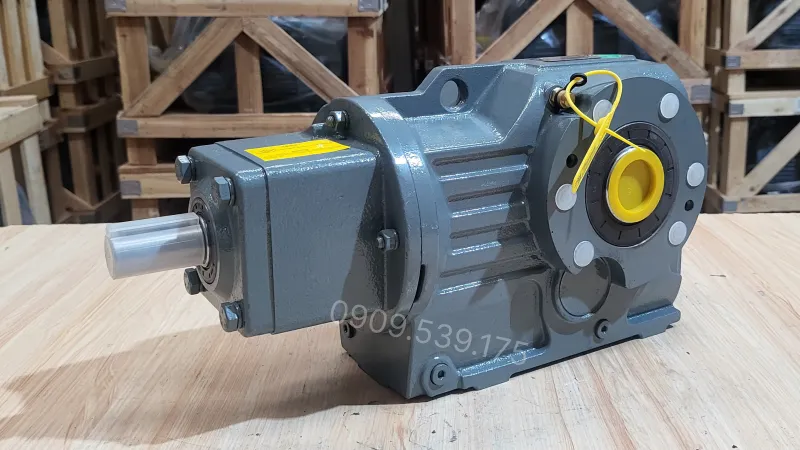

Applications of the S-Series Helical Worm Gearbox 7.5kW 10Hp

• Optimizing operations in warehouses, parking basements, and cargo handling.
• In construction, used in concrete pumps, concrete mixers, crushers, etc.
• In freight transport, warehousing, and parking basements in apartment complexes, supermarkets, and airports.
• Construction and building projects such as cranes, hoists, etc.

Distinguishing Between Input Shaft and Output Shaft of the S-Series Helical Worm Gearbox

• By Size: The primary shaft is slender in size to reduce friction. The secondary shaft is large in size with durable materials, specially designed to withstand high tensile forces without deformation during heavy-load operation.
• By Connection Position in the System: The input shaft is horizontal, connected to the motor. The output shaft is positioned perpendicularly, allowing a 90-degree change in transmission direction, facilitating convenient installation in complex and tight machinery spaces.
• By Operating Parameters: The input shaft rotates fast with low torque. After the speed reduction process in the gearbox, the output shaft rotates slowly, generating high torque to pull loads, suitable for industrial machinery lines.

To learn more about the S-Series Helical Worm Gearbox 7.5kW 10Hp, customers can watch the gearbox video to observe the structure, perpendicular shaft position, and how the device is installed in a practical system. Additionally, the compilation video introduces various gearbox lines with different power levels, along with some instructions on inspecting and using the equipment during operation.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
