Product Introduction

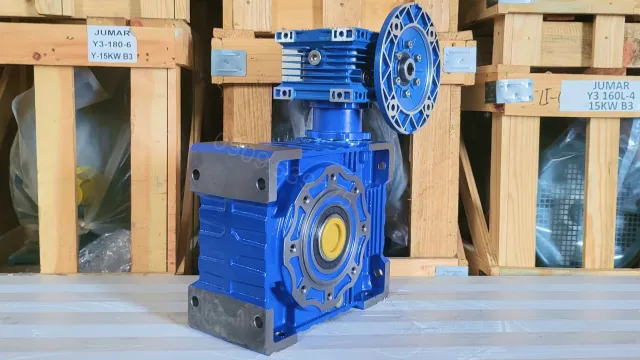

The 2-Stage NMRV Worm Gearbox 75 – 110 is an optimal combination of two NMRV size 75 and size 110 gearboxes, delivering an extremely high gear ratio and powerful torque for heavy-duty industrial applications.
Commitment to genuine quality – Long-term 24-month warranty – Fast doorstep delivery – Full CO/CQ documentation.
The 2-Stage NMRV Worm Gearbox 75 – 110 is a combination of two gearboxes, providing smooth power transmission, high efficiency, and suitability for various industrial applications such as conveyors, agitators, mixers, and lifting equipment.

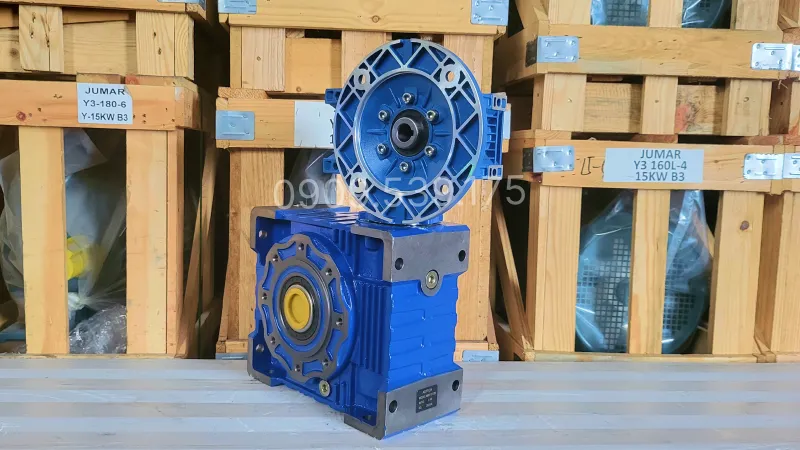

The 2-stage worm gearbox is designed to be compact, robust, and modern, suitable for installation in restricted spaces. With a solid cast aluminum alloy housing, it is lightweight yet durable, offers fast heat dissipation, resists corrosion, and performs well in harsh industrial environments.
The worm shaft and worm wheel system are precision-machined to ensure smooth transmission, reduced friction, and extended service life. The two-stage mechanism combines two NMRV gearboxes, specifically the NMRV 75 gearbox and the NMRV 110 gearbox, to create a large gear ratio, increase torque, and effectively reduce output speed.

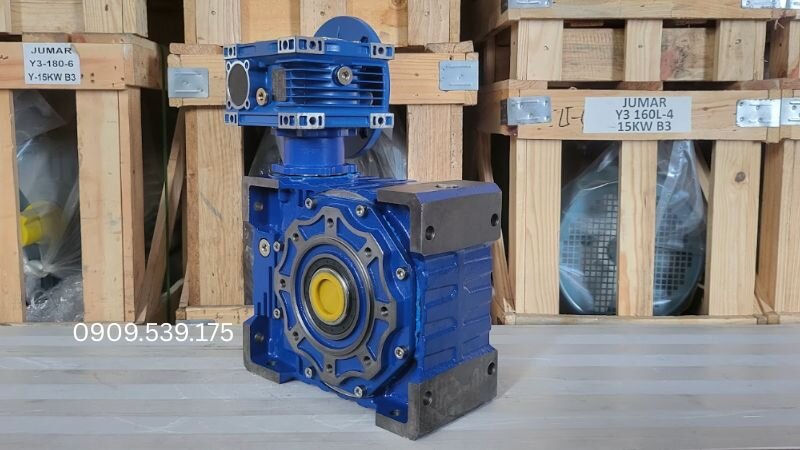

The 2-stage NMRV worm gearbox consists of the following main components:
The specifications below help select the appropriate gearbox for the motor and operating conditions of the system.
The NMRV 75 handles the first reduction stage, receiving motion from the motor and transmitting power to the NMRV 110 gearbox.
Technical Specifications
| Size | 75 |
| Input shaft | 24mm |
| Output shaft | 28mm |
| Key | 8mm |
| Dimensions | 198.5mm*112mm*205mm |
The NMRV 110 performs the subsequent reduction stage, creating an output speed suitable for the requirements of the drive system.
Technical Specifications
| Model | 100B5 |
| Input shaft | 28mm |
| Output shaft | 42mm |
| Key | 8 |
| Dimensions | 298.75mm * 144mm * 295mm |

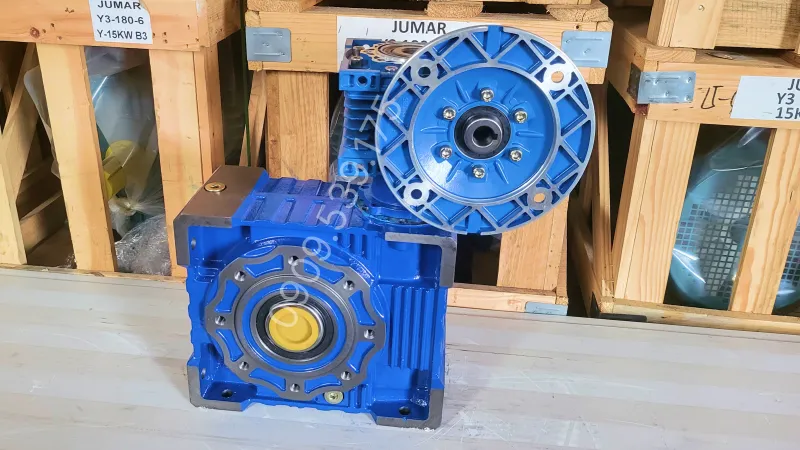

The 2-stage NMRV worm gearbox 75 – 110 is widely used in:

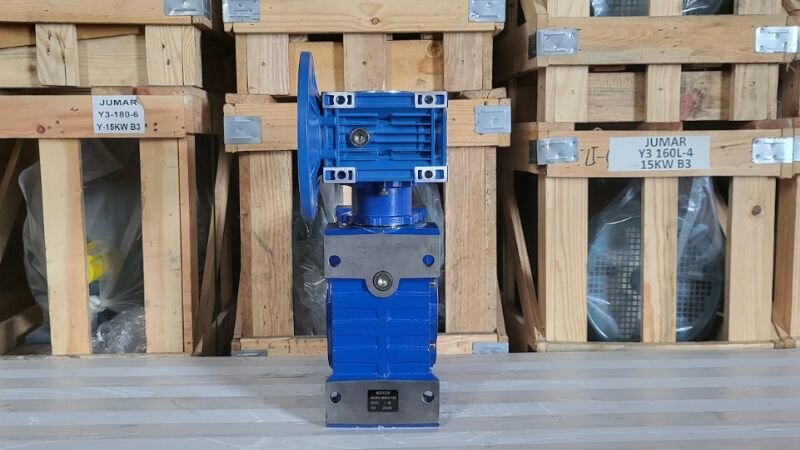

To install the 2-stage NMRV worm gearbox, follow these steps:
Step 1: Check the equipment
Verify the model, gear ratio, mounting type, flange dimensions, and shaft diameter of the gearbox against the motor. Check the housing body, shaft, and bolts to ensure the equipment meets the installation conditions.
Step 2: Install the gearbox onto the motor
Insert the motor shaft into the input shaft of the gearbox, align the two contact flanges evenly, and tighten the bolts in sequence to secure the assembly.
Step 3: Post-installation inspection
Check the concentricity between the motor and gearbox, bolt tightness, and joint positions to ensure the drive assembly is properly installed.
Step 4: Test run before operation
Run the system under no-load conditions for a short time, monitor vibration and noise, and check connection points to ensure normal equipment operation.
In addition to this article, you can refer to the collection video on the Thanh Thai Motor channel to view more installation processes and practical checks. Meanwhile, the gearbox video will provide further instructions on structure, assembly methods, and inspection procedures before putting the equipment into operation.
When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:
Warranty up to 24 months
Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.
Nationwide Delivery
We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.
Products meeting European quality standards with German technology
Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.
Competitive prices, good discounts for dealers and bulk customers
Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.
Full certification documents: CO, CQ,...
Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:
| Product Type | 2-Stage NMRV Gearbox |
| Frequency | 50Hz |
| Material | Aluminum housing and cast iron housing |
| Mounting Type | Direct motor mount |
| Place of Manufacture | German technology, manufactured in China |
| Brand | ADTECH |
| Warranty Period | Up to 24 months |
| Model | 90B5 |
| Input Shaft | 24mm |
| Output Shaft | 42mm |
| Keyway | 8mm |
| Model | 100B5 |
| Input Shaft | 28mm |
| Output Shaft | 42mm |
| Keyway | 8mm |
