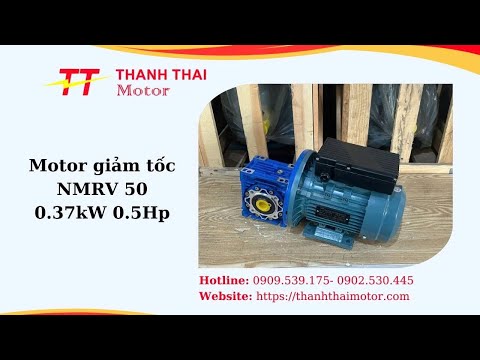

NMRV 50 Gear Motor 0.37kW 0.5Hp

The NMRV 50 Gear Motor 0.37kW 0.5Hp is a motor line featuring a worm and worm gear drive mechanism. It combines an electric motor with a gearbox to create a gear motor.

Design overview of the NMRV 50 Gear Motor 0.37kW 0.5Hp

The NMRV gear motor features an outer housing made of cast iron or solid aluminum, ensuring high quality, protecting the motor from external environmental hazards, and a powder-coated paint layer to prevent corrosion in harsh environments.

The product is a perfect combination of a 1-phase electric motor or a 3-phase electric motor with an NMRV gearbox, specifically a 1-phase electric motor 0.37kW 0.5Hp or a 3-phase electric motor 0.37kW 0.5Hp with an NMRV 50 gearbox.

Structure of the NMRV 50 Gear Motor 0.37kW 0.5Hp

The NMRV 50 Gear Motor 0.37kW 0.5Hp is a 1-phase gear motor or 3-phase gear motor line, composed of 2 main parts: the electric motor and the NMRV 50 gearbox, which effectively reduces rotational speed and increases torque.

3-phase electric motor 0.37kW 0.5Hp

• Stator: Constructed from assembled electrical steel laminations, wound with pure copper wire inside. When energized, the stator creates a rotating magnetic field, helping the motor operate stably with high efficiency.
• Rotor: The rotating part of the motor, made from tightly pressed electrical steel sheets with high mechanical durability. The rotor receives magnetic force from the stator and converts it into mechanical rotational motion.
• Motor shaft: Machined from high-quality alloy steel, ensuring high precision, stable power transmission, and reduced vibration during operation.
• Motor housing: Usually made of aluminum with good load-bearing capacity, impact resistance, and effective heat dissipation support.
• Cooling fan: Mounted at the rear of the motor, helping to dissipate heat quickly and ensuring the motor operates continuously for a long time without overheating.

NMRV 50 gearbox

• Worm gear: Made from high-quality bronze alloy with good wear resistance, ensuring smooth transmission and low operating noise.
• Worm shaft: An alloy steel shaft that is heat-treated and precision-ground with high hardness, increasing load-bearing capacity and ensuring stable transmission efficiency.
• Gearbox housing: Cast from solid aluminum alloy, lightweight, with good corrosion resistance and fast heat dissipation during operation.
• Output shaft: The component that transmits torque from the gearbox to external equipment, which can be designed as a solid shaft or hollow shaft depending on the application.
• Oil seal: Helps retain lubricating oil inside the gearbox and prevents dust and moisture from entering, protecting internal components.

Technical specifications of the NMRV 50 Gear Motor 0.37kW 0.5Hp

Below are the important technical parameters and dimensions of the product

Technical specifications of the 3-phase electric motor 0.37kW 0.5Hp

Detailed technical drawing of dimensions and important installation parameters of the 0.37kW 0.5Hp electric motor

Technical specifications of the NMRV 50 gearbox

Technical drawing showing detailed installation dimensions and connection positions of the NMRV 50 gearbox

Applications of the NMRV 50 Gear Motor 0.37kW 0.5Hp

The NMRV 50 Gear Motor 0.37kW 0.5Hp product line is widely used in plants with small or medium industrial machinery and equipment:

• Used for light industrial conveyor systems, mini infrastructure equipment, and small presses.
• Used for packaging plants and food and beverage production technology lines.
• Used in presses, material mixers, and food processing equipment.

Guide to installing the NMRV gearbox with a 3-phase electric motor

Thanh Thai Motor shares the basic step-by-step installation process for combining the NMRV gearbox with a 3-phase electric motor, ensuring the equipment operates correctly according to technical standards and achieves high efficiency.

• Step 1: Inspect equipment before installation: Check the condition of the 3-phase electric motor and the NMRV gearbox to ensure there are no signs of cracking, shaft bending, or missing components. Clean the mating surfaces at the same time.
• Step 2: Prepare the mounting position: Precisely determine the motor output shaft and the gearbox input shaft. Check the compatibility between the flange, shaft dimensions, and installation position to avoid misalignment during connection.
• Step 3: Perform assembly and alignment: Install the motor into the gearbox, ensuring that the couplings mesh accurately. Align the two shafts concentrically to limit vibration, then tighten the fixing bolts to the standard torque.
• Step 4: Inspection and test run: After complete installation, power on the 3-phase motor for a test run. Observe the rotation direction, noise level, vibration, and transmission capability of the system to ensure stable operation.

Notes on installation

• Do not operate without precise concentric alignment
• Ensure the gearbox is fully lubricated with oil before running
• Check the load before putting it into actual operation

The guide on connecting the NMRV gearbox to the 3-phase motor helps users easily observe each step of the process, from preparation to test running. The gear motor video content is presented visually, assisting technicians in minimizing errors during assembly and ensuring the transmission system operates safely, stably, and durably. Watch more through the video compilation at Thanh Thai Motor.

The NMRV 50 Gear Motor 0.37kW 0.5Hp is a compact, durable, and efficient drive solution, combining an electric motor with a worm and worm gear gearbox. The product helps optimize torque, operates smoothly, and is suitable for various light to medium industrial applications.
