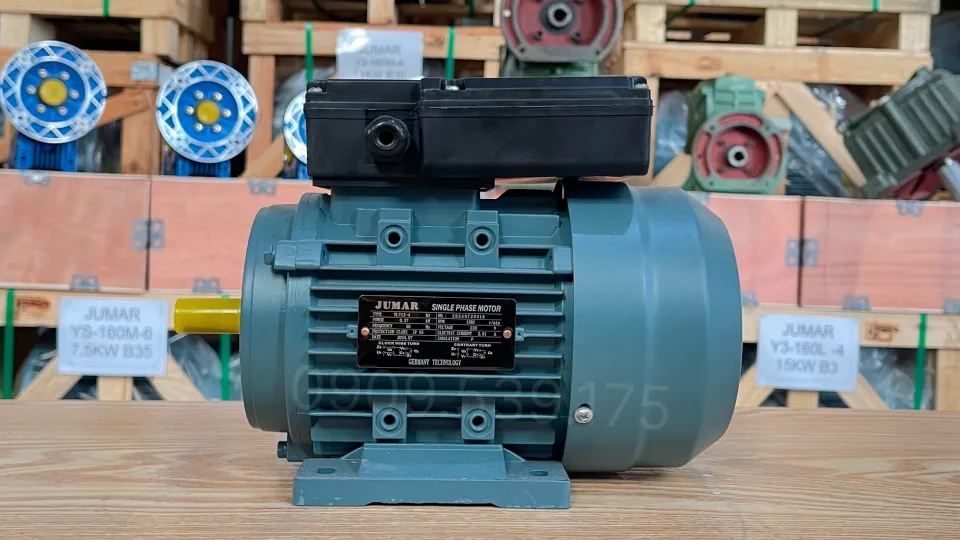

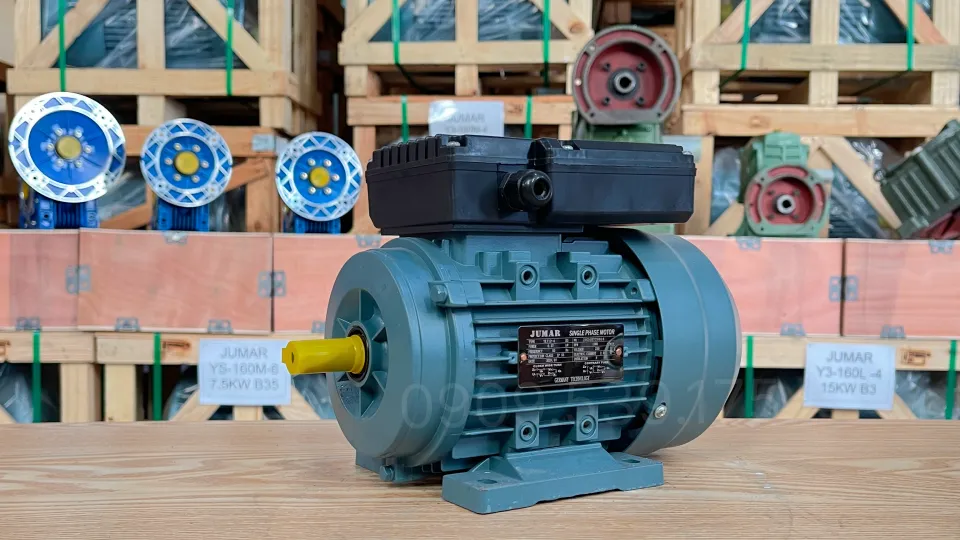

1-Phase Electric Motor 0.37kW 0.5Hp

1-Phase Electric Motor 0.37kW 0.5Hp (also known as 1-phase electric motor 0.37kW 0.5Hp) is suitable for residential and light industrial applications. With the ability to efficiently convert electrical energy into mechanical energy, this 1-phase electric motor is trusted by many customers. Follow Thanh Thai Motor to explore the detailed structure, advantages, and practical applications of this product!

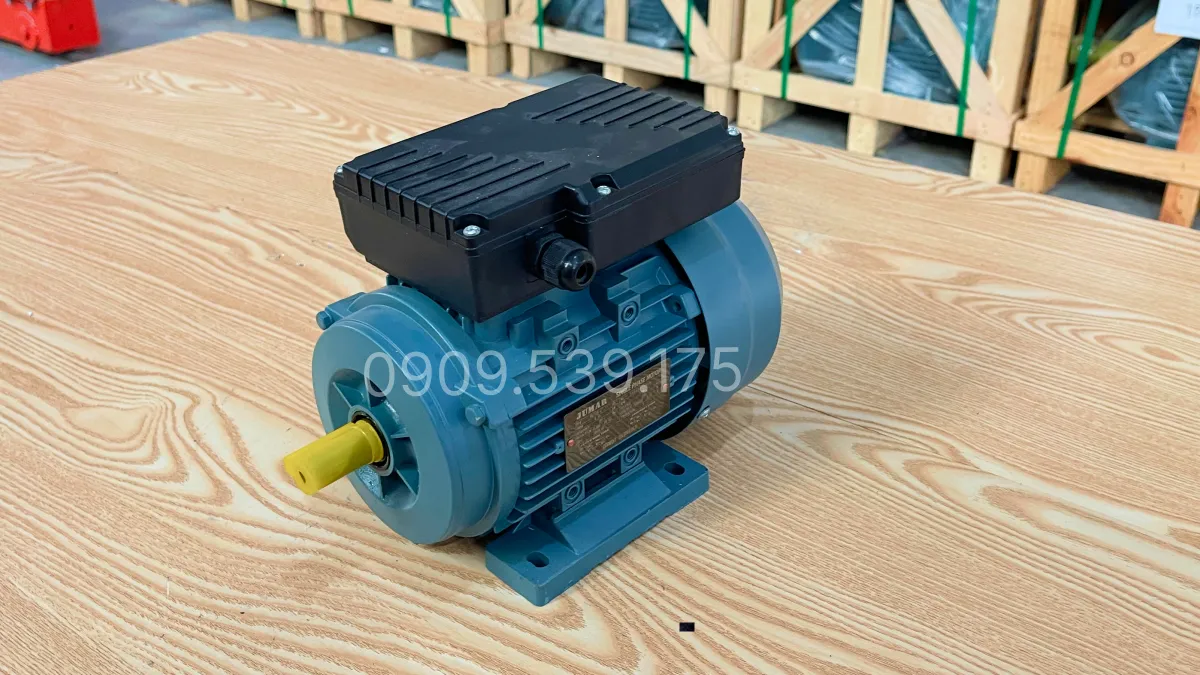

General design of the 1-Phase Electric Motor 0.37kW 0.5Hp

When looking at an electric motor, we can easily recognize it as a 1-phase electric motor thanks to its characteristic feature of 2 capacitors. The 1-phase motor can have separate capacitors located on both sides of the motor body or capacitors installed together in the terminal box. This is the easiest point to distinguish, helping us immediately recognize that it is a 1-phase electric motor 0.37kW 0.5Hp.

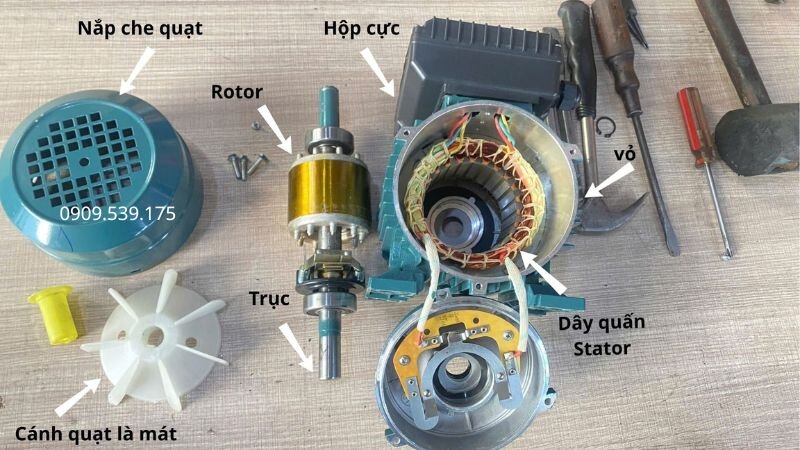

Internal structure of the 1-Phase Electric Motor 0.37kW 0.5Hp

1-Phase Electric Motor 0.37kW 0.5Hp belongs to the sub-3.7kW electric motor product segment used in popular household machinery. This electric motor has the following structure:

• Motor housing: Made of high-quality cast iron or aluminum, sturdy design, efficient heat dissipation, and coated with protective paint to increase service life.
• Stator winding: Uses pure copper wire with high electrical conductivity, helping the motor operate stably, reduce power loss, and improve working efficiency.
• Rotor: Precisely machined and calibrated, ensuring smooth rotational movement, reducing vibration and noise during operation.
• Shaft and bearings: Manufactured from high-hardness material, good load capacity, helping the motor operate.

How many poles does the 1-Phase Electric Motor 0.37kW 0.5Hp have?

According to rotational speed, the 1-phase electric motor 0.37kW 0.5Hp series is divided into the following 2 types:

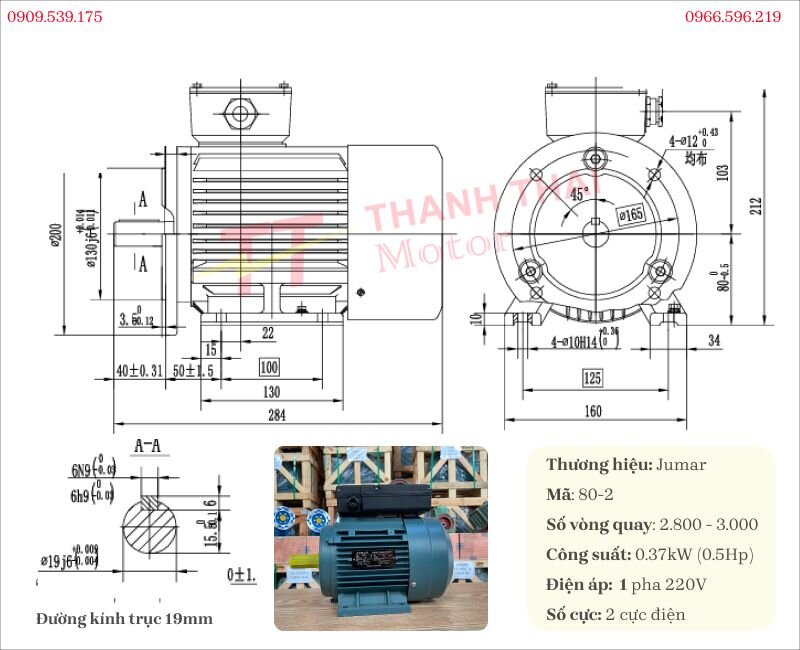

1-Phase 0.37kW 0.5Hp Electric Motor 2-Pole (2 poles) (2,800-3,000 rpm)

Technical specifications

Code	80M
Shaft diameter	19mm
Key	6
Flange diameter	200mm
Dimensions	310 * 153mm * 227mm
Mounting type	Foot mount (B3), Flange (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Industrial pump and fan systems: Used to drive water pumps, exhaust fans, ventilation fans, and air circulation equipment in workshops, buildings, and production areas.
• Automated manufacturing machinery: Suitable for installation in packaging lines, sorting machines, feeding machines, and continuous operation equipment requiring high stability.
• Lifting and material handling equipment: Combined with a gearbox to operate conveyors, turntables, lifting systems, and various transmission mechanisms in different industrial fields.

1-Phase 0.37kW 0.5Hp Electric Motor 4-Pole (4 poles) (1,400 – 1,500 rpm)

0.37kW 0.5Hp electric motor with a unique design, featuring an outer casing made of sturdy aluminum.

Technical specifications

Code	80M
Shaft diameter	19mm
Key	6
Flange diameter	200mm
Dimensions	310 * 153mm * 227mm
Mounting type	Foot mount (B3), Flange (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Food processing industry: Operates efficiently in ingredient mixers, packaging machines, presses, and food production lines requiring stable operation.
• Environmental treatment systems: Applied for air blowers, circulation pumps, wastewater treatment equipment, and environmental protection systems in factories.
• Mining and construction materials industry: Suitable for vibrating screens, material conveyor belts, feeders, and many equipment operating under heavy load conditions.

If you have not determined your usage needs or do not know how to choose the right motor for your system, please contact hotline 0909.539.175. Thanh Thai Motor’s technical team is always ready to support, consult optimal solutions, and select products that meet your exact operational requirements.

Which gearboxes can the 1-Phase Electric Motor 0.37kW 0.5Hp be combined with?

1-Phase Electric Motor 0.37kW 0.5Hp is commonly used in low-power transmission systems and can be coupled with various gearbox series to form a complete gear motor, meeting diverse operational needs.

Suitable gearbox series include:

• Worm gearbox: Easily combined with WPA, WPS, WPX, WPO, WPDA, WPDO, WPDS, WPDX series and NMRV gearboxes, helping to reduce speed and increase torque for the system.
• Medium-duty gearbox: Can be assembled with R-Series Inline Helical Gearbox, F-Series Parallel Shaft Helical Gearbox, or S-Series Helical Worm Gearbox for applications requiring stable and continuous operation.

In addition, the motor can also be combined with many other accessories such as:

• 0.37kW 0.5Hp brake: Helps stop the motor quickly, increasing safety and operating accuracy.
• Pulley: Compatible with various pulley sizes according to the actual shaft diameter of the motor.
• Shaft coupling: Helps connect the motor to the gearbox or machinery equipment, ensuring stable transmission and limiting vibration during operation.

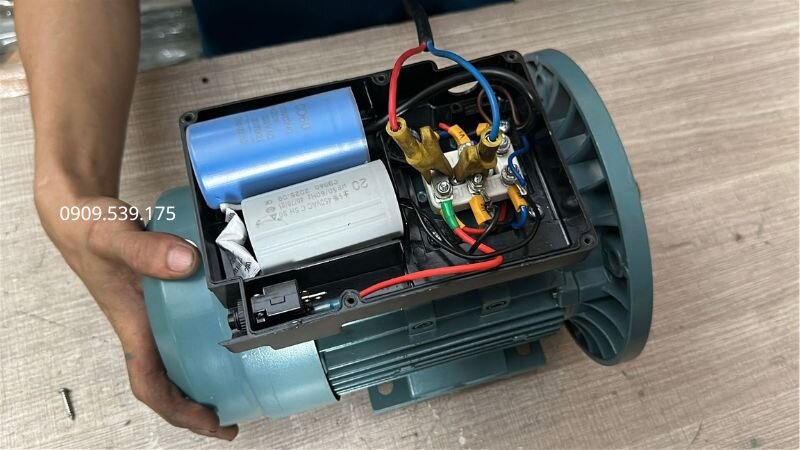

Instructions for wiring the 1-phase electric motor

Step 1: Open the motor terminal box

Completely disconnect the power source before operating. Use appropriate tools to remove the terminal box cover, check the condition of wire ends, terminal posts, and ensure there is no looseness or oxidation.

Step 2: Connect the power source

Proceed to connect the two power wires to the positions according to the wiring diagram of the 1-phase electric motor 0.37kW 0.5Hp. Carefully check the terminals, tighten the fixing screws to ensure stable electrical contact and limit heat generation during operation.

Step 3: Check motor operation

After completing the wiring, reinstall the terminal box cover and power on for a test run. Observe the noise, vibration, and rotational speed of the motor to ensure the equipment operates normally before official use.

The electric motor video helps viewers quickly grasp the process of wiring, testing, and actual operation. The easy-to-understand 1-phase electric motor wiring guide video is presented clearly and visually, supporting users to perform correct techniques, improve safety, and extend equipment life. Follow more useful collection videos from Thanh Thai Motor to update much practical knowledge about electric motors and transmission systems.
