1-Phase Electric Motor 1.1kW 1.5Hp

The 1-Phase Electric Motor 1.1kW 1.5Hp (also known as a 1-phase electric motor 1.1kW 1.5Hp) is a specialized device that efficiently converts electrical energy into mechanical energy. The product is highly appreciated for its stable operation, making it suitable for various household and light industrial machinery. This 1-phase electric motor uses a standard 220V power supply, making it very popular on the market. Let’s explore this electric motor in more detail with Thanh Thai Motor!

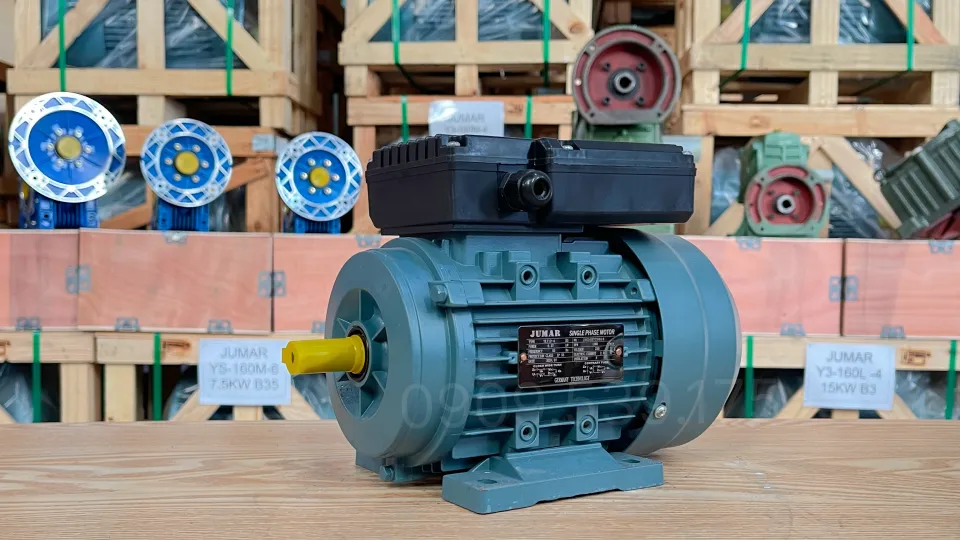

General Design of the 1-Phase Electric Motor 1.1kW 1.5Hp

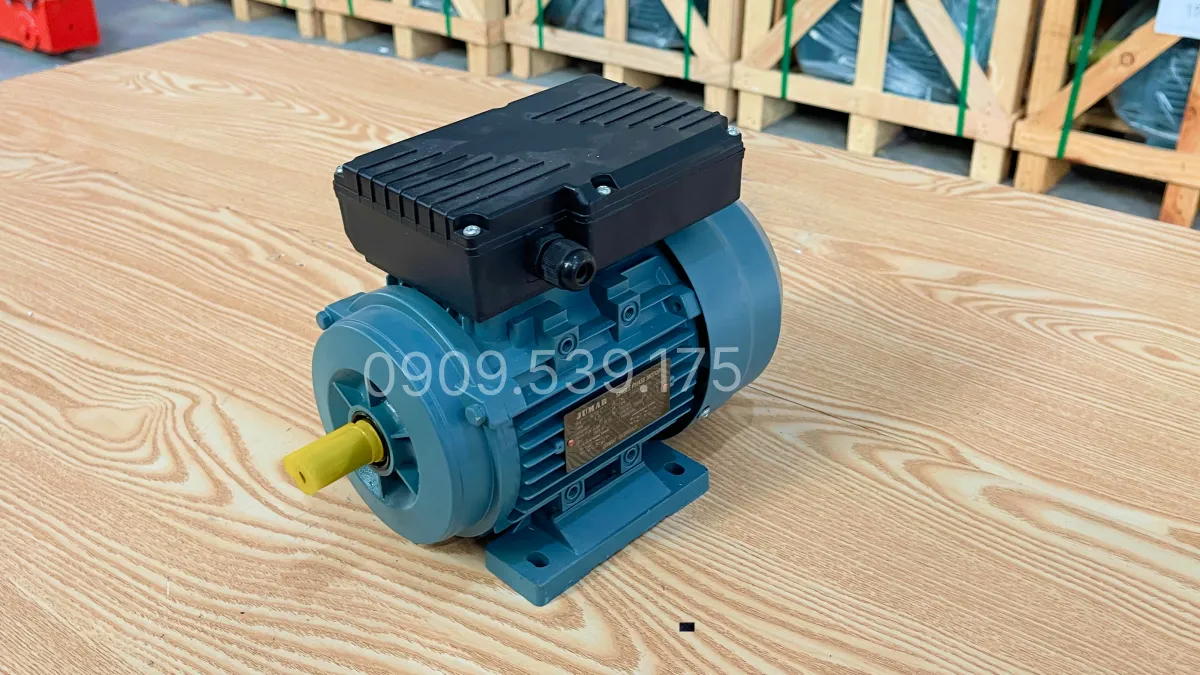

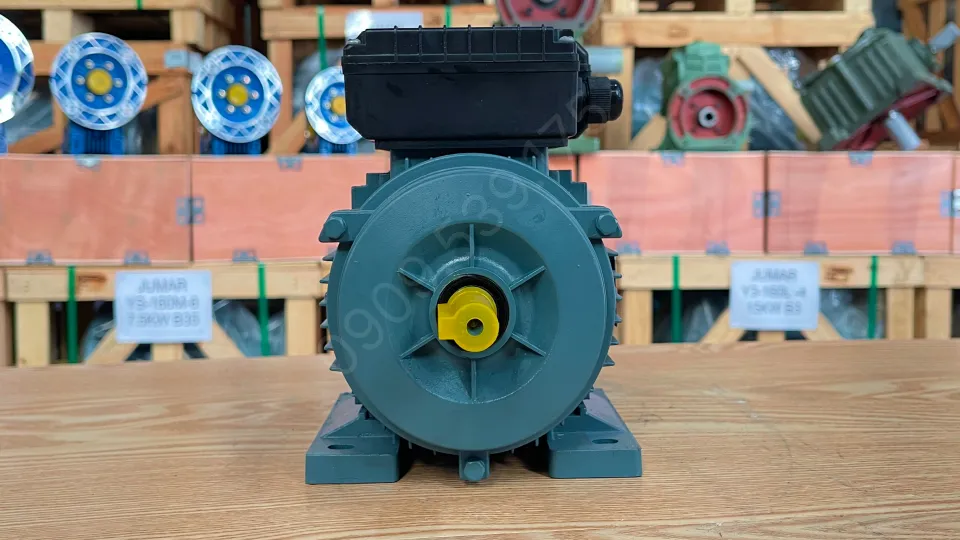

The 1-Phase Electric Motor 1.1kW 1.5Hp is easily recognized by its characteristic feature of having two capacitors. Depending on the model, these two capacitors can be neatly housed within the terminal box or separated on both sides of the motor body. This is one of the typical identifying signs of the 1.1kW 1-phase electric motor series, helping users easily distinguish and select the right product type to suit their usage needs.

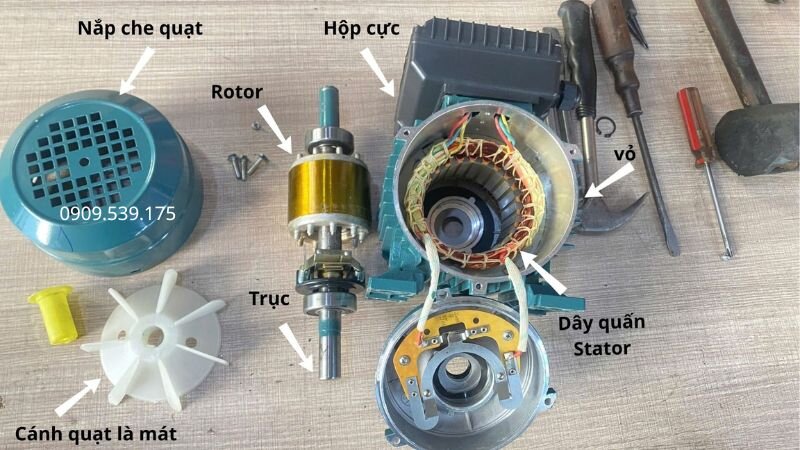

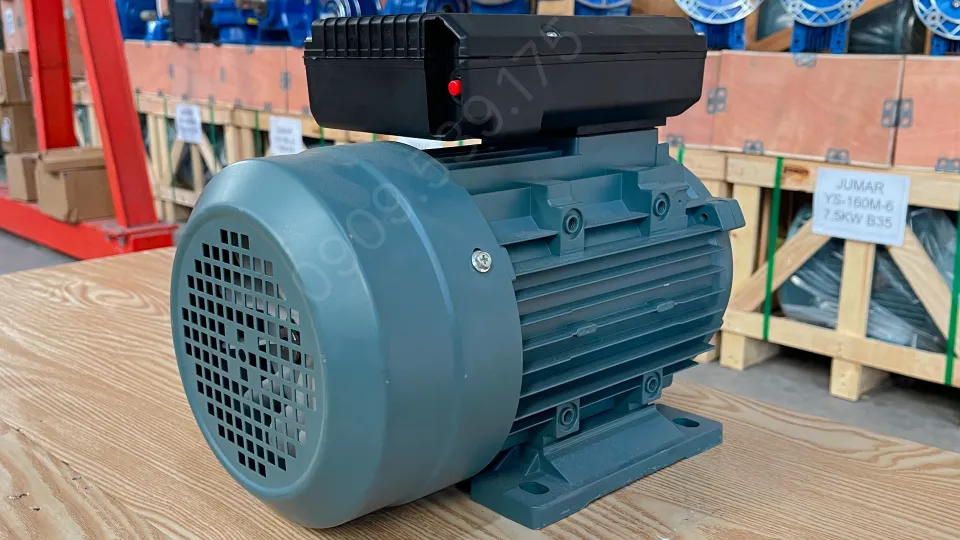

Internal Structure of the 1-Phase Electric Motor 1.1kW 1.5Hp

The 1-Phase Electric Motor 1.1kW 1.5Hp belongs to the group of electric motors under 3.7kW, being a low-power 1.1kW single-phase electric motor product line commonly used in household appliances and light industrial equipment. The structure of the motor includes the following main components:

• Motor housing: Cast from sturdy cast iron or aluminum, helping to protect internal components and dissipate heat effectively. The two capacitors of the motor can be placed together in the terminal box or symmetrically on both sides of the motor body.

• Stator (stationary part): A non-moving part, completely wound with copper wire to increase durability and electrical conductivity. However, operating efficiency depends not only on the winding material but also on the overall design of the motor.

• Rotor (rotating part): Features a thoroughly heat-treated steel core to ensure durability and stability during operation. When the rotor rotates, it creates a magnetic field that helps the motor generate work and transmit force outward.

How Many Types of 1-Phase Electric Motor 1.1kW 1.5Hp Are There?

Depending on the rotational speed, the 1-Phase Electric Motor 1.1kW 1.5Hp series is divided into the following 2 types:

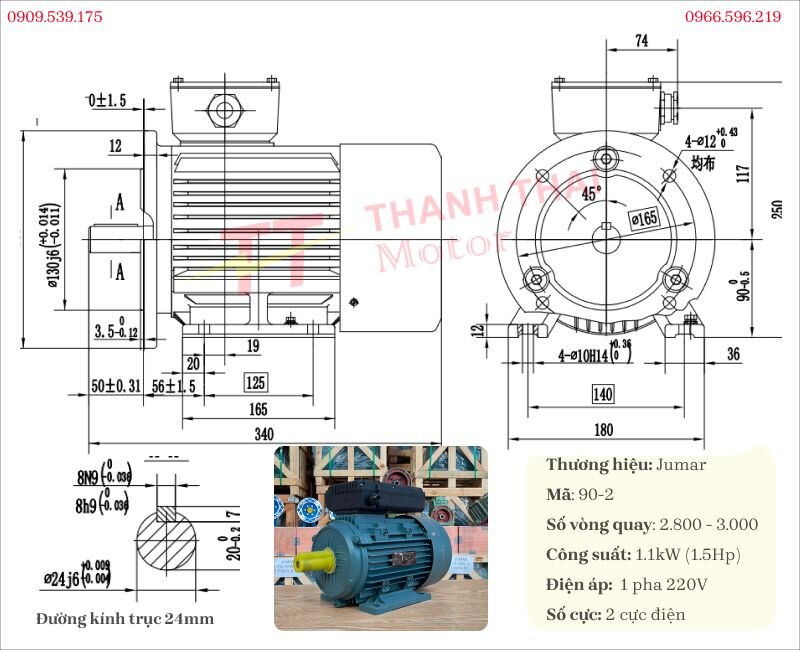

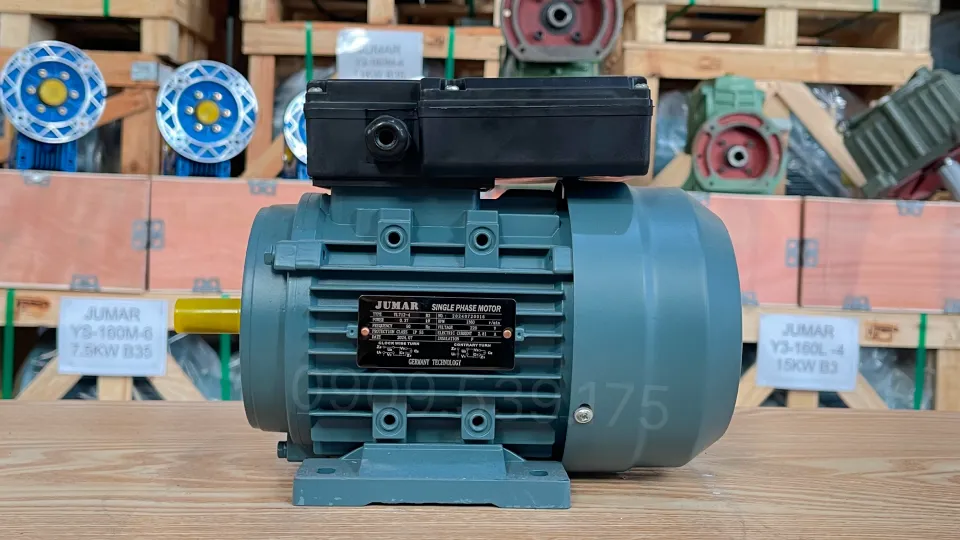

1.1kW 1.5Hp 1-Phase 2-Pole Electric Motor (2,800 – 3,000 rpm)

Technical Specifications

Frame size	90L
Shaft diameter	24mm
Keyway	8
Flange diameter	200mm
Dimensions	340 * 172mm * 246mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Domestic water supply and booster pump systems: Used to drive water supply pumps for households, apartments, small workshops, and medium-scale irrigation systems.
• Civil and light industrial ventilation fans: Provides power for exhaust fans, supply fans, and cooling fans in workshops, farms, and warehouses.
• Mini air compressors: Operates small-capacity air compressors for repair, production, and equipment maintenance.

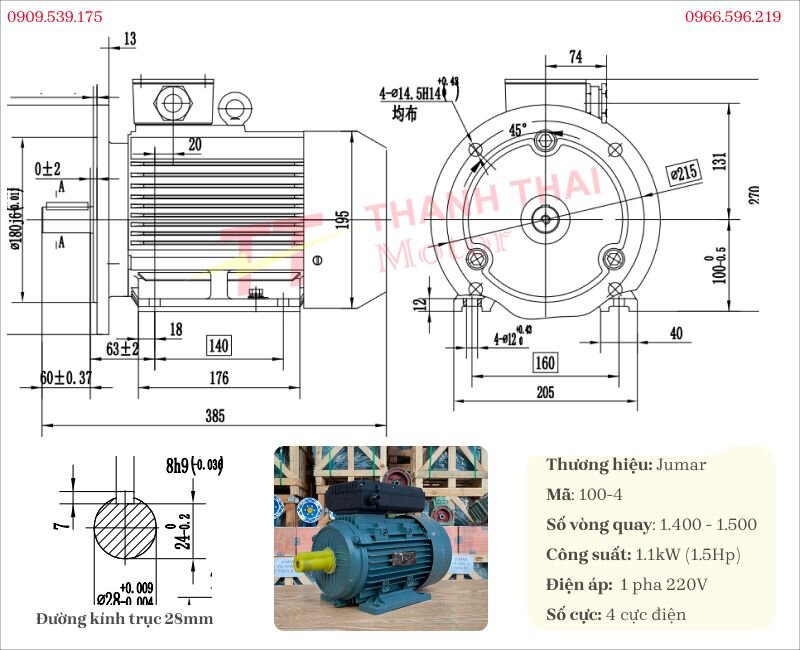

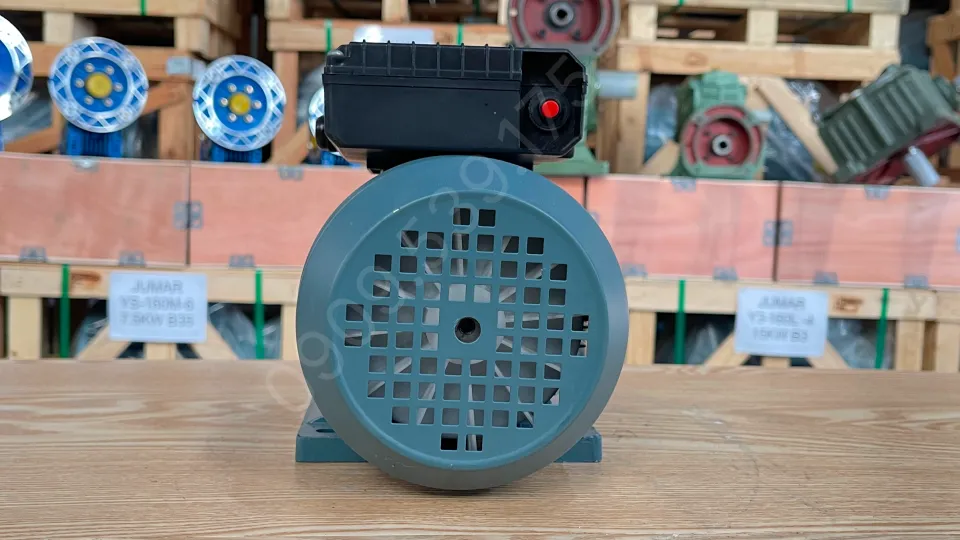

1.1kW 1.5Hp 1-Phase 4-Pole Electric Motor (1,400 – 1,500 rpm)

The 1.1kW 1.5Hp 1-phase electric motor features a unique design with a sturdy and durable aluminum outer housing.

Technical Specifications

Frame size	100L
Shaft diameter	28mm
Keyway	8
Flange diameter	200mm
Dimensions	425 * 200mm * 250mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Applications

• Automatic rolling door systems: Drives rolling doors for houses, shops, and warehouses, ensuring convenient and stable opening/closing.
• Food processing machinery: Applied in food grinders, mixers, and crushers at small production facilities.
• Semi-automatic packaging machines: Takes on the driving task for feeding mechanisms, bag sealers, and product packaging.

In case you have not yet determined the appropriate motor type for your machinery system, do not hesitate to contact hotline 0909.539.175. Thanh Thai Motor is always ready to provide technical consultation and support in selecting products that meet exact usage requirements and investment budgets.

Which Gearboxes Can the 1-Phase Electric Motor 1.1kW 1.5Hp Be Combined With?

With a power of 1.1kW (1.5Hp), the 1-phase electric motor is a suitable choice for many light and medium-load drive systems. When combined with a gearbox, the motor helps reduce output speed, increase pulling force, and enhance operating efficiency for machinery.

The gearbox series commonly paired with the motor include:

• Worm gearbox: Compatible with WPA, WPS, WPX, WPO, WPDA, WPDO, WPDS, WPDX, NMRV series and N gearbox series. This is a widely used solution thanks to its compact design, smooth operation, and diverse transmission ratios.
• Helical gearbox: Can be installed with R-Series Inline Helical Gearbox, F-Series Parallel Shaft Helical Gearbox, or S-Series Helical Worm Gearbox, suitable for conveyor systems, mixers, packaging machines, and continuously operating equipment.

Besides the gearbox, the 1-Phase Electric Motor 1.1kW 1.5Hp can also be combined with many other supporting accessories such as:

• 1.1kW 1.5Hp electromagnetic brake kit: Helps stop the motor quickly during power outages or when precise position control is required.
• Pulley and V-belt: Supports indirect transmission between the motor and the equipment, easily changing the transmission ratio as needed.
• Shaft coupling: Available with shaft diameters of 19mm and 24mm.

Choosing the right gearbox and accompanying accessories will help the system operate durably, save energy, and achieve optimal performance.

Instructions for Wiring a 1-Phase Electric Motor

Step-by-Step Wiring Instructions for the 1-Phase Electric Motor 1.1kW 1.5Hp

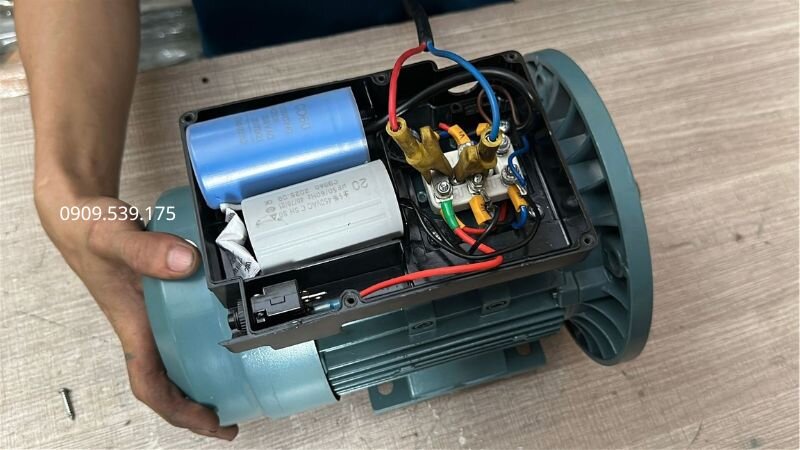

Step 1: Check the terminal box before connecting

Before making connections, completely disconnect the power supply to ensure safety. Open the terminal box of the motor, check the wire ends, terminal posts, and insulation status. If loose connections or signs of damage are detected, they must be addressed before powering on.

Step 2: Connect the power supply according to the technical diagram

Connect the two power wires to the correct terminal posts according to the diagram provided by the manufacturer. After wiring, tighten the fixing screws to ensure good contact, avoiding arcing or heating when the motor operates.

Step 3: Test run and check operation

Close the terminal box lid, power on the motor for a test run. Observe the rotation direction, speed stability, noise level, and vibration of the motor. If operating parameters are normal, the motor is ready for use.

The 1-phase electric motor wiring guide video helps viewers easily approach the implementation steps through visual images and practical operations. The electric motor video content is presented in a detailed, easy-to-understand manner, supporting the installation process to take place quickly, technically correctly, and safer. Do not forget to follow the Thanh Thai Motor channel to update more useful summary videos about electric motors, gearboxes, and industrial drive solutions.
