1-Phase Electric Motor 0.8kW 1Hp

The 1-Phase Electric Motor 0.8kW 1Hp is an electric motor used to convert electrical energy into mechanical energy, widely applied in residential machinery and small-scale production. With a compact design, energy-saving features, and easy installation, this 1-phase electric motor is a top choice for households, food processing workshops, agricultural machinery, and mechanical processing equipment.

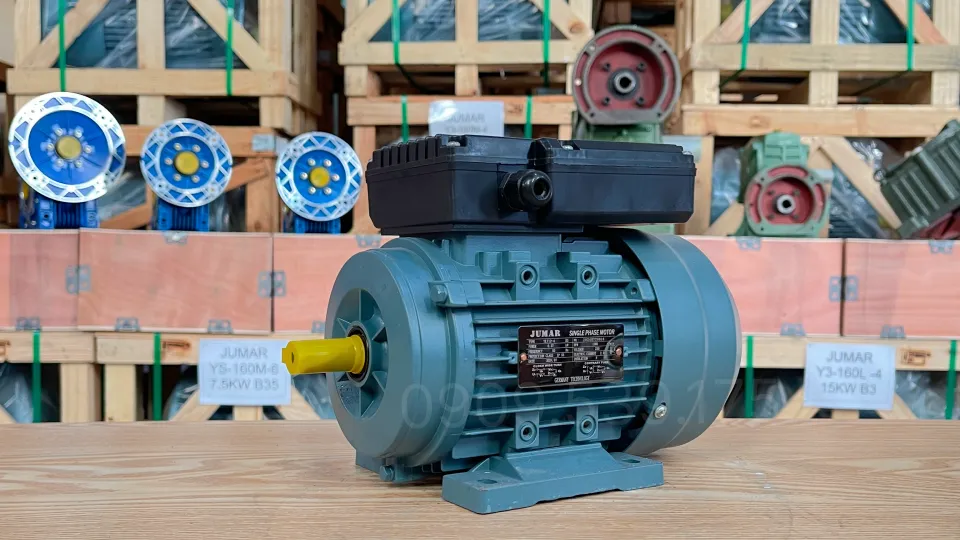

General Design of the 1-Phase Electric Motor 0.8kW 1Hp

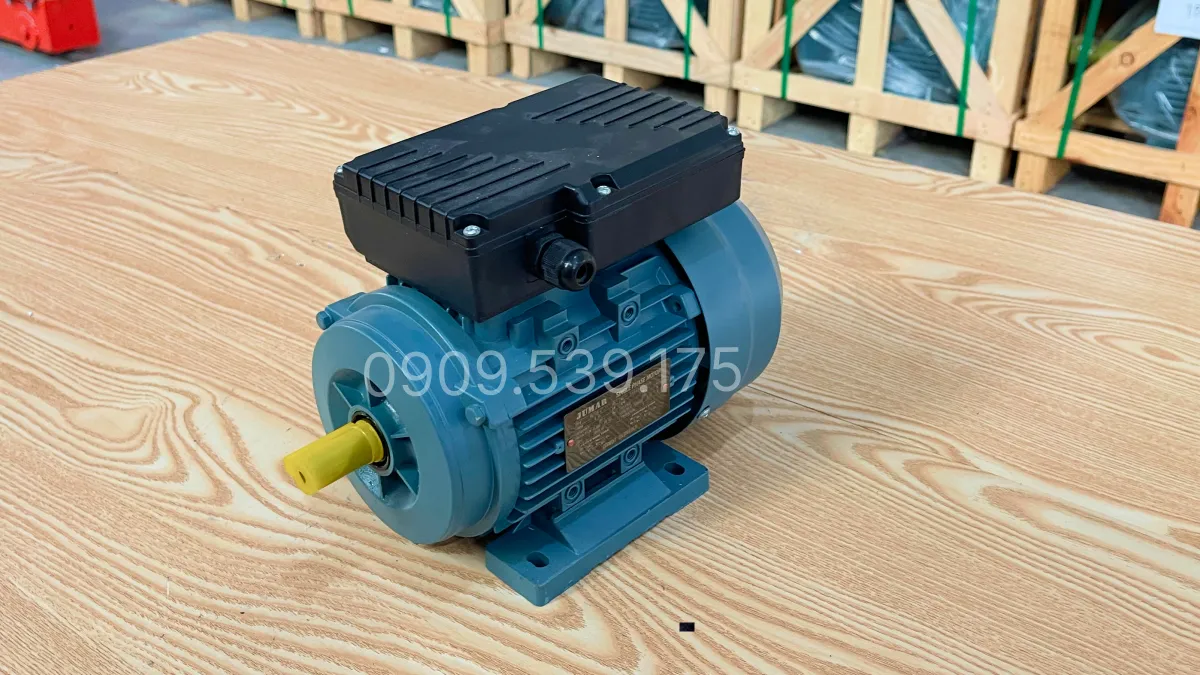

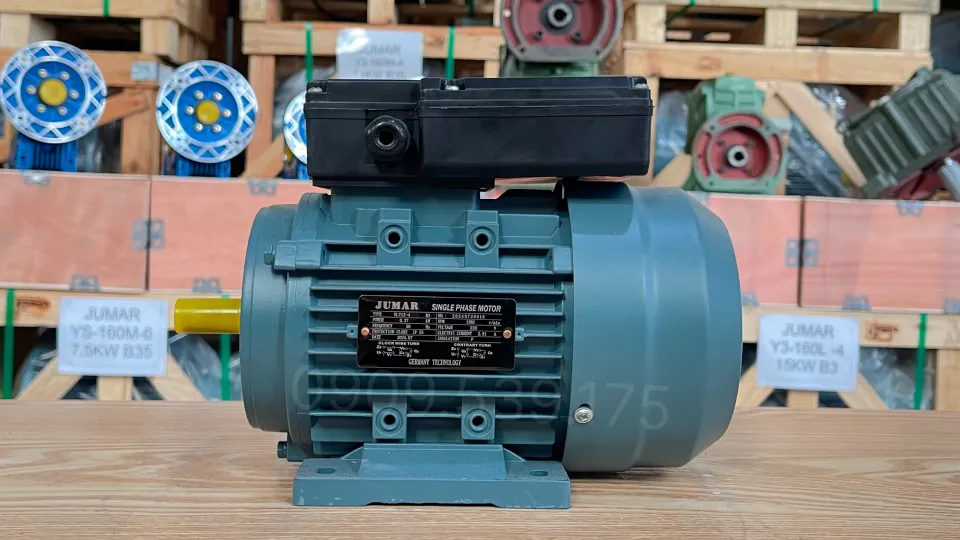

The 1-Phase Electric Motor 0.8kW 1Hp has a compact, sturdy design, easily recognizable with its characteristic dual-capacitor configuration. The motor housing is made of cast iron or die-cast aluminum, coated with electrostatic paint to prevent rust and withstand harsh working environments.

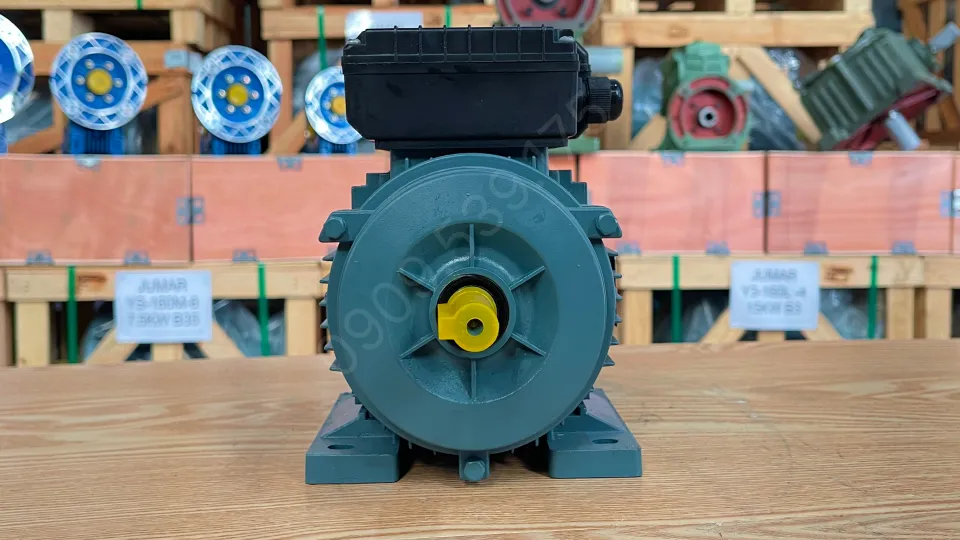

The front features a precision-machined output shaft, and the rear integrates a cooling fan for efficient cooling. The motor can be installed in foot-mounted or flange-mounted configurations, offering flexibility for various machinery positions.

Internal Structure of the 1-Phase Electric Motor 0.8kW 1Hp

The technical design of the 0.8kW motor includes the following main components:

• Stator: Consists of working windings and starting windings, meticulously wound to create a magnetic field.
• Rotor: Squirrel-cage construction, optimized for fast starting under low load.
• Capacitor System: The component that determines the initial excitation capability and maintains stable operation for the 1-phase motor.
• Bearings: Uses sealed-cap types, helping retain lubricating grease for a long time and reducing shaft friction.

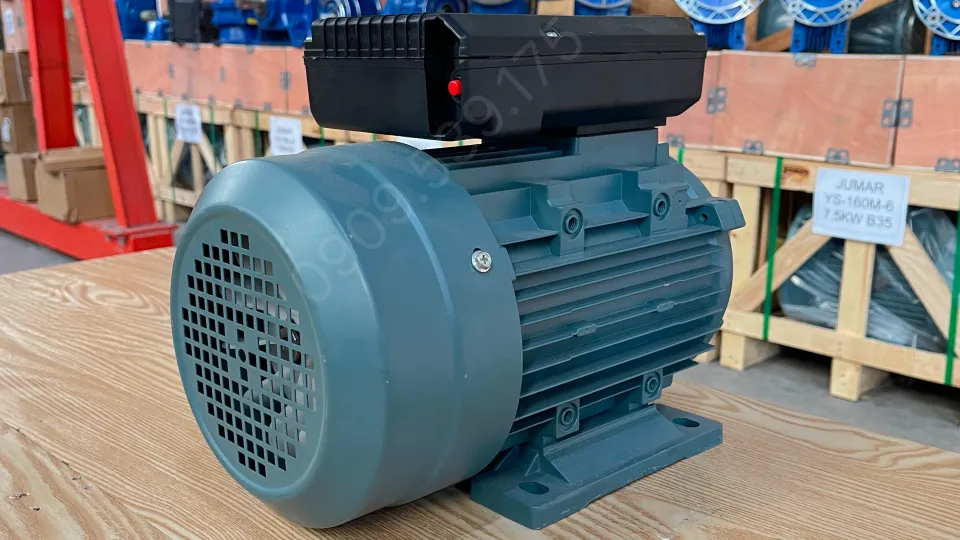

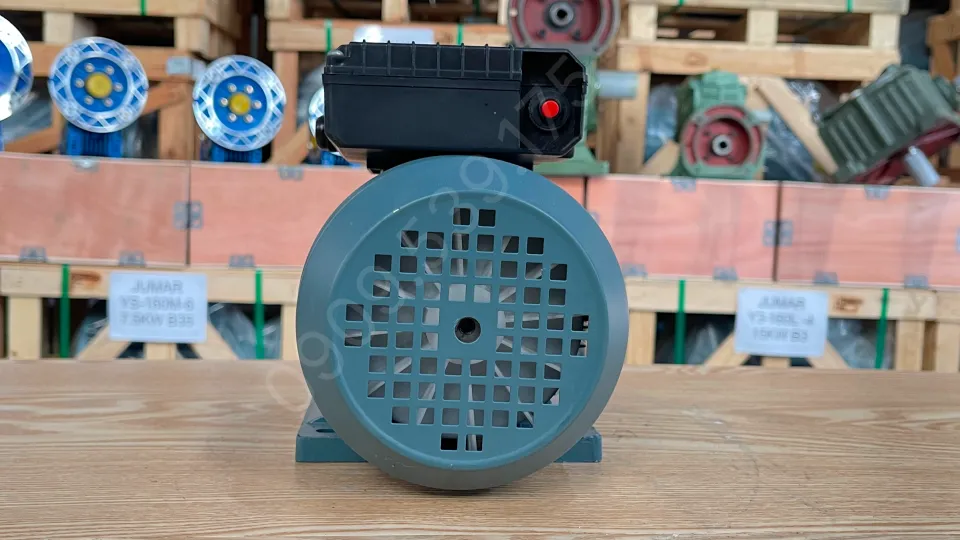

• Cooling Fan: The shaft-end fan blades are responsible for air convection along the body during operation.

What Types of 1-Phase Electric Motor 0.8kW 1Hp Are Available?

The 0.8kW 1Hp machine line is popular with two speed configurations:

1-Phase Motor 0.8kW 1Hp 2 Poles (2,800 – 3,000 rpm)

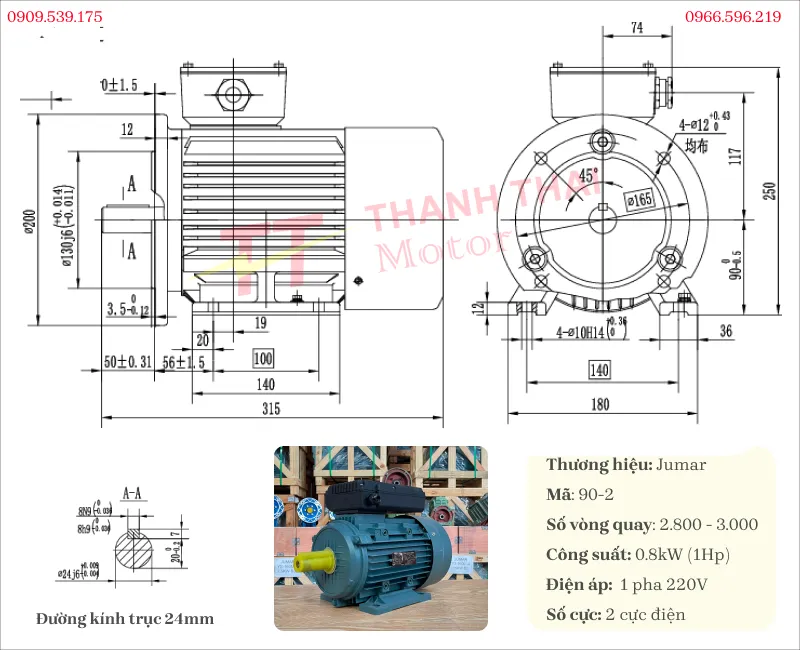

High speed, prioritized for applications requiring large rotational flow or high cutting speed.

Model	90S
Shaft Diameter	24mm
Keyway	8mm
Flange Diameter	200mm
Weight	15kg

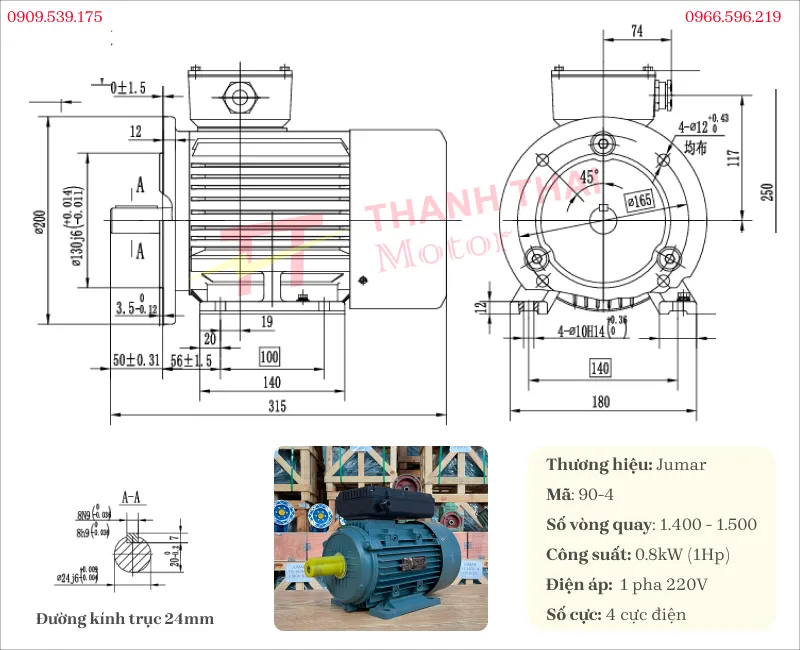

Dimensions	340 * 175mm * 246mm
Mounting Type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection Class	IP55
Insulation Class	Class F

Applications:

• Residential Water Pumps: Installed for centrifugal pump heads for domestic water supply, high-head pumps for 2 to 3-story houses, or small garden irrigation systems.
• Ventilation and Aeration Systems: Driving fume extraction fans and oxygen-generating air blowers for medium and small aquaculture ponds.
• Mechanical Processing Equipment: Used for tool grinders, tile cutters, and mini table wood saws requiring fast and decisive blade rotation speeds.

1-Phase Motor 0.8kW 1Hp 4 Poles (1,400 – 1,500 rpm)

Medium speed, prioritizing stable traction for continuous drive loads.

Model	90L
Shaft Diameter	24mm
Keyway	8mm
Flange Diameter	200mm
Weight	15kg
Dimensions	340 * 175mm * 246mm
Mounting Type	Foot-mounted (B3), Flange-mounted (B35, B5, B14)
Protection Class	IP55
Insulation Class	Class F

Applications:

• Conveyor Systems: Driving small PVC conveyor belts to transport components and lightly packaged goods.
• Agricultural Machinery: Providing kinetic energy for family-scale banana slicers, grass choppers, and rice milling machines.
• Food Processing Machines: Installed in low-power dough mixers, meat/fish grinders, or poultry feather pluckers.
• Light Lifting Mechanisms: Combined with a gearbox to create winch systems for agricultural film curtains and chicken farm curtains.

What Gearboxes Can the 1-Phase Electric Motor 0.8kW 1Hp Be Combined With?

With a standard shaft diameter of 19mm, the 1-Phase Electric Motor 0.8kW 1Hp can be synchronously combined with various speed-reducing equipment lines to optimize traction, including:

• Worm Gearbox: WPS, WPX, WPO, WPA, WPDS, WPDX, WPD0, and WPDA series (recommended for small sizes such as 50, 60, or 70).
• Aluminum Housing Worm Gearbox: NMRV series gearboxes size 040, 050, or 063, suitable for equipment requiring compactness and high aesthetics.
• Helical Gearbox: Small hollow-shaft and solid-shaft series specialized for light-duty conveyors.

Additionally, it can be combined with:

• Pulleys and couplings: Standard for a 19mm diameter shaft.
• Brake: 1-phase 0.8kW 1Hp type to support emergency braking and stopping.

Wiring Guide for 1-Phase Electric Motor

Powering a 1-phase motor requires precise handling due to the large starting current. You can watch electric motor videos in advance to clearly understand the terminal positions.

Step 1: Remove the Terminal Box Cover

Use a screwdriver to remove the screws and open the capacitor box cover on the motor body. Inside are the terminal posts from the electrical windings and capacitors.

Step 2: Prepare Wires and Protective Equipment

Use a 2-core power cable with a cross-section of 4.0mm – 6.0mm. Connect the power through a 30A – 40A Circuit Breaker (CB).

Step 3: Connect 220V Power

Identify the 2 power supply terminals (usually marked Z1, U1 or according to the diagram printed on the box cover). Connect the 2 power wires (L and N) 220V to these 2 terminals. Use a wrench to tighten the nuts to ensure electrical contact, avoiding heat generation and sparking.

Step 4: Operation and Rotation Direction Check

Close the cover, turn on the CB to test run. If the shaft rotates in the reverse direction of the load machine, disconnect the power and cross the positions of the two wire ends of the running winding (working winding).

Note: If the diagram is blurred or it is difficult to identify the wire ends, please refer to the comprehensive videos on how to measure and wire to ensure correct operation.
