Cycloidal Gearbox 7.5kW 10Hp

Cycloidal Gearbox 7.5kW 10Hp is an efficient transmission choice, designed to meet the demand for high torque transmission and stable speed maintenance. With a sturdy structure, superior load-bearing capacity, and flexible operating performance, this gearbox is commonly applied in fields such as industrial conveyors, mixers, packaging machines, and automated production systems. This is an ideal choice for working environments requiring high durability and continuous, stable operation.

How is the design of the Cycloidal Gearbox 7.5kW 10Hp?

The Cycloidal Gearbox is designed with a prominent appearance, the motor is coated with a powder-coated layer, creating a professional and modern look. The motor housing is made from high-quality cast iron, enhancing durability and optimal protection. This design not only helps the gearbox withstand strong impacts but also resists corrosion and rust, even when working in acidic environments or harsh conditions. This is an ideal product for applications requiring high durability and performance.

When the gearbox is coupled with an electric motor, it forms a complete gear motor system, delivering powerful, stable transmission and optimizing performance for industrial equipment, meeting rigorous operational requirements.

What is the internal structure of the Cycloidal Gearbox 7.5kW 10Hp?

The internal structure of the Cycloidal Gearbox 7.5kW 10Hp consists of 2 main parts: the transmission assembly and the bearings:

• Transmission assembly: This is an important part that determines the operation of the gearbox based on the torque factor. The transmission assembly consists of 2 parts: the pin wheel plate and the cycloidal disk. These two parts create force through rolling motion. Torque is produced based on the principle: Load capacity increases as the ratio increases and output shaft speed decreases. Load capacity decreases as the ratio is small and output shaft speed is high. It is this torque that reduces the speed reduction times of the motor.
• Bearings: The component that plays a role in enhancing the operating capability of the motor. With new improvements, the bearings are rated as sturdier, stiffer, and make it easier to rotate the joints together.

Classification of the Cycloidal Gearbox 7.5kW 10Hp

The Cycloidal Gearbox 7.5kW 10Hp has two options including the foot-mounted type (XWD5) and the flange-mounted type (XLD5). Each type is designed to suit each installation plan, making connection with motors and machinery more convenient.

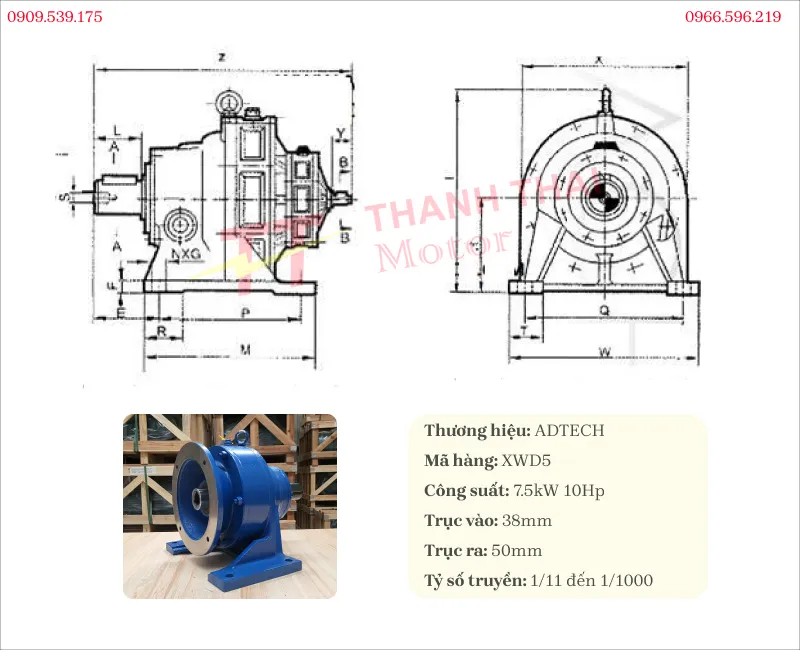

Foot-mounted Cycloidal Gearbox 7.5kW 10Hp

The foot-mounted version XWD5 is fixed to the frame or machine base using bolt holes on the base. This installation method is suitable for systems with wide spaces and convenient disassembly and maintenance.

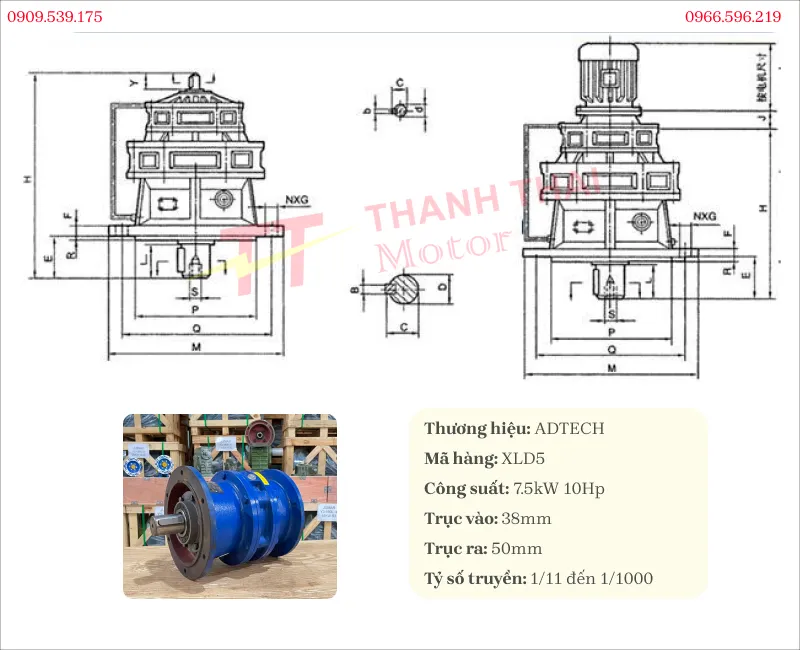

Flange-mounted Cycloidal Gearbox 7.5kW 10Hp

The flange-mounted version XLD5 is designed to couple directly with the motor or transmission assembly via a flange. This mounting style helps reduce the number of intermediate parts and keeps the transmission assembly more compact.

Applications of the Cycloidal Gearbox 7.5kW 10Hp

Widely applied in various industrial and domestic fields thanks to high efficiency and stable durability. Some common devices using this product include:

• Packaging machines, livestock and poultry feed processing equipment.
• Aeration systems for aquaculture ponds, industrial vacuum cleaners, and cleaning equipment.
• Material mixing agitators in the chemical, pharmaceutical, and cosmetic manufacturing industries.
• Movement amusement rides such as merry-go-rounds, bouncing animals in amusement parks.
• Food processing machines such as juice squeezes, industrial smoothies makers.
• Industrial kitchen equipment such as dough mixers, egg beaters, and baking machines.

Decoding the label on the heavy-duty Cycloidal Gearbox

• Spes XWD3: Cycloidal Gearbox (X), horizontal foot-mounted type (W), motor direct-mounted flange (D), size 3 (3).
• Ratio 11: Gear ratio 1/11. When the motor shaft rotates 11 turns, the output shaft of the gearbox rotates 1 turn, helping to increase pulling force.
• Position M4: Standard installation orientation M4 (usually vertical or inclined), ensuring internal parts are evenly submerged in lubricating oil.
• Date 2025.01: This product was manufactured in January 2025.
• Blank items: Power (Power), speed (n2), torque (Torque), and service factor (Fs) are blank because they depend on the type of motor you will install.

If you want a more visual view, customers can refer to the summary video to track many gearbox models being used in practice. In addition, gearbox videos also introduce in detail the structure, how to assemble with the motor, check before operation and some notes during use, helping users easily choose and use equipment according to their needs.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
