UDL 2-Stage Cycloidal Gearbox X4 2.2kW

The UDL 2-Stage Cycloidal Gearbox X4 2.2kW is a gearbox line designed for smooth operation, stable load capacity, and easy speed adjustment to suit various machinery such as conveyors, mixers, packaging machines, or automated lines. Thanks to its excellent adaptability, the drive system always maintains high performance, durable operation, and reliability throughout its usage.

Overview of the UDL 2-Stage Cycloidal Gearbox X4 2.2kW

The 2-stage gearbox operates smoothly, handles high loads, and easily adjusts speeds for various machines like conveyors, mixers, packaging systems, or automated setups. Thanks to its stable efficiency and high reliability, the drive system operates long-term and optimizes usage efficiency. This equipment series can be coupled with an electric motor to form a gear motor featuring a compact design and powerful performance.

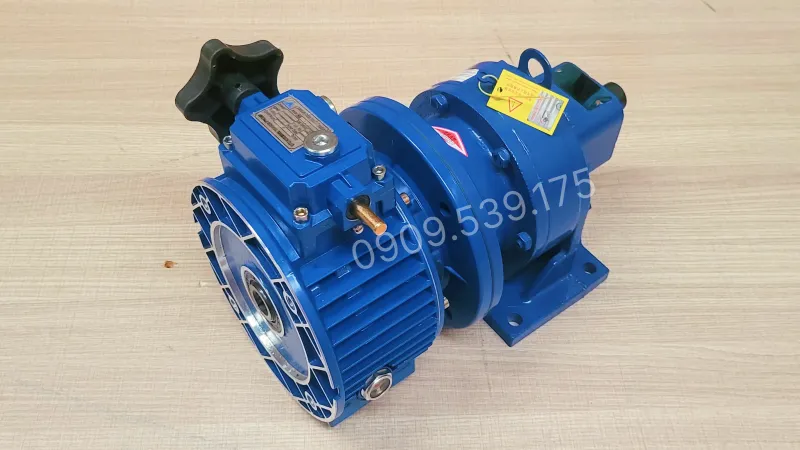

Detailed structure of the UDL 2-Stage Cycloidal Gearbox X4 2.2kW

The UDL 2-Stage Cycloidal Gearbox X4 2.2kW is directly assembled with a mechanical speed variator (UDL) and a cycloidal gearbox combined to create a powerful performance device. Specifically:

• Mechanical speed variator 2.2kW 3Hp:
  • Discs: Consisting of 4 circular-moving discs that create friction to transmit and regulate the driving force.
  • Speed adjustment mechanism: Usually using a handwheel or control lever, allowing operators to change speeds manually and flexibly.
  • Gearbox assembly: Can be combined with various gearbox types, expanding the speed range and optimizing transmission efficiency for each application.
• Cycloidal Gearbox X4 (depending on the gear ratio, Cycloid X4 has different powers such as Cycloidal Gearbox 18.5kW 25Hp, Cycloidal Gearbox 22kW 30Hp):
  • Input shaft: Receives motion from the motor and transmits force into the system to begin the reduction process.
  • Cycloidal gear: Designed with a special tooth profile, creating rolling-oscillating motion to achieve deep reduction and effectively increase torque.
  • Output shaft: Responsible for transmitting the reduced speed to working parts or terminal devices.
  • Housing: Usually made of cast iron or steel, protecting all internal mechanisms and providing a sturdy structure for the gearbox.

Technical specifications of the UDL 2-Stage Cycloidal Gearbox X4 2.2kW

The UDL 2-Stage Cycloidal Gearbox X4 2.2kW is composed of a 2.2kW 3Hp mechanical speed variator and an X4 heavy-duty cycloidal gearbox. Below are the detailed technical specifications for each component.

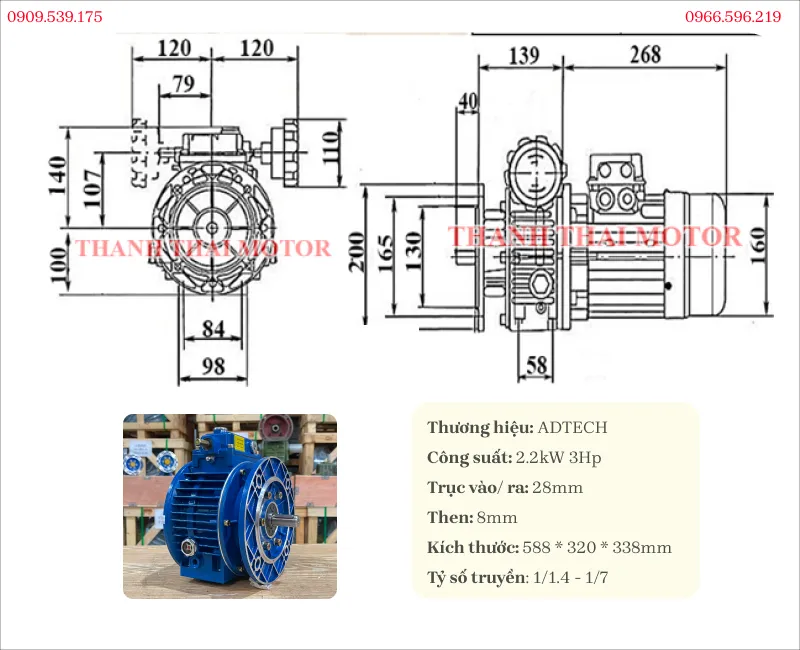

Technical specifications of the 2.2kW 3Hp mechanical speed variator

The technical parameters of the 2.2kW 3Hp mechanical speed variator are presented below, including installation dimensions, shaft diameter, and the adjustable speed range of the device.

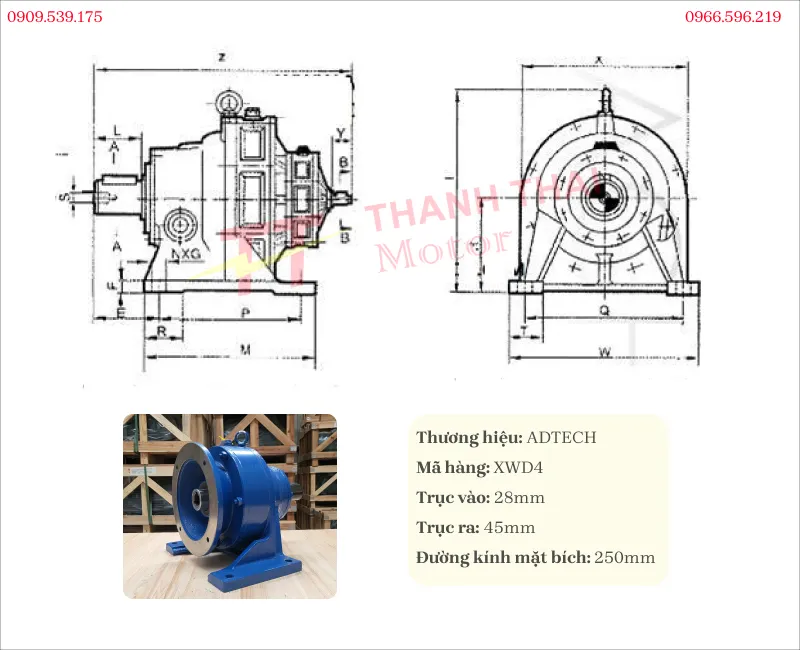

Technical specifications of the X4 heavy-duty cycloidal gearbox

Below is the technical specification table for the X4 heavy-duty cycloidal gearbox, including basic parameters for installation and synchronization with the drive system.

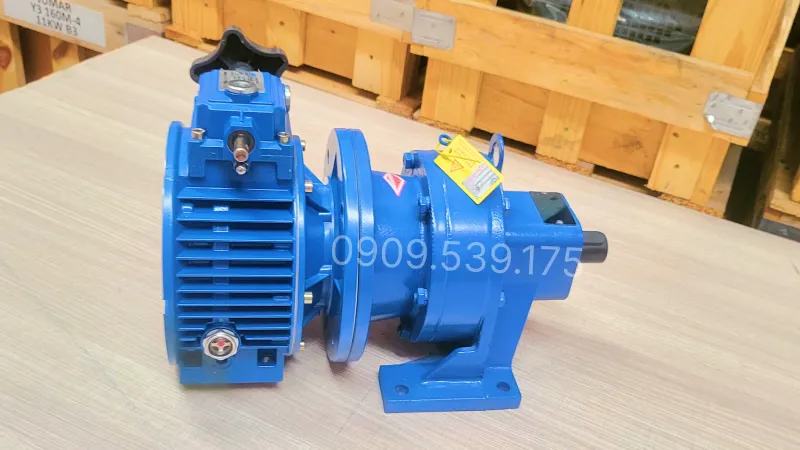

Applications of the UDL 2-Stage Cycloidal Gearbox X4 2.2kW

The UDL 2-Stage Cycloidal Gearbox X4 2.2kW is widely used in industrial systems requiring flexible speed regulation and large output torque:

• Conveyor systems and material handling: Adjusting speed according to production demands, operating smoothly and stably.
• Industrial mixers and agitators: Controlling mixing speed evenly, suitable for food and chemical production.
• Packaging and filling machines: Ensuring precise mechanism speed, reducing vibration, and increasing equipment lifespan.
• Automation equipment and robotic mechanisms: Providing strong torque and flexible speed for precise movement mechanisms.
• Textile, printing, and processing machinery: Suitable for lines requiring continuous operation, smoothness, and high stability.

To learn more about the UDL 2-Stage Cycloidal Gearbox X4 2.2kW, customers can watch the video produced by Thanh Thai Motor. The video compiles practical images of the product, the combination of the UDL mechanical speed variator and the cycloidal gearbox, along with some information on installation, usage, and maintenance to keep the equipment operating stably during operation.
