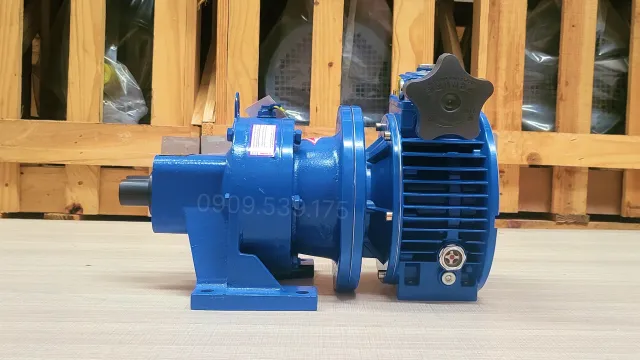

X3 Cycloidal 2-Stage UDL 1.5kW Gearbox

The X3 Cycloidal 2-Stage UDL Gearbox 1.5kW is a gearbox product that operates smoothly, provides good load capacity, and meets flexible speed variation requirements for various machinery such as conveyors, mixers, packaging machines, and automation systems. As a result, the drive system achieves high stability, durable operation, and optimal efficiency.

Overview of the X3 Cycloidal 2-Stage UDL Gearbox 1.5kW

The housing of the 2-stage gearbox (2-stage speed reducer) is cast from solid block cast iron, providing high rigidity, excellent load-bearing capacity, and minimizing corrosion. The exterior is coated with electrostatic paint, which enhances durability and ensures stable operation in high-temperature environments. Despite its compact size, the unit delivers powerful performance, effectively increases torque, and maintains a stable output speed. This device is coupled with an electric motor to create a gear motor product with a compact design and powerful functionality.

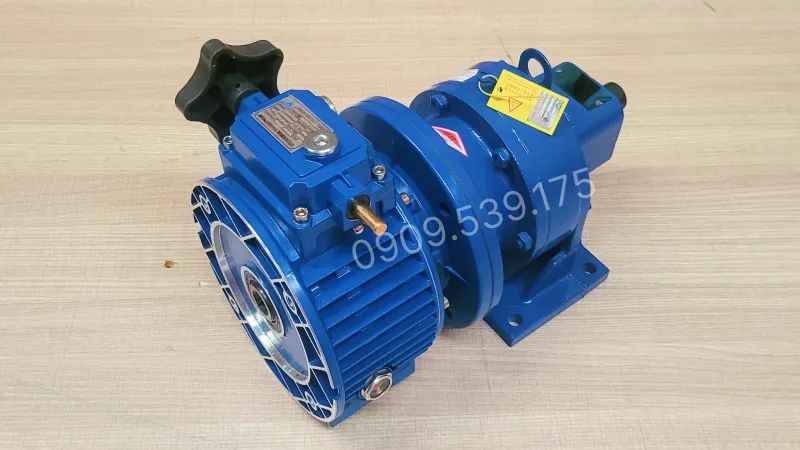

Detailed Structure of the X3 Cycloidal 2-Stage UDL Gearbox 1.5kW

As a 2-stage gearbox line constructed by combining a mechanical speed variator (UDL) with a cycloidal gearbox, its unique design integrates two different gearboxes to create a 2-stage gearbox product with powerful performance and smooth operation.

• Mechanical speed variator 1.5kW 2Hp:
  • Output shaft: The size of the output shaft may vary depending on the specific model and manufacturer.
  • Foot mount: The foot mount of the UDL 1.5kW mechanical speed variator is designed to be mounted directly onto the ground or machine floor.
  • Flange: Some models feature a flange for direct connection to machinery.
  • Keyway: The keyway on the output shaft is used to attach accessories, such as pulleys, sprockets, or couplings. The keyway dimensions also vary depending on the model.
• Cycloid X3 Gearbox (depending on the gear ratio, the Cycloid X3 has various power ratings such as the Cycloid 5.5kW 7.5Hp gearbox, Cycloid 7.5kW 10Hp gearbox):
  • Cooling fan (if applicable): Helps cool the gearbox, especially when operating under heavy loads.
  • Input shaft: Connects to the motor, receives rotational motion, and transmits it to the cycloidal transmission unit.
  • Output shaft: Receives motion from the cycloidal transmission unit and transfers it to the driven equipment.
  • Housing: Encloses and protects internal components, made of cast iron or steel.

Technical Specifications of the X3 Cycloidal 2-Stage UDL Gearbox 1.5kW

The X3 Cycloidal 2-Stage UDL Gearbox 1.5kW is a transmission unit combining a UDL mechanical speed variator and a Cycloidal gearbox, helping to flexibly adjust output speed while increasing torque for the equipment. Below are the technical specifications of each component for easy selection and installation.

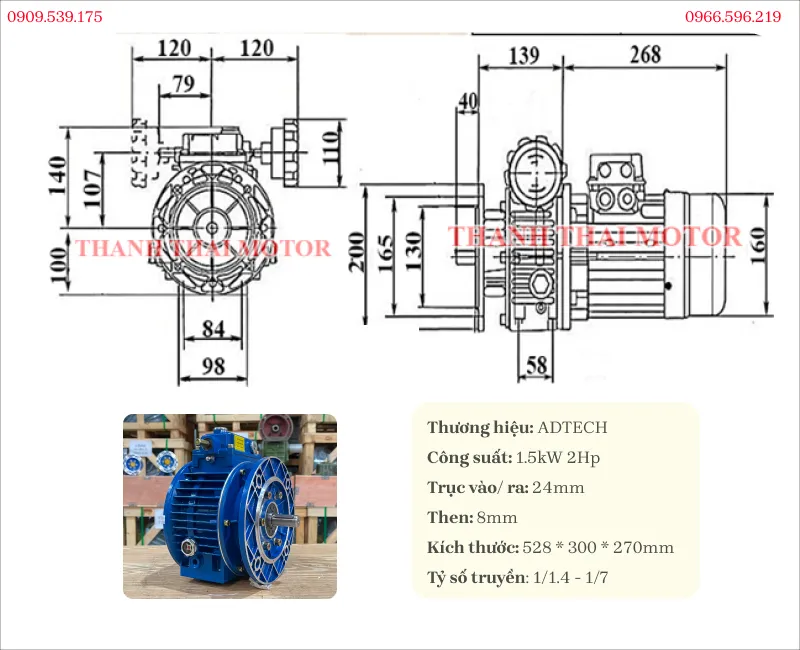

Technical Specifications of the 1.5kW 2Hp Mechanical Speed Variator

The UDL 1.5kW 2Hp mechanical speed variator is installed between the motor and the gearbox, allowing continuous rotational speed changes within the adjustment range without altering the motor speed. The device is suitable for systems requiring speed adjustments according to different production stages.

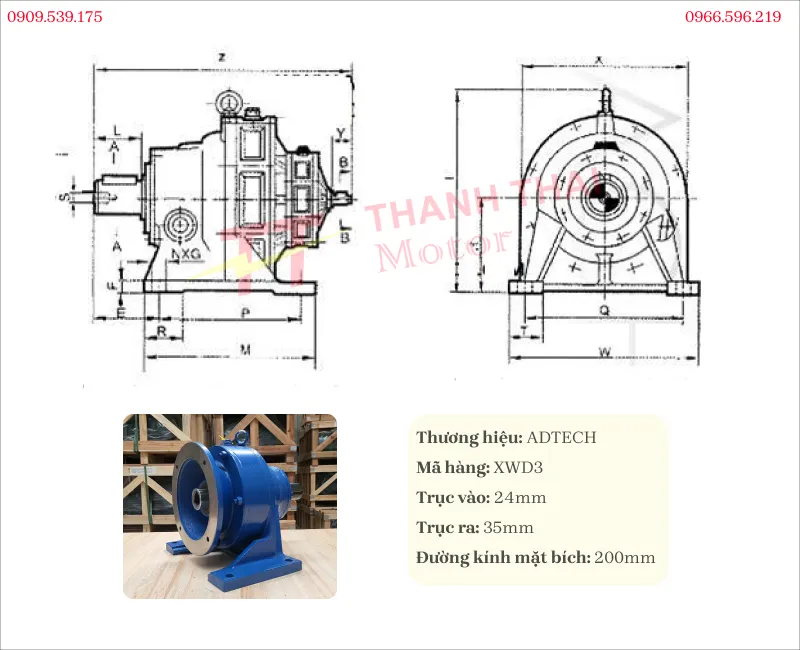

Technical Specifications of the Cycloid X3 Heavy Duty Gearbox

The Cycloid X3 heavy duty gearbox is the main reduction stage of the transmission, responsible for reducing rotational speed and increasing torque before transmitting it to the working equipment. With various gear ratios, the gearbox is suitable for machines operating continuously, requiring heavy loads and low output speeds.

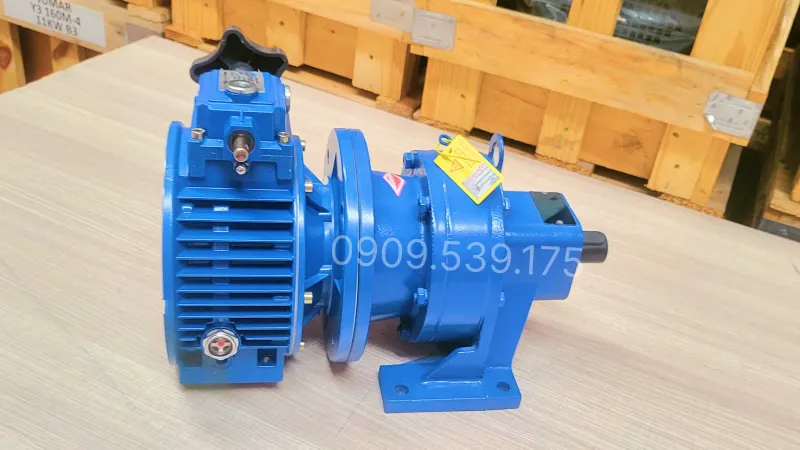

Common Applications of the X3 Cycloidal 2-Stage UDL Gearbox 1.5kW

Thanks to its unique design, the X3 Cycloidal 2-Stage UDL Gearbox 1.5kW has a variety of common applications as follows:

• Food production lines: Stirring, packaging, and raw material conveying systems.
• Woodworking industry: Wood conveying conveyors, sanding machines, polishing machines.
• Mechanical engineering & manufacturing: Drilling machines, grinding machines, small lifting and handling equipment.

For more information about the X3 Cycloidal 2-Stage UDL Gearbox 1.5kW, customers can watch the gearbox video produced by Thanh Thai Motor. The comprehensive video provides real images of the product, basic specifications, mounting types, and application ranges across various machine types. In addition, the content guides on inspecting the equipment before operation and provides some important notes during usage to ensure stable performance of the transmission unit.
