Cycloidal Gearbox 18.5kW 25Hp

The Cycloidal Gearbox 18.5kW 25Hp is a specialized industrial product widely used in large-scale transmission systems. With a sturdy outer casing design, powerful operating capacity, as well as easy operation, installation, and use, this gearbox product is highly favored by consumers.

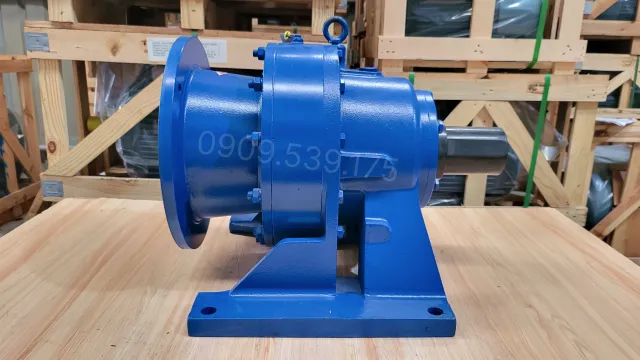

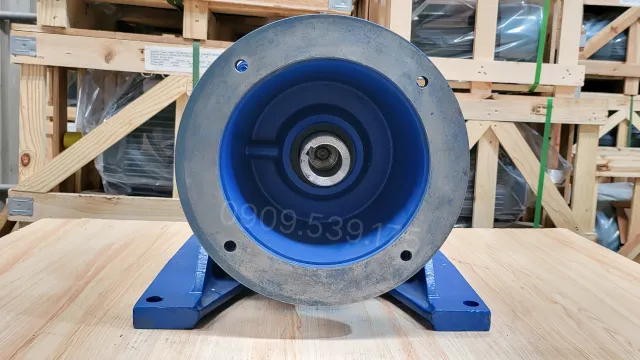

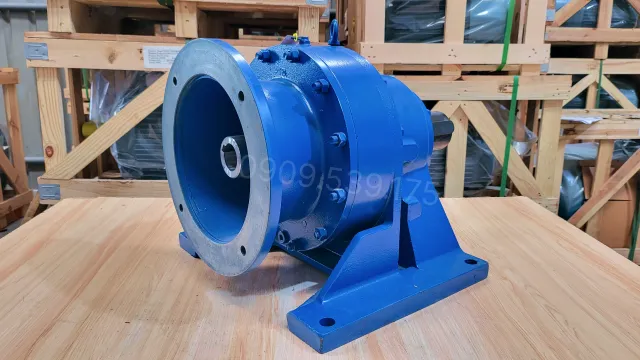

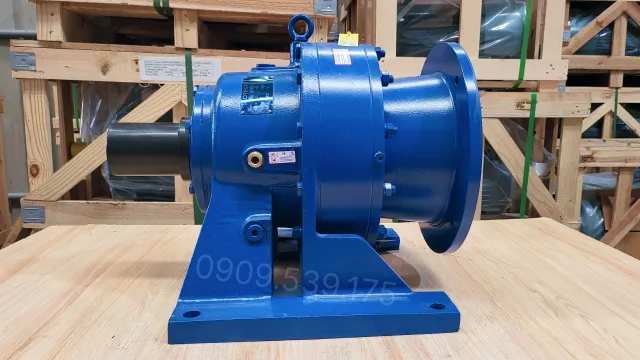

Overview of Cycloidal Gearbox 18.5kW 25Hp

The Cycloidal Gearbox features an eye-catching appearance with a dark blue outer paint layer that creates an aesthetic look while reducing environmental impact on the casing, providing high durability.

This gearbox product is often combined with an electric motor to create a gear motor product; when combined with a 3-phase electric motor, it forms a heavy duty gear motor.

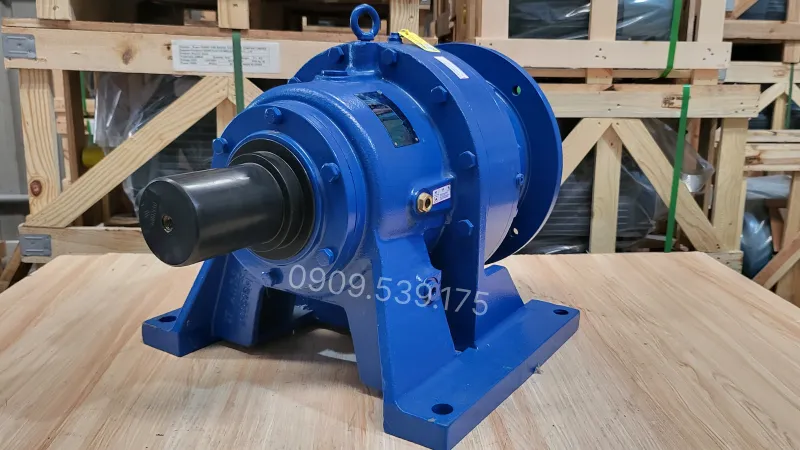

Internal Structure of Cycloidal Gearbox 18.5kW 25Hp

Inside the heavy-duty Cycloidal Gearbox 18.5kW 25Hp, the simple structure includes:

• Gearbox housing: Made of solid-cast iron material, resistant to high temperatures, durable, and well-protects internal components.

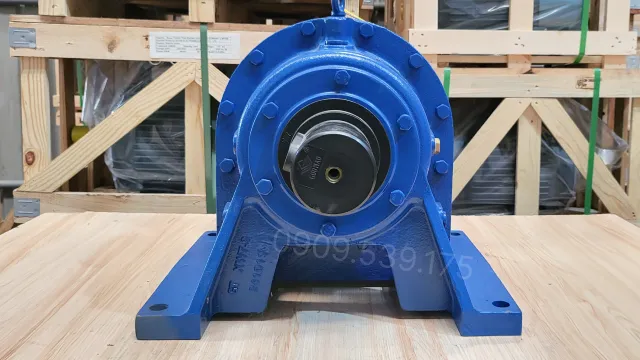

• Shaft: The shaft is made of refined steel, capable of withstanding heavy loads.
• Gears: Featuring a cycloidal motion design, generating high torque, helping the machine operate more efficiently and smoothly.

Classification of Cycloidal Gearbox 18.5kW 25Hp

The Cycloidal Gearbox 18.5kW 25Hp is manufactured with two mounting styles: foot-mounted and flange-mounted. Both use the same transmission parameters, differing only in the method of installation into the machine, making it easy for users to choose according to the structure of each equipment.

Foot-Mounted Cycloidal Gearbox 18.5kW 25Hp

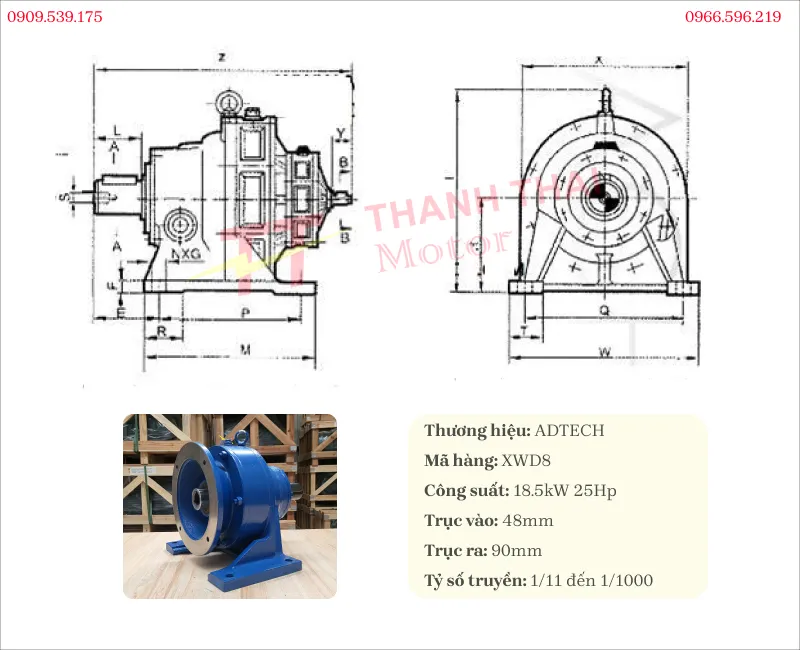

The foot-mounted style (XWD8) is designed with a base bolted directly to the machine bed or steel frame. This mounting style is suitable for systems requiring firm fixation and convenience during maintenance or replacement.

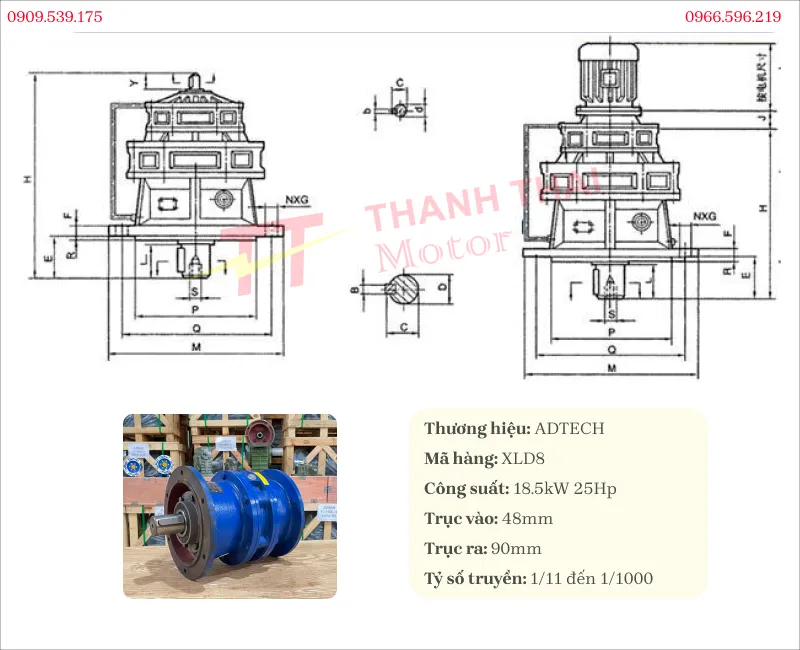

Flange-Mounted Cycloidal Gearbox 18.5kW 25Hp

The flange-mounted style (XLD8) is installed directly onto the equipment via connecting flanges. This design makes the drive assembly more compact, reduces the number of intermediate components, and increases concentricity between the motor and the gearbox.

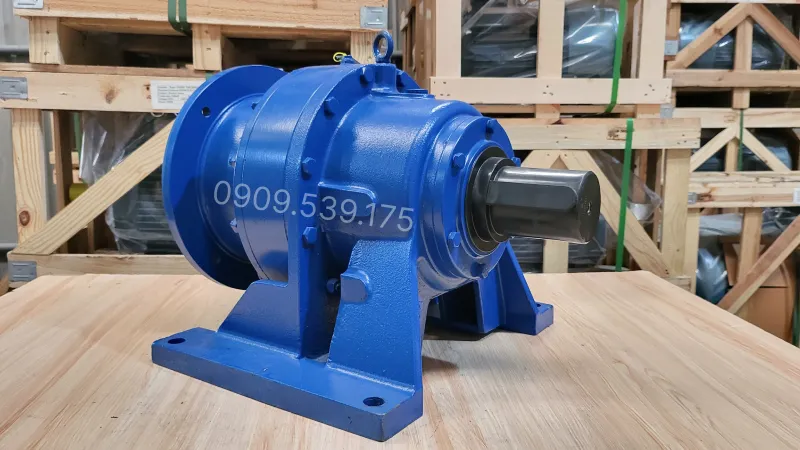

Applications of Cycloidal Gearbox 18.5kW 25Hp

Thanks to its durable structure and outstanding operating capacity, this cycloid gearbox product is widely used in various industrial activities:

• Large-scale lifting equipment and cargo cranes.
• Automation systems for large workshops and production lines.
• Industrial mixing and stirring equipment.

Decoding the Nameplate on Heavy-Duty Cycloid Gearbox

• Brand: Equipment belongs to the ADTECH brand
• Decoding model codes (Specs: XWD3):
  • X: Represents the cycloidal planetary gear transmission principle (using rollers and cycloidal discs instead of straight teeth).
  • W: Horizontal mounting style, with an integrated cast base bolted to the floor surface.
  • D: Input type with a flange (bell housing) to connect directly with the electric motor, forming an integrated motor-gearbox assembly.
  • 3: Physical size of the gearbox (Size 3), specifying the output shaft diameter and maximum load capacity of the housing.
• Fixed operating parameters:
  • Ratio (Gear ratio) – 11: The rotational speed coming from the motor will be reduced by 11 times, while the pulling force (torque) at the output will correspondingly increase by approximately 11 times.
  • Position (Mounting position) – M4: Specifies the orientation of the gearbox in space when assembled into the machine. This parameter is crucial for technicians to add the correct amount of lubricating oil/grease and place the breather plug in the correct position.
  • Date (Manufacturing date) – 2025.01: The equipment was manufactured in January 2025.
• Reasons why the parameters on the right (Power, n2, Torque, Fs) are left blank: Since this is a standalone gearbox type with a flange (designated by D), these figures are not fixed and depend entirely on the type of motor you will install afterwards:
  • Power: Power of the selected motor (e.g., 1.5kW, 2.2kW, etc.).
  • n2: Actual rotational speed at the output (calculated as: motor speed divided by 11).
  • Torque: Actual pulling force at the output shaft (in Nm); the higher the motor power, the higher this pulling force.
  • Fs: Service factor (safety factor), calculated based on whether your machine runs stably under light load or continuously under heavy shock loads.

Customers can refer to additional gearbox videos produced by Thanh Thai Motor to view actual images, installation methods, and applications of each product line across various machinery systems. In addition, the video compilation category also shares content on inspection, oil change, maintenance, and usage notes, helping users easily monitor and operate the equipment correctly.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
