Cycloidal Gearbox 4kW 5.5Hp

A Cycloidal Gearbox 4kW 5.5Hp is a powerful transmission device, suitable for systems requiring high torque and stable speed. With its durable structure, high load capacity, and flexible operation, this Cycloidal Gearbox is often used in industrial conveyors, mixing machines, packaging machines, and automated production lines. It is an ideal choice for high-intensity working environments that demand precision and long-term stable performance.

Overall Design of the Cycloidal Gearbox 4kW 5.5Hp

The Cycloidal Gearbox 4kW 5.5Hp stands out with its modern appearance, featuring a distinctive dark blue paint finish, creating a robust and professional feel. The equipment casing is machined from high-quality cast iron, boasting a solid structure that allows the device to withstand force well and ensures durability during use. In addition to effective impact resistance, the casing also helps prevent rust, corrosion, and damage from chemicals and harsh environmental conditions.

A gearbox (speed reducer) when combined with an electric motor will form an efficient geared motor, helping to adjust speed, increase torque, and ensure stable transmission. This is an ideal solution for systems such as conveyors, mixers, packaging machines, and industrial production lines.

What Products Can the Cycloidal Gearbox 4kW 5.5Hp Be Combined With?

Heavy-duty Cycloidal Gearboxes are often combined with 3-Phase Electric Motors to form high-power heavy-duty geared motor units, effectively meeting the demand for stable transmission and efficient load bearing.

In summary, when a Cycloidal Gearbox 4kW 5.5Hp is installed with a 3-Phase Electric Motor 4.0kW 5.5Hp of the same power, it creates a Cycloidal geared motor 4kW 5.5Hp assembly, which is an optimal choice for production systems requiring high torque, durable, and precise operation.

Internal Structure of the Cycloidal Gearbox 4kW 5.5Hp

The internal structure of the Cycloidal Gearbox 4kW 5.5Hp consists of two main parts: the transmission mechanism and the bearings.

• Transmission Mechanism: Plays a key role in the motor’s operation. The transmission mechanism consists of two parts: the cycloidal disc and the pin gears. When they roll against each other, they create a force called torque. This force reduces the speed reduction ratio of the motor.
• Bearings: These components support the motor’s operation. The manufacturer designs robust and durable bearings, meeting European standards. They enhance the motor’s efficiency by rotating the joints together.
• Mounting Types: There are 2 types: Foot-mounted cycloidal gearbox (XWD) and Flange-mounted cycloidal gearbox (XLD)
• Common Gear Ratios: 9, 11, 17, 23, 29, 35, 43, 59, 71, 87, 121, 187.

Functions - Applications of the Cycloidal Gearbox 4kW 5.5Hp

The Cycloidal Gearbox 4kW 5.5Hp is widely applied in various industrial and domestic fields due to its stable operation and precise transmission. Some typical applications include:

• Food packaging machines, confectionery, and cosmetic production lines.
• Mixing, stirring, or drilling equipment such as chemical agitators, dough kneaders, concrete vibrators.
• Rotary amusement rides in entertainment areas and theme parks.
• Sugarcane juice machines, fruit crushers, industrial blenders.
• Baking equipment such as egg beaters, ingredient mixers.
• Elevator speed control systems, enhancing smooth and safe operation.

Outstanding Advantages of the Cycloidal Gearbox 4kW 5.5Hp

The Cycloidal Gearbox 4kW 5.5Hp consistently leads annual sales for Cycloidal Gearboxes due to the following outstanding advantages:

• Manufactured according to German standards.
• Heavy-duty gearbox, excellent resistance to compression and impact.
• Machine parts require high precision.
• High transmission efficiency.
• Suitable for expensive, technically challenging machinery.
• Compact design, easy to transport and install.
• Easy to disassemble, clean, and maintain.
• Energy efficient.

Classification of the Cycloidal Gearbox 4kW 5.5Hp

The Cycloidal Gearbox 4kW 5.5Hp has 2 main mounting types as follows:

Foot-mounted 1-Stage Cycloidal Gearbox 4kW 5.5Hp, reduction ratios from 11 to 87

• Flange diameter: 250mm.
• Shaft diameter: 28mm.
• Cycloid code XWD3/ BWD1, reduction ratio: 11, output speed: 127 rpm.
• Cycloid code XWD3/ BWD1, reduction ratio: 17, output speed: 82 rpm.
• Cycloid code XWD3/ BWD1, reduction ratio: 23, output speed: 60 rpm.
• Cycloid code XWD3/ BWD1, reduction ratio: 29, output speed: 48 rpm.
• Cycloid code XWD4/ BWD2, reduction ratio: 35, output speed: 40 rpm.
• Cycloid code XWD4/ BWD2, reduction ratio: 43, output speed: 33 rpm.
• Cycloid code XWD4/ BWD2, reduction ratio: 59, output speed: 23 rpm.
• Cycloid code XWD5/ BWD3, reduction ratio: 71, output speed: 19 rpm.
• Cycloid code XWD5/ BWD3, reduction ratio: 87, output speed: 16 rpm.

Foot-mounted 2-Stage Cycloidal Gearbox 4kW 5.5Hp, reduction ratios from 121 to 595

• Flange diameter: 250mm.
• Shaft diameter: 28mm.
• Cycloid code XWD53/ BWD31, reduction ratio: 121, output speed: 11.5 rpm.
• Cycloid code XWD53/ BWD31, reduction ratio: 187, output speed: 7.48 rpm.
• Cycloid code XWD63/ BWD41, reduction ratio: 289, output speed: 4.8 rpm.
• Cycloid code XWD63/ BWD41, reduction ratio: 391, output speed: 3.5 rpm.
• Cycloid code XWD74/ BWD52, reduction ratio: 473, output speed: 2.9 rpm.
• Cycloid code XWD85/ BWD53, reduction ratio: 595, output speed: 2.3 rpm.

Flange-mounted 1-Stage Cycloidal Gearbox 4kW 5.5Hp, ratios from 11-87

• Flange diameter: 250mm.
• Shaft diameter: 28mm.
• Cycloid code XWL3/ BWL1, reduction ratio: 11, output speed: 127 rpm.
• Cycloid code XWL3/ BWL1, reduction ratio: 17, output speed: 82 rpm.
• Cycloid code XWL3/ BWL1, reduction ratio: 23, output speed: 60 rpm.
• Cycloid code XWL3/ BWL1, reduction ratio: 29, output speed: 48 rpm.
• Cycloid code XWL4/ BWL2, reduction ratio: 35, output speed: 40 rpm.
• Cycloid code XWL4/ BWL2, reduction ratio: 43, output speed: 33 rpm.
• Cycloid code XWL4/ BWL2, reduction ratio: 59, output speed: 23 rpm.
• Cycloid code XWL5/ BWL3, reduction ratio: 71, output speed: 19 rpm.
• Cycloid code XWD5/ BWD3, reduction ratio: 87, output speed: 16 rpm.

Flange-mounted 2-Stage Cycloidal Gearbox 4kW 5.5Hp, reduction ratios from 121 to 1500

• Flange diameter: 250mm.
• Shaft diameter: 28mm.
• Cycloid code XWL53/ BWL31, reduction ratio: 121, output speed: 11.5 rpm.
• Cycloid code XWL53/ BWL31, reduction ratio: 187, output speed: 7.48 rpm.
• Cycloid code XWL63/ BWL41, reduction ratio: 289, output speed: 4.8 rpm.
• Cycloid code XWL63/ BWL41, reduction ratio: 391, output speed: 3.5 rpm.
• Cycloid code XWL74/ BWL52, reduction ratio: 473, output speed: 2.9 rpm.
• Cycloid code XWL85/ BWL53, reduction ratio: 595, output speed: 2.3 rpm.

User Guide for the Cycloidal Gearbox 4kW 5.5Hp

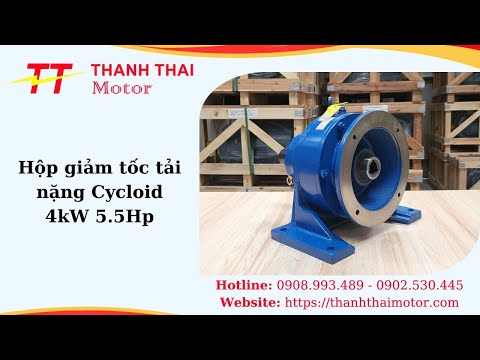

Watch a detailed video about the Cycloidal Gearbox product.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount - optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.

Contact for Purchase

Do you need advice on choosing the right gearbox for your needs? Contact Thanh Thai Motor immediately using the methods below:

• WhatsApp: +84966596219
• Email: codienthanhthai@gmail.com
