Cycloidal Gearbox 1.1kW 1.5Hp

The Cycloidal Gearbox 1.1kW 1.5Hp is an optimal transmission solution for industrial machinery systems requiring high precision, stable, and durable operation. With a special design using a cycloidal transmission mechanism, the Gearbox provides a large load-bearing capacity, reduces vibration, and ensures smooth transmission. The Cycloid gear motor with a power of 1.1kW equivalent to (1.5Hp) is suitable for many applications in the food processing, packaging, automation, and conveyor system industries. Let’s learn in detail about this Cycloidal Gearbox line with Thanh Thai Motor to better understand the operational capabilities and practical applications of the device!

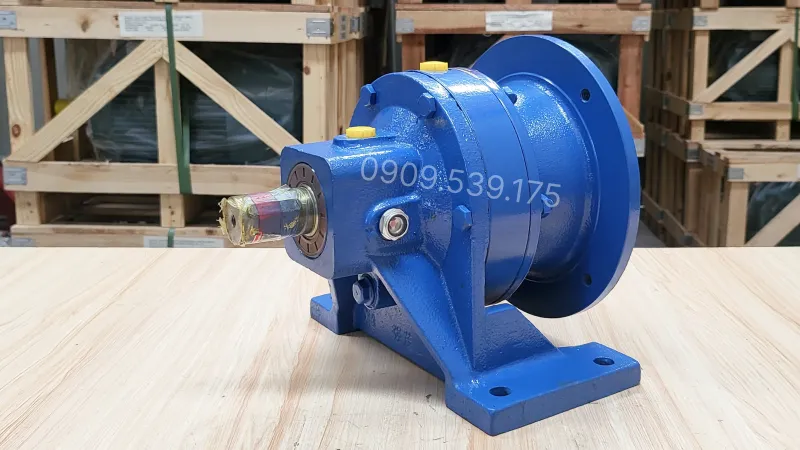

Overview of Cycloidal Gearbox 1.1kW 1.5Hp

The Cycloidal Gearbox 1.1kW 1.5Hp is designed with a compact structure while still ensuring rigidity and strong transmission capacity. The outer housing is machined from solid cast iron alloy material, helping the device operate stably in industrial environments. In addition, when combined with an electric motor, this Gearbox will form a Gear Motor that effectively transmits power for machinery systems requiring high torque and stable speed. This is a suitable choice for applications requiring high precision and continuous operation.

What products can the Cycloidal Gearbox 1.1kW 1.5Hp be combined with?

Gearboxes are typically assembled together with 3-phase electric motors to form heavy duty gear motors.

Similarly, when the Cycloidal Gearbox 1.1kW 1.5Hp is combined with a 1.1kW 1.5Hp 3-phase electric motor, it creates a heavy duty Cycloid gear motor 1.1kW 1.5Hp, suitable for use in transmission systems requiring high stability, especially in small and medium-scale production lines.

Internal structure of Cycloidal Gearbox 1.1kW 1.5Hp

The Cycloidal Gearbox 1.1kW 1.5Hp consists of the following structural components:

• The transmission drive includes a mesh steel plate and flat gears rolling together to generate torque and reduce the speed ratio.
• Sturdy bearings that articulate with each other to help the gearbox operate more powerfully.
• Mounting type: Foot-mounted cycloid model (XWD) and flange-mounted cycloid model (XLD)

Classification of Cycloidal Gearbox 1.1kW 1.5Hp

The Cycloidal Gearbox 1.1kW 1.5Hp is provided with two mounting styles: XWD3 foot-mounted and XLD3 flange-mounted. Both share the same reduction capability, differing only in the installation method to suit various motors and equipment.

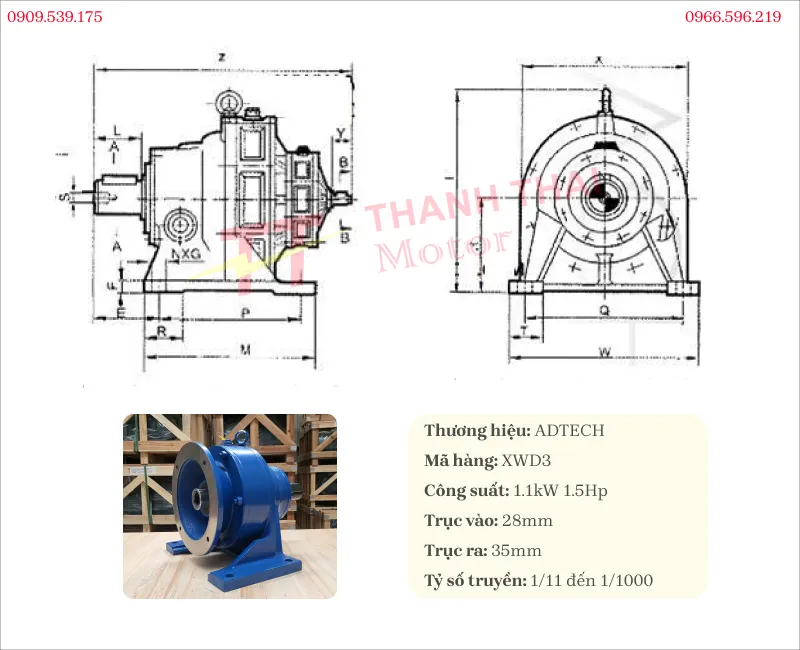

Foot-mounted Cycloidal Gearbox 1.1kW 1.5Hp

The foot-mounted Cycloidal Gearbox 1.1kW 1.5Hp has the code XWD3, fixedly installed onto a base or machine frame using bolt holes.

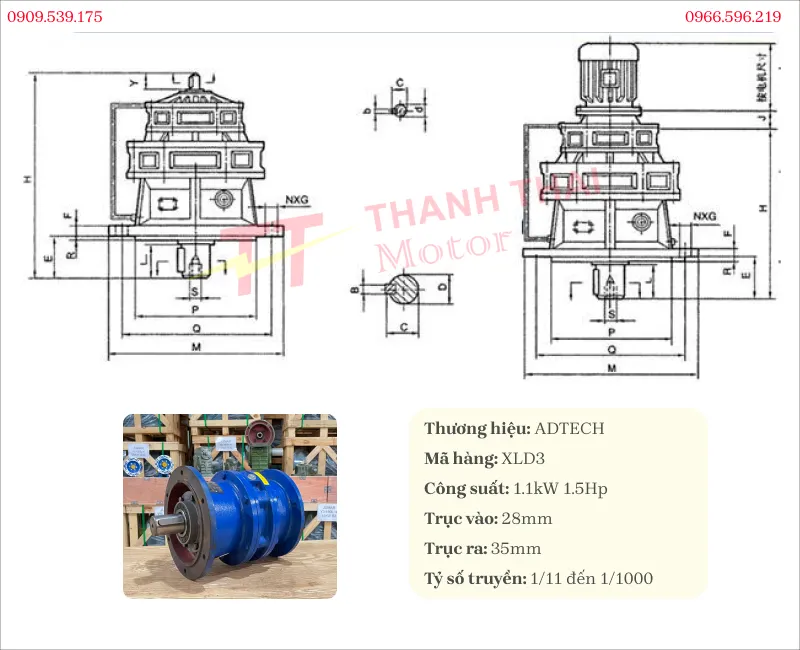

Flange-mounted Cycloidal Gearbox 1.1kW 1.5Hp

The flange-mounted Cycloidal Gearbox 1.1kW 1.5Hp carries the code XLD3, designed to connect directly to the motor via a flange, enabling quick installation and space-saving.

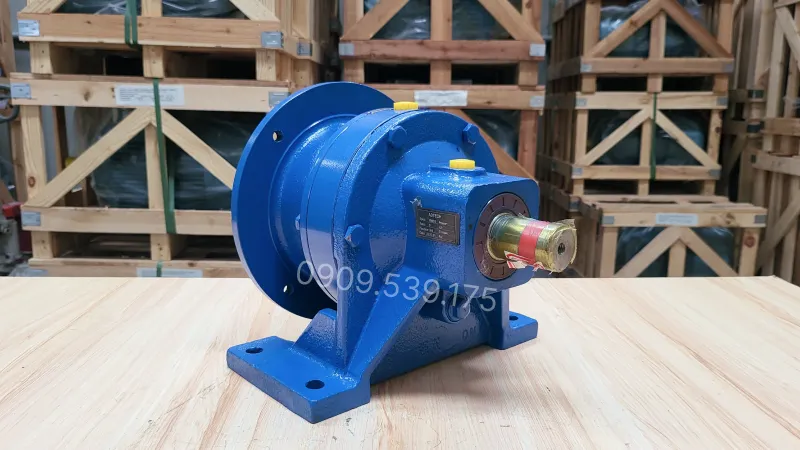

Industrial applications of Cycloidal Gearbox 1.1kW 1.5Hp

The Cycloidal Gearbox 1.1kW 1.5Hp is widely applied in many fields thanks to its durable operation, efficient speed reduction, and good load capacity. Specifically including:

• Light industrial production lines such as food, packaging, chemicals, and cosmetics.
• Conveyor systems in factories and industrial zones.
• Mixers and agitators in the food processing and chemical industries.
• Lifting equipment and mechanical machinery requiring high precision and large torque.
• Automation systems in small and medium-sized production workshops.

Decoding the nameplate on heavy duty Cycloidal Gearbox

• ADTECH: The brand name or distributor of this equipment.
• XWD3 (Model): This is the foot-mounted Cycloidal Gearbox series. The number “3” indicates the housing frame size, which determines the load capacity and durability of the gearbox.
• Ratio 11 (Transmission Ratio): Indicates the rotational speed. For example: If the motor rotates at 1100 rpm, the output shaft of the gearbox will rotate at 100 rpm (reducing the speed by 11 times, but increasing the pulling force).
• Position M4 (Mounting Position): The gearbox is designed for installation according to M4 standards. In this position, the output shaft usually points downwards, requiring appropriate lubrication and oil seal methods.
• Date 2025.01: The equipment was manufactured in January 2025. This is important information for you to track the warranty period and periodic maintenance and oil change plans.
• Blank parameters (Power, n2, Torque, Fs): These are customizable parameters depending on the type of motor you install.
  • Power: Motor power (kW).
  • n2: Actual output rotational speed (rpm).
  • Torque: Maximum torque (pulling force) that the gearbox can withstand.
  • Fs: Service Factor, indicating the overload capacity of the gearbox.

If you need more information before choosing the Cycloidal Gearbox 1.1kW 1.5Hp, customers can refer to the gearbox video to directly observe the structure, dimensions, and working capacity of the product. At the same time, the comprehensive video also updates a lot of practical content on how to choose a gearbox according to power, transmission ratio, installation instructions, and usage experiences to help the equipment operate stably for a long time.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
