WPDX 40 Worm Gearbox

The WPDX 40 Worm Gearbox is a compact drive unit line, featuring a right-angle input and output shaft design, integrated directly into a 3-phase electric motor. The product delivers stable transmission performance, high durability, and saves installation space. The WPDX 40 is an ideal solution for mechanical systems requiring precision, durability, and reasonable investment costs.

Let’s join Thanh Thai Motor to learn more details about this gearbox product and its practical applications in various industries.

General design of the WPDX 40 Worm Gearbox

The WPDX 40 gearbox has a compact yet extremely sturdy structure. The housing is cast from solid iron, offering good load-bearing capacity and effective vibration damping during operation. The worm shaft is made from stainless steel, combining with the bronze worm gear to form an optimal transmission mechanism.

Designed by combining a worm gearbox directly with an electric motor to form a complete gear motor, it helps the system operate stably, run smoothly, minimize noise, and reduce equipment wear.

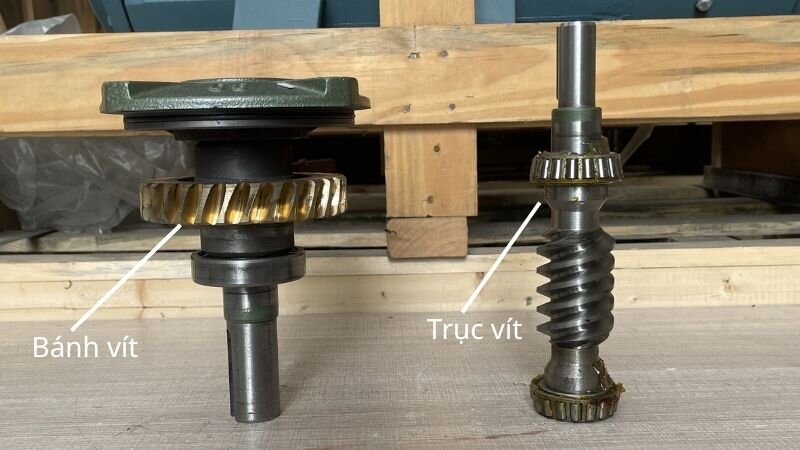

Internal structure of the WPDX worm gearbox

The power and smoothness of the WPDX 40 lie in the perfect meshing of internal precision mechanical components.

• Worm shaft: Made from hard alloy steel, rust-resistant and capable of bearing heavy loads.
• Worm gear: Made from high-grade brass with low friction, ensuring efficient transmission and increased durability.
• Housing: Solid cast iron, coated with anti-corrosion electrostatic powder coating.
• Transmission mechanism: The worm shaft and worm gear tightly mesh together to create large torque and stable speed reduction.
• Bearings and oil seals: Help the equipment run smoothly, limit oil leakage, and extend service life.

Technical specifications of the WPDX 40 Worm Gearbox

Below are the technical specifications of the WPDX 40 Worm Gearbox to help customers easily compare and choose according to their needs:

Applications of the WPDX 40 Worm Gearbox

The WPDX 40 Worm Gearbox is commonly applied in machinery systems and production lines such as:

• Industrial conveyors, presses, mixers, agitators
• Equipment for food processing, pharmaceuticals, and garment industries
• Automation systems, industrial robots
• Machine tools: CNC lathes, milling machines, drilling machines
• Agricultural equipment, livestock machinery, high-capacity pressure washers.

Instructions on how to add oil to the worm gearbox

On the cast iron housing of the WPDX 40 gearbox, there are 3 important locations you need to note:

• Oil filler plug (Breather plug): Located at the highest position on the housing, used for pouring in new oil.
• Oil sight glass: Located on the side of the gearbox, made of transparent glass to observe the oil level inside.
• Oil drain plug: Located at the lowest position (at the bottom), used for draining old oil.

Oil filling procedure:

• Step 1 – Drain old oil: Use a wrench to open the drain plug at the bottom of the housing to let all the old oil flow out. This should be done while the gearbox is still slightly warm so the old oil is thinner and flows more easily. After draining completely, tighten the bottom plug.
• Step 2 – Add new oil: Remove the oil filler plug on top of the gearbox. Use a funnel to slowly pour in new lubricating oil.
• Step 3 – Check the standard level: While adding oil, observe the side oil sight glass. The standard level is when the oil surface is right in the middle (1/2) of the glass.

The WPDX 40 Worm Gearbox helps optimize operational efficiency for automation systems thanks to its precise and stable torque regulation capability. To understand the product better before making a choice, take some time to refer to the gearbox video and summary video produced by Thanh Thai Motor.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
