WPDA 250 15kW 20Hp Gear Motor

The WPDA 250 15kW 20Hp Gear Motor is a perfect combination of an electric motor (3-phase electric motor) and a gearbox (worm gearbox), creating a synchronous, sturdy, and high-efficiency drive assembly

This gear motor has the function of reducing the motor’s rotational speed while increasing the output torque, helping machinery operate smoothly, minimizing vibration, and ensuring stable performance throughout the working process. The connection between the motor and the gearbox is coupled via a standard flange, ensuring high accuracy, minimizing power loss, and helping the equipment operate more durably.

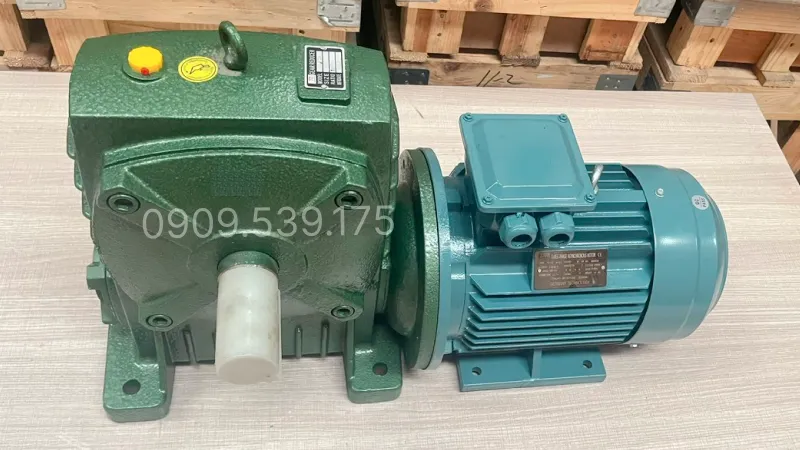

Overview of the WPDA 250 15kW 20Hp gear motor

The worm gearbox series is manufactured according to strict technical standards, ensuring mechanical precision and optimal transmission efficiency. The gearbox housing is cast in one piece from high-grade cast iron, coated with anti-rust electrostatic paint, protecting the equipment from dust, moisture, and harsh environmental impacts.

Inside are transmission components such as the worm shaft, worm gear, bearings, and oil seals, which are finely crafted and assembled to ensure smooth operation, reduced friction, minimized noise, and extended equipment lifespan.

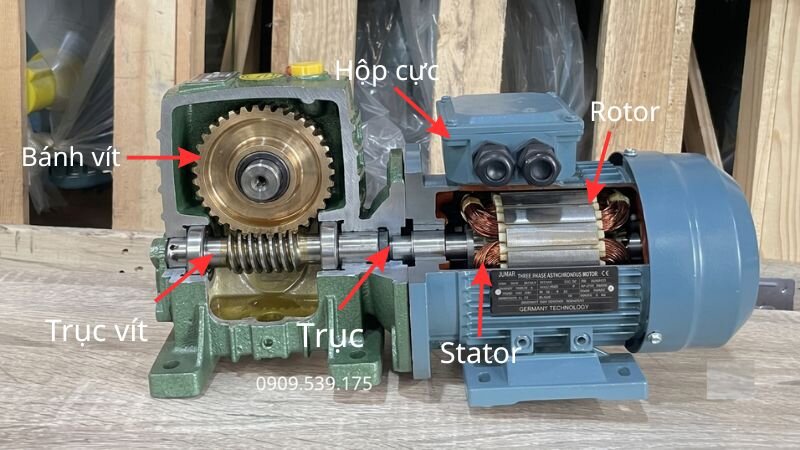

Main structure of the WPDA 250 15kW 20Hp gear motor

Belonging to the category of gear motors above 3.7kW, this model has a simple structure consisting of the following parts:

• 3-Phase 15kW 20Hp Electric Motor
  • Motor housing: Made of thick, sturdy cast iron, coated with electrostatic paint for rust prevention and good impact resistance.
  • Stator – Stationary part: Pure copper windings help save energy, increase stability, and extend motor lifespan.
  • Rotor – Rotating part: Machined from high-grade technical steel, helping transmit power smoothly and stably.
  • Cooling fan: The rear fan system supports rapid heat dissipation, preventing the motor from overheating during continuous operation.
• WPDA 250 Worm Gearbox
  • Worm shaft: Machined from alloy steel with surface hardening to withstand heavy loads and ensure durable operation.
  • Worm gear: Made of high-grade bronze alloy, precisely meshed with the worm shaft for smooth transmission and reduced wear.
  • Oil seals and lubricating oil: Help the system run smoothly, prevent leakage, protect internal components from dust, and increase gearbox durability.

Technical specifications of the WPDA 250 15kW 20Hp gear motor

Below is the detailed technical specification table of the WPDA 250 15kW 20Hp gear motor

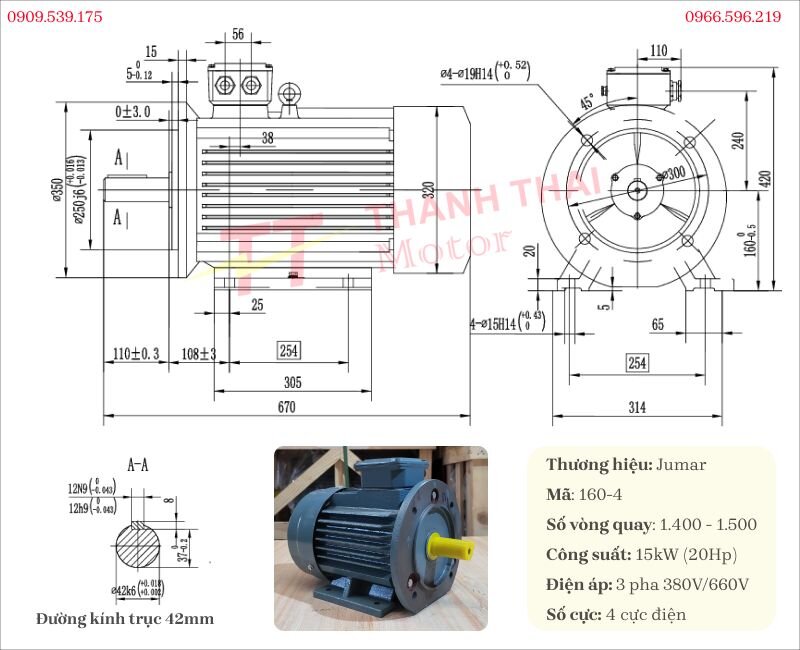

Technical specifications of the 3-phase 15kW 20Hp electric motor

The 3-phase 15kW 20Hp electric motor is compactly designed, operates durably, and is suitable for various industrial and civil drive applications

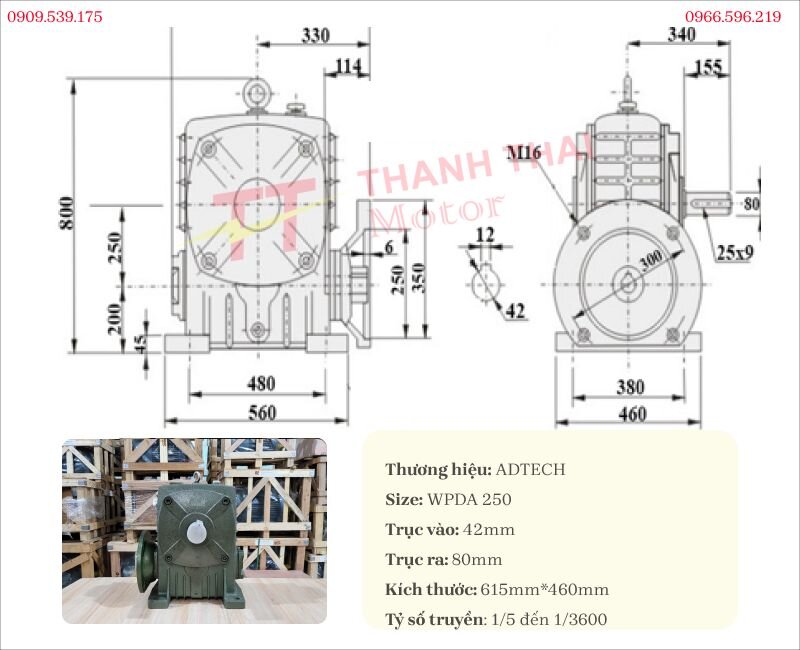

Technical specifications of the WPDA 250 gearbox

The WPDA 250 gearbox is manufactured with a sturdy structure, ensuring stable transmission processes

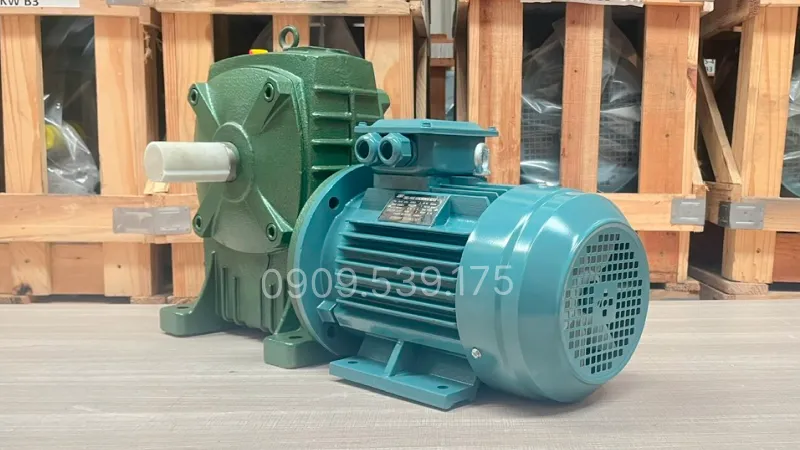

Practical applications of the WPDA 250 15kW 20Hp gear motor

The 3-phase gear motor is widely applied in various industrial fields such as:

• Conveyor belt lines and goods conveyors in manufacturing plants and logistics warehouses.
• Mixers, crushers, rolling mills, and pressing machines in material processing and food industries.
• Lifting equipment, overhead cranes, winches, and industrial freight elevators.
• Material transportation systems, mechanical manufacturing, waste treatment, and building materials production.

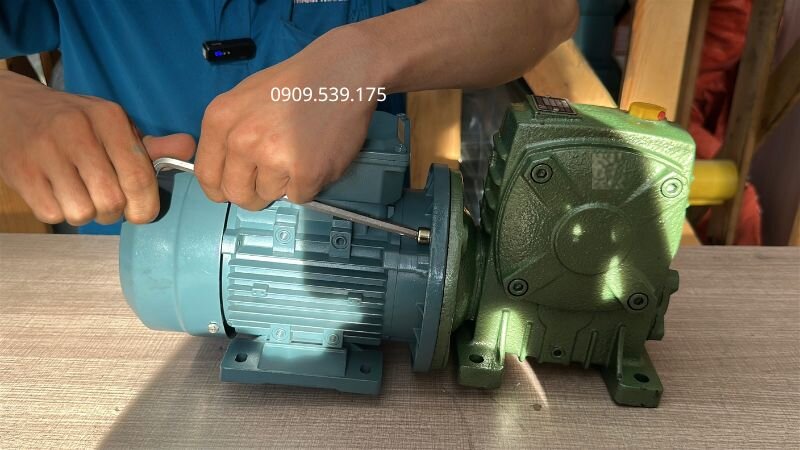

Detailed connection process guide

Here are the steps to install the electric motor onto the worm gearbox:

• Step 1: Place the electric motor and the WPDA gearbox on a flat surface, aligning the motor shaft with the gearbox shaft hole.
• Step 2: Use screws to securely fix the connection between the motor housing and the gearbox housing.

The gear motor video guiding how to install the WPDA gearbox with the electric motor details the assembly steps, checks installation positions, and connects equipment according to technical standards. The practical and easy-to-understand content helps users operate accurately, minimize errors, and improve system operational efficiency. Check out more useful compilation videos at Thanh Thai Motor.
