WPDS 250 Gear Motor 15kW 20Hp

The WPDS 250 Gear Motor 15kW 20Hp is a gear motor specifically designed for drive systems requiring high torque, heavy loads, and stable long-term operation. The device is a perfect combination of an electric motor directly coupled with a gearbox, delivering powerful power transmission, precise speed reduction, and optimal energy saving. As a worm gear motor, it is widely used in building material manufacturing, mechanical engineering, cement, mining, and industrial food processing plants.

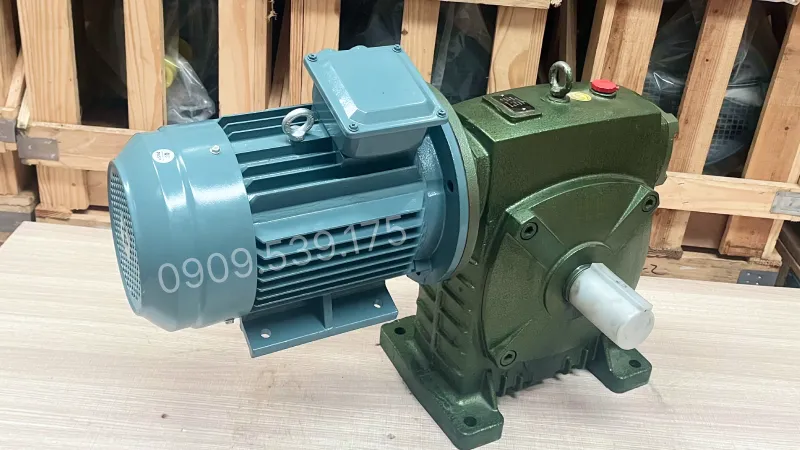

Overall design of the WPDS 250 Gear Motor 15kW 20Hp

The WPDS 250 gear motor is manufactured according to high technical standards, featuring a sturdy design, excellent finishing, and superior load capacity. The worm gearbox housing is cast from solid iron or high-grade alloy, providing deformation resistance when operating at high intensity. The entire surface is coated with anti-rust electrostatic paint, protecting the motor from the impacts of humid, dusty, or high-temperature environments.

The 3-phase electric motor is directly mounted to the gearbox via a standard flange, helping to stabilize power transmission, reduce power loss, and ensure smooth motor operation. Components such as the output shaft, housing cover, and mounting base are precisely machined to create a high seal, minimizing vibration and noise during operation.

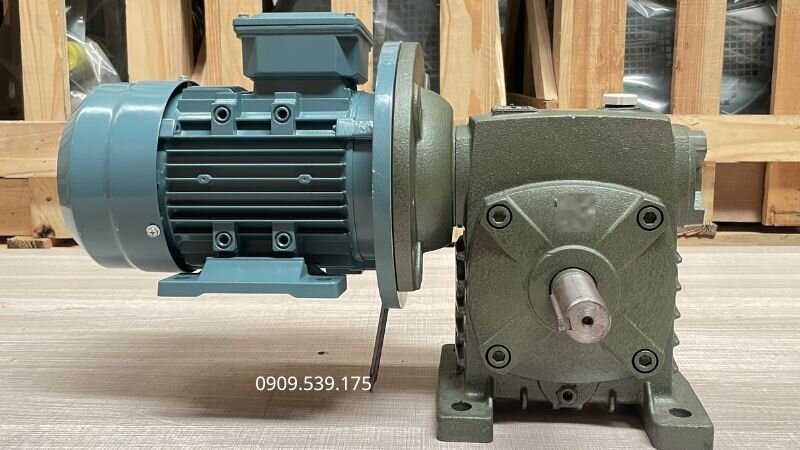

Structure of the WPDS 250 Gear Motor 15kW 20Hp

The WPDS 250 gear motor belongs to the gear motor line above 3.7kW, featuring a sturdy construction that optimizes efficiency and service life. The main components include:

3-Phase Electric Motor 15kW 20Hp:

• Stator: Pure copper windings, ensuring efficient power transmission and reduced energy losses.
• Rotor: Precisely machined with good dynamic balancing, helping the motor run smoothly and durably.
• Bearings: High load-bearing, wear-resistant type, ensuring stable operation in harsh environments.
• Cooling fan: Helps with rapid cooling, protecting the motor from overheating during continuous operation.

WPDS 250 Worm Gearbox:

• Housing: Cast from thick, solid iron with high rigidity, vibration resistance, and good load-bearing capacity.
• Worm shaft: Made of alloy steel, heat-treated to facilitate powerful transmission, reduce friction, and increase service life.
• Worm gear: Uses high-quality bronze alloy, perfectly meshed with the worm shaft, operating smoothly with minimal wear.
• Output shaft: Large diameter, transmitting strong torque, easily coupled with various industrial equipment.
• Oil seal: Prevents oil leakage, blocks dust and impurities from entering, keeping the gearbox running smoothly.

Specifications of the WPDS 250 Gear Motor 15kW 20Hp

Below is the specification table and drawing of the WPDS 250 gear motor

Specifications of the 3-Phase Electric Motor 15kW 20Hp

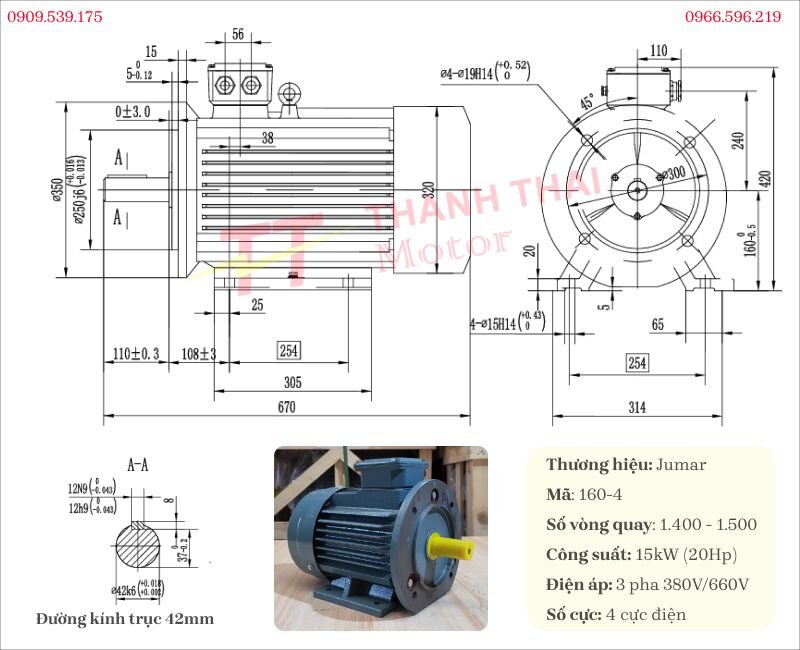

Below are the drawing and specifications of the 3-phase electric motor 15kW 20Hp

Specifications of the WPDS 250 Gearbox

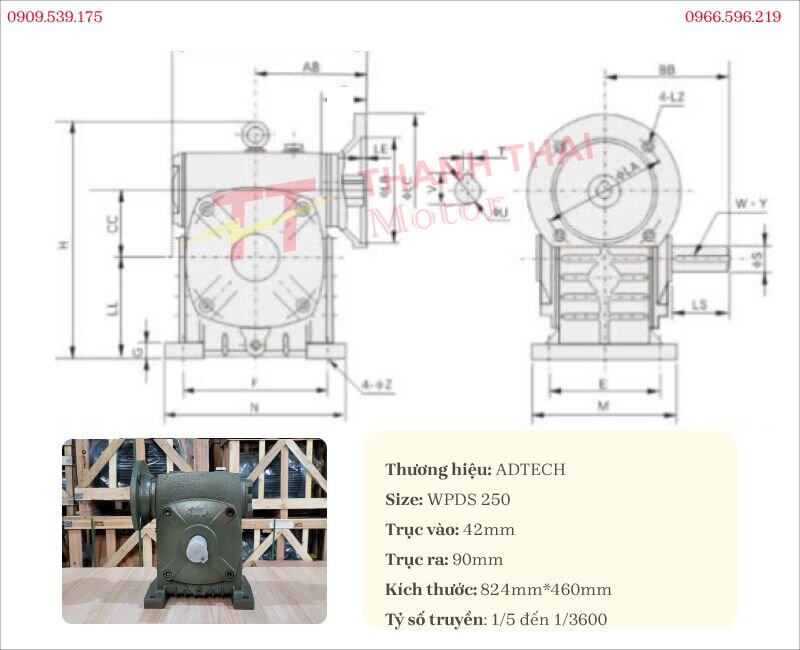

The WPDS 250 gearbox boasts a durable design and sturdy construction. Below are its specifications and drawing

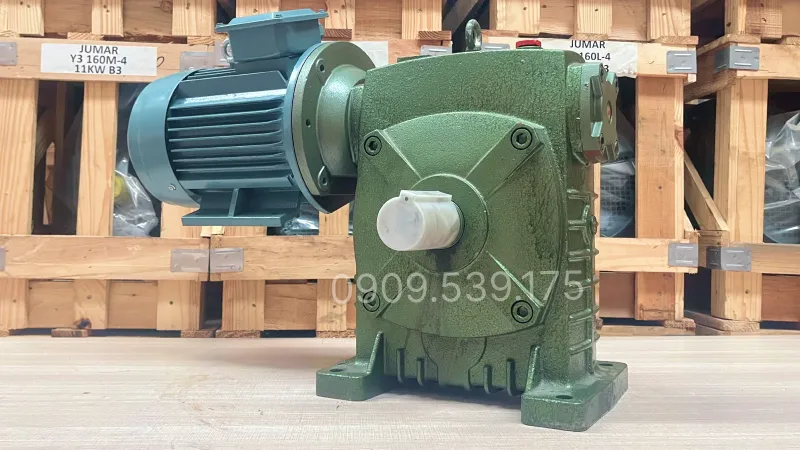

Applications of the WPDS 250 Gear Motor 15kW 20Hp

Thanks to its large power, high load capacity, and superior durability, the 3-phase gear motor is used in various industries and industrial systems, specifically:

• Conveyor systems in cement, brick, ceramic, and mining plants.
• Heavy-duty crushers, presses, and large-capacity mixers.
• Lifting equipment and high-load towing machines.
• Material mixers, sludge agitators, and industrial dryers.
• Agricultural production systems, animal feed processing, oil pressing, and pelletizing lines.

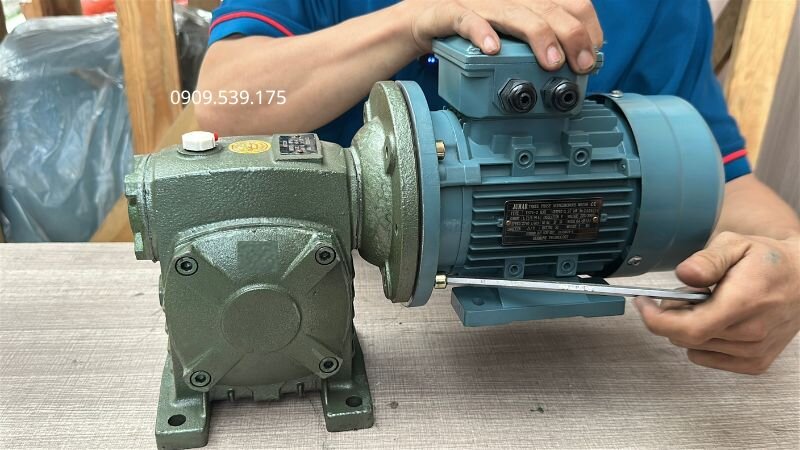

Guide on coupling an electric motor with the WPDS gearbox

• Step 1: Place the electric motor and gearbox on a flat surface, aligning the motor shaft with the flange position of the gearbox.
• Step 2: Secure the two devices by tightening the screws at the connection point between the motor housing and the gearbox housing.

The gear motor installation guide video for the WPDS gearbox and electric motor fully introduces all steps from equipment preparation, flange coupling, to concentricity checking before operation. The content is presented visually, making it easy for users to execute correctly according to techniques, increasing the stability of the drive system and extending equipment lifespan. Watch more useful summary videos at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
