WPO 250 Gear Motor 15kW 20Hp

WPO 250 Gear Motor 15kW 20Hp is the perfect combination of an electric motor and a worm gearbox. Thanks to its special structure, the gear motor can reduce the rotational speed of the motor while multiplying the torque, helping machinery operate powerfully, stably, and safely.

General design of the WPO 250 Gear Motor 15kW 20Hp

The WPO 250 Gear Motor 15kW 20Hp features a sturdy, meticulously machined design. The gearbox housing is made of solid cast iron, offering excellent load-bearing capacity and resistance to vibration and deformation under high-intensity operation.

The electrostatic powder-coated surface helps prevent rust, increases durability, and maintains a long-lasting new appearance. The output shaft and drive components are precision-machined to ensure stable torque transmission and minimize noise during operation. Thanks to its compact and flexible design, the equipment is easily installed in various positions, from production lines to large-scale industrial machinery systems.

Detailed structure of the gear motor

Belonging to the gear motor segment above 3.7kW, this worm gear motor has a simple structure consisting of:

• 3-phase electric motor 15kW 20Hp
  • Stator: Consists of pure copper windings, ensuring a strong magnetic field to help the motor operate stably and save electricity.
  • Rotor: Made of high-grade technical steel sheets, laminated and pressed tightly into a solid block, rotating smoothly and durably under the influence of the magnetic field, transmitting force directly to the motor shaft.
  • Cooling fan: Mounted at the rear of the motor body, helping to cool quickly and protect the equipment from overheating during continuous operation.

• WPO 250 worm gearbox
  • Worm shaft: Machined from hardened steel, heat-treated at high temperatures to increase durability and load-bearing capacity.
  • Worm wheel: Made of high-grade copper or copper alloy, meshing smoothly, ensuring quiet transmission and effective noise reduction.
  • Lubricating oil and oil seal: Lubricating oil ensures low friction and reduced wear, equipped with an oil seal to prevent leakage, keeping the system operating stably and cleanly.

Technical specifications of the WPO 250 Gear Motor 15kW 20Hp

The WPO size 250 gear motor with a capacity of 15kW (20Hp) is the core drive equipment in heavy-duty conveyor systems. The detailed technical data below will help engineers optimize installation performance for machinery systems.

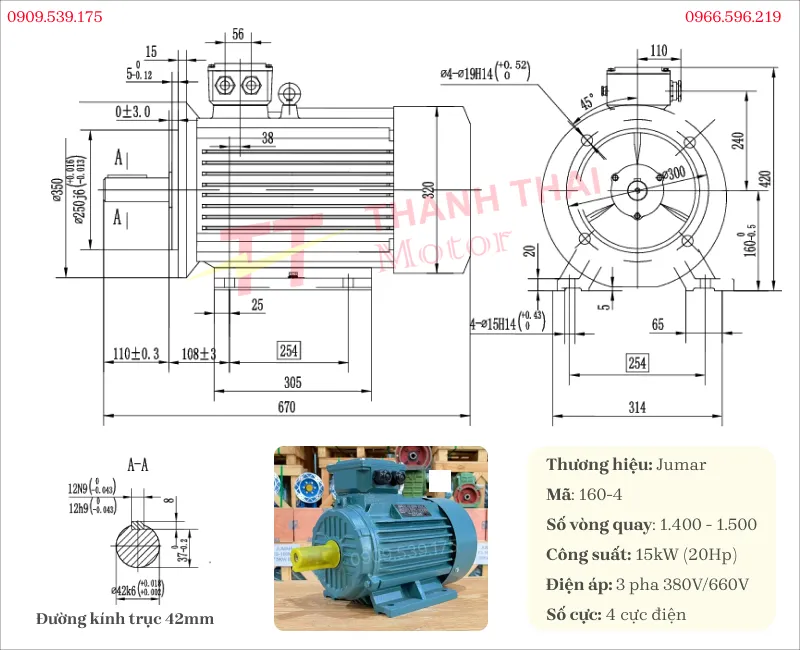

Technical specifications of the 3-phase electric motor 15kW 20Hp

The 3-phase electric motor with a capacity of 15kW (20Hp) acts as the main driving force constituting the complete WPO gearbox unit. This product uses a 380V power source with a 100% copper wire core to ensure maximum power generation efficiency and energy saving.

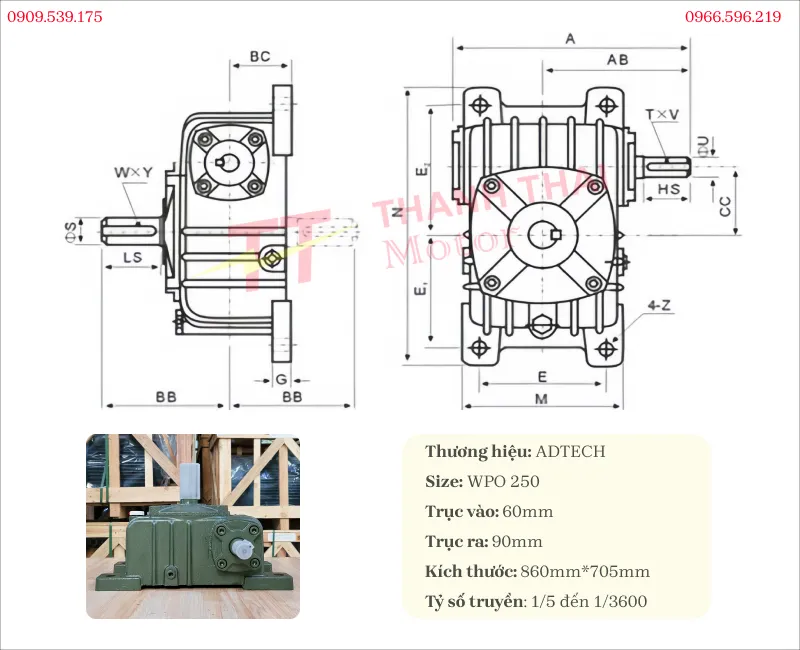

Technical specifications of the WPO 250 gearbox

The WPO size 250 gearbox is the component responsible for speed conversion and torque multiplication for the entire system. The worm gear mechanism of this unit is precision-machined to minimize backlash and operational noise. Below are the core parameters regarding center distance and lubrication oil capacity that operators need to note.

Practical applications of the WPO 250 Gear Motor 15kW 20Hp

The 3 phase gear motor series is widely used in many heavy industrial fields, including:

• Heavy-duty conveyor systems and material handling conveyors.
• Industrial crushers, mixers, and agitators in the cement, brick, chemical, and food industries.
• Metal presses, rolling mills, and coiling machines in mechanical and metallurgical plants.
• Lifting equipment, winches, and overhead cranes.
• Automated production lines where large torque and stable speed are required.

The WPO 250 Gear Motor 15kW 20Hp is the perfect drive solution for heavy industries. This machine features a 15kW pure copper core 3-phase motor and a solid cast iron worm gearbox. At Thanh Thai Motor, we are committed to delivering precise, durable, and energy-optimized equipment. To get a visual perspective on the design and operational capability, customers can watch our video compiling large-capacity machinery lines or refer to our detailed gear motor video.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
