WPDX 250 Gear Motor 15kW 20Hp

The WPDX 250 Gear Motor 15kW 20Hp is the perfect combination of an electric motor and a gearbox, forming a synchronous, sturdy, and high-efficiency drive assembly.

The gear motor is designed to reduce the rotational speed of the motor while increasing output torque, helping heavy-duty equipment operate more smoothly and durably. The flange-mounted system ensures a secure connection between the motor and the gearbox, guaranteeing stable power transmission with minimal energy loss.

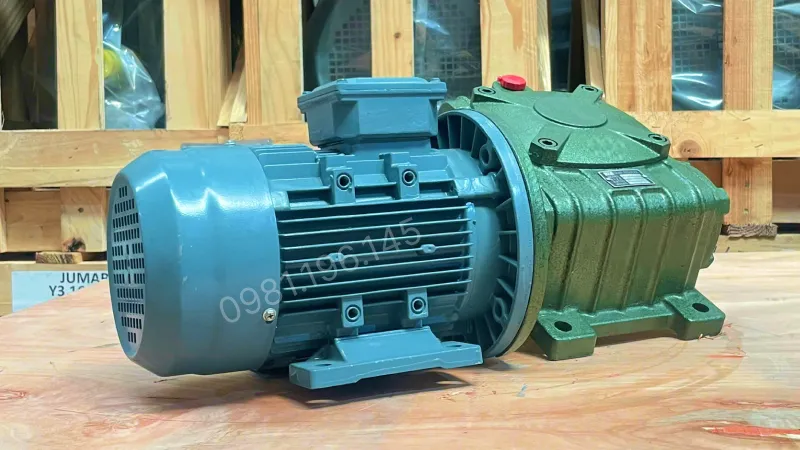

Overview of the WPDX 250 Gear Motor 15kW 20Hp

This worm gear motor line is manufactured according to strict technical standards, ensuring precision, safety, and optimal transmission efficiency. The gearbox housing is cast in one piece from high-grade cast iron and coated with an anti-rust electrostatic paint layer, helping the device resist environmental impacts and maintain long-term durability.

Internal components such as the worm shaft, worm gear, bearings, and oil seals are meticulously machined and tightly meshed together, helping to reduce friction, limit noise, and extend stable operating time.

Main Structure of the Gear Motor

The WPDX 250 Gear Motor 15kW 20Hp belongs to the gear motor segment above 3.7kW, consisting of two main parts:

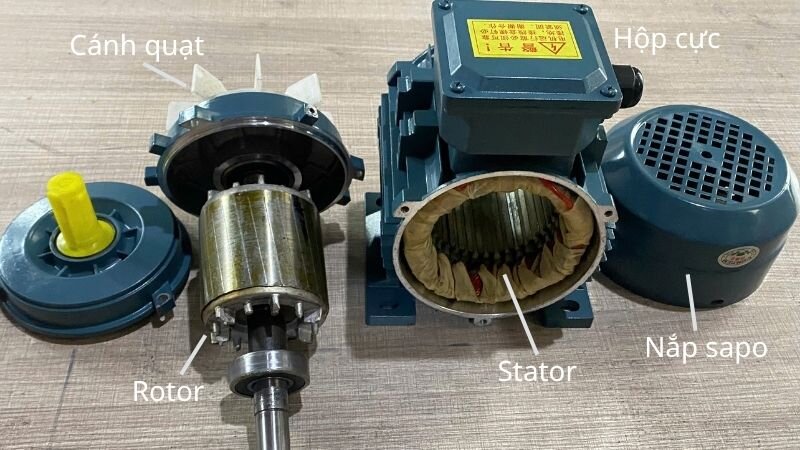

• 3-Phase Electric Motor 15kW 20Hp:
  • Motor housing: Made of sturdy cast iron material, coated with external electrostatic paint to help resist wear and provide excellent impact resistance.
  • Stator – Stationary part: Pure copper windings help save electricity, increase stability, and extend equipment lifespan.
  • Rotor – Rotating part: Machined from high-technical steel, helping the motor run smoothly and transmit force stably under the influence of magnetic fields.
  • Cooling fan: The fan system helps dissipate heat quickly, cool efficiently, and ensure the motor does not overheat when working for a long time.

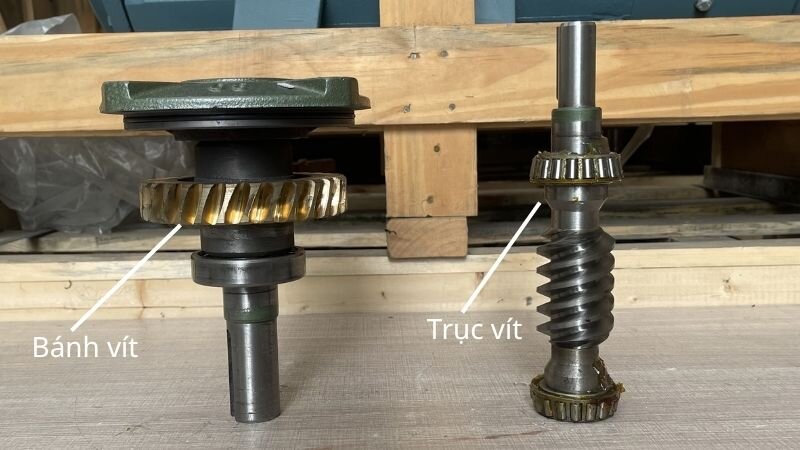

• WPDX 250 Worm Gearbox:
  • Worm shaft: Made of alloy steel, hardened to increase heavy-load capacity.
  • Worm gear: Cast from high-quality copper alloy, meshing precisely with the worm shaft to help smooth transmission.
  • Oil seal and lubricating oil: Lubricating oil is provided to ensure continuous lubrication and smooth, quiet operation. The oil seal prevents oil leakage to the outside, which soils the equipment, and restricts dust from entering the internal oil compartment, preventing damage and increasing gearbox lifespan.

Technical Specifications of the WPDX 250 15kW 20Hp Motor

For the WPDX 250 15kW gear motor assembly to operate durably and minimize the risk of overload or mechanical structural damage, understanding the data from the manufacturer is a primary requirement.

Technical Specifications of the 3-Phase Electric Motor 15kW 20Hp

The power connection and current control process of the 15kW 3-phase electric motor require technicians to strictly adhere to factory design limits to avoid system voltage drops. All parameters from the 12mm shaft key size to the IP55 protection class will be clarified below, helping optimize performance and ensure safety when the machine assembly operates continuously.

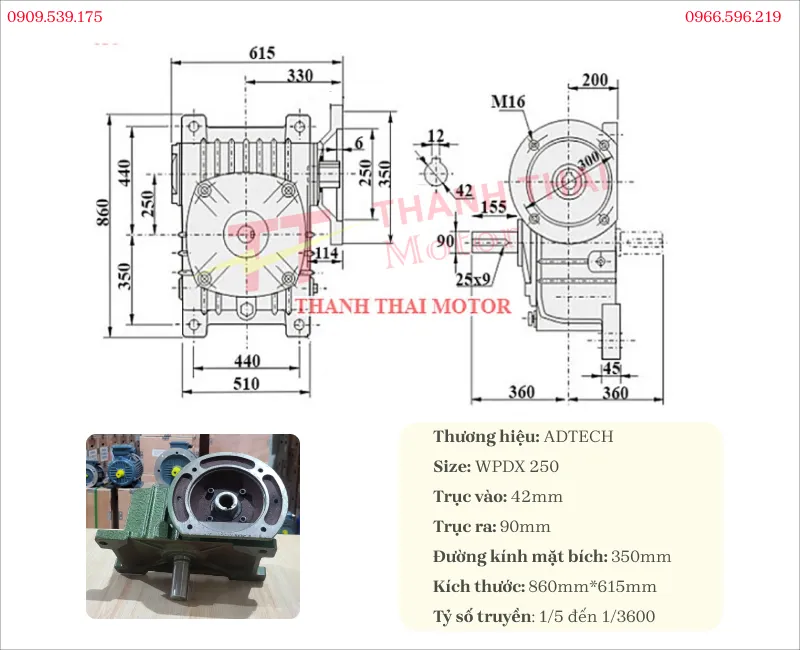

Technical Specifications of the WPDX 250 Gearbox

Below are the detailed specifications of the WPDX size 250 gearbox

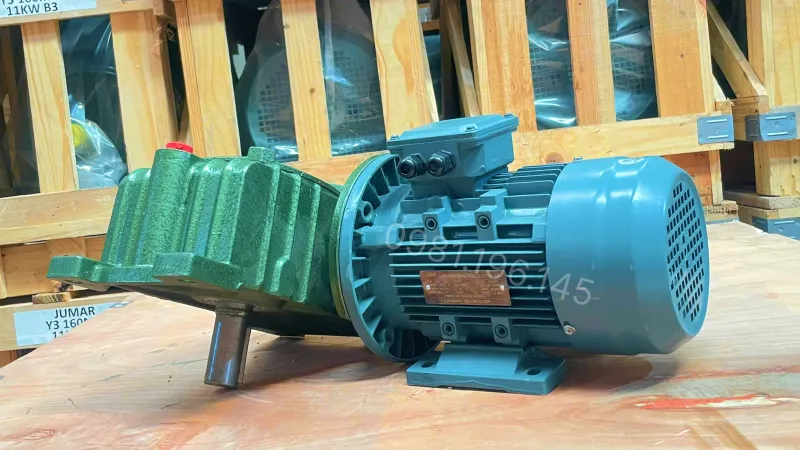

Practical Applications of the WPDX 250 Gear Motor 15kW 20Hp

The 3-phase gear motor is widely applied in heavy industrial systems such as:

• Conveyor assembly lines and industrial cargo conveyors.
• Mixers, crushers, presses, and rolling mills in manufacturing plants.
• Lifting equipment, overhead cranes, cargo winches, and industrial freight elevators.
• Material handling systems, food processing machinery, and mechanical engineering.

Steps to Easily Install the WPDX Gearbox with an Electric Motor

Combining the WPDX gearbox and electric motor is very straightforward. Below are the basic steps:

• Preparation phase: Choose the WPDX gearbox and electric motor with matching connection shaft diameter parameters.
• Execution phase: Lift the motor part, align, and push the shaft directly into the flange hole of the gearbox.
• Completion phase: Use screws to tighten the connection points between the two flanges securely. Check for sturdiness one last time before finishing.

The WPDX 250 Gear Motor 15kW 20Hp affirms its timeless durability thanks to its thick, monolithic cast iron housing structure, which has excellent impact resistance and heavy load capacity. The absolute precise meshing between the hardened alloy steel worm shaft and high-grade copper worm gear helps this 3-phase electromechanical machine eliminate noise and reduce workshop vibration effectively.

To observe the actual appearance of the machine, please watch our compiled warehouse video or explore our in-depth gear motor video series.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
