WPDA 250 Worm Gearbox

In modern production lines, controlling rotational speed and optimizing torque are key factors to maintain operating performance and extend equipment lifespan. The WPDA 250 Worm Gearbox is one of the top choices for industrial systems requiring heavy transmission and stable long-term operation. With a sturdy structure, efficient transmission mechanism, and high adaptability, the product helps enhance reliability and economic efficiency for businesses.

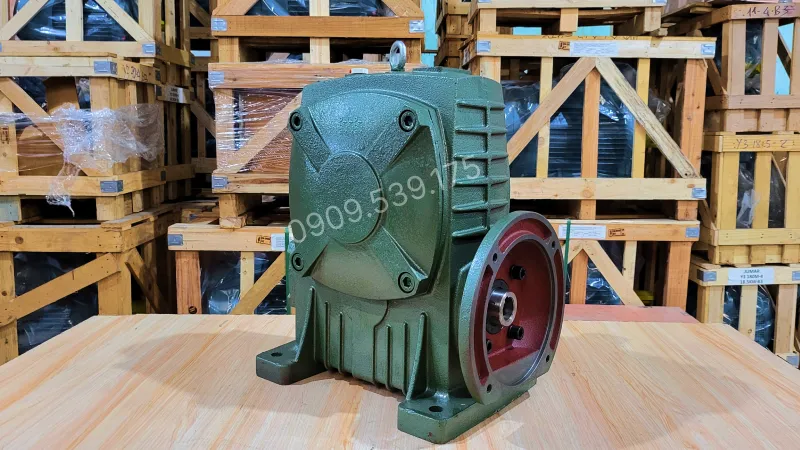

General Design of WPDA 250 Worm Gearbox

The gearbox product is designed with high technical standards, ensuring operational capability in the most demanding conditions. The entire housing is cast from solid cast iron with high rigidity, increasing resistance to deformation and vibration, and extending equipment lifespan.

The housing surface is treated with high-quality electrostatic powder coating, offering corrosion resistance, rust prevention, and the ability to withstand moisture, dust, or mildly chemical environments. The input and output shafts are arranged at a 90° right angle, optimizing narrow spaces and easily changing transmission directions.

The worm gearbox can be directly connected to an electric motor to form a high-performance gear motor, helping transmit strong torque while reducing output rotation speed according to the desired gear ratio.

Detailed Internal Structure of WPDA 250 Worm Gearbox

• Worm gear: Made of self-lubricating bronze alloy, minimizing friction, generating low heat, and operating stably for a long time.
• Bearings: Good load-bearing capacity, precisely arranged to ensure smooth rotational movement, reducing vibration and noise.
• Worm shaft: Crafted from high-grade alloy steel, hardened via heat treatment to ensure excellent load capacity, wear resistance, and increased power transmission accuracy.
• Oil seal and protective cover: Prevent oil leakage, keep out dust and moisture, and protect the entire internal system.

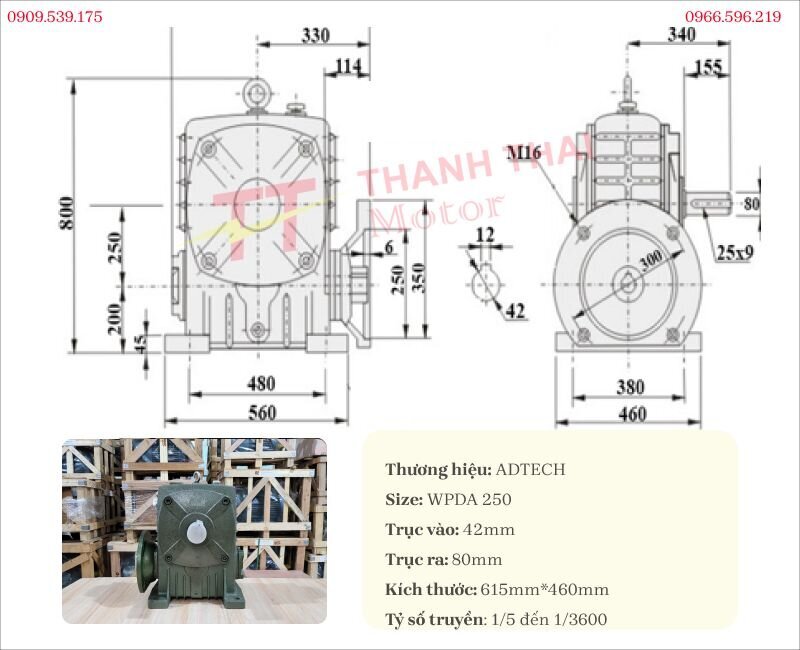

Technical Specifications of WPDA 250 Worm Gearbox

The WPDA 250 worm gearbox is manufactured with a sturdy structure, ensuring stable transmission processes

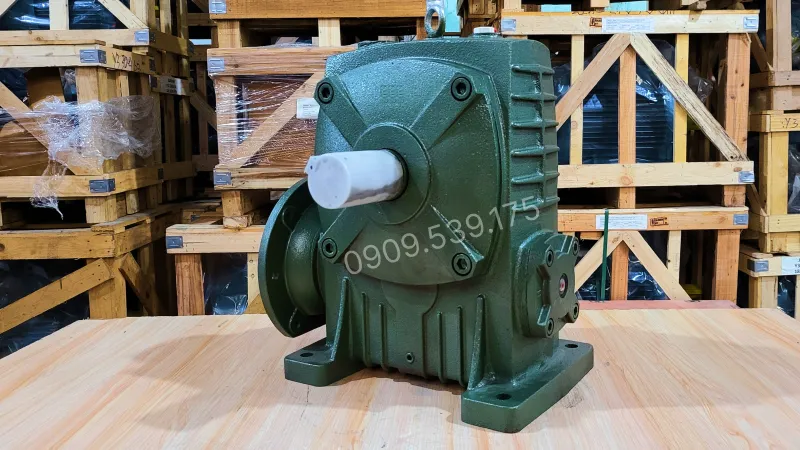

Practical Applications of WPDA 250 Worm Gearbox

The WPDA 250 worm gearbox is an ideal choice for many industrial systems requiring stable transmission and high torque. The product is widely applied in the following fields:

• Construction industry: Used in stone crushers, large-capacity concrete mixers, and unburnt brick pressing machines, ensuring durable operation in dusty and high-vibration environments.
• Environmental treatment industry: Integrated in screw sludge dewatering machines, wastewater mixers, and industrial filtration equipment… helping ensure stable transmission and energy saving.
• Food and beverage industry: Serving food conveyor systems, industrial mixers, and automatic filling lines – where stable speed and low vibration are required.
• Mechanical engineering & manufacturing: Installed in metal processing lines, bending machines, and steel rolling mills to help precisely control speed and increase equipment torque.
• Mining industry: Used for heavy-duty conveyor systems, vibrating screens, and mineral crushers… ensuring power transmission efficiency in harsh environments.
• Agriculture & processing industry: Applied in pellet mills, animal feed mixers, and agricultural product sorting conveyors… where stable and efficient speed reduction is needed.

Guide to Changing and Adding Oil for Worm Gearboxes

Adding lubricating oil correctly helps the gearbox reduce friction, operate stably, and enhance the durability of the transmission system.

• Step 1: Disconnect the power supply. If the gearbox has been used, open the drain plug to completely remove the old oil and tighten it back. For a new gearbox, oil can be added directly.
• Step 2: Open the oil filling plug and pour oil slowly into the gearbox. Monitor the sight glass; when the oil level reaches about halfway up the sight glass, stop pouring.
• Step 3: Securely close the oil filling plug, check the assembly positions, and wipe clean any remaining oil on the surface before starting the equipment.

The WPDA worm gearbox features a sturdy structure, durable operation, and well meets various industrial transmission needs. The instructional gearbox video from Thanh Thai Motor will guide you through the correct steps for oil filling, installation, and equipment operation. In addition, you can refer to other summary videos to update your knowledge and experience in using gearboxes effectively.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
