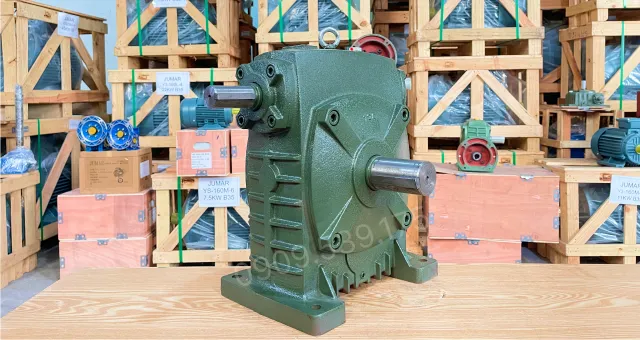

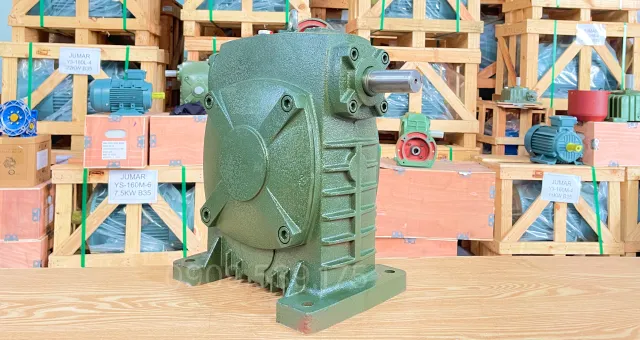

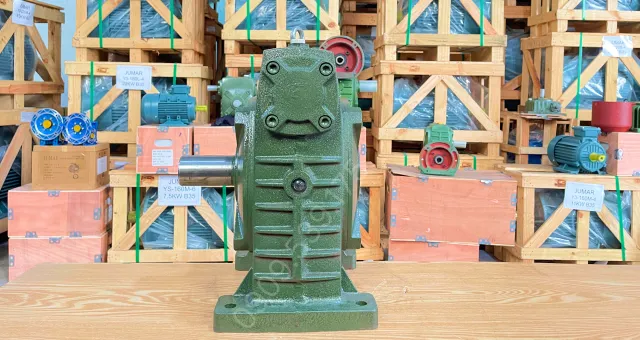

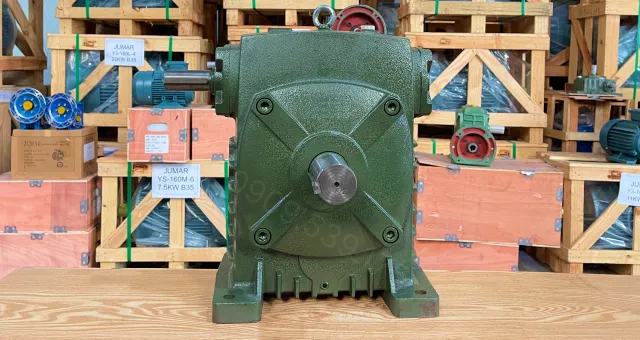

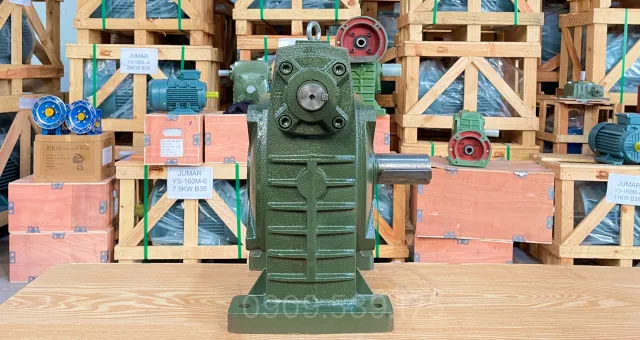

WPS 250 Worm Gearbox

The WPS 250 Worm Gearbox is designed with an output shaft perpendicular to the input shaft, providing flexibility in installation and operation. This is an indispensable device in manufacturing plants, thanks to its durable structure and reasonable price. This gearbox not only helps optimize transmission performance but also ensures operational reliability, well meeting the demands of industrial applications.

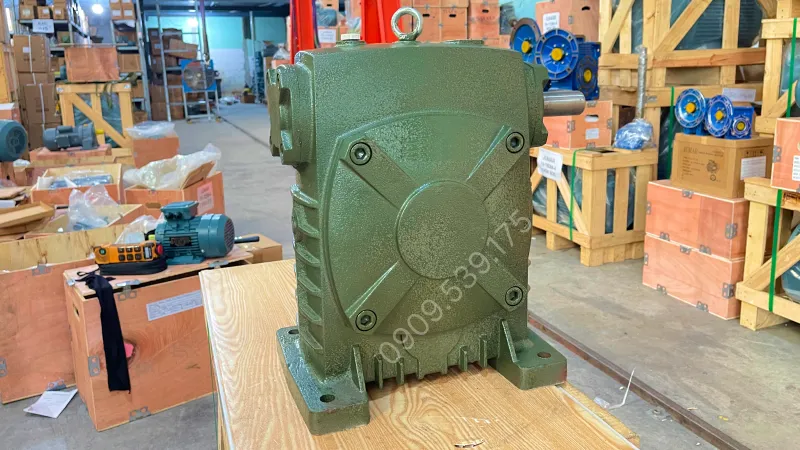

Overview design of the WPS 250 Worm Gearbox

The exterior housing of the worm gearbox is made of cast iron and then machined to precise dimensions; the machine’s worm shaft has high friction because it is made of steel. Since the worm wheel is made of pure copper, it reduces friction and wear during use.

The WPS worm gearbox is coated with an electrostatic paint layer to help protect the machine from corrosion. On top of the gearbox there is an oil cap, and at the bottom there is an oil level indicator hole to show the oil level inside the machine.

However, to operate effectively, the WPS 250 Worm Gearbox must be combined with an electric motor via a pulley and coupling. This combination allows for reducing rotational speed and increasing torque, ensuring stable and smooth equipment operation. Thanks to its durable design, the WPS 250 gearbox together with the electric motor form a powerful gear motor, well meeting demands in industrial applications.

Internal structure of the WPS 250 Worm Gearbox

The internal structure of the WPS 250 Worm Gearbox includes the following main components:

• Worm shaft: Made of high-grade alloy steel, with high mechanical strength and good wear resistance, capable of withstanding heavy loads during operation.
• Worm wheel: Made of pure copper alloy or brass, helping to reduce friction, operate smoothly, and increase the lifespan of the equipment.
• Transmission gear set: The gears are precision-machined, meshing perfectly to help transmit power efficiently, reduce rotational speed, and increase torque.
• Housing: Cast from high-strength cast iron, protecting all internal details from impacts and external environmental influences.
• Bearings and oil seals: Help the shaft rotate smoothly, prevent lubricating oil leakage, ensure durable operation, and reduce wear for components.

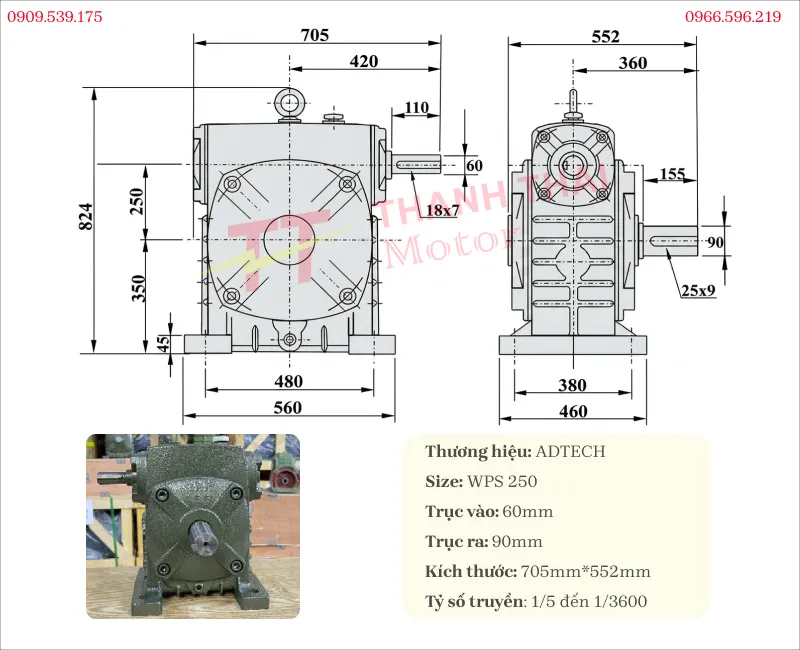

Specifications of the WPS 250 gear motor

The WPS 250 gear motor belongs to the large-sized worm gearbox line, designed with large-diameter input and output shafts to meet high torque transmission requirements. The basic technical parameters of the product are presented below.

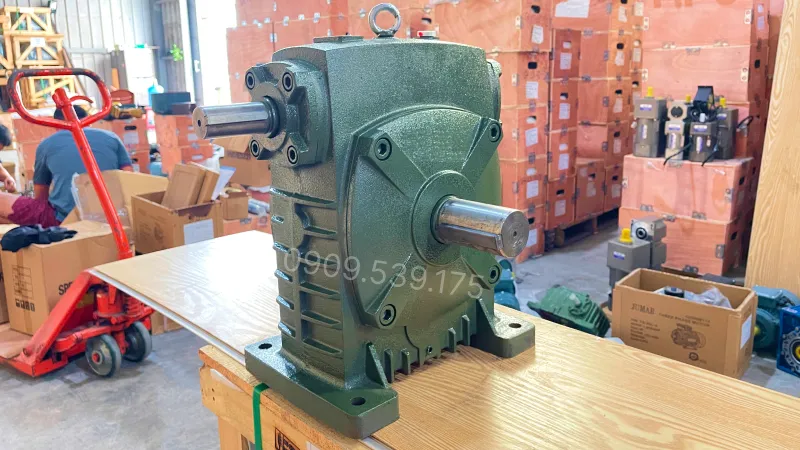

Applications of the WPS 250 Worm Gearbox

The WPS 250 Worm Gearbox with its compact design and light weight brings convenience in installation and operation, especially suitable for production lines with limited space such:

• Coal and sand mining machines, helping transmit power and accurately control speed in mining industries.
• Herbal medicine production equipment, ensuring continuous and stable processing with high capacity.
• Artisan craft making machines and fruit juicers, applied in the food processing and handicraft manufacturing industries, increasing production efficiency and minimizing gearbox wear.

Guide on adding oil for the WPS worm gearbox

• Locate position: Find the oil filling hole (usually located at the top of the gearbox) and remove the bolt or dipstick.
• Check old level: If replacing with new oil, drain all old oil and clean the chamber.
• Add oil: Use a funnel to slowly pour industrial gear oil (such as ISO VG viscosity grade 320 or 460) in.
• Measure oil amount: Use the dipstick to check. Ensure the oil submerges 1/3 to 1/2 of the worm drive.
• Seal tightly: Tighten the oil filling hole screw to prevent dust and leakage.

To better understand the structure, installation method, and transmission capacity of the product, you can refer to the gearbox video produced by Thanh Thai Motor. In addition, the summary video also introduces many worm gearbox lines with different sizes and gear ratios, helping you easily choose the model that suits your actual application requirements.

Warranty, Shipping, and Commitment Policy at Thanh Thai Motor

When purchasing gearboxes at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 months

Gearbox products at Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers can be completely confident in using them with a clear, transparent, and prompt after-sales policy.

Nationwide Delivery

We support fast delivery to all provinces and cities nationwide. Wherever you are, products are guaranteed to arrive on time and safely.

Products meeting European quality standards with German technology

Gearboxes at Thanh Thai Motor are manufactured using advanced German technology, meeting European quality standards. Ensuring high durability and stable operation for extended periods.

Competitive prices, good discounts for dealers and bulk customers

Reasonable prices, many attractive offers for wholesale buyers and distribution agents. The more you buy, the higher the discount – optimizing profits for customers.

Full certification documents: CO, CQ,...

Each product comes with full Certificate of Origin (CO) and Certificate of Quality (CQ). This provides assurance for customers when using them in projects or constructions requiring technical documentation.
