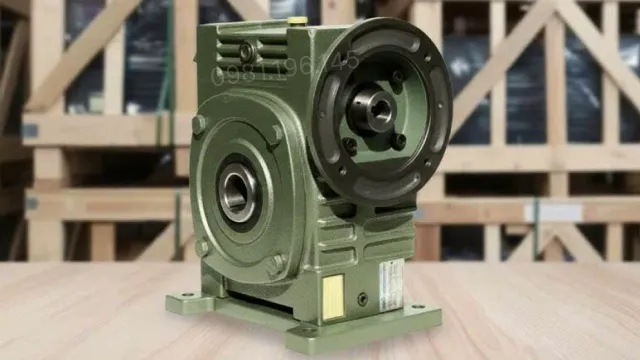

Worm Gearbox WPDKS 250

Worm Gearbox WPDKS 250 is a gearbox device featuring a solid, heavy-duty, one-piece cast iron housing that protects internal components from impacts and dust. The powder-coated surface resists rust, oxidation, and high temperatures, ensuring long-term durability. The output shaft is available in hollow or solid options for direct connection with an electric motor or other drive mechanisms, ensuring concentricity and stable transmission force. It can be installed in vertical or horizontal orientations, offering flexibility for various spaces and machinery systems.

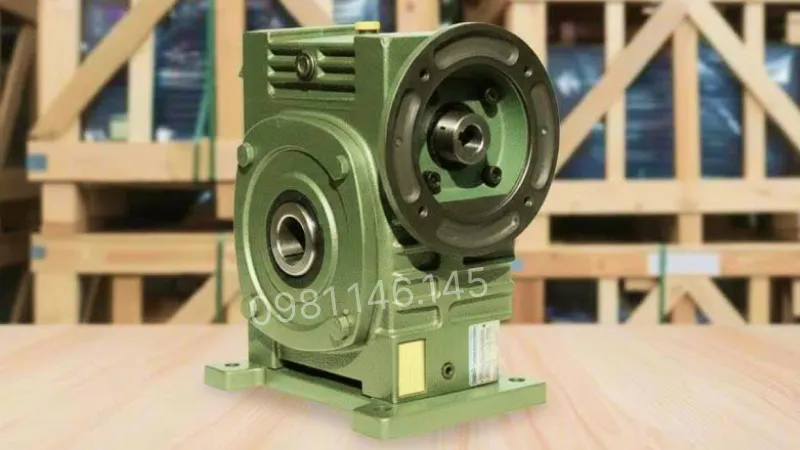

Overall Design of Worm Gearbox WPDKS 250

As a worm gearbox series featuring powerful transmission, it is optimized to achieve high pulling force and stable operation. The one-piece cast iron housing enhances rigidity, minimizes vibration, and improves heat dissipation. The diverse output shaft design and flexible installation make it suitable for various industrial drive mechanisms requiring high durability and smooth operation.

The gearbox can be coupled with an electric motor to create a gear motor product with diverse functions and more flexible operation.

Structure of Worm Gearbox WPDKS 250

The gearbox is manufactured from precision mechanical parts and high-quality materials, ensuring smooth operation and long service life:

• Housing: One-piece cast iron, rigid, protects internal components, and provides efficient heat dissipation.
• Worm shaft: Hardened alloy steel, precision threads, reduces friction, transmits high and stable torque.
• Worm gear: High-grade alloy bronze, self-lubricating, minimizes wear, and enhances equipment lifespan.
• Output shaft: Hollow or solid core design, direct power transmission, ensuring concentricity and stability.
• Bearings: Supports smooth shaft rotation, reduces vibration, withstands heavy loads, and increases working accuracy.
• Oil seals & covers: Prevent oil leakage, keeping the system clean and stable.
• Oil fill & breather holes: Facilitate easy maintenance, oil replenishment, and internal pressure regulation.

Specifications of Worm Gearbox WPDKS 250

To select the correct model suited for your drive system, users should refer to the basic specifications below.

Applications of Worm Gearbox WPDKS 250

Worm Gearbox WPDKS 250 is widely used in systems requiring high torque, stable operation, and durability:

• Heavy-duty conveyors, large industrial production lines.
• Hoisting machines, lifting tables, industrial lifting mechanisms.
• Turntables, rotation mechanisms, and equipment requiring precise movement.
• Industrial mixers and agitators for chemicals, food, and paint.
• Automation lines, press machines, rolling mills, and spinning machines.

Guide to Adding Oil for WPDKS Worm Gearbox

To properly add oil to the WPDKS worm gearbox, follow these steps:

Step 1: Drain old oil

Place a drain pan under the drain plug at the lowest position of the gearbox. Remove the drain plug to let the old oil drain completely, then clean the drain area and tighten the plug back up.

Step 2: Open the oil fill port

Remove the oil fill plug or breather plug on top of the WPDKS gearbox body to prepare for adding new oil.

Step 3: Add new oil

Use a funnel to slowly pour appropriate lubricating oil into the gearbox. Mineral-based gear oils with ISO VG 320 or ISO VG 460 viscosity should be used, depending on load conditions and manufacturer instructions.

Step 4: Check the oil level

Observe the oil sight glass or dipstick (if available). The oil level should reach the standard mark or about 2/3 of the oil sight glass; do not overfill to avoid leakage and overheating during operation.

Step 5: Completion

Reinstall the oil fill or breather plug, wipe clean any oil remaining on the gearbox housing, and recheck the threaded positions before putting the equipment into operation. In addition to this article, you can refer to the summary video on the Thanh Thai Motor channel to view the practical maintenance process. At the same time, the gearbox video will provide further instructions on oil replacement, oil level checking, and maintenance of worm gearboxes.
