Heavy Duty Brake Gear Motor 11kW 15Hp

Brake Gear Motor 11kW 15Hp is a gear motor with many advantages such as compact design, solid materials, etc. Let’s learn more about the details of this brake gear motor with Thanh Thai Motor!

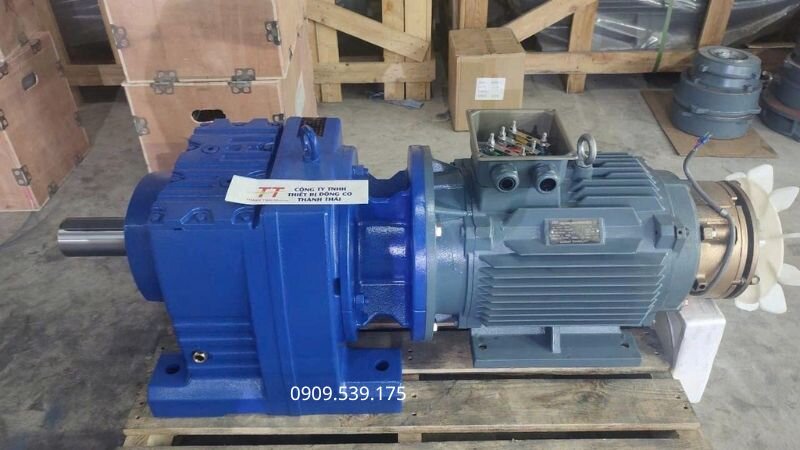

General design of Brake Gear Motor 11kW 15Hp

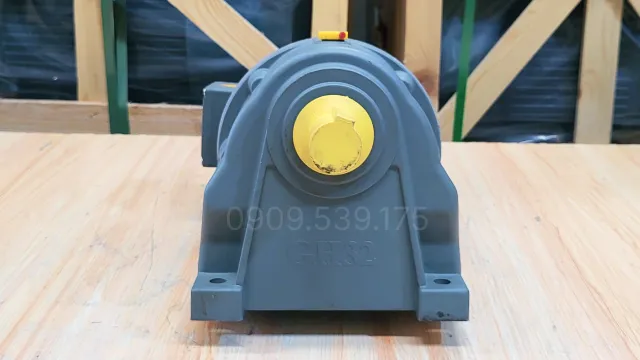

The Brake Gear Motor 11kW 15Hp is a 3 phase gear motor with a compact, modern design. The heavy duty gear motor housing is coated with a grey or blue anti-rust paint. The gear motor housing is made of thick cast iron, helping to protect internal components from environmental impacts such as corrosion and impact. With a unique design assembled from a Brake Motor and an R-Series Inline Helical Gearbox.

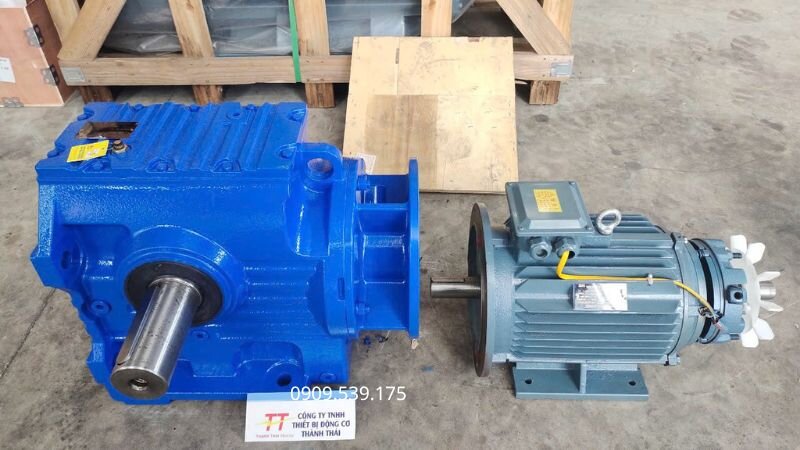

Structure of heavy duty brake gear motor 11kW 15Hp

The heavy duty brake gear motor 11kW 15Hp is designed to meet the requirements of stable transmission, increased torque, and fast load stopping in production lines. The device is a combination of an electric motor, a gearbox, and an electromagnetic brake unit, delivering high transmission efficiency and ensuring safety during operation.

Brake Motor 11kW 15Hp

The Brake Motor 11kW 15Hp includes the following main components:

• Stator: The stationary part of the motor, consisting of an electrical steel core and precisely wound copper coils. When powered, the stator generates a rotating magnetic field to drive the rotor.
• Rotor: Installed inside the stator and directly connected to the motor shaft. Under the influence of the magnetic field, the rotor rotates and transmits power to the gearbox.
• Electromagnetic brake: Consists of an electromagnetic coil, springs, and a brake disk. When the motor operates, the brake is automatically released; upon power loss or machine shutdown, the brake locks the shaft immediately to hold the load and increase safety.
• Motor shaft and bearings: The shaft is made of high-strength alloy steel, combined with heavy-duty bearings to help transmit force stably, reduce friction, and limit vibration during operation.
• Motor housing: Cast from cast iron or aluminum alloy with good impact resistance, integrated with cooling fins to help the motor maintain a stable temperature during continuous operation.

Heavy Duty R-Series Inline Helical Gearbox 11kW 15Hp

The gearbox has the function of reducing the rotational speed of the motor and increasing the output pulling force, meeting the requirements of working with heavy loads. The structure includes the following main parts:

• Input and output shafts: Machined from high-strength steel, capable of withstanding large torque and ensuring stable transmission over a long period.
• Helical gear set: The gears are manufactured with high precision, using a helical gear profile to increase meshing capacity, reduce noise, limit vibration, and improve transmission efficiency under heavy load conditions.

Specifications of heavy duty brake gear motor 11kW 15Hp

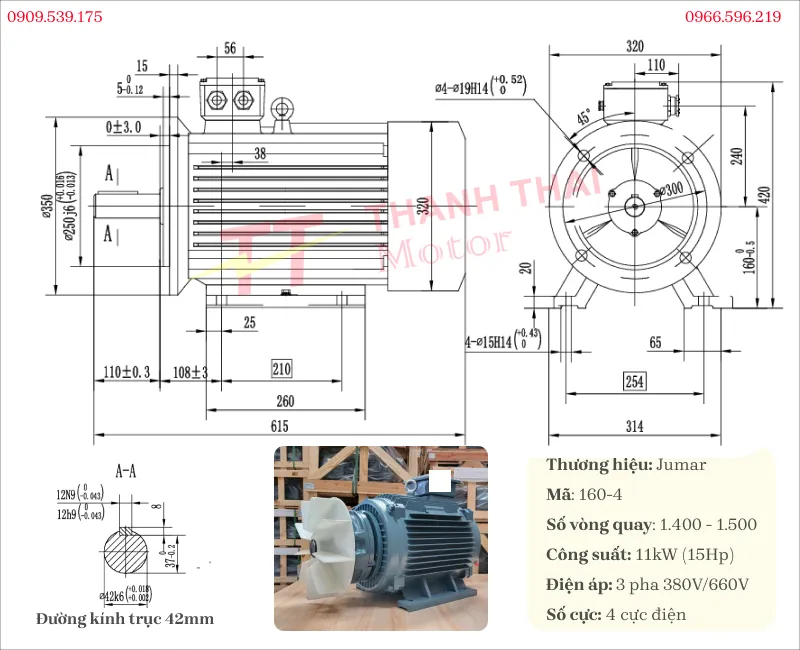

Brake Motor 11kW 15Hp 4 poles (1,400 – 1,500 rpm)

This is the most popular motor series because of its perfect balance between speed and pulling force, smooth operation, high mechanical durability, and lower heat generation.

Specifications

Technical specifications of Heavy Duty R-Series Inline Helical Gearbox 11kW 15Hp

Designed for heavy-duty applications requiring high torque

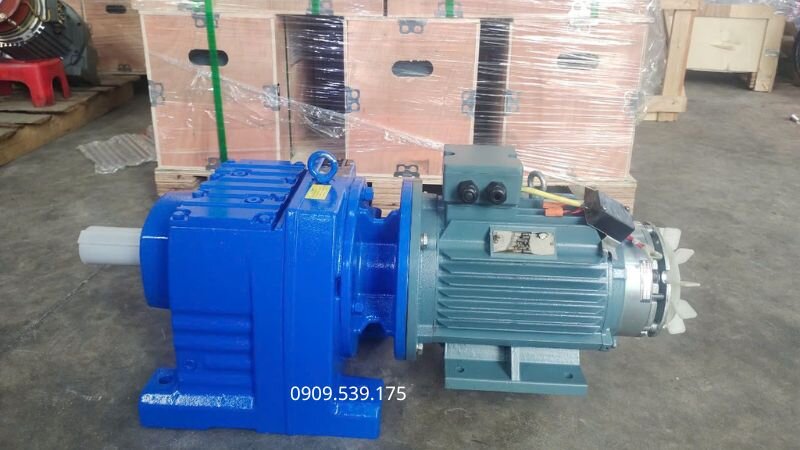

Applications of Brake Gear Motor 11kW 15Hp

The Brake Gear Motor 11kW 15Hp is widely used in various fields such as:

• Conveyor production, packaging machines, printing machines, cutting machines, etc.
• Steering systems, glass lifting systems, air conditioning systems, etc.
• Systems used in construction such as: Cranes, excavators, etc.
• In daily life, applied in elevators, rolling doors, etc.

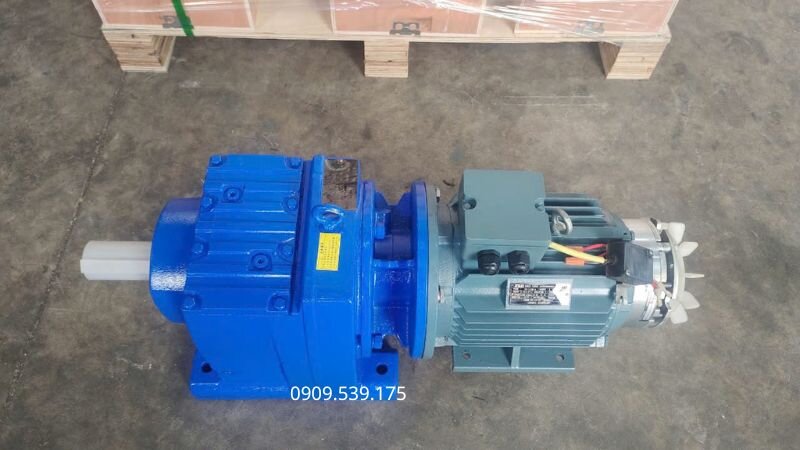

Installation guide for heavy duty brake gear motor 11kW 15Hp

For the heavy duty brake gear motor 11kW 15Hp to work stably, achieve high performance, and ensure safety, installation must be carried out according to technical requirements.

• Step 1: Inspect the overall motor, gearbox, electromagnetic brake unit, output shaft, and installation accessories. Ensure that assembly surfaces are clean, parts are not deformed, and the power supply meets the device’s specifications.
• Step 2: Place the motor on a sturdy support base, accurately align the position between the output shaft and the transmission mechanism to limit deviation. After fixing the bolts, connect the power supply according to the technical diagram and run a test to check the smoothness, noise level, and braking capacity of the braking system.

Through the video guiding the installation of the heavy duty brake gear motor 11kW 15Hp, viewers can clearly understand the assembly, alignment, and practical operation testing process. Proper technical installation will help the equipment operate stably, enhance transmission efficiency, and extend lifespan. Watch more tutorial and product compilation videos at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
