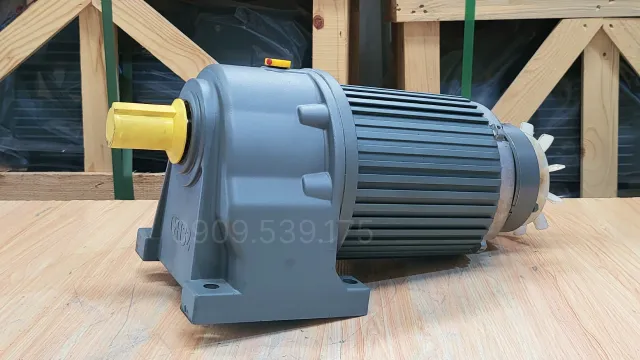

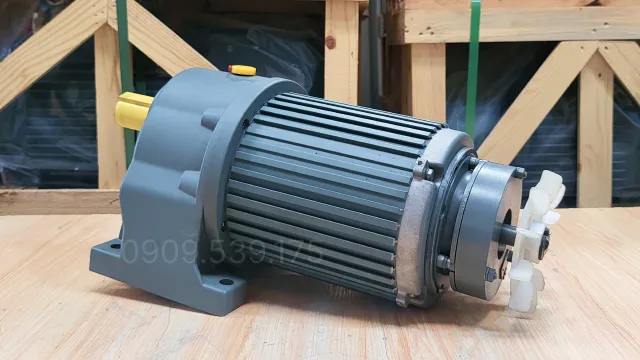

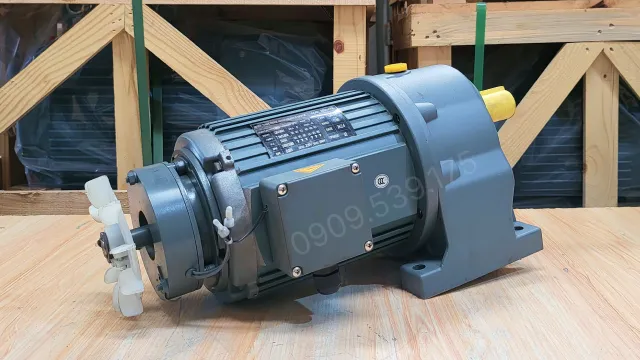

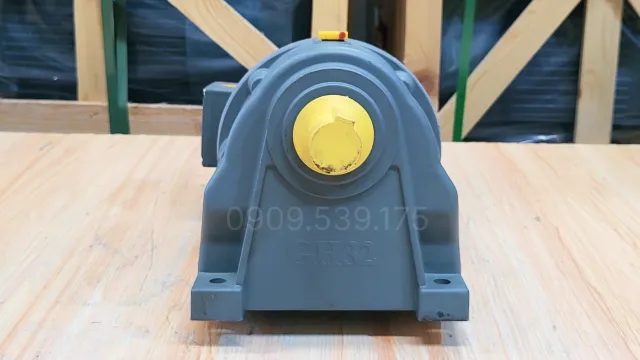

Heavy Duty Brake Gear Motor 90kW 125Hp

Brake Gear Motor 90kW 125Hp is a gear motor type that increases torque and effectively controls rotational speed. With an electromagnetic brake design, this heavy duty gear motor allows for quick and safe stopping or deceleration in emergency situations such as sudden power outages or emergency stop requirements.

General design of the heavy duty brake gear motor 90kW 125Hp

Brake Gear Motor 90kW 125Hp is essentially a 3 phase gear motor equipped with a modern electromagnetic brake system. The gear motor with brake is made of thick aluminum and cast iron materials, ensuring durability and sturdiness.

Externally, the gear motor with brake is coated with electrostatic paint, which not only helps prevent corrosion but also provides high aesthetics and increases visibility in the working environment.

Structure of the brake gear motor

Brake Gear Motor 90kW 125Hp comes in various types, but all are constructed from the following essential components:

Brake Motor

The integrated brake motor is designed with multiple components working closely together to create stable movement and ensure precise stopping capability when needed. The main components include:

• Stator: It is the stationary part of the motor, consisting of an electrical steel core and evenly wound copper coils. When powered, the stator generates a rotating magnetic field to enable the rotor to operate.
• Rotor: Installed inside the stator and directly attached to the motor shaft. Under the influence of the magnetic field, the rotor rotates and generates torque, transmitting power to equipment or machinery systems.

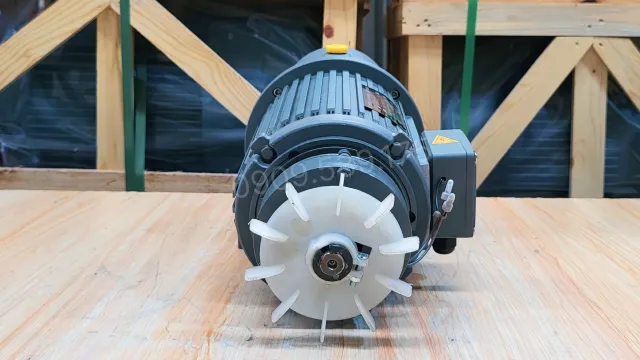

• Electromagnetic brake system: Located at the rear of the motor, consisting of an electromagnetic coil, springs, and a brake disc. When the motor operates, the brake automatically releases allowing the shaft to rotate freely. When power is disconnected, the springs press the brake disc, locking the shaft immediately, helping to hold the load and ensure safety during operation.
• Motor shaft and bearings: The shaft is made of high-strength steel, combined with heavy-duty bearings to help transmit torque stably, reduce friction, and enhance the motor’s lifespan.
• Motor housing: Cast from high-hardness cast iron or aluminum alloy, protecting internal parts while supporting effective heat dissipation during continuous operation.

Heavy Duty R-Series Inline Helical Gear Motor 90kW 125Hp

It is composed of 2 basic parts: the motor shaft and helical gears.

• Motor shaft: The motor shaft part of a heavy duty gearbox is usually larger than that of medium-load or standard-load gearboxes.
• Helical gear component: It is also known as a helical gear. This gear has a helical structure, which creates the advantage of increasing the contact area between gears, thereby enhancing load-bearing capacity.

Specifications of the heavy-duty brake gear motor 90kW 125Hp

Brake Motor 90kW 125Hp 4 poles (1,400 – 1,500 rpm)

This is the most popular motor line because of the perfect balance between speed and pulling force, smooth operation, high mechanical durability, and less heat generation.

Technical specifications

Specifications of Heavy Duty R-Series Inline Helical Gear Motor 90kW 125Hp

Designed for heavy-duty applications requiring high torque and stable operation in continuous industrial environments.

Common applications of the brake gear motor 90kW 125Hp

Brake Gear Motor 90kW 125Hp possesses many outstanding advantages, making it widely applied in various fields such:

• Conveyor systems and lifting cranes for transporting goods quickly and safely.
• Used in goods conveyor lines such as transporting steel, rice conveyors, coal, etc.
• In addition, the gear motor is also used in sand, stone, and concrete crushers.

Installation guide for the brake gear motor

For the heavy-duty R-series inline helical gear motor to operate stably, withstand heavy loads, and achieve optimal transmission efficiency, installation must be carried out according to the correct technical procedure.

• Step 1: Perform an overall inspection of the gear motor, output shaft, couplings, machine base, and installation accessories. Ensure that components are free from impacts and warpage, meet technical specifications, and are thoroughly cleaned before installation.
• Step 2: Place the motor on a sturdy support base, align concentrically between the output shaft and the driven equipment. Then tighten the bolts to the correct torque, connect the power supply according to the technical diagram, and run a no-load test to check vibration, noise, and system operation capability.

Through the gear motor video guiding the installation of the heavy-duty R-series inline helical gear motor, viewers can follow every step in detail from preparation, assembly, alignment to operational testing. The content is presented visually, helping ensure correct technical installation, securing high power transmission capability, durable operation, and extended equipment lifespan. Watch more compilation videos of guides and practical products at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
