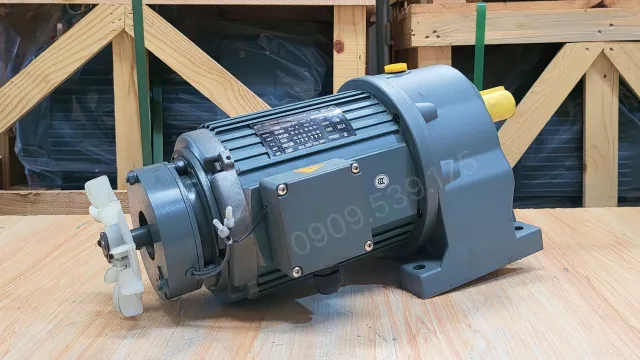

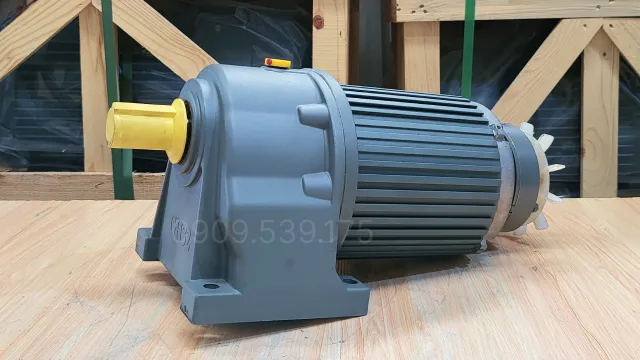

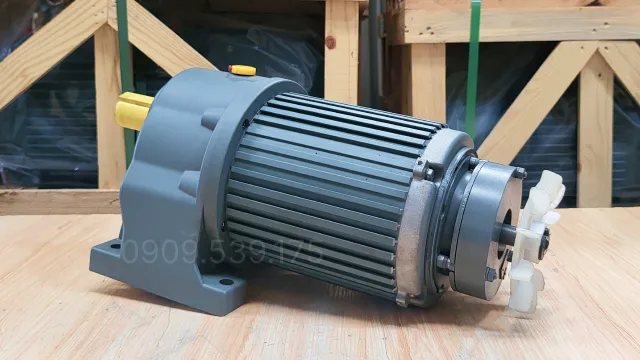

Heavy Duty Brake Gear Motor 18.5kW 25Hp

Brake Gear Motor 18.5kW 25Hp is a type of gear motor used for various applications, allowing easy adjustment of the rotational speed. Heavy duty gear motors are widely favored in fields such as industrial and agricultural production, and various other sectors.

Overview Design of Brake Gear Motor 18.5kW 25Hp

The design of the Brake Gear Motor 18.5kW 25Hp is convenient. The housing of the gear motor with integrated brake is coated with a layer of anti-rust paint in gray or blue. The brake gear motor is made of thick, sturdy cast iron, serving to protect all internal components from external agents. It is assembled from a Brake Motor and an R-Series Inline Helical Gearbox.

The gear motor with brake helps withstand adverse agents such as corrosion, chemical adhesion, or toxic acids.

Structure of Heavy Duty Brake Gear Motor 18.5kW 25Hp

The heavy duty gear motor with brake 18.5kW 25Hp is designed to meet the demands of stable transmission, high torque, and fast load stopping capabilities in industrial systems. The device integrates an electric motor, a gearbox, and an electromagnetic brake into a complete assembly, helping to optimize performance and increase operational safety.

Structure of the 18.5kW 25Hp brake motor

The 18.5kW 25Hp Brake Motor consists of the following main components:

• Stator core: Made of electrical steel sheets stacked together and wound with high-quality copper wire. When powered, the stator creates a rotating magnetic field to keep the motor operating stably.
• Rotor: The rotating part located inside the stator, directly connected to the motor shaft to transmit torque to the gearbox and working equipment.

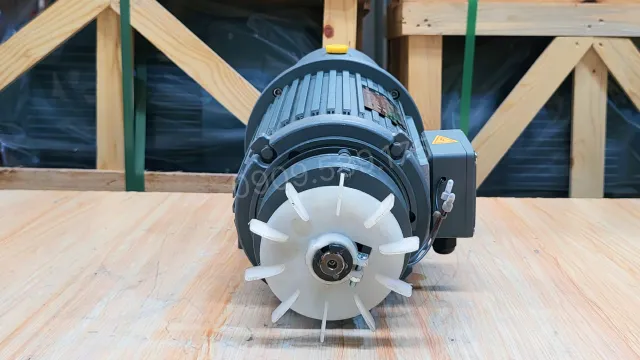

• Electromagnetic brake assembly: Includes the suction coil, brake disc, and return spring. During power-on, the brake is completely released; when power is cut off, the system automatically brakes the shaft to hold the load and ensure safety.
• Shaft and bearings: The motor shaft is machined from high-strength steel, combined with high-load-bearing bearings to reduce friction, ensure smooth operation, and increase equipment lifespan.
• Motor housing: Cast from high-rigidity cast iron or aluminum alloy, integrating cooling fins to help the motor work stably even under continuous load conditions.

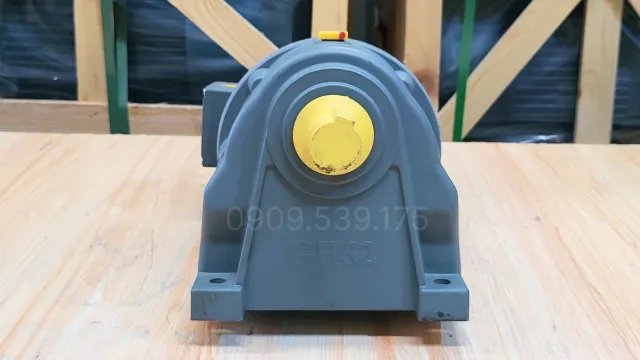

Structure of the R-Series Inline Helical Gearbox 18.5kW 25Hp

The gearbox is responsible for reducing the motor’s rotational speed and increasing output pulling force, meeting transmission requirements in many heavy-duty applications. The main structure includes:

• Transmission shaft system: Including input and output shafts made of high-durability alloy steel, ensuring stable torque transmission and high load-bearing capacity.
• Helical gear transmission set: Gears are precision-machined with a helical tooth structure, helping to increase meshing capacity, provide smooth transmission, reduce noise, while enhancing the efficiency and load-bearing capacity of the entire system.

Technical Specifications of Heavy Duty Brake Gear Motor 18.5kW 25Hp

Brake Motor 18.5kW 25Hp 4-pole (1,400 – 1,500 rpm)

This is the most popular motor line due to its perfect balance between speed and pulling force, smooth operation, high mechanical durability, and lower heat generation.

Technical specifications

Technical Specifications of R-Series Inline Helical Gearbox 18.5kW 25Hp

Designed for heavy-duty applications requiring high torque and stable operation in continuous industrial environments.

Applications of Brake Gear Motor 18.5kW 25Hp

Electromagnetic brake gear motors are widely used in various fields such as:

• Application in industrial systems, factories, and production workshops.
• Used to operate stirring and mixing equipment for chemicals, pharmaceuticals, and liquids.
• Gear motors with brakes are applied in hoisting, lifting, and goods transportation equipment such as hoist elevators and elevators.

Installation Guide for Heavy Duty Brake Gear Motor 18.5kW 25Hp

To ensure the heavy duty brake gear motor 18.5kW 25Hp operates efficiently, minimizes vibration, and guarantees safety, installation must be carried out in accordance with technical requirements.

• Step 1: Check the condition of the motor, gearbox, electromagnetic brake system, and accompanying accessories. Simultaneously inspect the machine base, couplings, and power supply to ensure they meet operational parameters.
• Step 2: Install the motor into the working position, precisely align between the output shaft and the transmission mechanism, then tighten the fixing bolts. Complete the electrical wiring, conduct a test run to check the direction of rotation, stability, and the engagement-release capability of the braking system before putting the equipment into official operation.

Through the installation guide video for the heavy duty brake gear motor 18.5kW 25Hp, users can easily follow the actual installation, inspection, and operation process, helping the equipment work stably, enhancing performance, and extending lifespan. Watch more comprehensive tutorial videos at Thanh Thai Motor.

Warranty, Shipping, and Commitment Policies at Thanh Thai Motor

When purchasing gearmotors at Thanh Thai Motor, you will receive benefits such as:

Warranty up to 24 Months

All gearmotor products at Thanh Thai Motor come with an official 24-month warranty. We are committed to clear after-sales service, with quick and transparent processing procedures – ensuring customer peace of mind during use.

Nationwide Delivery

No matter which province or city you are in, Thanh Thai Motor is always ready to support fast delivery, ensuring on-time delivery, careful packaging, and safe transportation. We supply a full range of 220V gearmotors, variable speed motors, etc., for the diverse needs of customers nationwide.

Products Meet European Quality Standards with German Technology

Our products are manufactured using modern German technology, meeting European standards. Models such as integrated gearmotors, variable speed motors, or 220V gearmotors all ensure stable operation and superior durability.

Competitive Pricing, Good Discounts for Dealers and Bulk Purchasers

We offer affordable gearmotors, suitable for projects with limited budgets. In addition, Thanh Thai Motor has special policies and offers for dealers and bulk purchasers.

Quality Commitment

All 220V gearmotors here are wound with pure copper wire. This ensures powerful, smooth operation and energy savings.

Full Certification Documents: CO, CQ,...

All products such as integrated gearmotors, conveyor motors, or speed reducers come with full Certificates of Origin (CO) and Quality (CQ), meeting stringent technical requirements in industry.
