Brake Motor 11kW 15Hp

Brake Motor 11kW 15Hp is an electric motor product line equipped with an electromagnetic brake system. Belonging to the electric motor segment above 3.7kW, it is commonly applied in heavy industries such as cargo elevators, conveyors, etc.

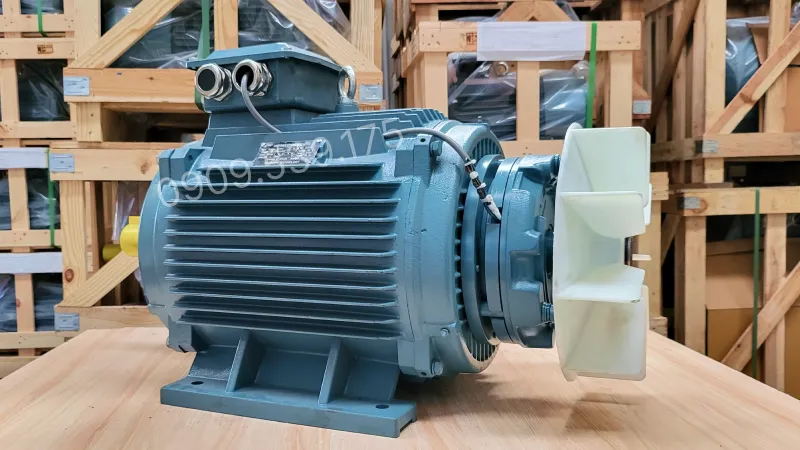

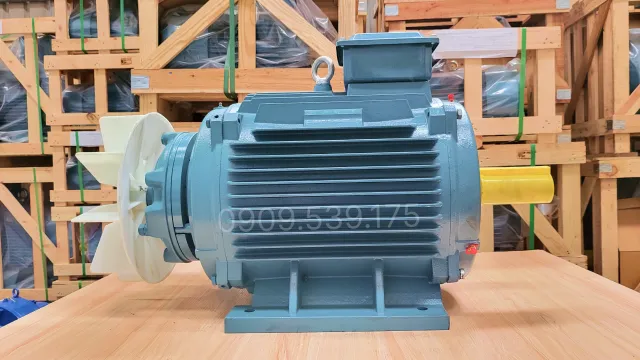

Design overview of Brake Motor 11kW 15Hp

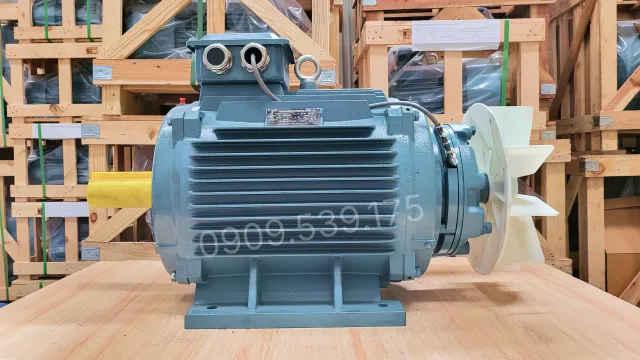

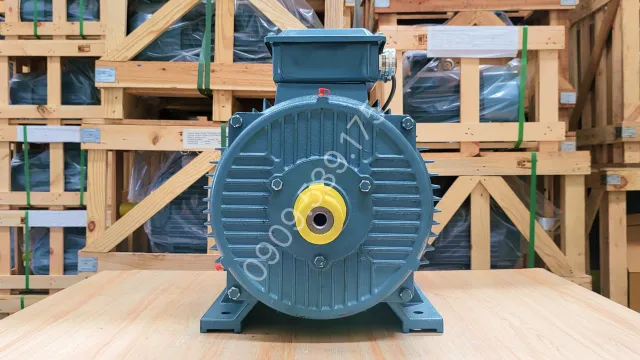

Brake Motor features an impressive and easily recognizable design thanks to its sturdy cast iron or aluminum housing. The surface is coated with blue electrostatic paint, which not only creates aesthetic appeal but also provides superior protection for internal components against harmful environmental factors.

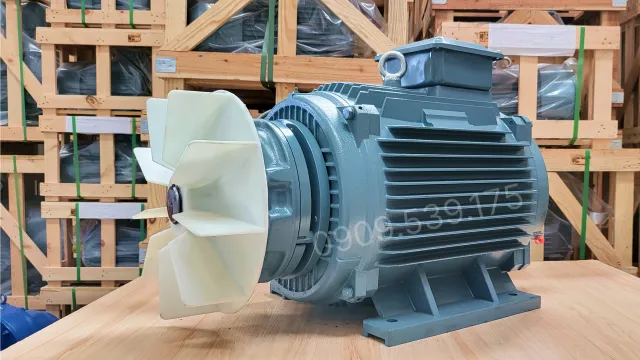

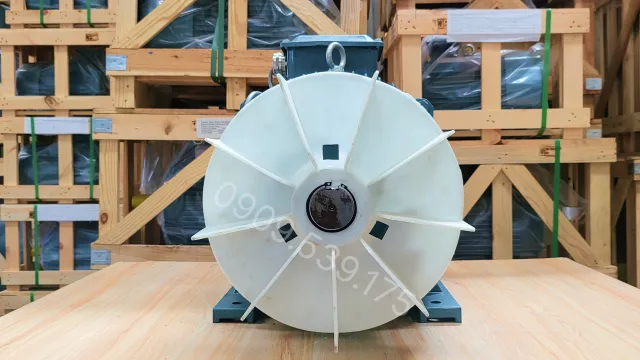

Another highlight is the cooling fan installed at the rear of the motor. This fan plays a crucial role in preventing overheating, thereby protecting the windings and increasing the lifespan of the equipment. In particular, the fan is protected by a fan cover, helping to prevent moisture, dust, and foreign objects from entering the inside.

What is the structure of Brake Motor 11kW 15Hp?

Brake Motor 11kW 15Hp is composed of the following main components:

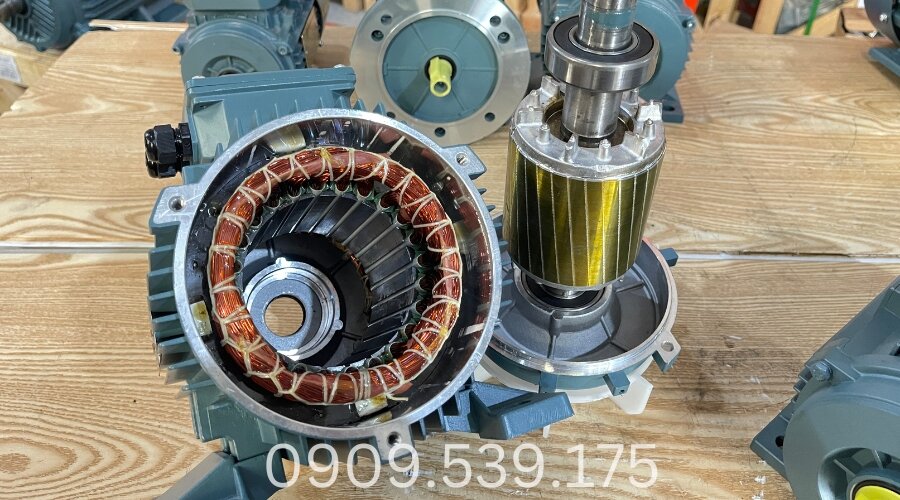

• Stator: This is the stationary part of the motor, consisting of coils wound around a magnet core. When electric current passes through, the stator generates a magnetic field, playing an important role in converting electrical energy into mechanical energy.
• Rotor: Located inside the stator, the rotor is the rotating part of the motor. It benefits from the magnetic field generated by the stator, helping to create the necessary movement for the motor to operate. Torque is generated through the movement of the rotor.
• Electromagnetic brake system: Integrated with the motor, the electromagnetic brake system allows stopping movement quickly and safely. This feature not only ensures safety during operation but also enhances the working efficiency of the equipment.

What are the types of Brake Motor 11kW 15Hp?

Brake Motor 11kW 15Hp is distributed with four basic rotational speed levels, meeting various transmission and braking requirements of production lines. Below are detailed technical specifications.

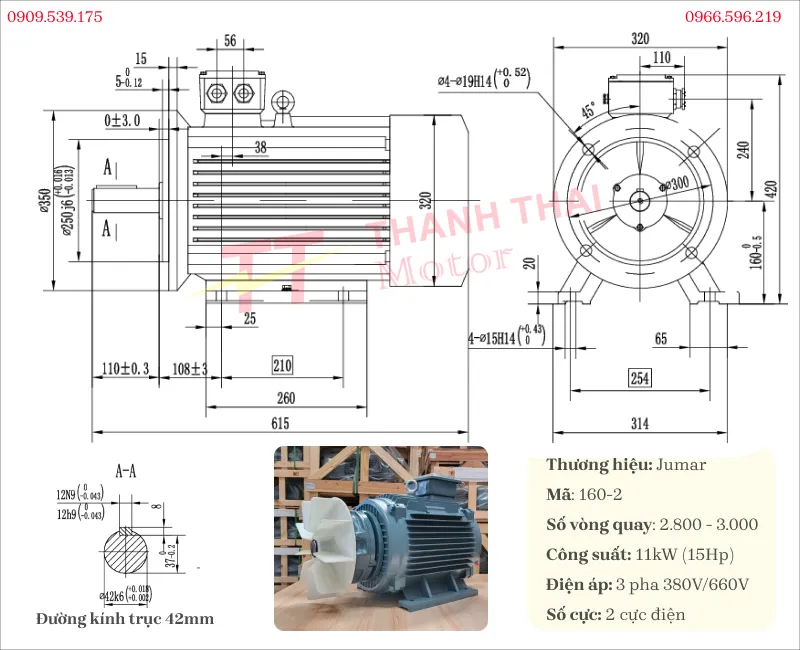

Brake Motor 11kW 15Hp 2 poles (2,800 – 3,000 rpm)

High-speed version specialized for systems that need fast movement and precise stopping at the destination.

Technical specifications:

Code	160M
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	105kg
Dimensions	615 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Automatic plywood cutting lines requiring quick saw blade braking for safe operation.
• Metal grinding machine spindles requiring immediate stopping upon cycle completion.
• High-speed workpiece pushing mechanisms in manufacturing mechanical workshops.

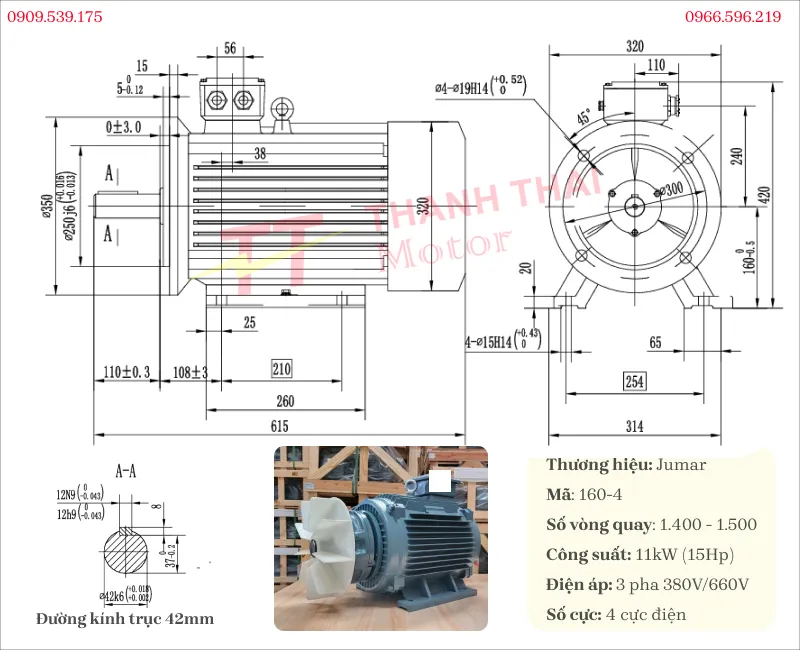

Brake Motor 11kW 15Hp 4 poles (1,400 – 1,500 rpm)

This is the standard speed range, providing stable traction combined with smooth braking capability for moderate heavy loads.

Technical specifications:

Code	160M
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	110kg
Dimensions	615 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

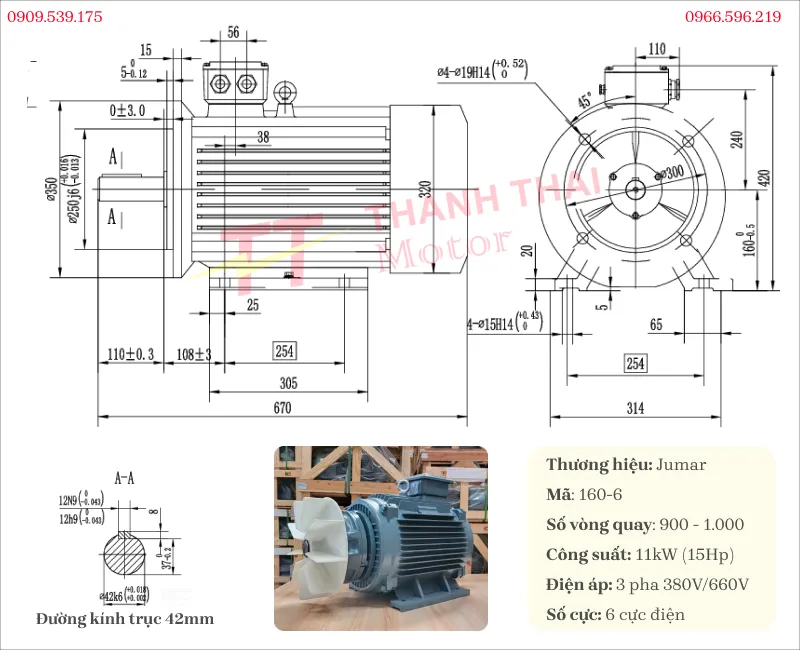

Brake Motor 11kW 15Hp 6 poles (900 – 1,000 rpm)

The equipment is designed to reduce rotational speed to increase torque, suitable for braking large material masses.

Technical specifications:

Code	160L
Shaft diameter	42mm
Keyway	12mm
Flange diameter	350mm
Weight	125kg
Dimensions	670 x 315 x 410 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Cable winding drums of workshop overhead cranes working with fairly high hoisting loads.
• Inclined conveyor systems transporting coal requiring anti-reverse drift features during power outages.
• Large-mass bucket elevator lifting mechanisms at construction material mixing stations.

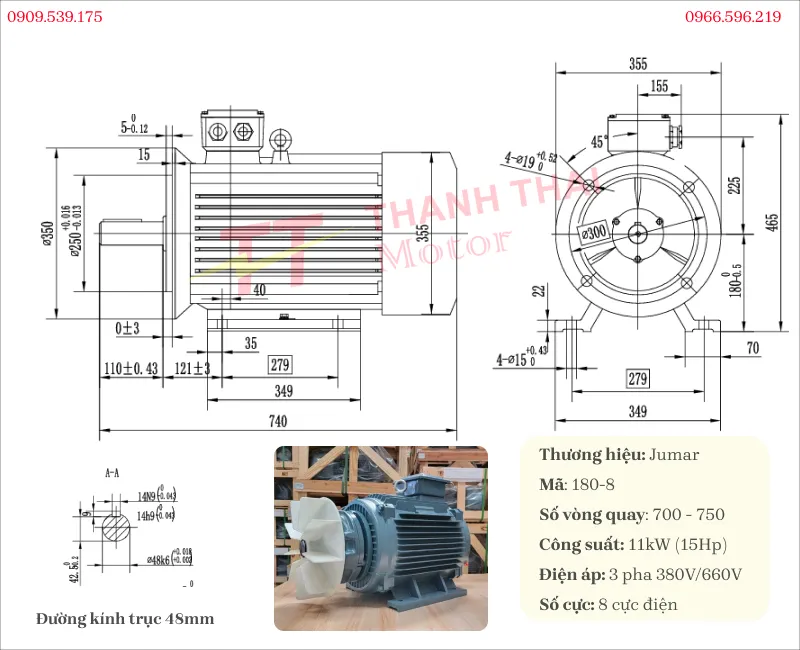

Brake Motor 11kW 15Hp 8 poles (700 – 750 rpm)

The slowest running model, generating very large initial traction accompanied by a solid shaft locking system.

Technical specifications:

Code	180L
Shaft diameter	48mm
Keyway	14mm
Flange diameter	350mm
Weight	160kg
Dimensions	700 x 360 x 440 mm
Mounting type	Foot mount (B3), Flange mount (B35, B5, B14)
Protection class	IP55
Insulation class	Class F

Practical applications:

• Workshop crane systems requiring slow movement speed and safe positioning.
• Large casting mold flipping mechanisms in metal processing workshops.
• Cable winches at small-scale boat repair workshops.

What gearbox does Brake Motor 11kW 15Hp combine with?

To convert 11kW of power into effective torque, technicians often couple the device with heavy-duty gear transmission systems.

• Gearbox series with K-series or R-series gears: K77, K87 or R77, R87 oil-immersed codes specialized for conveyor systems with high impact risks.
• Cast iron worm gearbox: WPA, WPS codes size 135 or size 155 used for traditional lifting winch mechanisms with medium-to-fairly high loads.
• Drive couplings: Use gear couplings or heavy-duty rubber cushion couplings to reduce mechanical shocks acting on the shaft when the brake disengages abruptly.

Wiring guide for Brake Motor

A 3-phase motor with an electromagnetic brake needs to be wired according to the correct diagram so that the brake operates synchronously with the motor. Before proceeding, you should understand the working principle of the magnetic brake unit and related components inside the motor.

Step 1: Read parameters on the motor nameplate

Information on the machine nameplate indicates the operating voltage, power, and operating current of the motor. In addition, it is necessary to check the parameters of the magnetic brake coil to determine the appropriate power supply source. The electric motor video also demonstrates how to identify and read these parameters.

Step 2: Access the wiring area

Disconnect the power supply completely before performing operations. Then remove the terminal box cover to check the internal wires and components. Here, there is usually a wiring diagram provided by the manufacturer.

Step 3: Compare the electrical diagram

Observe the symbols on the terminal posts and compare them with the diagram included with the motor. It is necessary to correctly identify the locations of the power supply terminals and the circuit related to the magnetic brake unit before wiring.

Step 4: Connect power for the motor

Connect the phase wires to the correct terminal posts according to technical requirements. After completion, re-check the tightness of connection points to avoid operational issues.

Step 5: Test run and check the brake

Supply power to the motor and monitor the operation of the magnetic brake. If the brake releases slowly or does not release completely, check the power supply, rectifier circuit, and connection terminals again. To refer to more contents related to the repair and operation of electric motors, users can access the summary video and select the topic that suits their learning needs.
