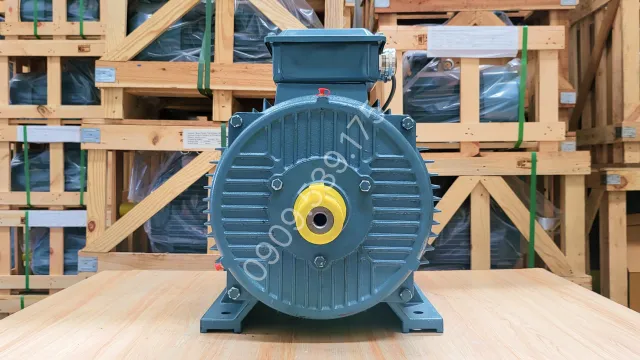

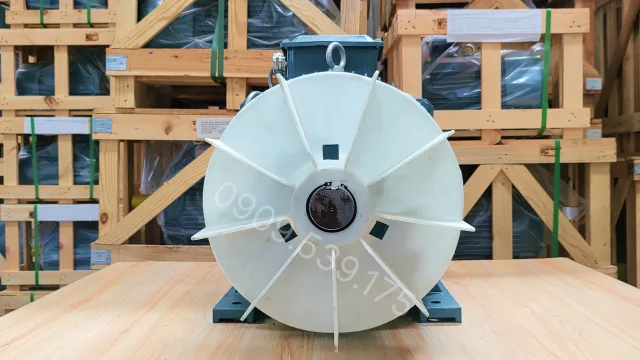

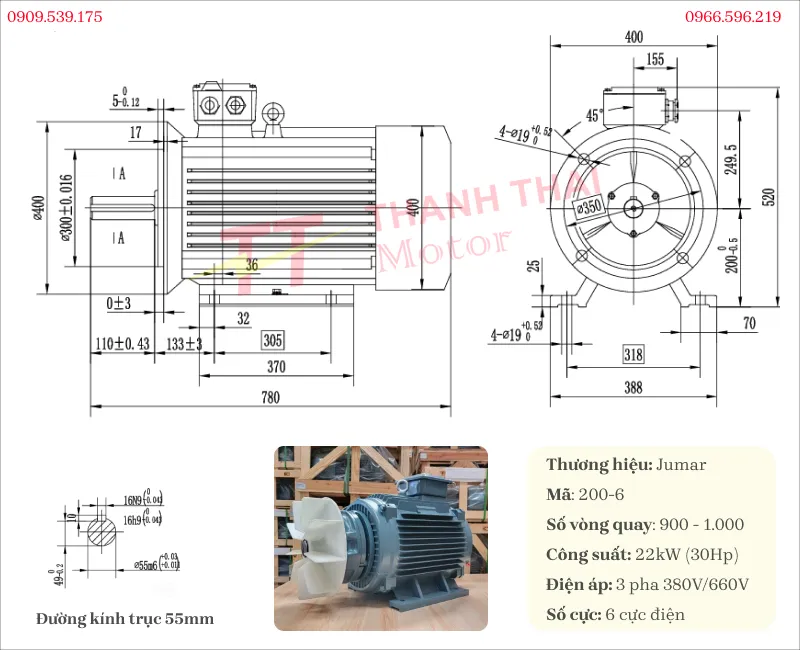

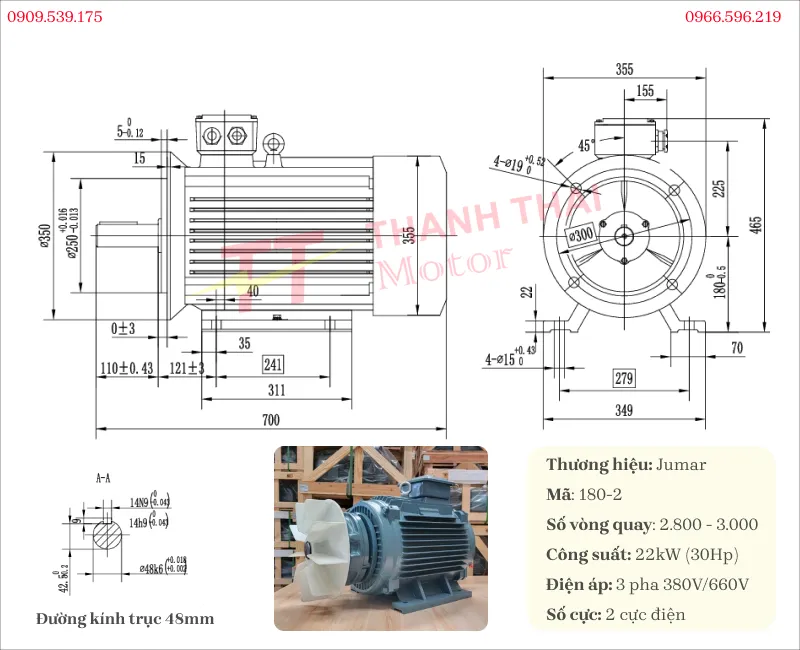

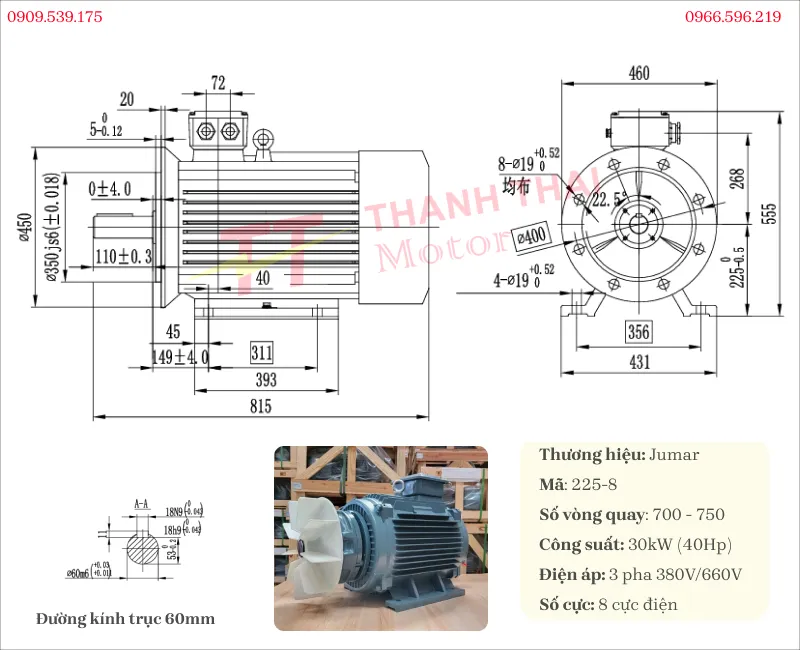

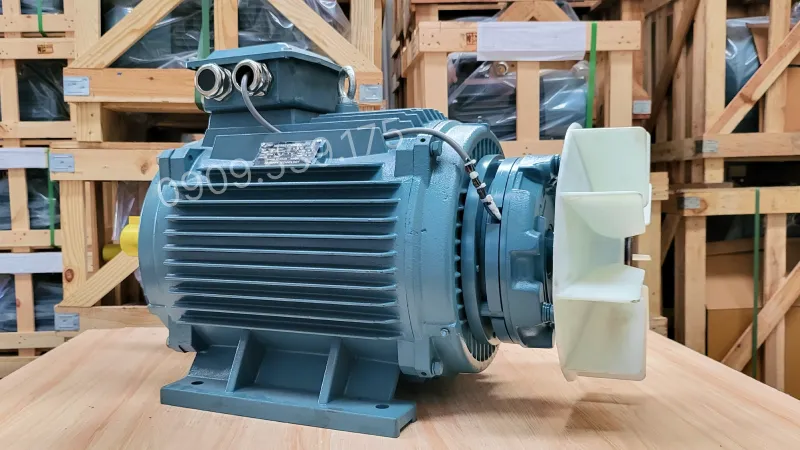

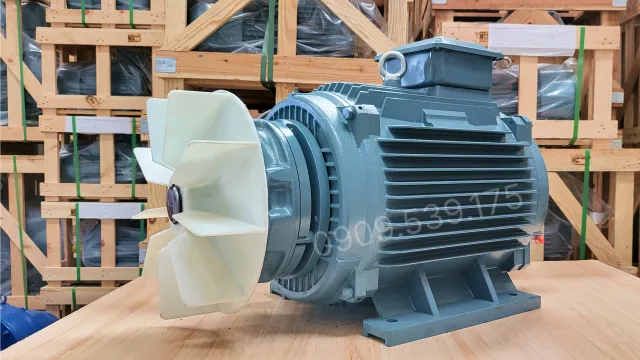

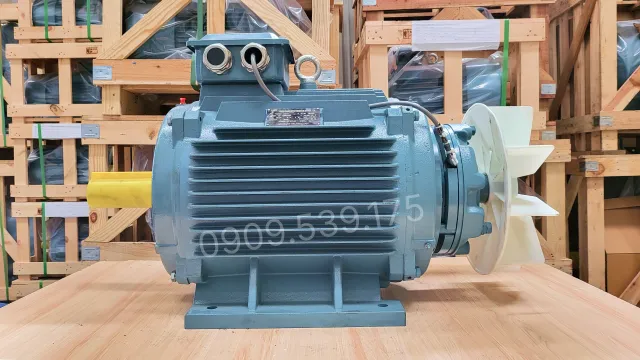

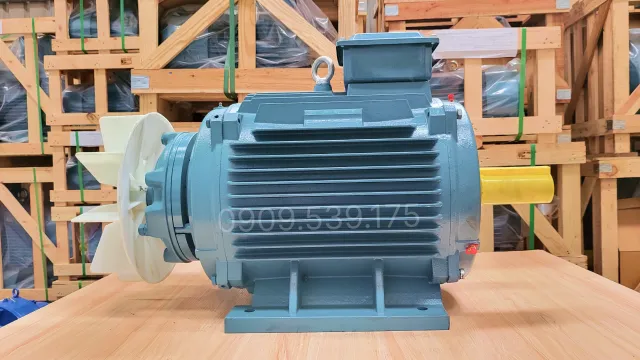

Brake Motor 22kW 30Hp

• Workshop overhead crane systems requiring slow travel speeds and safe positioning.
• Large molded die overturning mechanisms in metal machining workshops.
• Ship pulling winches at large shipbuilding and repair yards.

What kind of gearbox does the Brake Motor 22kW 30Hp combine with?

To optimize torsional force, technicians typically couple the 22kW equipment with specialized gearbox models for heavy-duty mechanical transmission systems.

• Heavy-duty helical gearbox: K87, K97 or R87, R97 oil-immersed codes specialized for high-impact conveyor systems.
• Cast iron worm gearbox: WPA, WPS sizes 155 or 175 used for heavy-load hoisting winch mechanisms.
• Transmission coupling: Use gear couplings or rubber cushion couplings to reduce shocks acting on the shaft during sudden braking.

Wiring instructions for the brake motor

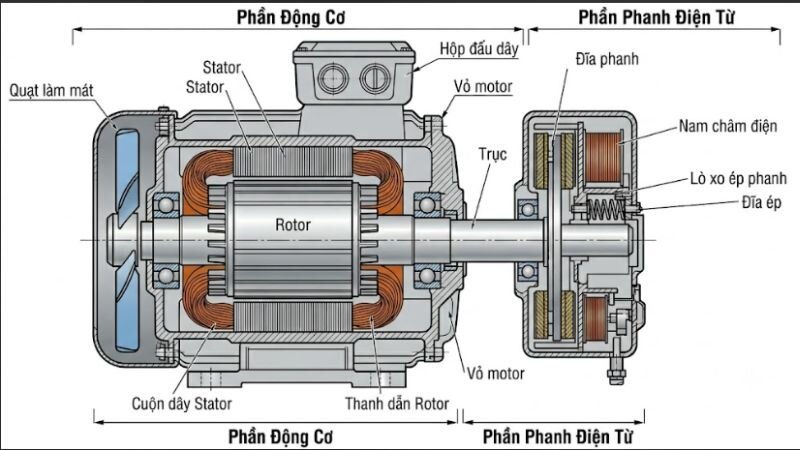

For a safe and highly accurate practical process, you should preview electric motor videos to clearly understand the structure and operating principle of the electromagnetic brake integrated on the motor.

Step 1: Check initial parameters

In electric motor videos, the introduction typically provides complete technical specifications such as voltage, rated motor current, and electromagnetic brake coil. Understanding this information helps you choose the appropriate connection scheme and conductor cross-section before starting.

Step 2: Remove the terminal box cover

Use specialized tools to remove the bolts and open the terminal box cover on the motor body. This area contains important wire ends, including stator wires and diode rectifiers serving the electromagnetic brake system.

Step 3: Identify the terminal studs

After opening the terminal box, you will see copper terminal studs along with the brake rectifier. Carefully observe the circuit diagram to correctly identify the main power supply terminals U, V, W and auxiliary connection points used to supply power to the brake coil.

Step 4: Proceed with wiring

Prepare conductors with suitable load capacity and connect them sequentially to terminals U, V, W. Ensure terminal lugs are tightly secured to avoid poor contact, voltage drop, or phase loss, which causes the brake not to release and overheats the motor during operation.

Step 5: Completion and further reference

After completing the wiring and checking the engagement/disengagement operation of the electromagnetic brake, you can watch more summary videos on Thanh Thai Motor’s video page to expand your knowledge of various other motor lines, as well as update practical troubleshooting experiences.

Warranty, shipping and commitment policy at Thanh Thai Motor

All electric motor products distributed by Thanh Thai Motor are covered by a genuine warranty for up to 24 months. Customers who purchase electric motors can completely rest assured with a transparent, fast, and professional after-sales policy.

Thanh Thai Motor supports nationwide shipping for all electric motors sold, ensuring safe and on-time delivery to every province across the country. Whether you are in the North, Central, or South, we are ready to serve you.

Thanh Thai Motor sells electric motors manufactured with German technology, meeting European quality standards, ensuring durability, high efficiency, and stable operation for a long period – suitable for the strict requirements of industrial electric motors.

We commit to reasonable motor prices, offering the best electric motor products with high discount policies for bulk purchasers and distribution units. The more you buy – the better the profit.

Thanh Thai Motor sells electric motors wound with 100% copper wire, helping the machine run powerfully, consume less electricity, operate smoothly, and effectively reduce vibration – extending equipment lifespan. When purchasing an electric motor, prioritizing products with 100% copper core will be a wise decision, bringing long-term value.

• 220V electric motors (or 220V 1-Phase electric motors) are 1-Phase electric motors commonly chosen for many household appliances and light industrial equipment, offering convenience and efficiency.
• 380V electric motors are 3-Phase electric motors using three-phase power, commonly used in heavy industrial applications.

Thanh Thai Motor provides the best quality electric motors. Each imported electric motor product from Thanh Thai Motor comes with a Certificate of Origin (CO) and a Certificate of Quality (CQ), meeting the requirements for large projects, constructions, and strict technical documentation.
